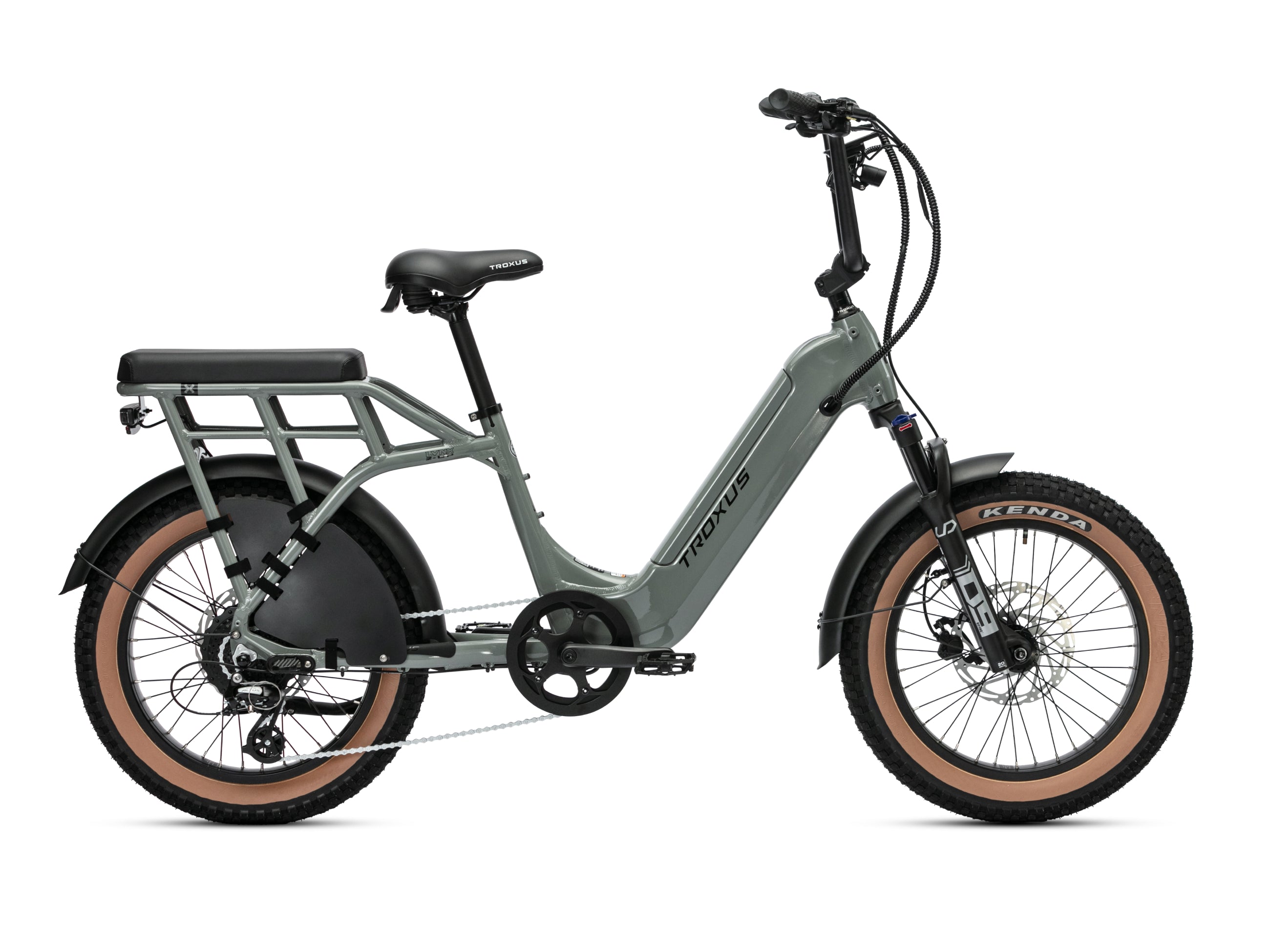

Lynx 2-Up E-Bike


5-YearWarranty
Where other brands stop at 2 years, Troxus goes the distance with you for 5 years, with an unbeatable 5yr / 5,000 Mile Fender to Fender Warranty*. Better yet, the first two years of the warranty are transferrable if you sell your Troxus e-bike or transfer ownership in any way within those first two years. Nobody covers you better, or for as long, as Troxus.
Learn More
5-Year Total Care+ Program
Our 5yr/ 5,000 Mile Fender to Fender Warranty is backed up by our exclusive Troxus Total Care + (TTC+) supplemental warranty. Nobody else offers the same level of added protection. If your bike is damaged in an accident, or if the motor, battery, or other system component wears out in the first 5 years, we will work with your retailer to get you back on the road with discounted replacement parts. Best of all, this “bonus” coverage is free of charge with every purchase of a Troxus bike.
Learn More*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
*All specifications are subject to change without notice.
Ananda® 48V/750W Hub-Drive Motor, 85Nm Peak Torque

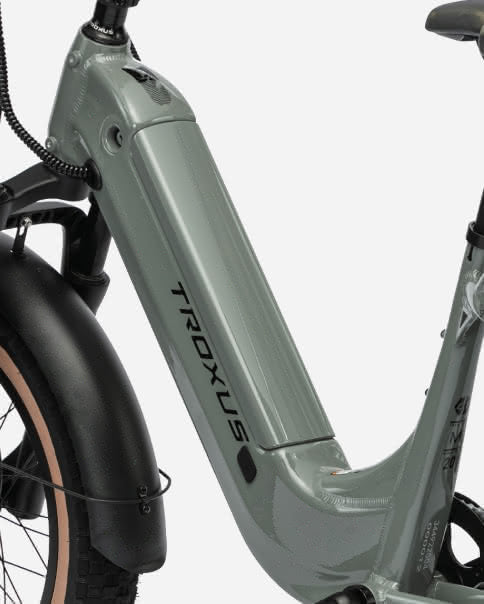

UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells

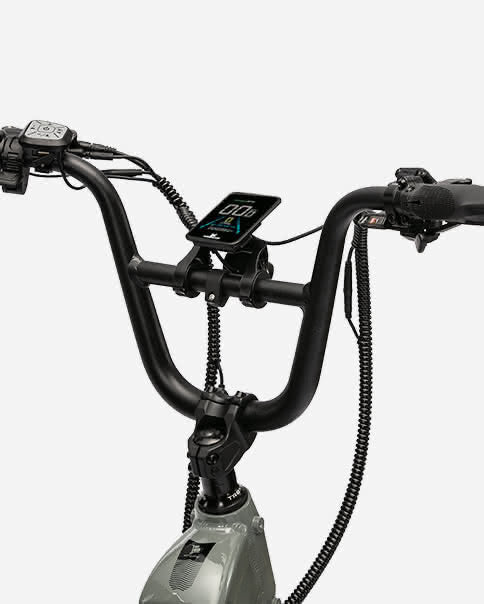

Color Display, Bluetooth, w/ Turn Signals, w/ Multi-Function Remote
Thumb Throttle on Handlebar

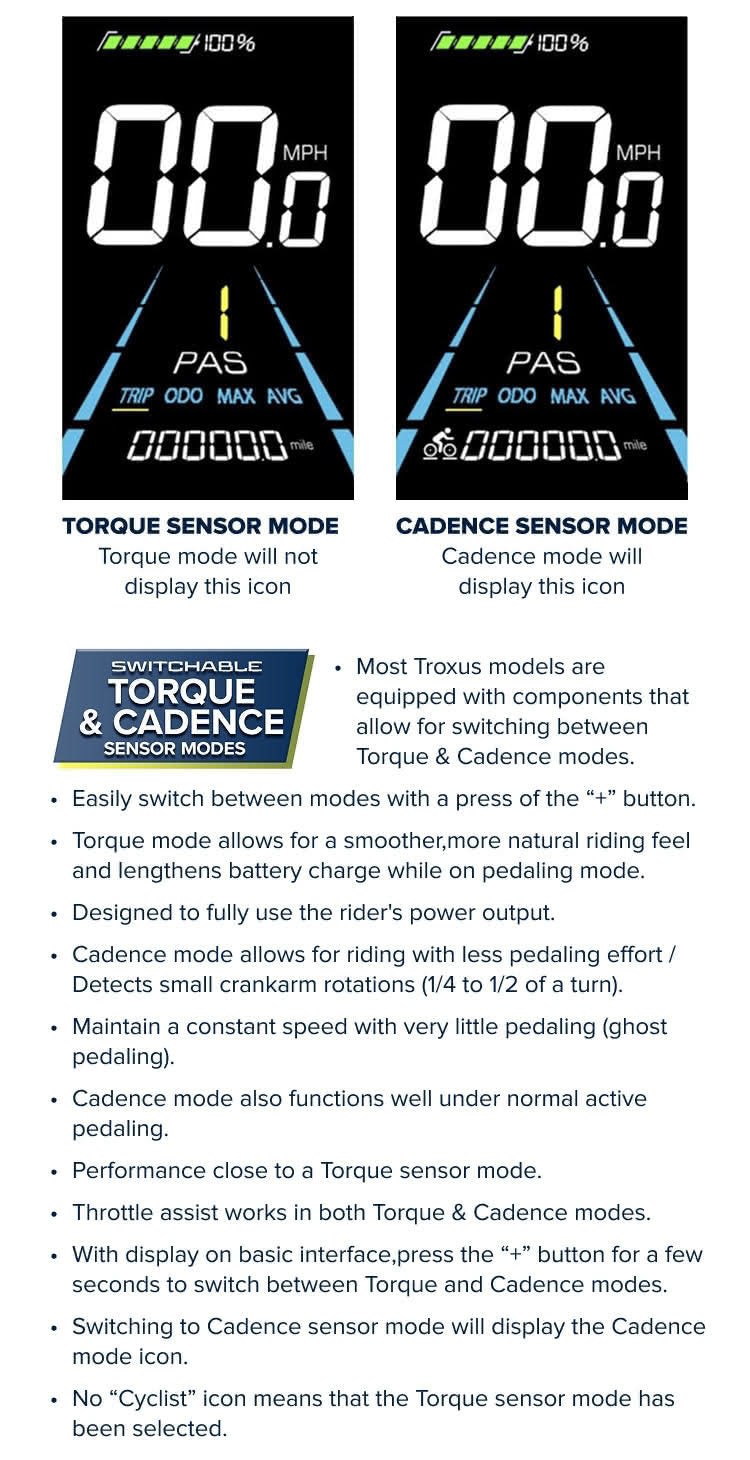

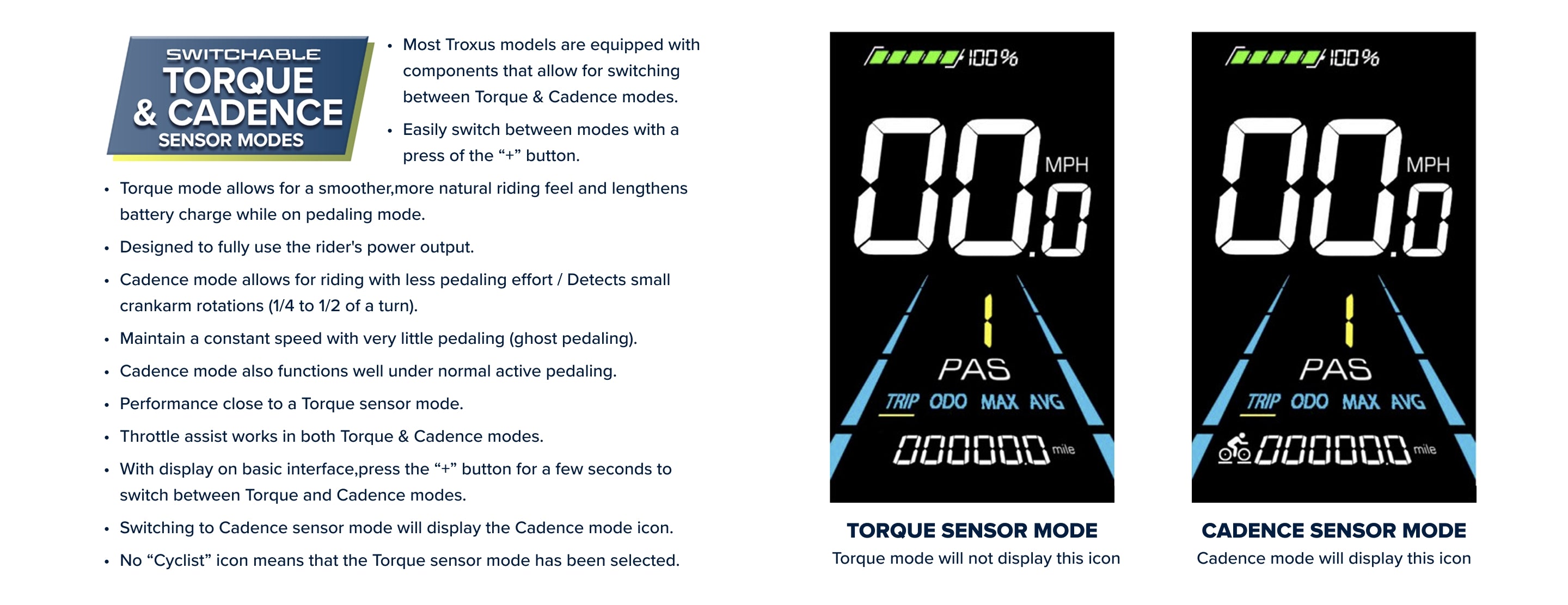

Switchable Torque And Cadence Sensor Modes
0-5 Level Pedal Assist
2A / 100-240V Input / 54.6V Output

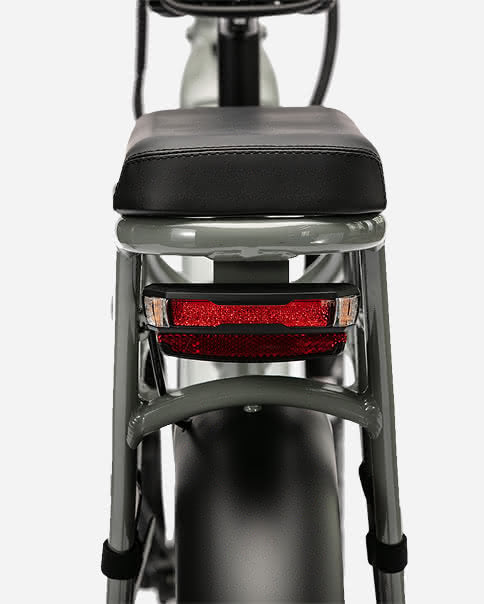

30 Lux Front Light, Rear Light w/ Turn & Hazard Signals
48Vx22A/12V
6061-T6 Aluminum Step-Thru Frame
Front Suspension Fork, 60mm Travel
KMC® 1/2"x3/32"
Aluminum, 46T, w/ Alloy Outer Chainguard, Square Taper, 152mm

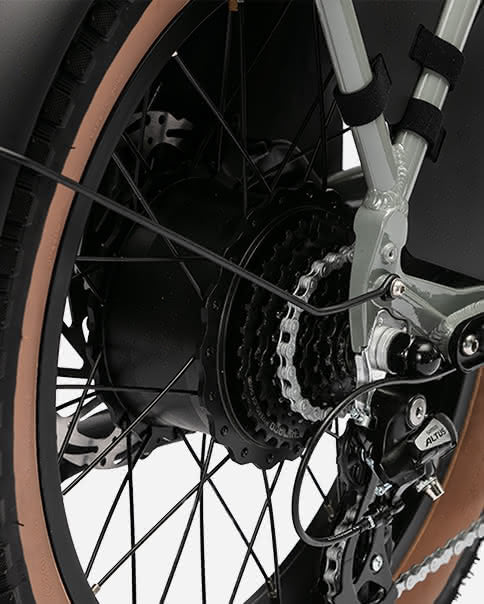

Shimano® RD-M310-L, Altus, 8-Speed
Shimano® 8-Speed, 11-32T
Shimano® 8-Speed
Square Taper Sealed Bearings, Torque & Cadence Sensors Included

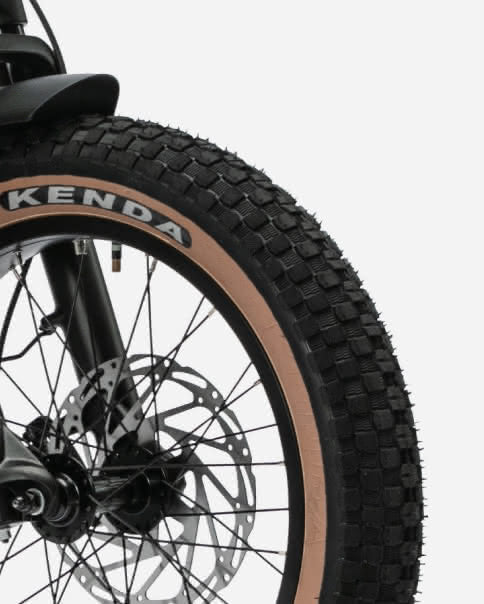

KENDA® 20"x3.3", w/ Anti-Puncture Kevlar Belt
Alloy, 13Gx36H, O.L.D. 135mm, 3/8" Axle w/ Nuts, Length: 160mm
Ananda® 48V 750W/ 28 MPH. 85Nm
Alloy Double Wall, 20"x3.3" w/ Eyelets
Stainless 13G. Front / 12G. Rear

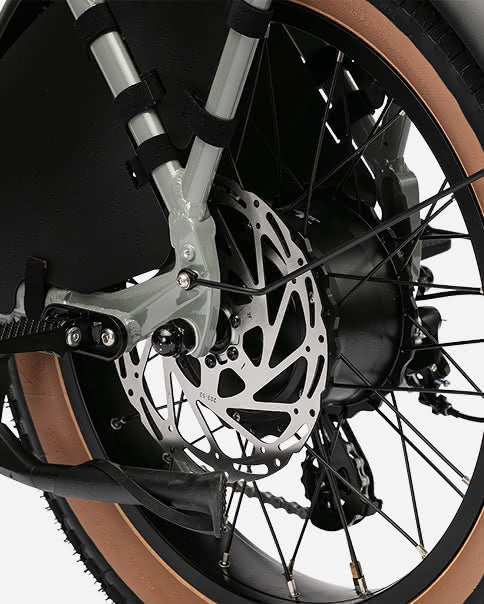

Tektro® Hydraulic, w/ Brake Sensors
203mm / 203mm
Troxus Comfort
Alloy, 30.9x400mm, Adjustable
Alloy, 38.5mm w/ Quick Release
Alloy, BMX style, Top-Load, 30º Angle, 50mm Extension
Alloy 6061-T6, 31.8mmx680mm Wide, 261mm Rise
Ergonomic Comfort
9/16″ Alloy Platform with Reflectors
Threadless, Internal 1-1/8"
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Up To 70 Miles Per Charge
Maximum Load: 360 lbs / Rider: 240 lbs. / Rear Rack: 120 lbs.
73.6 lbs.

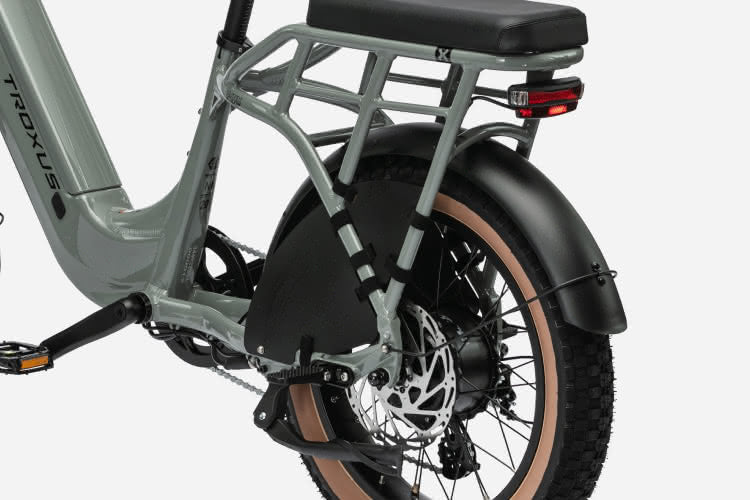

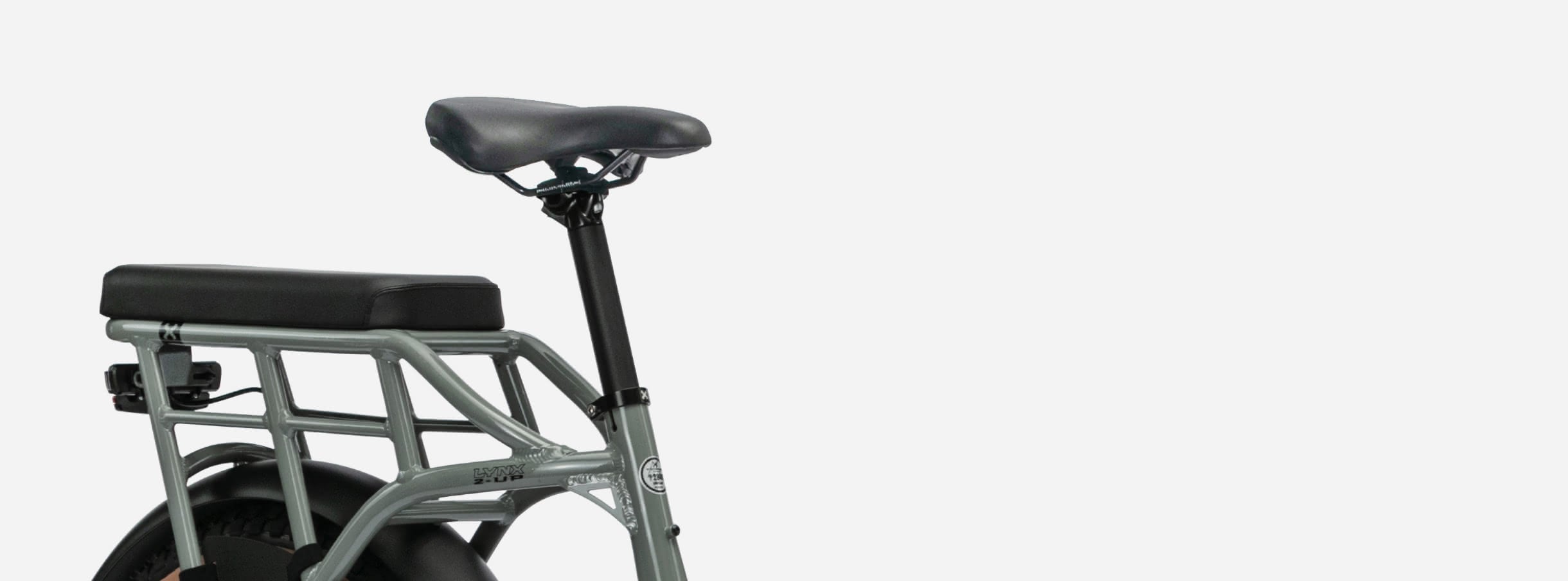

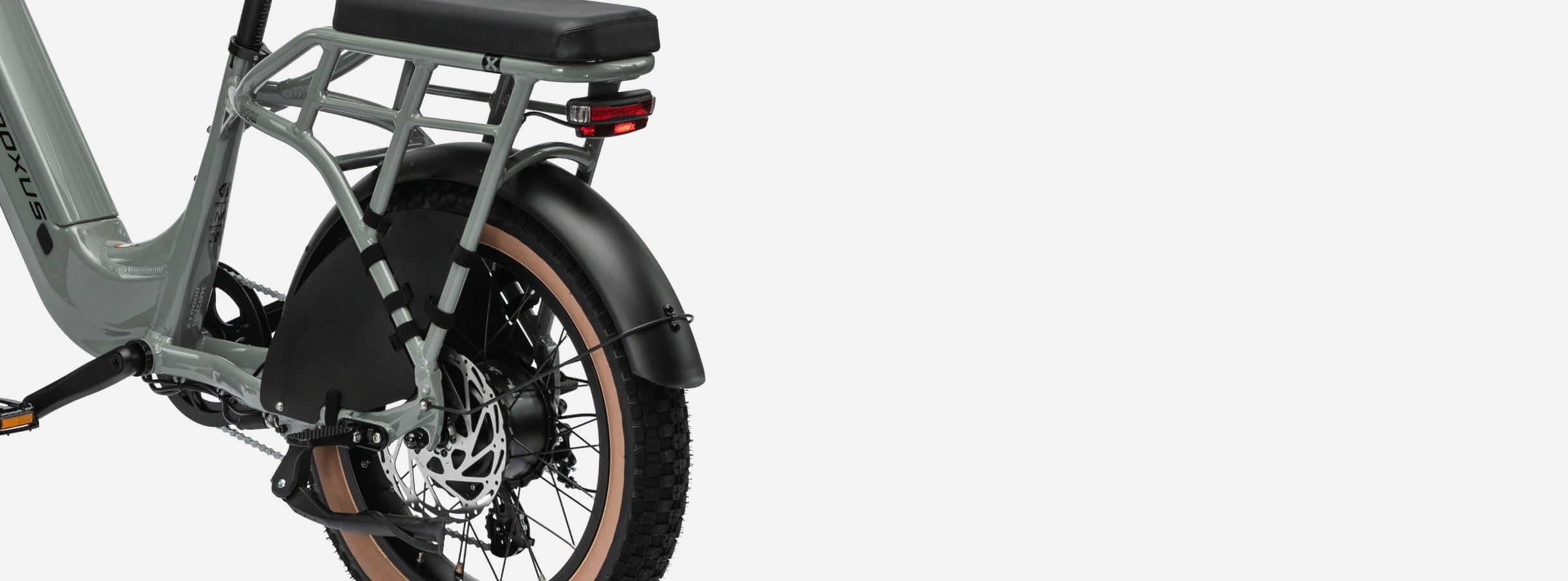

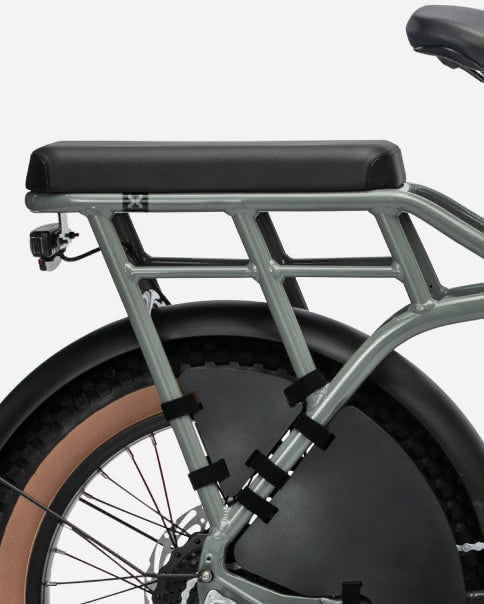

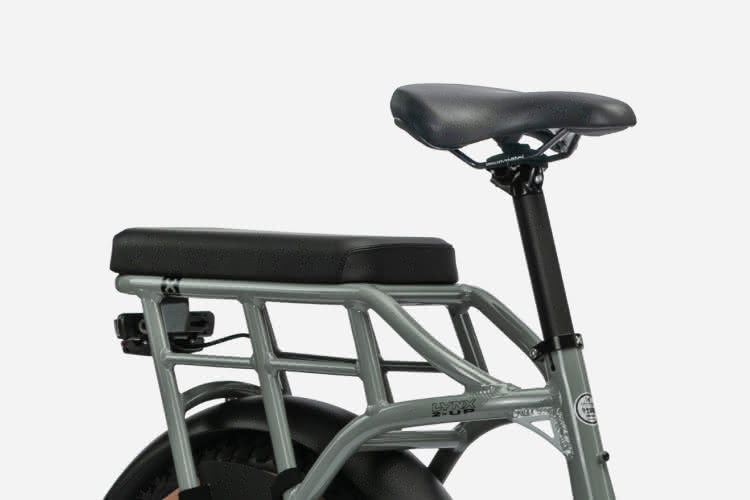

Welded Aluminum Rack w/ Long Passenger Seat
Alloy, 20"x3.3", w/ Alloy Hardware
Adjustable Side Kickstand
Above All Accessories Are Included.
One Size Fits Most

Universal
20"x3.3"

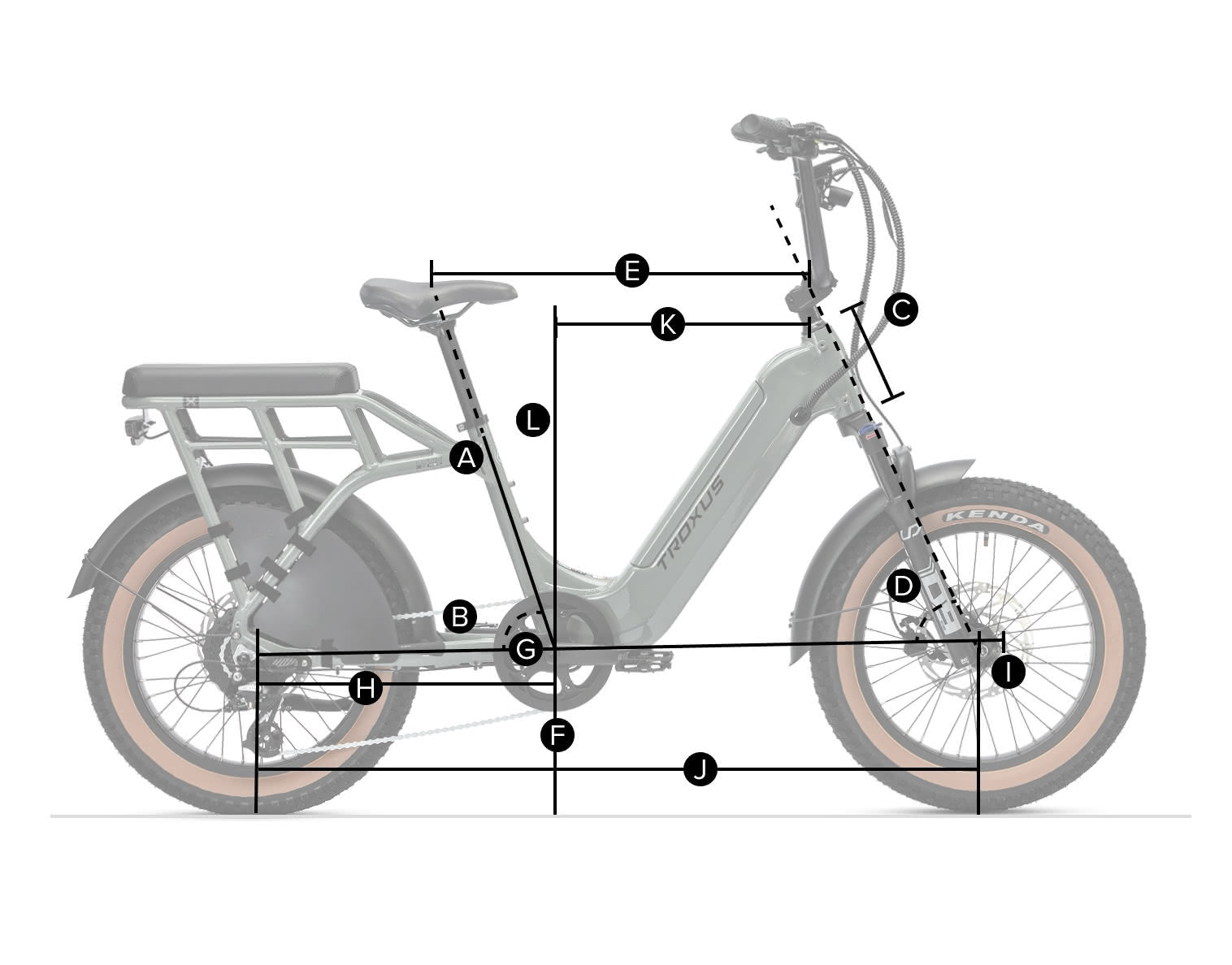

406
73˚
145
68˚
645
287
0
515
46
1261.5
484
528
80
440
