Trax Sport E-Bike


5-YearWarranty
Where other brands stop at 2 years, Troxus goes the distance with you for 5 years, with an unbeatable 5yr / 5,000 Mile Fender to Fender Warranty*. Better yet, the first two years of the warranty are transferrable if you sell your Troxus e-bike or transfer ownership in any way within those first two years. Nobody covers you better, or for as long, as Troxus.
Learn More
5-Year Total Care+ Program
Our 5yr/ 5,000 Mile Fender to Fender Warranty is backed up by our exclusive Troxus Total Care + (TTC+) supplemental warranty. Nobody else offers the same level of added protection. If your bike is damaged in an accident, or if the motor, battery, or other system component wears out in the first 5 years, we will work with your retailer to get you back on the road with discounted replacement parts. Best of all, this “bonus” coverage is free of charge with every purchase of a Troxus bike.
Learn More*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
*All specifications are subject to change without notice.
Jiabo® Hub-Drive Motor 36V/500W+ Peak Power, 50Nm Peak Torque
UL-2771 Certified / Internal / Removable / Lithium Ion, 36V/10Ah (360Wh) with Samsung® Cells, w/ Optional 252Wh Range Extender Battery (36V/7A)

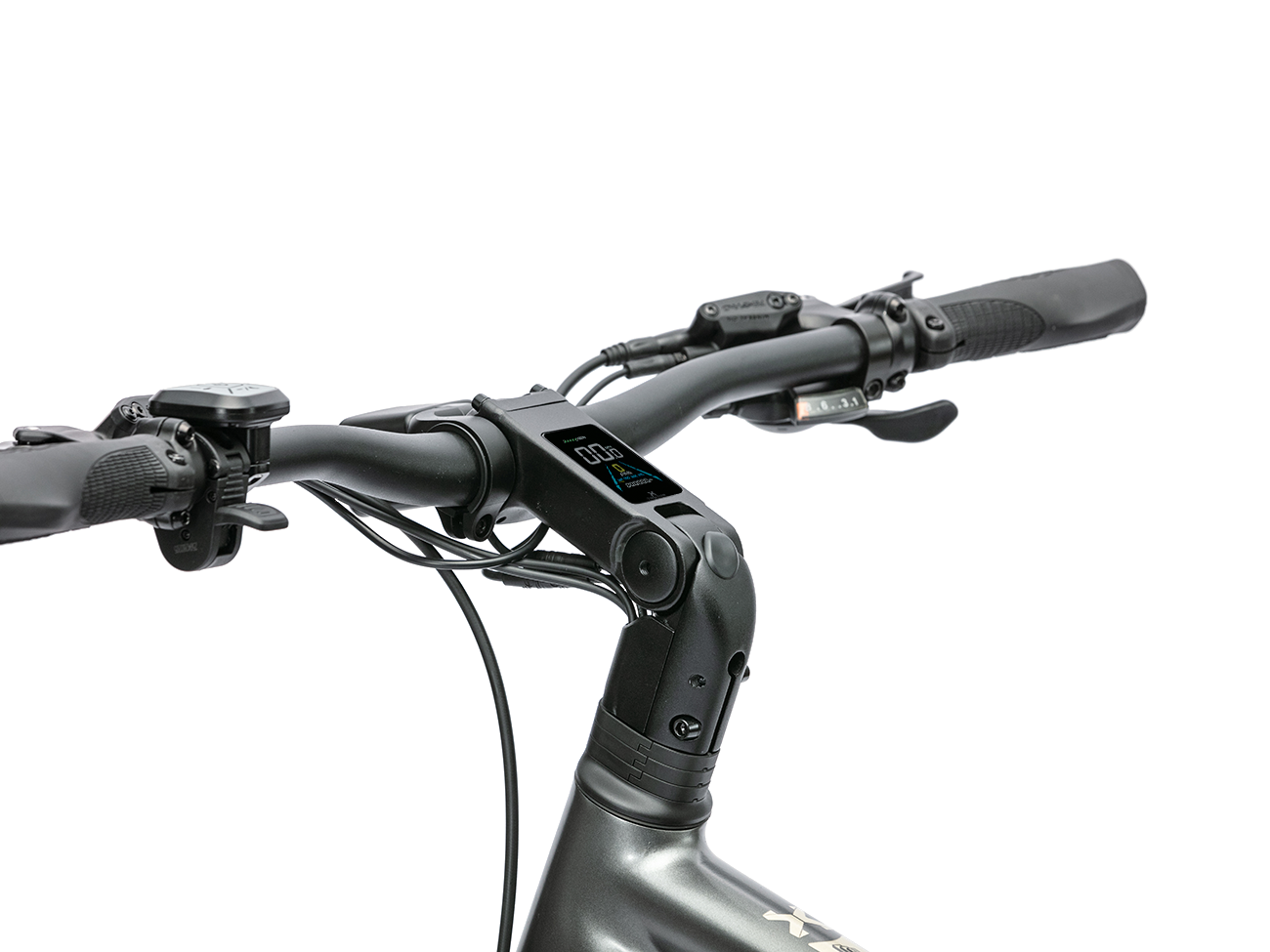

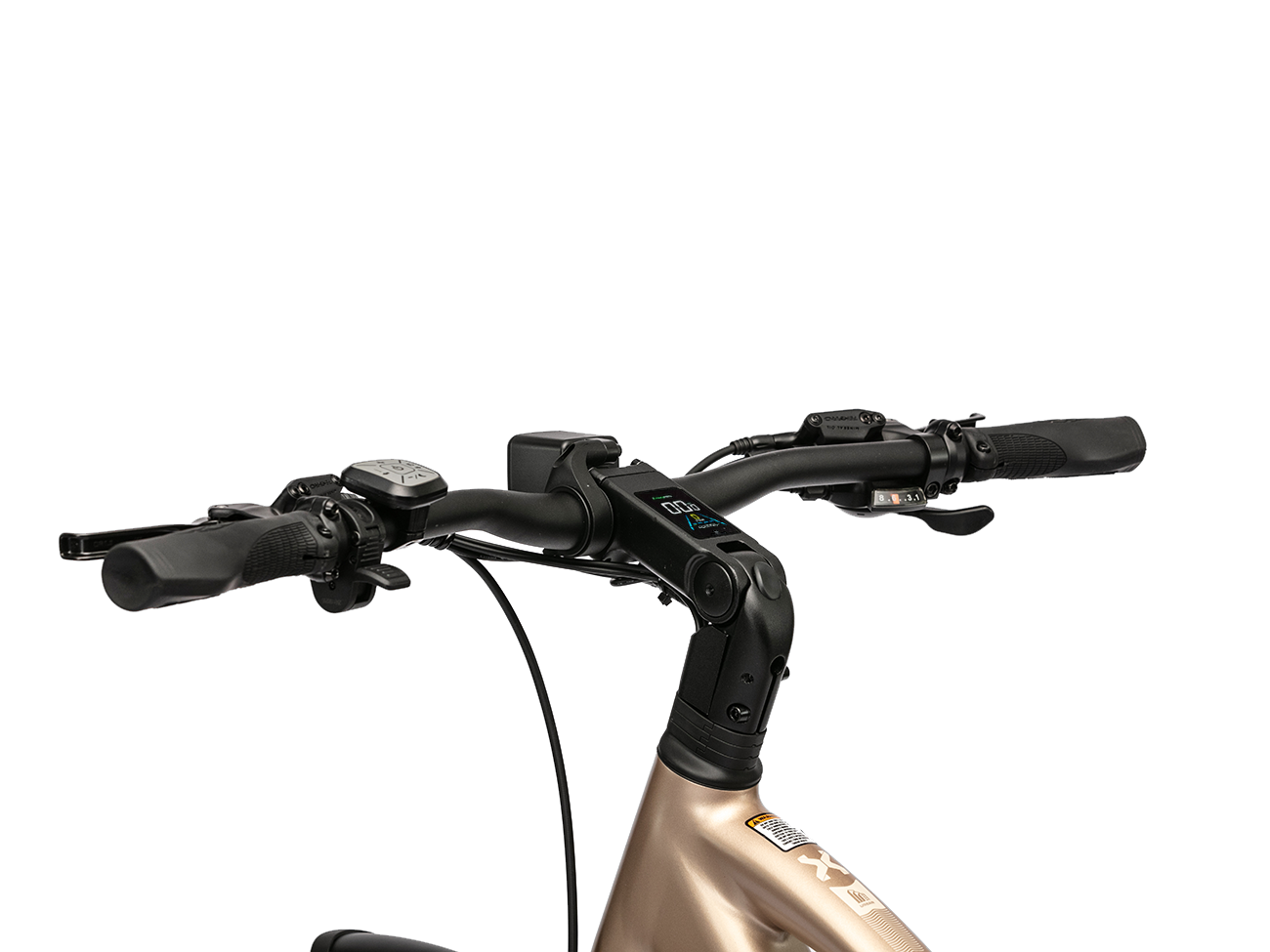

Stem-Integrated Color Display, Bluetooth, w/ Turn Signals, w/ Multi-Function Remote
Thumb Throttle on Handlebar
Switchable Torque And Cadence Sensor Modes
0~5 Level Pedal Assist
2A / 100-240V Input / 42V Output
80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
36Vx15A/12V
6061-T6 Aluminum Frame, Lightweight, Mid-Step & Step-Over
Rigid Aluminum, 700c, Tapered 1.5", Internal Front Brake Routing
KMC® 1/2"x3/32"
Aluminum, 46T, w/ Alloy Chainring & Single Chainguard, Square Taper, 170mm
Shimano® RD-M310-L, Altus, 8-Speed
Shimano® 8-Speed, 12-32T
Shimano® 8-Speed
Square Taper Sealed Bearings, Torque & Cadence Sensors Included
KENDA® K-1266 Urban 27.5"x1.75"
Alloy, 14Gx36H, O.L.D. 100mm, 3/8"Axle, w/ Nuts
Jiabo® 36V 350W+/ 25 MPH. 50Nm
Alloy Double Wall, 27.5"x2.0" w/ Eyelets
Stainless 14G. Front / 13G. Rear
Tektro® Hydraulic, w/ Brake Sensors
180mm / 160mm
Troxus Comfort / 195mm Wide
Alloy, 30.9x400mm, Adjustable
Alloy, 35mm w/ Quick Release
Alloy, Forged, Adjustable, w/ Integrated Display / Ext. 110mm, w/ Internal Cable Routing
Zoom® Alloy, 31.8mmx700mm Wide, 20mm Rise, 9 Deg. Backsweep
Ergonomic Comfort
9/16″ Alloy Platform with Reflectors
ICR Type, Threadless, Internal 57/62mm, w/ Internal Cable Routing
Max Speed Up To 20 MPH on Throttle / Up To 25 MPH on Pedal Assist
Up To 45 Miles Per Charge/ Up to 65 Miles w/ Range Extender
Maximum Load: 300 lbs. / Rider: 245 Lbs. / Rear Rack: 55 lbs.
47 lbs
Lightweight Alloy Rear Model / MIK-Compatible Rear Rack
Plastic 27.5"
Adjustable Side Kickstand
Above All Accessories Are Included.
5'0" - 5'5" (153 - 166cms)
5'5" - 5'10" (166 - 178cms)
5'9" - 6'4" (176 - 193cms)

Mid-Step
Step-Over
Step-Over
Small
Medium
Large
27.5"x1.75"
27.5"x1.75"
27.5"x1.75"
394
445
495
74˚
74˚
74˚
140
145
155
69˚
69˚
69˚
552
590
609
285
285
285
62
62
62
455
455
455
45
45
45
1082
1121
1141
388
425
441
571
576
585
0
0
0
420
420
420
