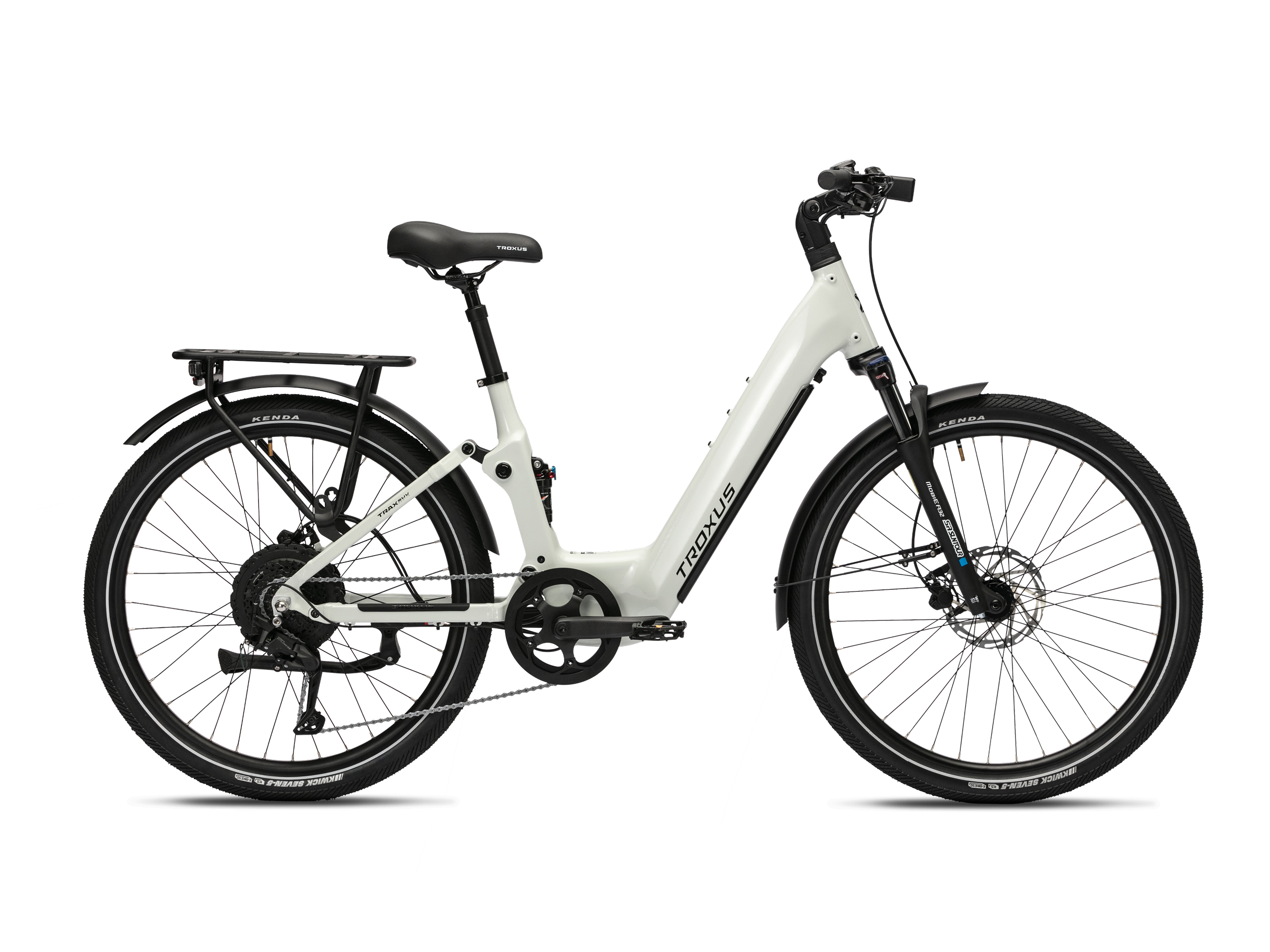

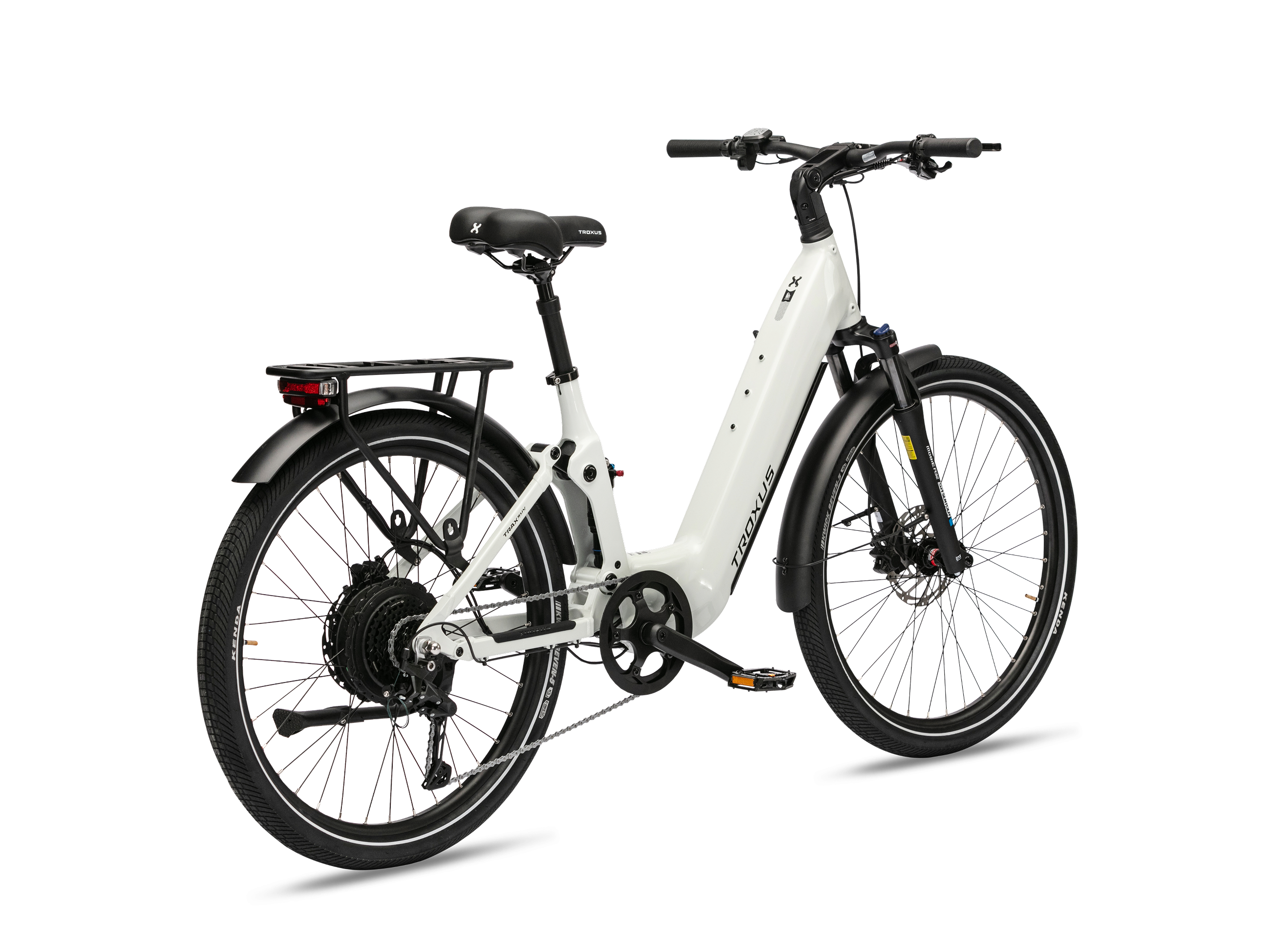

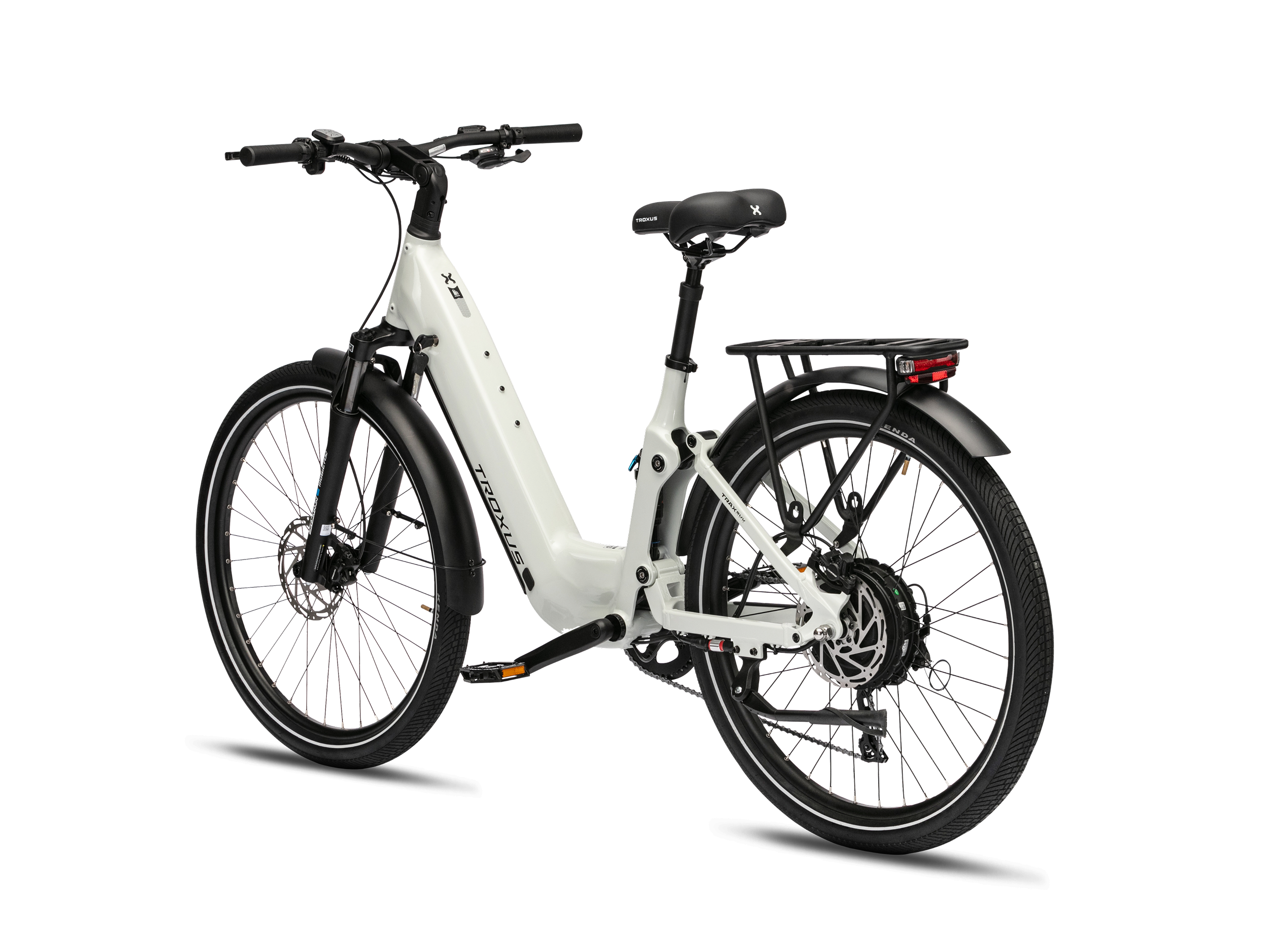

Trax SUV 15/750 E-Bike


5-YearWarranty
Where other brands stop at 2 years, Troxus goes the distance with you for 5 years, with an unbeatable 5yr / 5,000 Mile Fender to Fender Warranty*. Better yet, the first two years of the warranty are transferrable if you sell your Troxus e-bike or transfer ownership in any way within those first two years. Nobody covers you better, or for as long, as Troxus.
Learn More
5-Year Total Care+ Program
Our 5yr/ 5,000 Mile Fender to Fender Warranty is backed up by our exclusive Troxus Total Care + (TTC+) supplemental warranty. Nobody else offers the same level of added protection. If your bike is damaged in an accident, or if the motor, battery, or other system component wears out in the first 5 years, we will work with your retailer to get you back on the road with discounted replacement parts. Best of all, this “bonus” coverage is free of charge with every purchase of a Troxus bike.
Learn More*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
*All specifications are subject to change without notice.
Bafang® 48V/750W Hub-Drive Motor, 85Nm Peak Torque
UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells

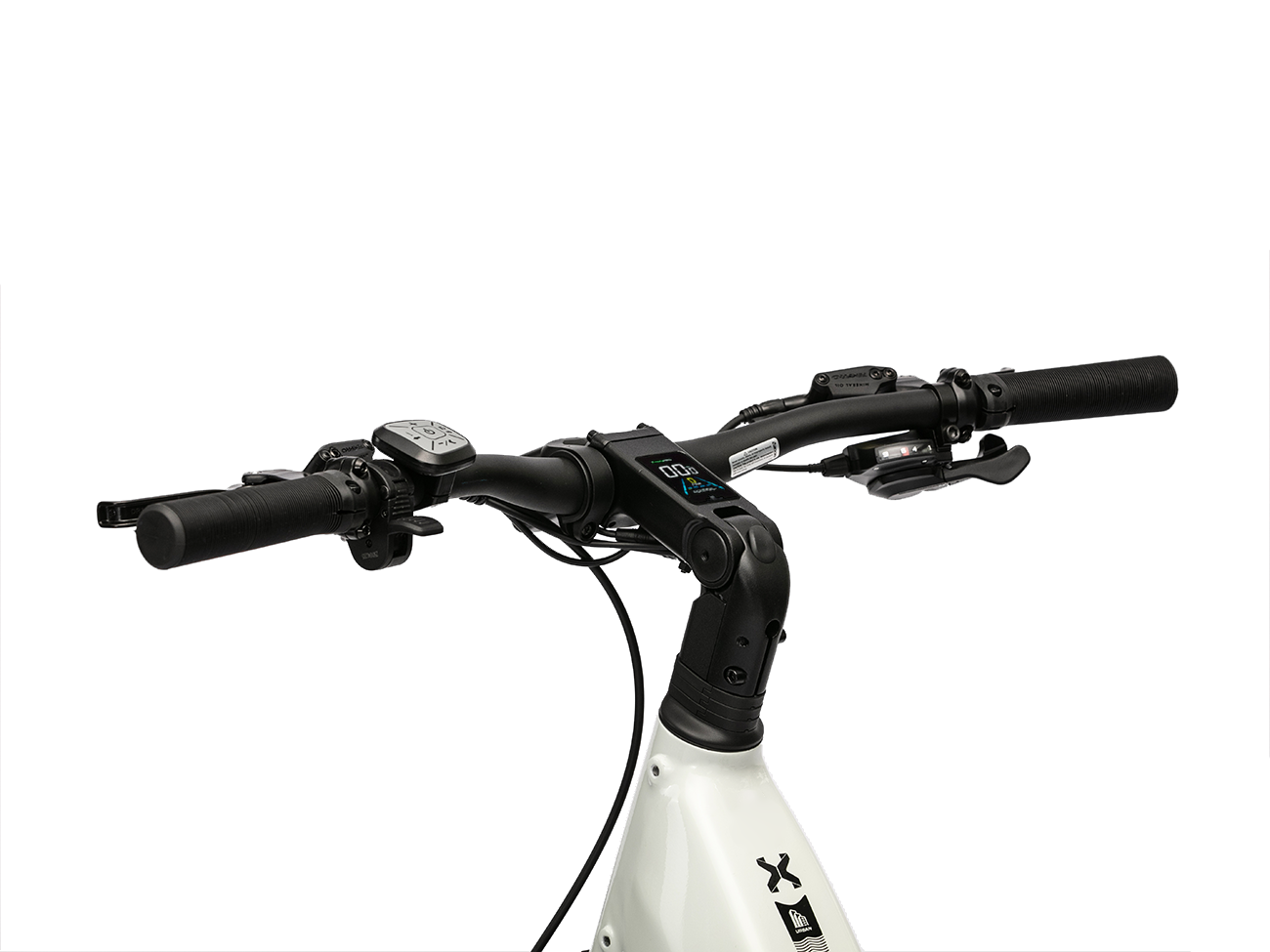

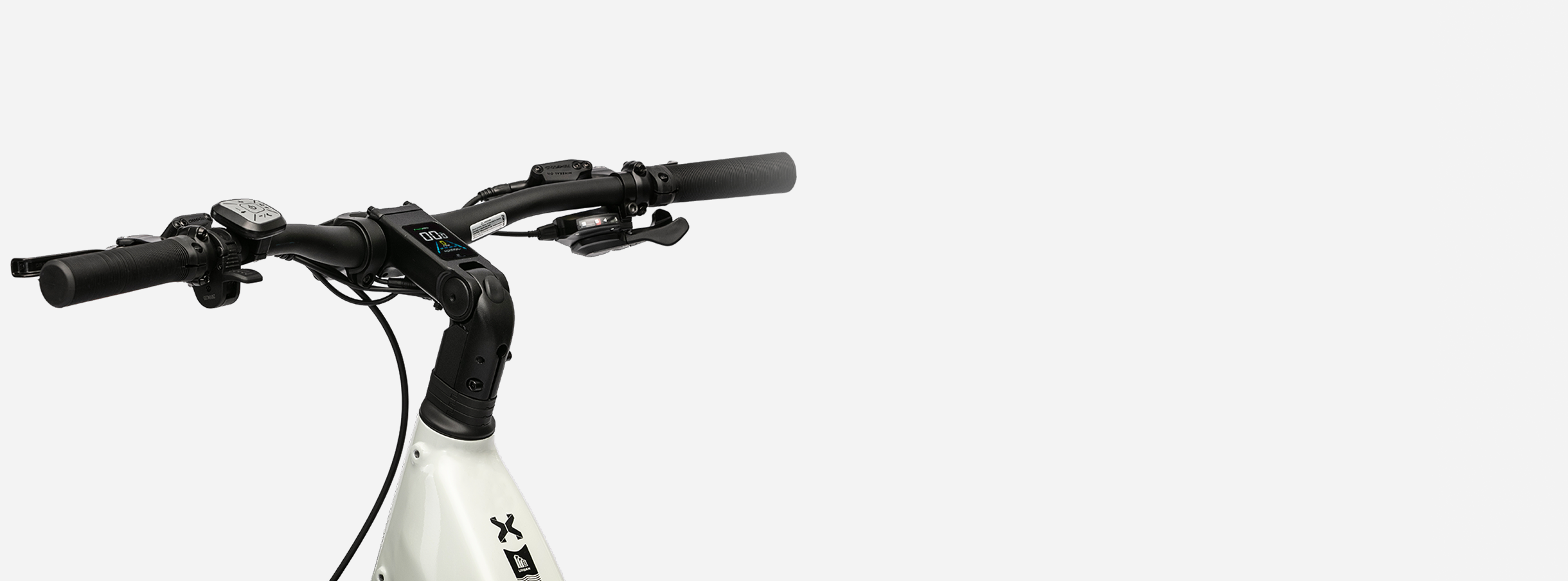

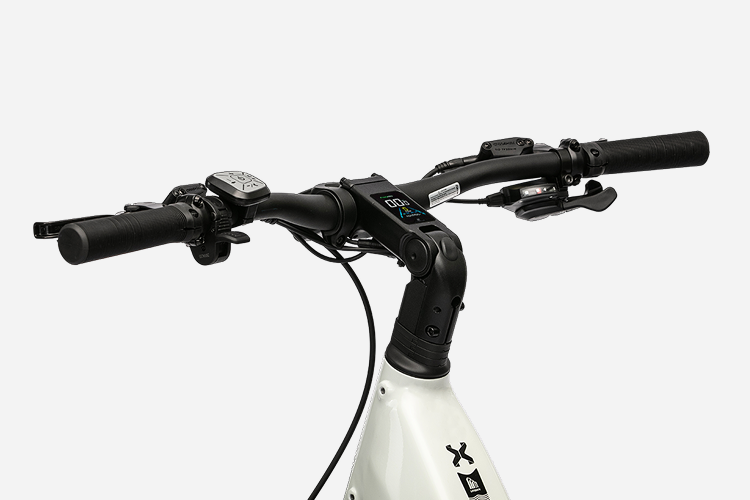

Stem-Integrated Color Display, Bluetooth, w/ Turn Signals, w/ Multi-Function Remote
Thumb Throttle on Handlebar
Switchable Torque And Cadence Sensor Modes
0~5 Level Pedal Assist
2A / 100-240V Input / 54.6V Output
80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
48Vx22A/12V
6061-T6 Aluminum Frame, Dual Suspension, Travel 75mm
Suntour® Front Suspension Fork, MOBIE-A32, 75mm Travel
KMC® CUES 9-Spd
Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
Shimano® CUES, 9-Speed
Shimano® 9-Speed, 11-36T
Shimano® CUES 9-Speed
Square Taper Sealed Bearings, Torque & Cadence Sensors Included
KENDA® 27.5x2.4", w/ Reflective Stripes
Sealed Bearing, O.L.D. 100mm, 15mm Thru-Axle
Bafang® 48V 750W/ 28 MPH. 85Nm
Alloy, Double Wall Front & Rear, 36H, w/ Eyelets
Stainless 14G. Front / 13G. Rear
Tektro® Hydraulic, w/ Brake Sensors
180mm / 180mm
Troxus Comfort / 200mm Wide
Alloy, 30.9x200 / 250mm
Alloy, 35mm w/ Quick Release
Alloy, Forged, Adjustable, w/ Integrated Display / Ext. 110mm, w/ Internal Cable Routing
Alloy, 31.8mmx680mm Wide, 25mm Rise, 9 Deg. Backsweep
Ergonomic Comfort
9/16″ Alloy Platform with Reflectors
ICR Type, Threadless, Internal 57/62mm, w/ Internal Cable Routing
DNM AO-38RC Air Shock, 165x35mm Travel
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Up To 70 Miles Per Charge
Maximum Load: 300 lbs. / Rider: 245 Lbs. / Rear Rack: 55 lbs.
75 lbs.
Lightweight Semi-Integrated Alloy Rear Model / MIK-Compatible Rear Rack
Alloy, 27.5"x2.4", Full Coverage
Adjustable Side Kickstand
Above All Accessories Are Included.
5'5" - 5'10" (166 - 178cms)
5'10" - 6'4" (176 - 193 cms)

Step-Thru
Step-Over
Medium
Large
27.5"x2.4"
27.5"x2.4"
445
483
74.4˚
74.4˚
160
165
68˚
68˚
626
647
321
321
35
35
480
480
44
44
1214
1236
455
475
611
616
75
75
476
476
