Lynx Cargo E-bike

Name: Lynx Cargo E-bike
Brand: Troxus Mobility
SKU: 10870100194
Price: 2199.0 USD
Availability: InStock
Rating: 5.0 (2 reviews)

$2,199.00 USD $2,599.00 USD

Interest-free installments:

Color:Gloss Mango

Variant

20 MPH

Max Speed

Addy Gets a NEW E-Bike + Back to School Shopping !!!

Tic Tac Toy Family

This Cargo Ebike Isn't Normal - Troxus Lynx Cargo Review

TailHappyTV

This eBike Is A Game Changer! | Troxus Lynx Cargo eBike Review

Eric Hernandez

THE BEST CARGO E-BIKE WITH DUAL SENSORS! TROXUS LYNX!

Prepper Princess

This NEW Cargo E-bike is a THRILL & Gets BIG RANGE - Troxus LYNX Review

Electric Vehicles Space

Replace Your SUV!

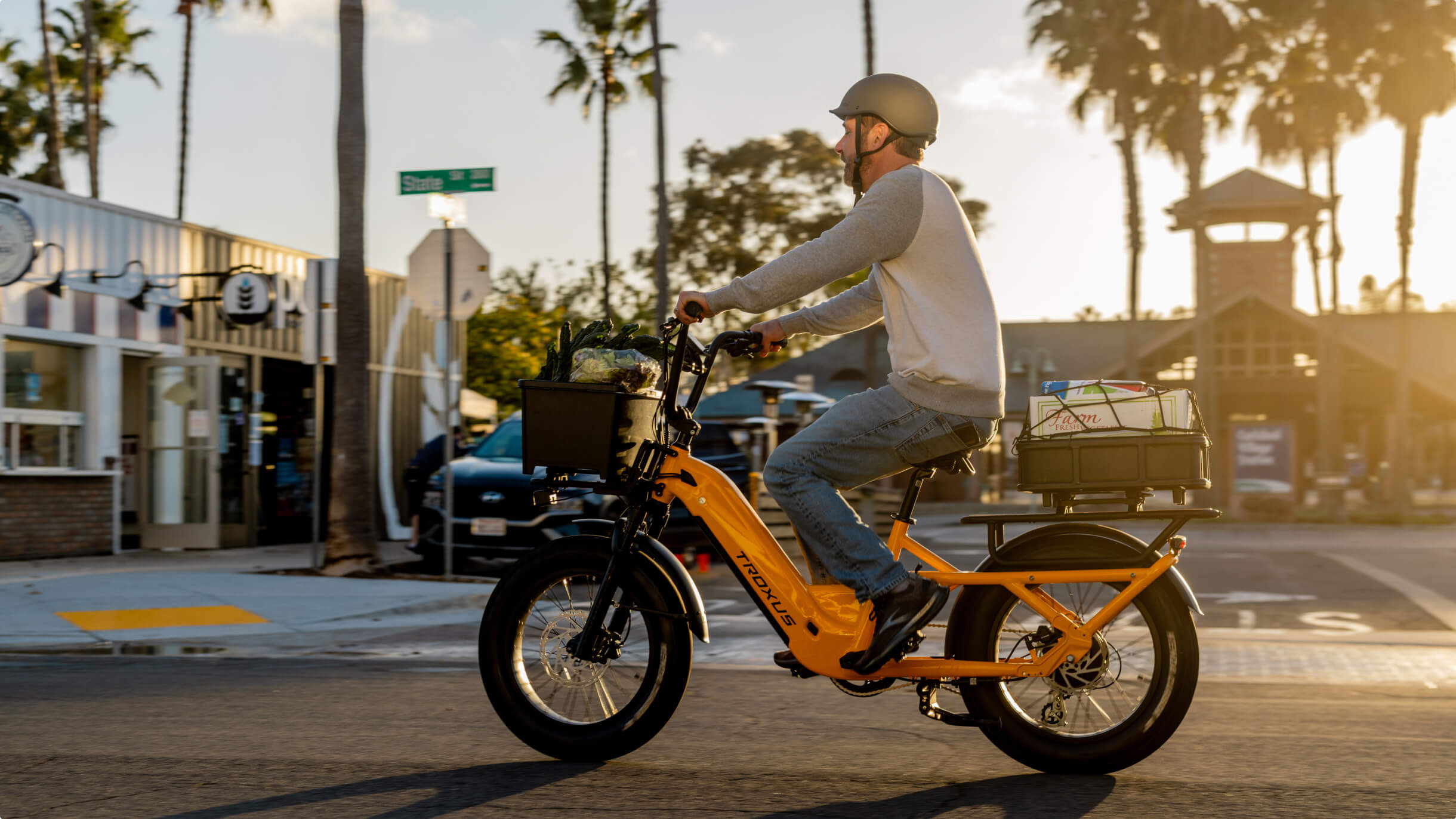

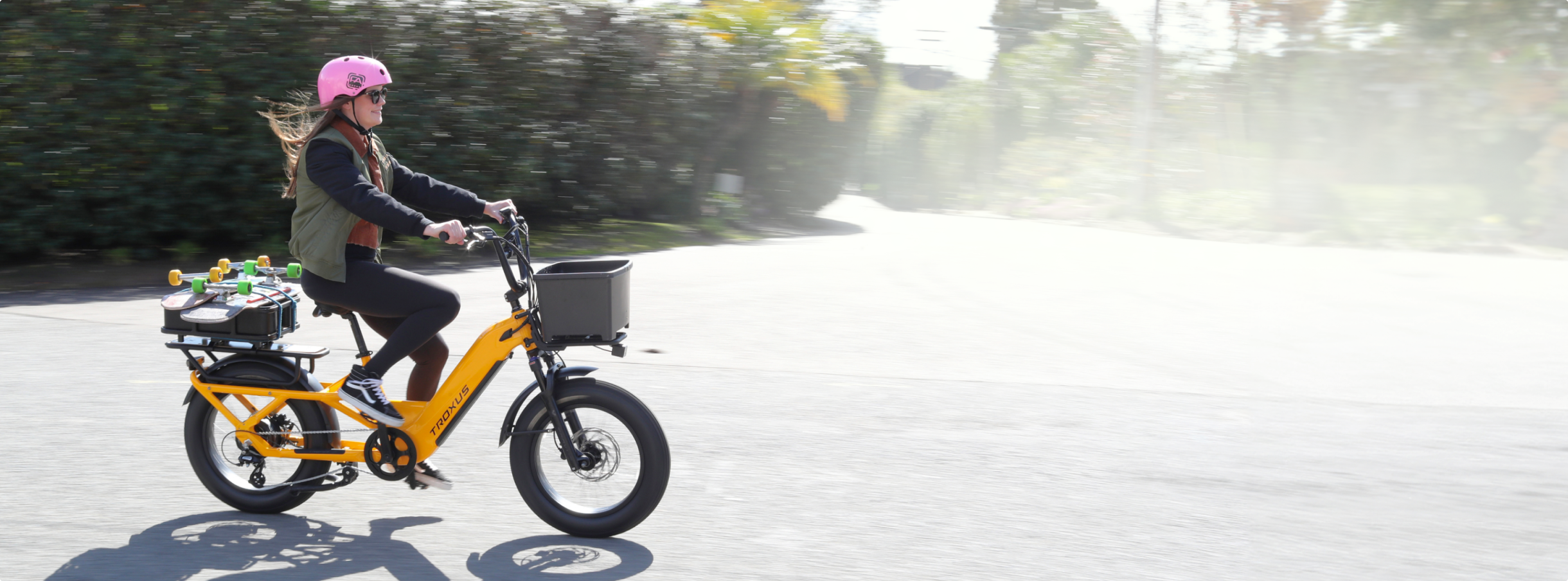

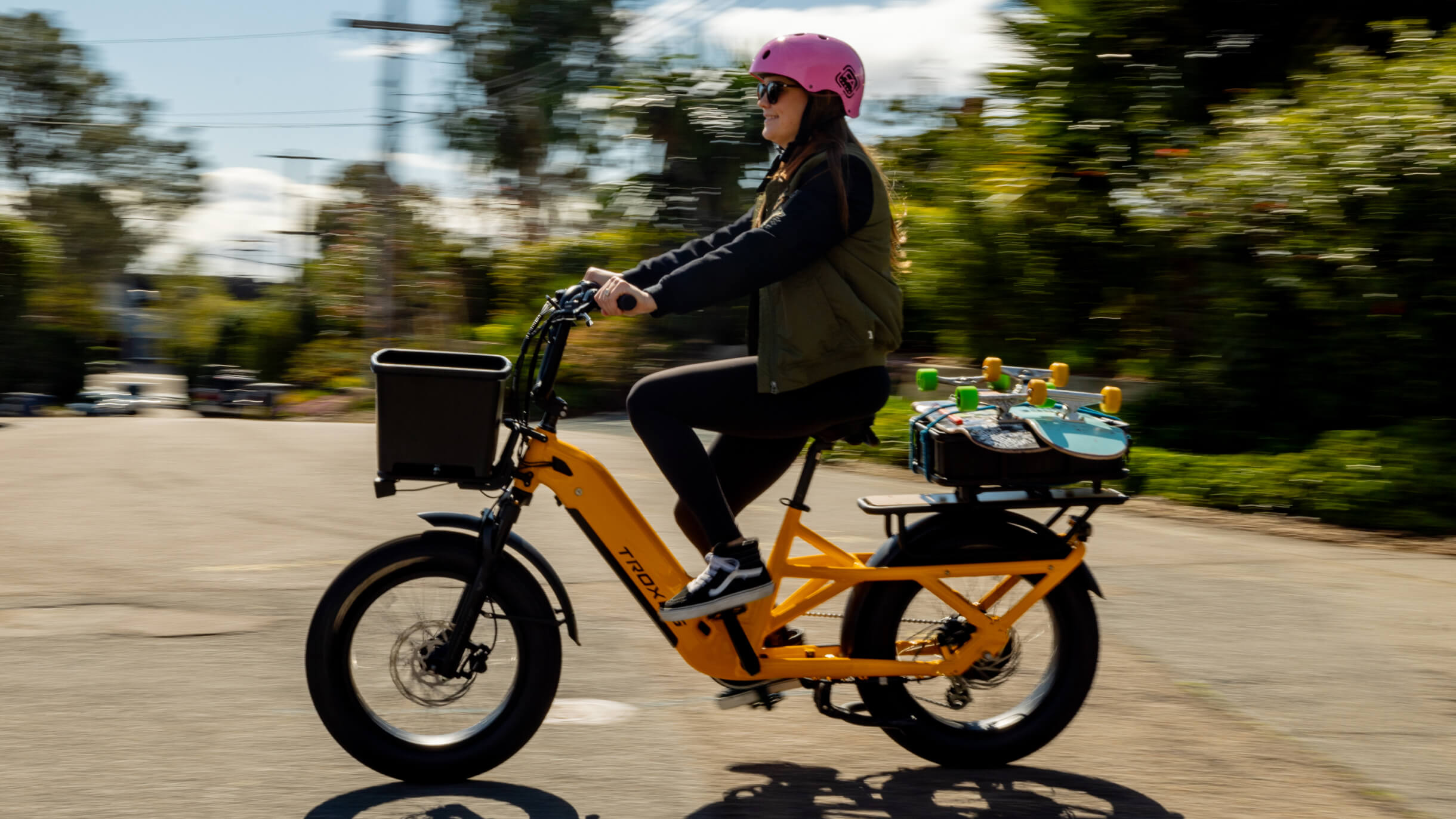

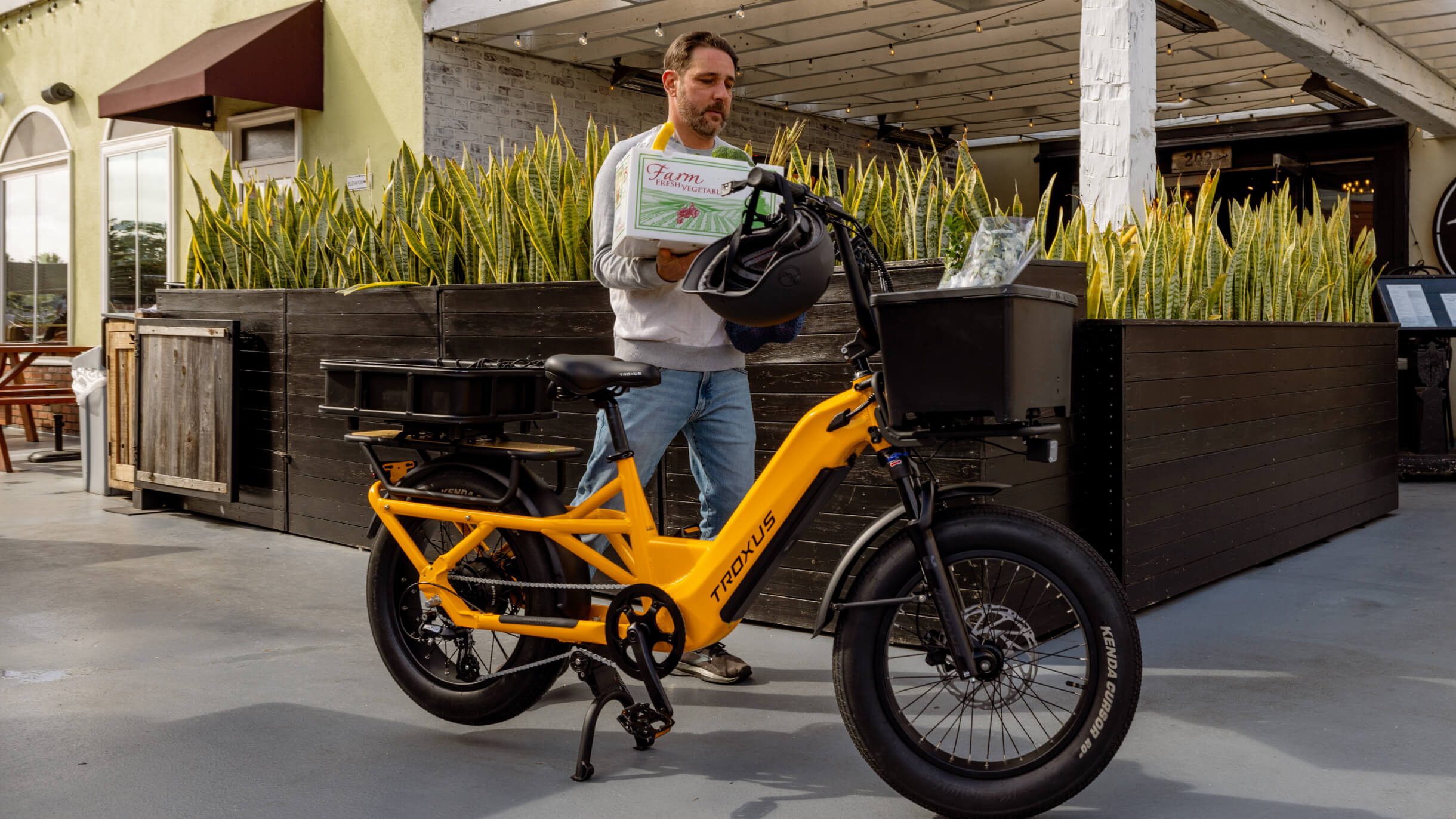

Short tail highly maneuverable cargo hauler with up to 500 pounds of carrying capacity with heavy-duty front and rear racks included. Build it your way for hauling kids, cargo, or fun!

Power For Carrying It All

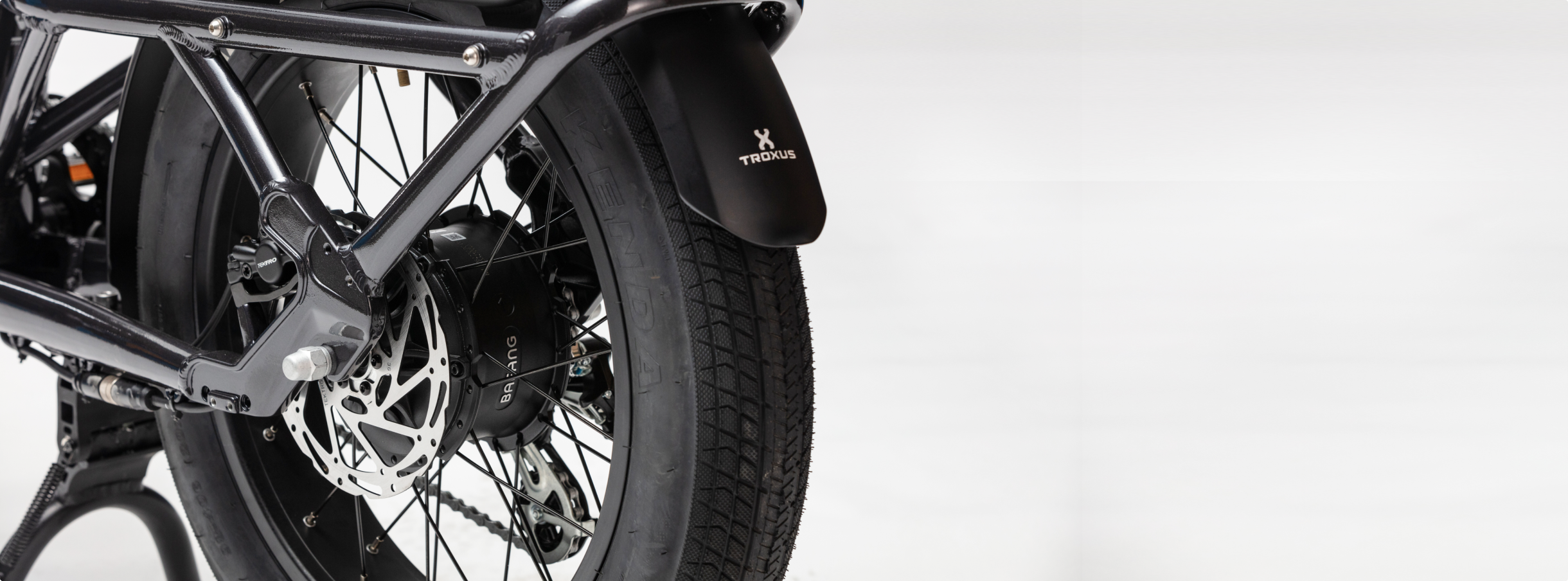

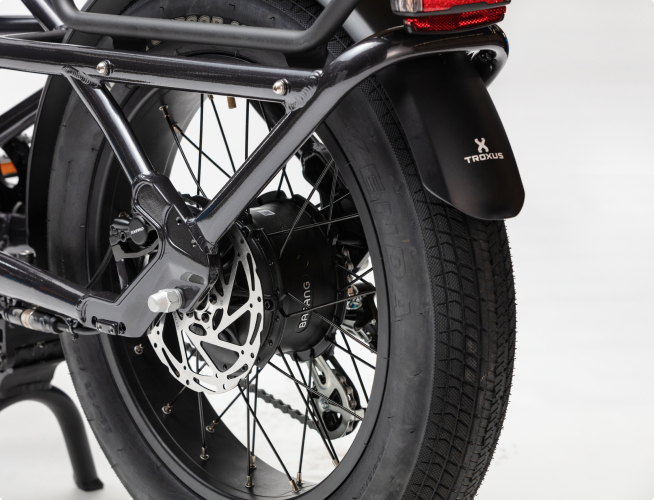

Bafang® 750 Watt (sustained) hub-drive motor with exceptional 86Nm torque to carry whatever load you have up the steepest hills.

Safety and Reliability Built In

UL-2849 certified with 960 Wh long range battery capacity for all day fun.

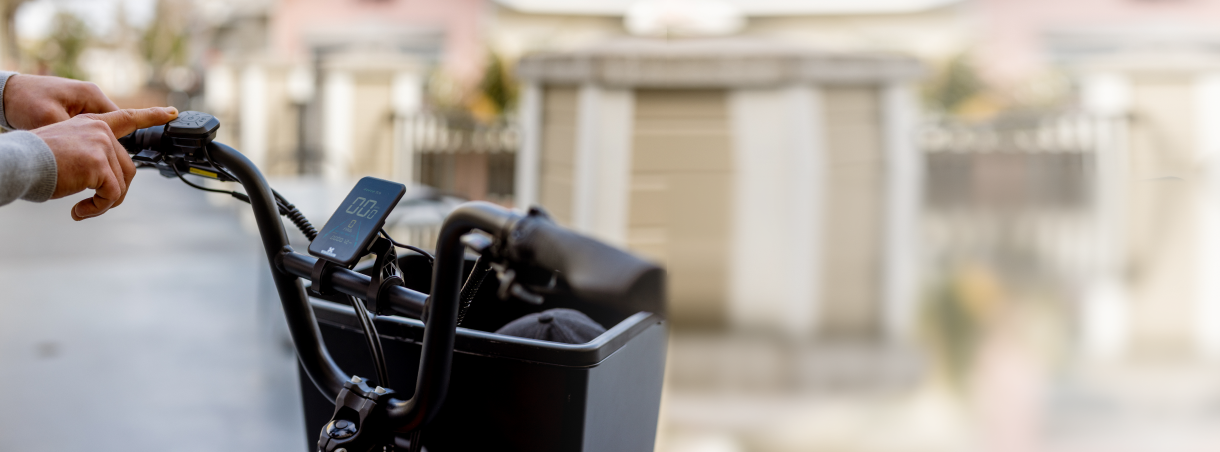

Control, Convenience, and Safety

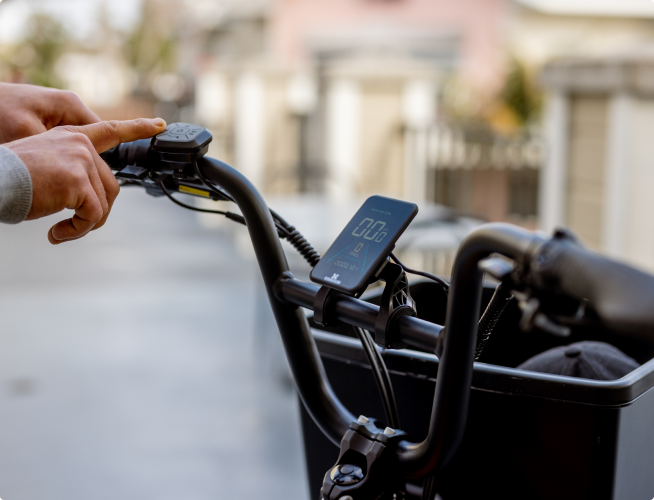

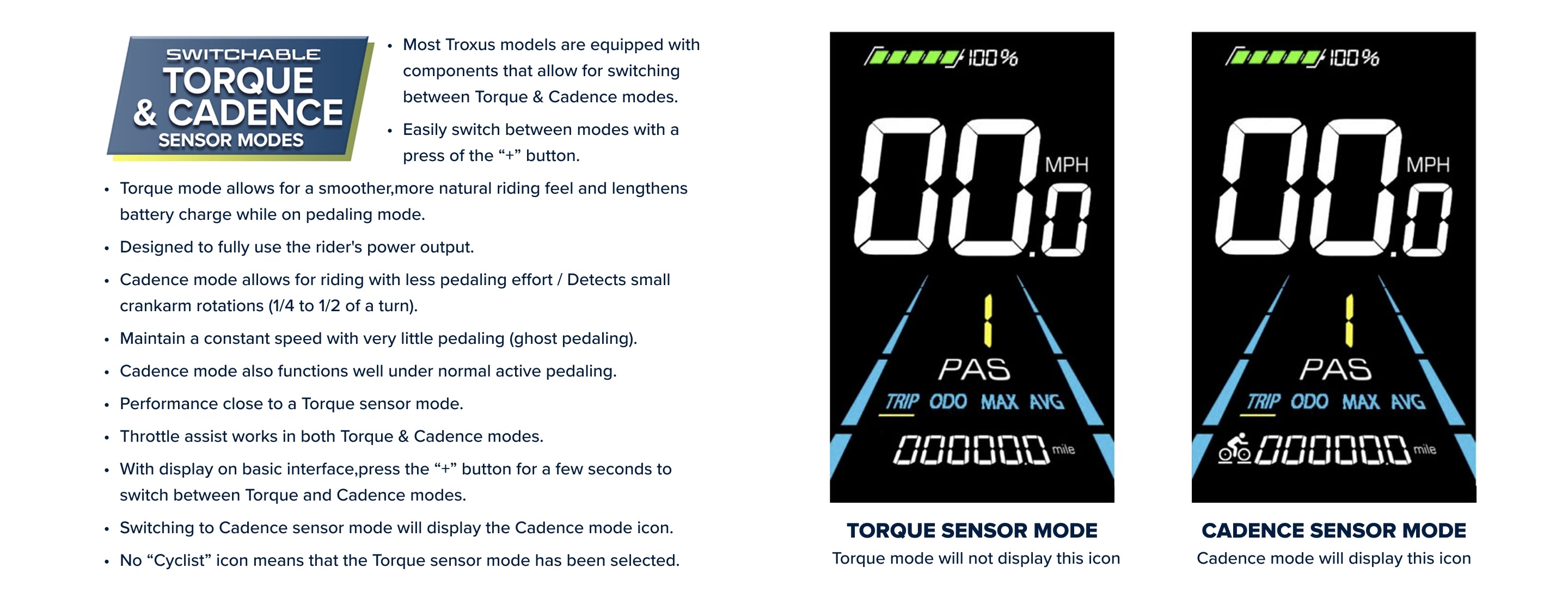

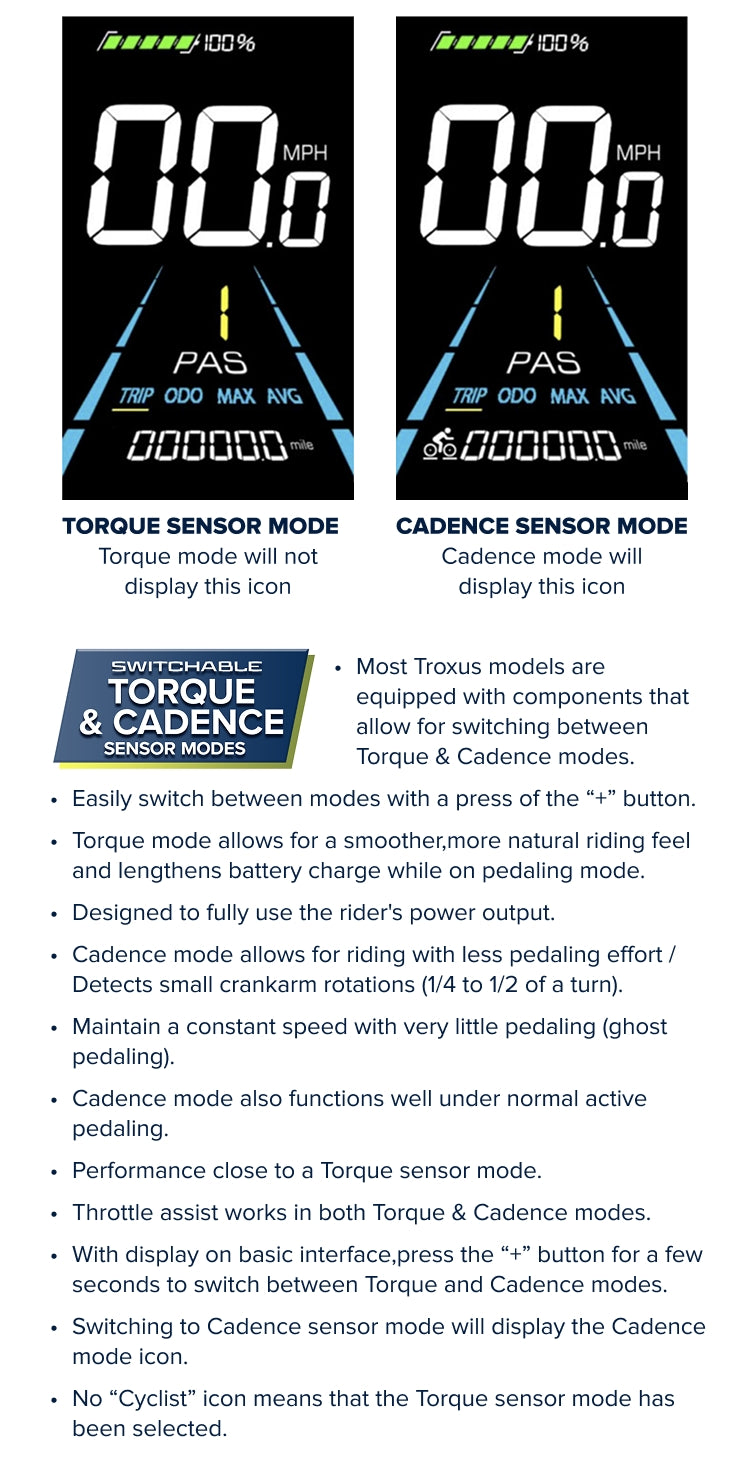

Bluetooth color display with integrated lights, turn signals, and switchable between torque and cadence sensors.

troxus-switchable-torque-and-cadence-sensor-modes

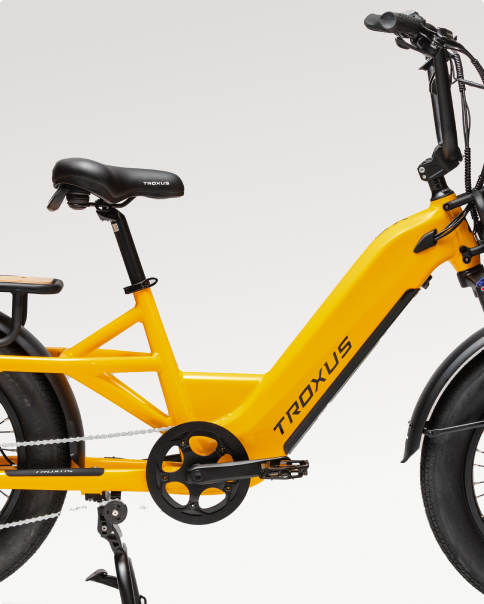

6061 Aluminum Frame

High quality aluminum frame for lighter weight and durability.

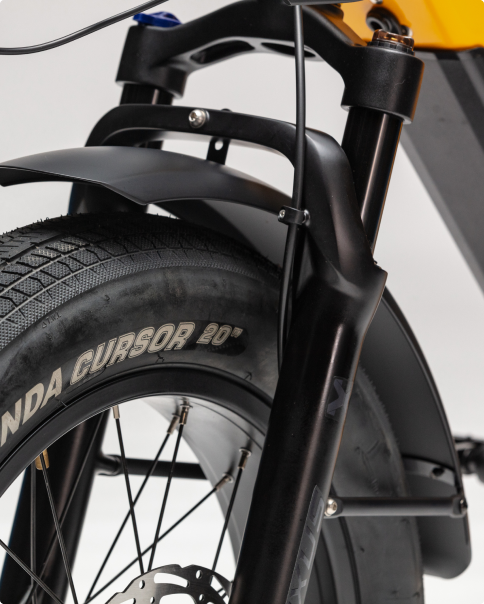

Suspension Fork

80mm of front suspension improves both comfort and control on rough surfaces.

960Wh / 48V / 20Ah Battery

Long range battery with Samsung® cells for all day adventures and range of up to 90 miles on a single charge.

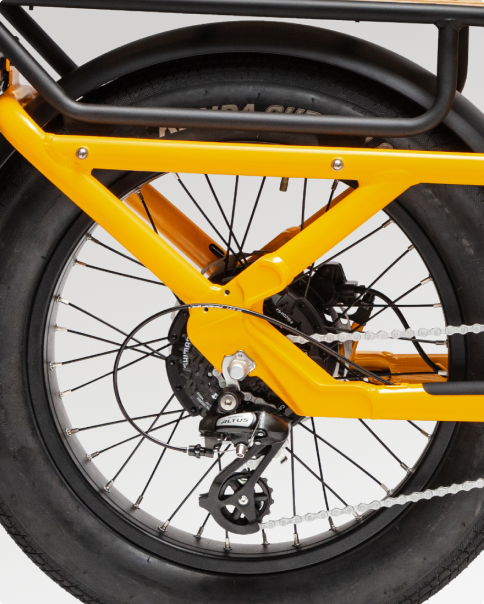

Shimano® 8-Speed Shifting

Never miss a shift and always have the gear you need to match your riding needs and terrain.

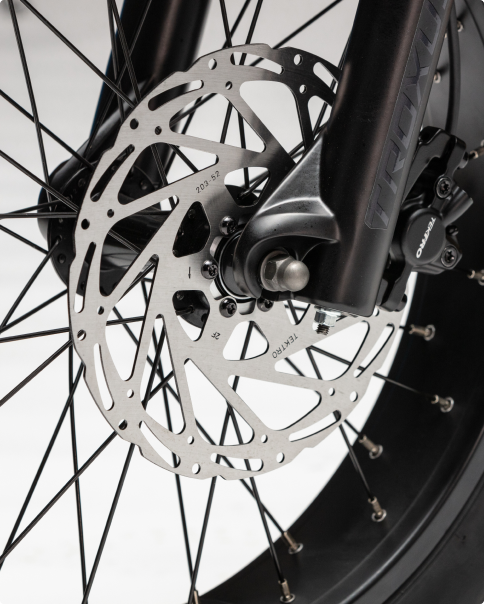

Tektro® Hydraulic Disc Brakes

Excellent stopping power and modulation for increased control and safety.

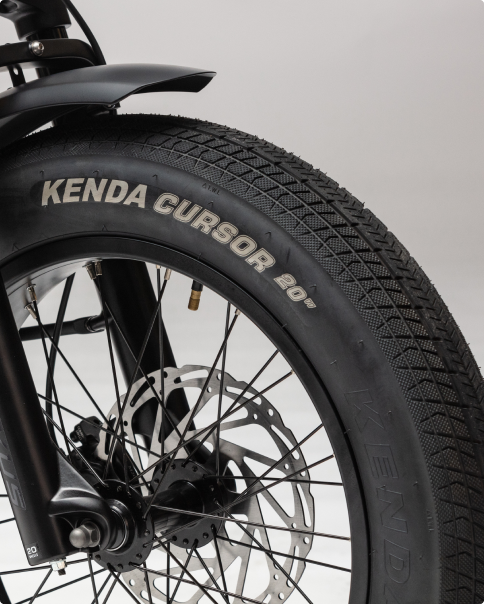

Kenda® Cursor 20" x 4" Tires

Smooth tread tires with excellent puncture resistance for speed, efficiency, and durability.

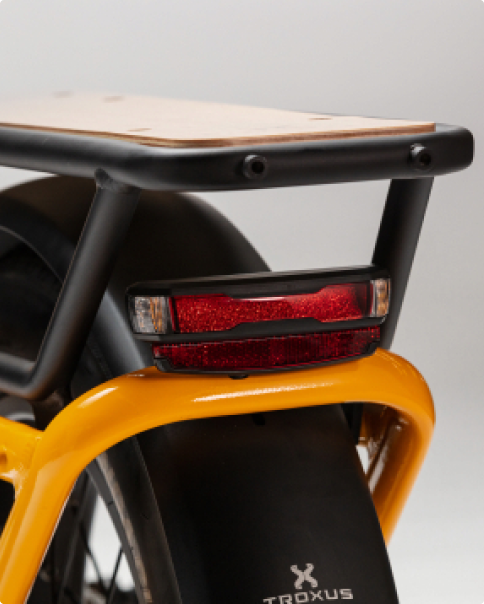

Integrated Lighting

Integrated lighting system with front and rear lights, as well as turn signals - bonus daytime four-way flashing setting for increased safety in urban environments.

*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.

*All specifications are subject to change without notice.

Explore the Performance in Person with Expert Recommendations

Find the perfect e-bike with expert guidance, then experience it firsthand with a test ride.

Find A Dealer Near Me

Motor

Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque

Battery

UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells

Display

Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging

Throttle

Thumb Throttle on Handlebar

Sensor

Switchable Torque And Cadence Sensor Modes

Frame

6061-T6 Aluminum Step-Thru Cargo Frame

Fork

Front Suspension Fork, 80mm Travel

Chain

KMC® 1/2"x3/32"

Crankset

Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm

Rear Derailleur

Shimano® RD-M310-L, Altus, 8-Speed

Max Speed

Up To 20 MPH

Range

Up To 90 Miles Per Charge

Weight Limit

Maximum Load: 500 lbs

Net Weight

80.5 lbs

Rack

Alloy / Front & Integrated Rear Models

Recommend Height

Size

One Size Fits Most

Frame Size

Universal

Wheel Size

20"x4.0"

A - Seat Tube Length

375

B - Seat Tube Angle

71˚

C - Head Tube Length

145

References

Manual - Lynx Cargo
