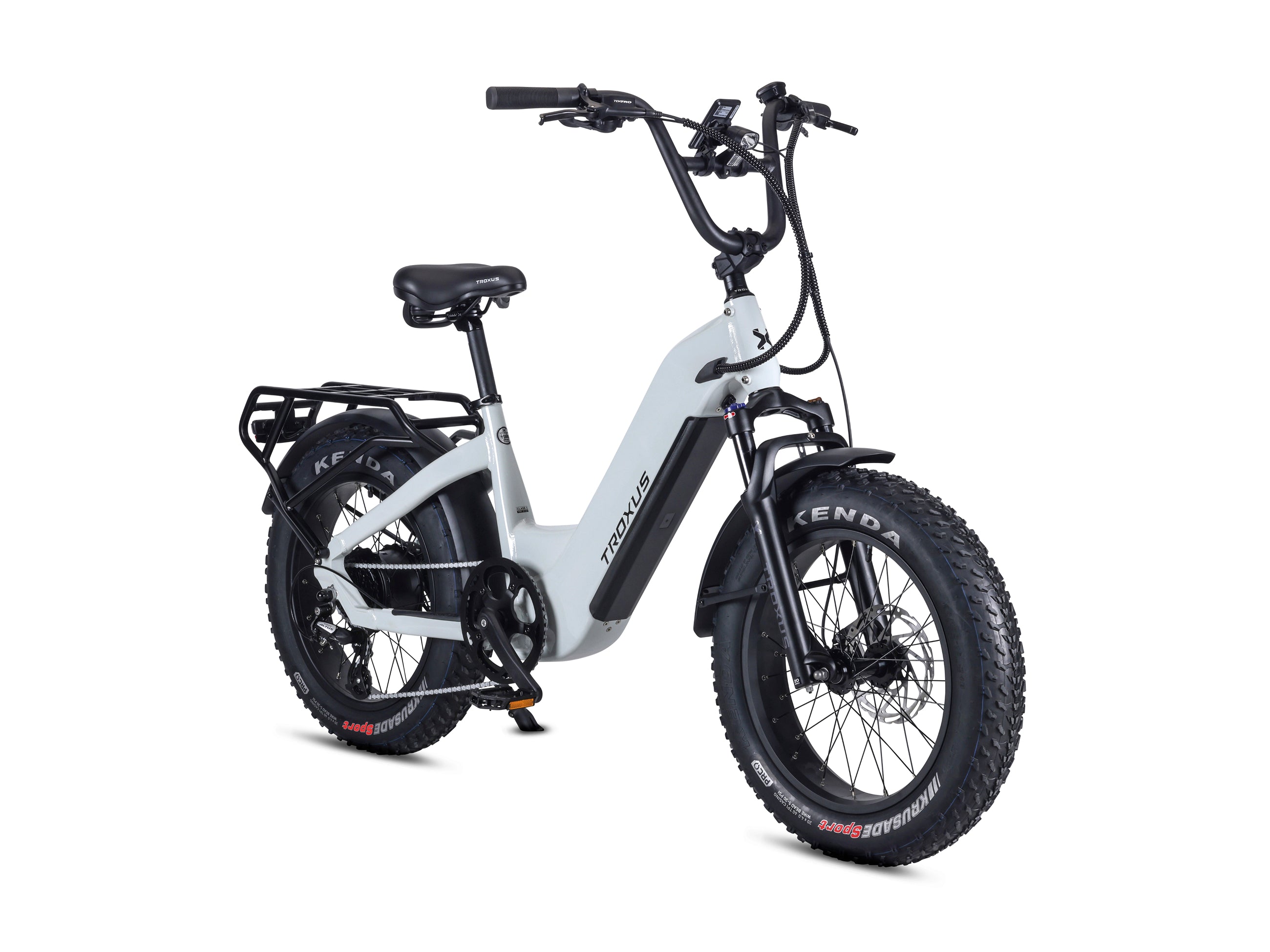

Lynx Plus
Regular price
$2,399.00 USD
28 mph
Max Speed
Up to 90 Miles
Per Charge
Class 3 eBike
750w Motor
Better than ever, the updated Lynx Plus fat tire electric bike, a mini cargo hauler, is ready to roam and explore. Highly maneuverable and nimble, it’s perfect for city dwellers, but with 20” fat tires, it can escape the urban jungle to explore nature too. With its redesigned semi-integrated rear rack, with MIK compatibility, it can carry up to 100 lbs. on the rear rack and 400 lbs. total, making the Lynx Plus ultra-capable.
Shop Local
Shop online, ride today! Order your e-bike online and enjoy the convenience of picking it up the same day at the nearest store to you.
Find A Local Dealer
5-Year Warranty
All 2024 and newer e-bikes are backed by an exclusive 5-year limited warranty, while 2023 and older models are covered by our reliable 2-year standard warranty.
Read More
Total Care Program
If your bike is damaged or involved in an accident, we’re here to help you work with your retailer to get back on the road, trail, or bike path quickly.
Read More
Lynx Plus
750 Watt Electric Bike
Small But Mighty!
Power To Climb And Roam
Safety And Reliability Built In
Control, Convenience, And Safety
Watch Independent Online Video Reviews
Specs
Specs
| Frame Size | Universal |
| Wheel Size | 20"x4.0" |
| A - Seat Tube Length | 375 |
| B - Seat Tube Angle | 71˚ |
| C - Head Tube Length | 145 |
| D - Head Tube Angle | 68˚ |
| E - Effective Top Tube Length | 645 |
| F - Bottom Bracket Height | 285 |
| G - Bottom Bracket Drop | 10 |
| H - Chainstay Length | 425 |
| I - Fork Offset | 46 |
| J - Wheelbase | 1148 |
| K - Frame Reach | 460 |
| L - Frame Stack | 538 |
| Fork Travel | 80 |
| Fork Height | 440 |
| Max Speed | Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist |
| Range | Up To 90 Miles Per Charge |
| Weight Limit | Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs |
| Net Weight | 77.2 lbs |
E-Systems
| Motor | Ananda 48V/750W Hub-Drive Motor, 86Nm Max. Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells |
| Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 3A / 100-240V Input / 54.6V Output |
| Lights | Front Light, Rear Light w/ Turn & Hazard Signals |
| Controller | 48Vx22A/12V |
Components
| Frame | 6061-T6 Aluminum Step-Thru Frame |
| Fork | Front Suspension Fork, 80mm Travel |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano® 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | KENDA® 20"x4.0", w/ Anti-Puncture K-Shield |
| Front Hub | Alloy, 36H, 110mm, 3/8" Axle |
| Rear Hub | Bafang® 48V 750W/ 28 MPH. 86Nm |
| Rims | Alloy Double Wall, 20"x4.0" w/ Eyelets |
| Spokes | Stainless 13G. Front / 12G. Rear |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | Troxus Comfort w/ Back Handle |
| Saddle | Troxus Comfort w/ Back Handle |
| Seat Post | Alloy, 30.9x400mm, Adjustable |
| Seat Post Clamp | Alloy, 35mm w/ Quick Release |
| Stem | Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension |
| Handlebar | Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise |
| Grips | Ergonomic Comfort |
| Pedals | 9/16″ Alloy Platform with Reflectors |
| Headset | Threadless, Locking Internal 1-1/8" |
| Rear Shocks | N/A |
| Rack | Semi-Integrated Alloy Rear Model/ MIK-Compatible Rear Rack |
| Fender | Alloy, 20"x4.0" w/ Alloy Hardware |
| Kickstand | Adjustable Side Kickstand |
