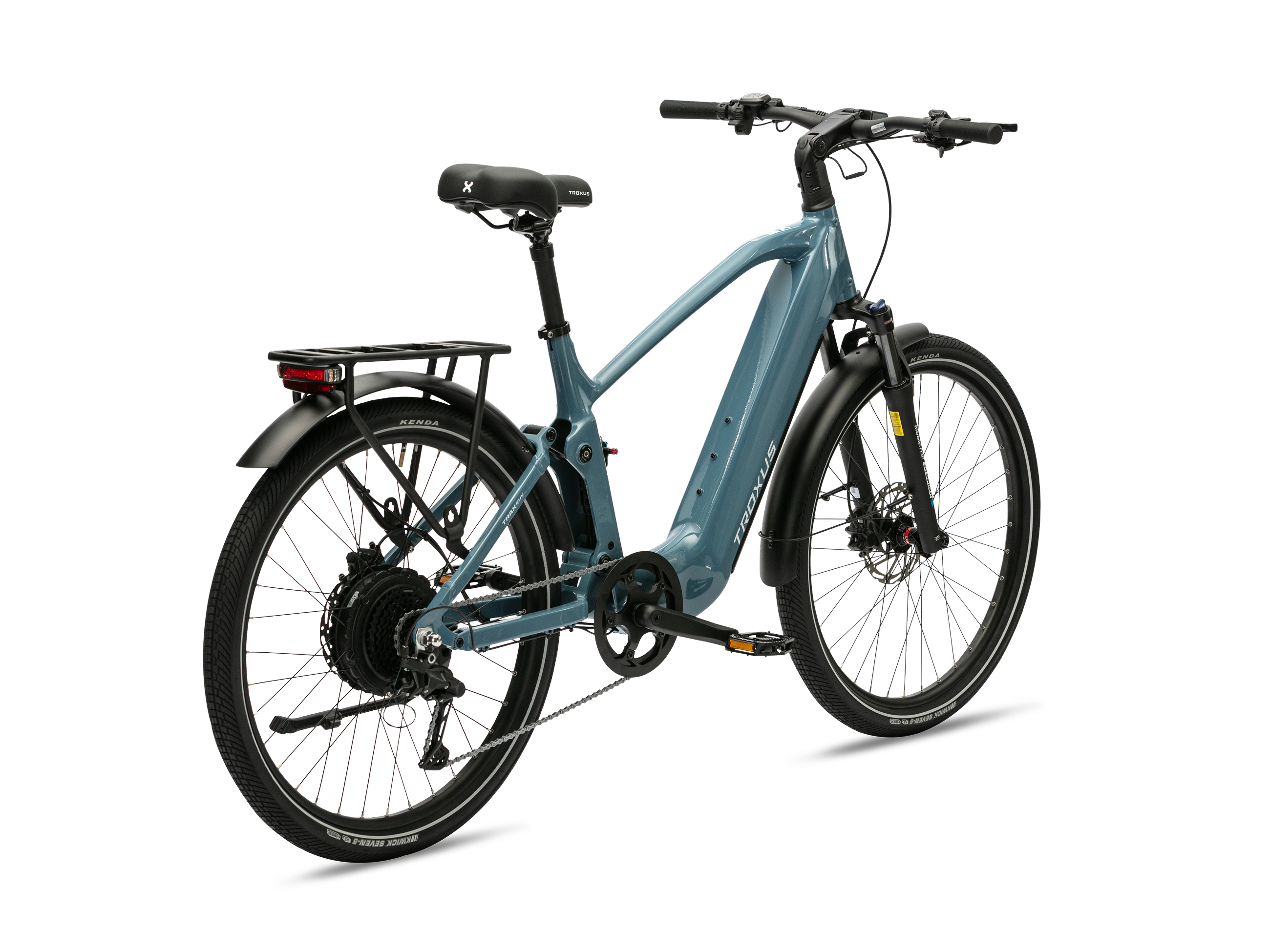

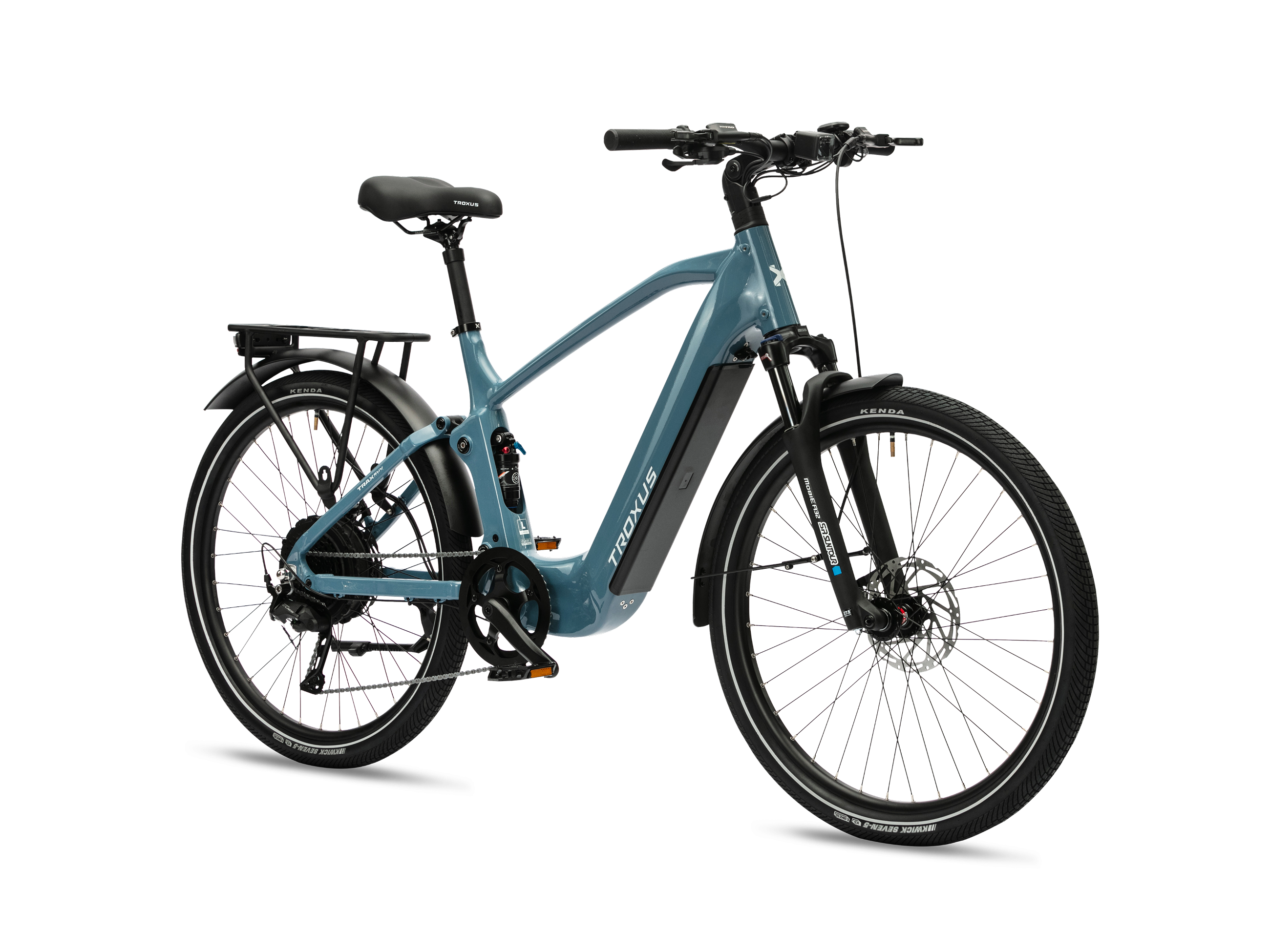

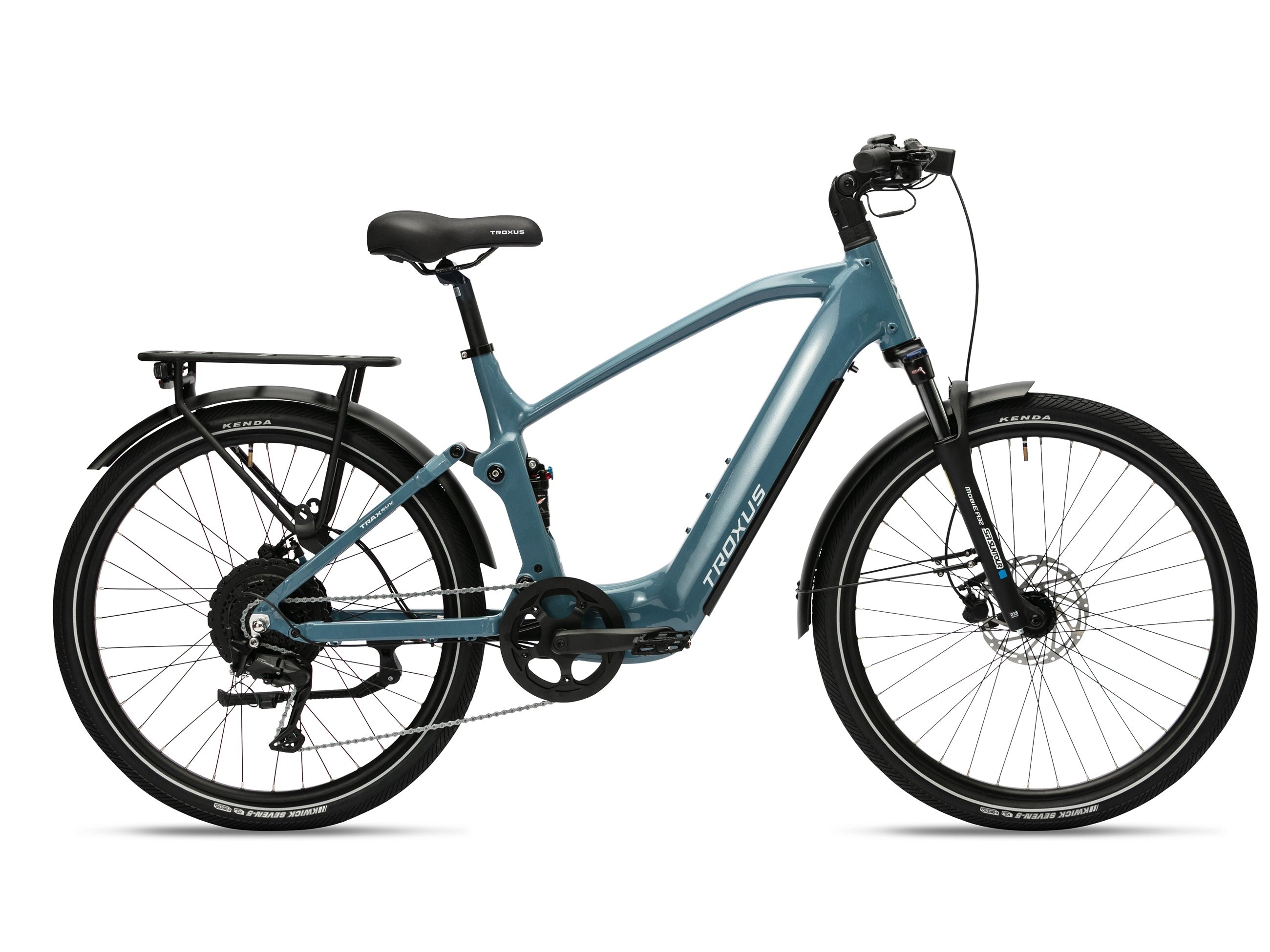

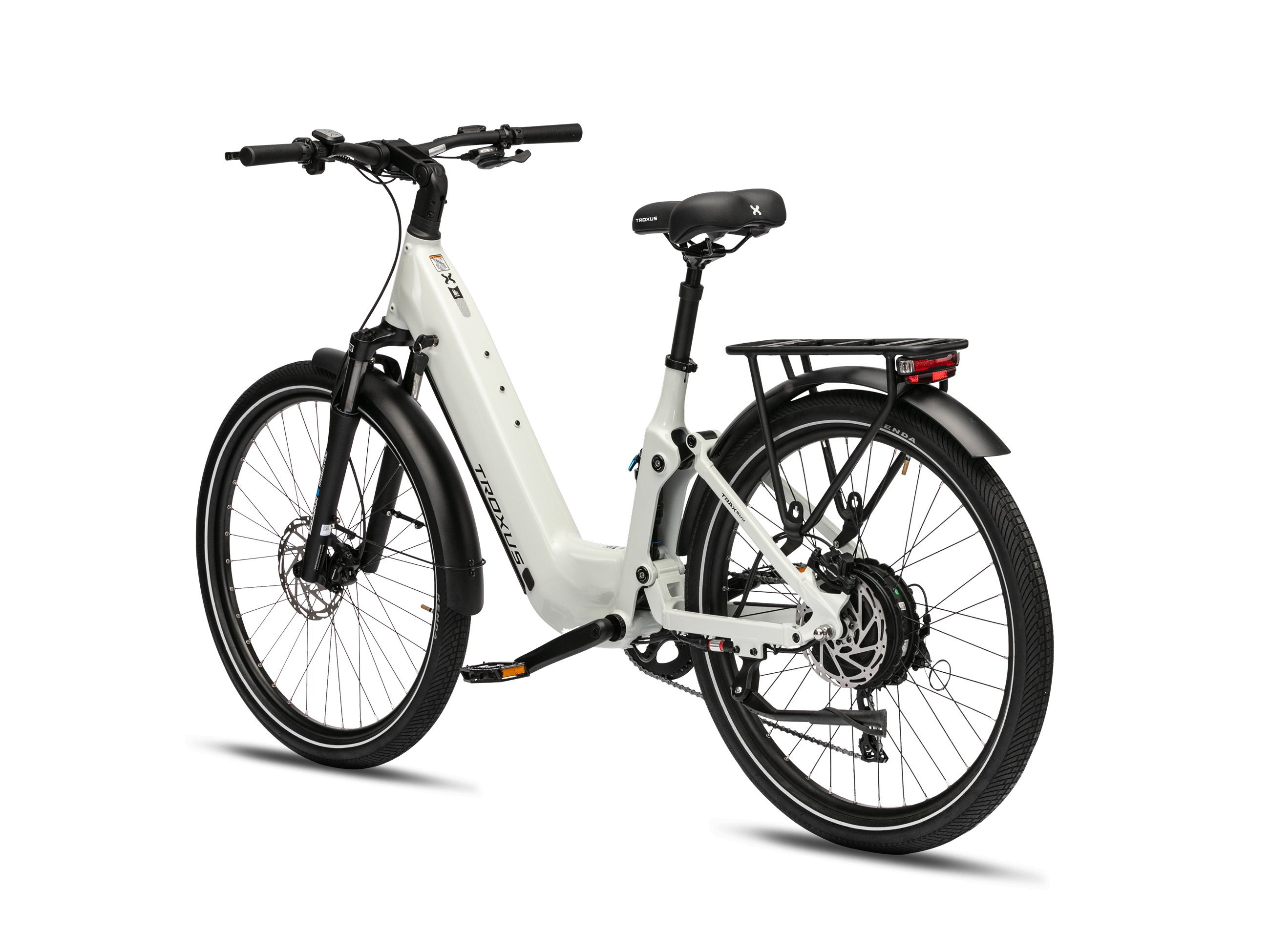

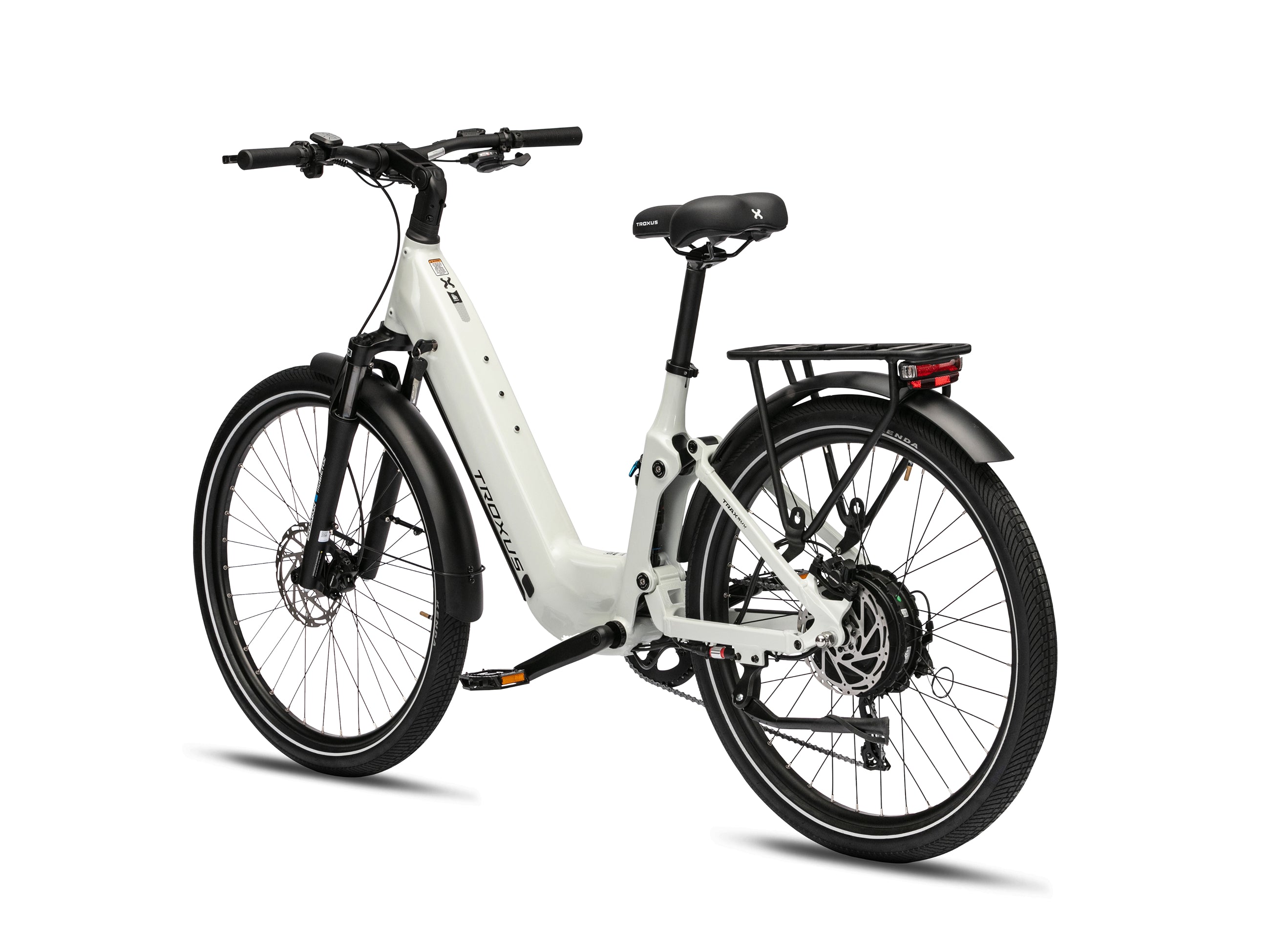

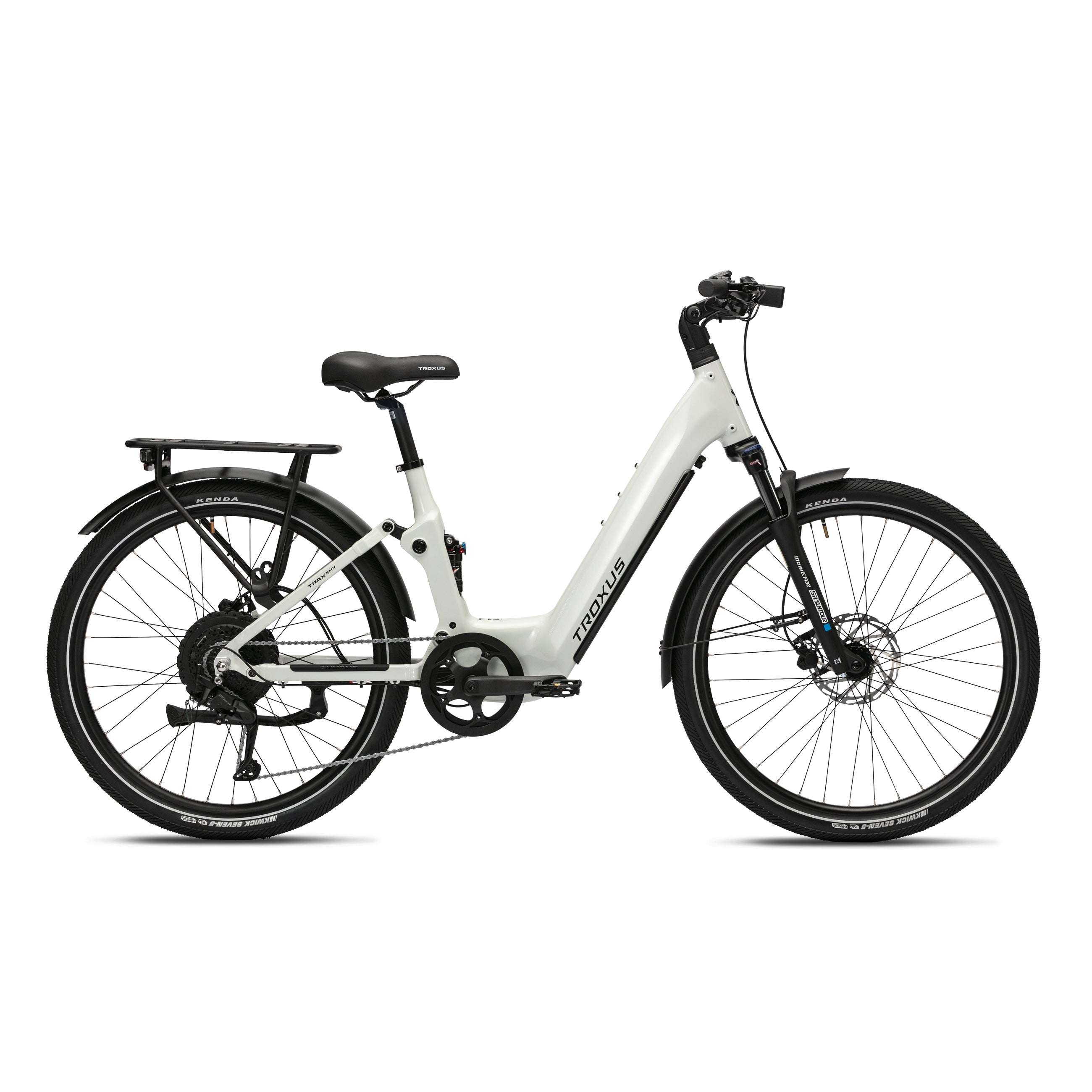

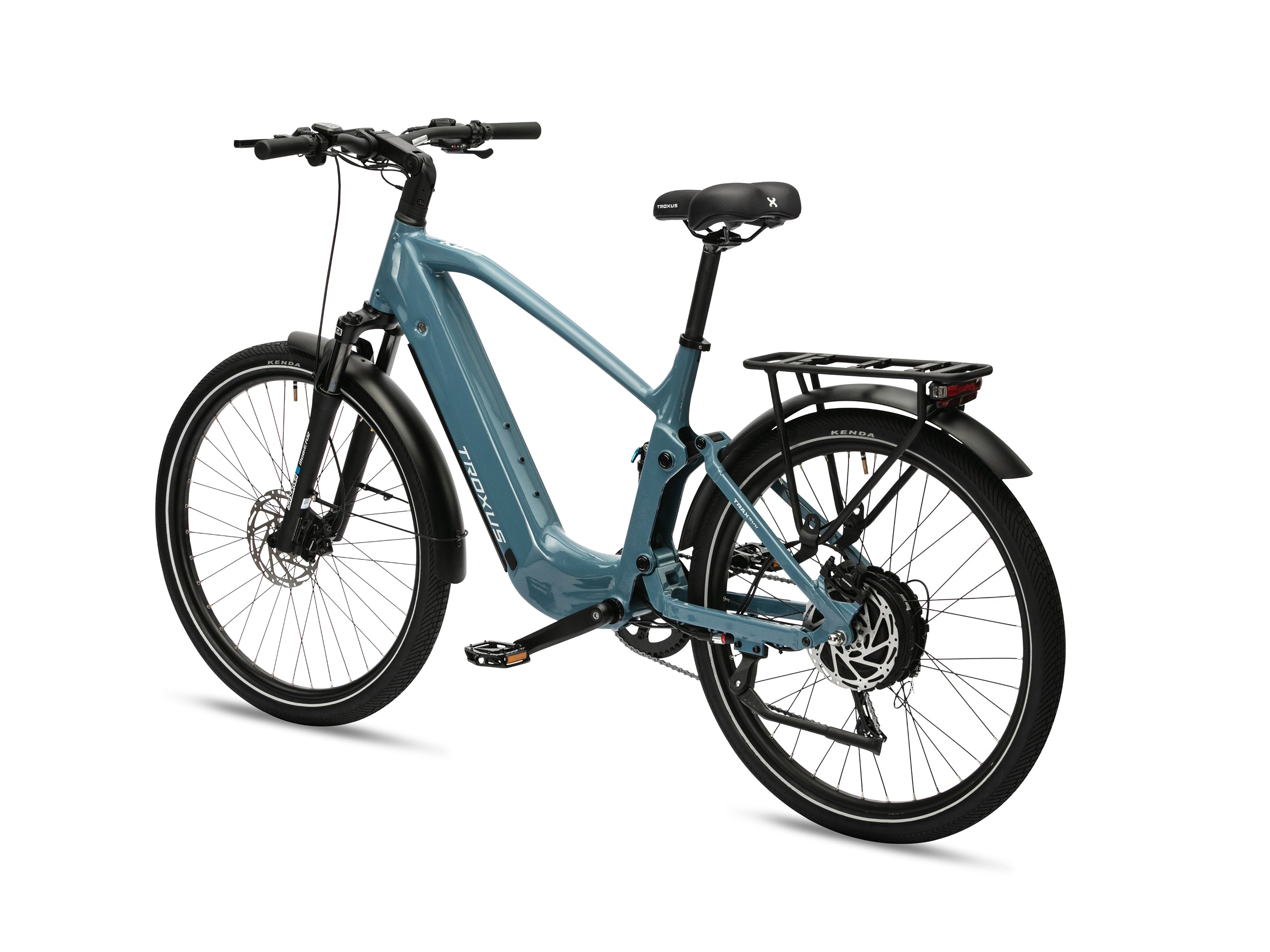

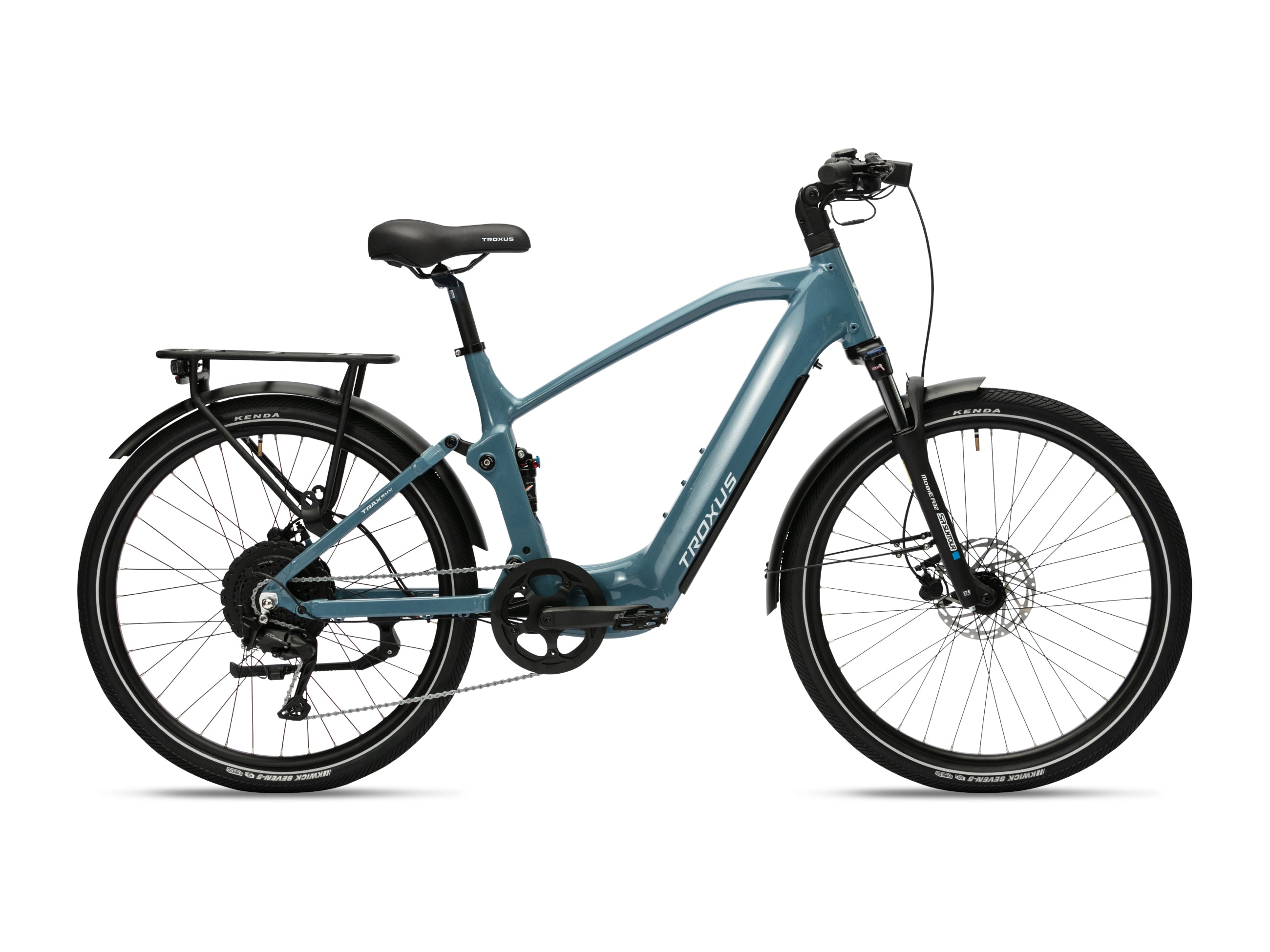

Trax SUV 15/750 E-Bike

*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
*All specifications are subject to change without notice.

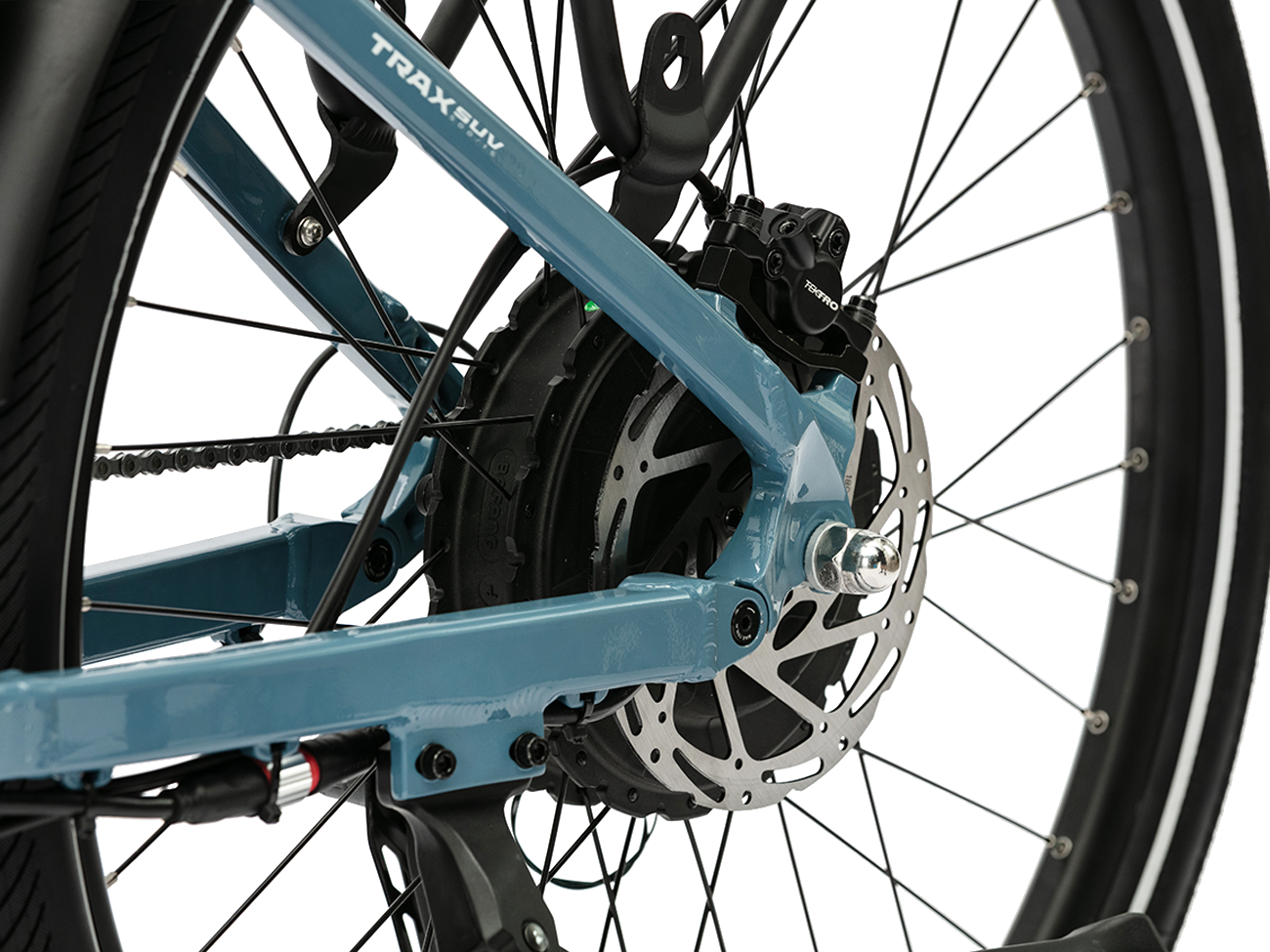

Bafang® 48V/750W Hub-Drive Motor, 85Nm Peak Torque
UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells
Stem-Integrated Color Display, Bluetooth, w/ Turn Signals, w/ Multi-Function Remote
Thumb Throttle on Handlebar
Switchable Torque And Cadence Sensor Modes
0~5 Level Pedal Assist
2A / 100-240V Input / 54.6V Output
80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
48Vx22A/12V
6061-T6 Aluminum Frame, Dual Suspension, Travel TBD

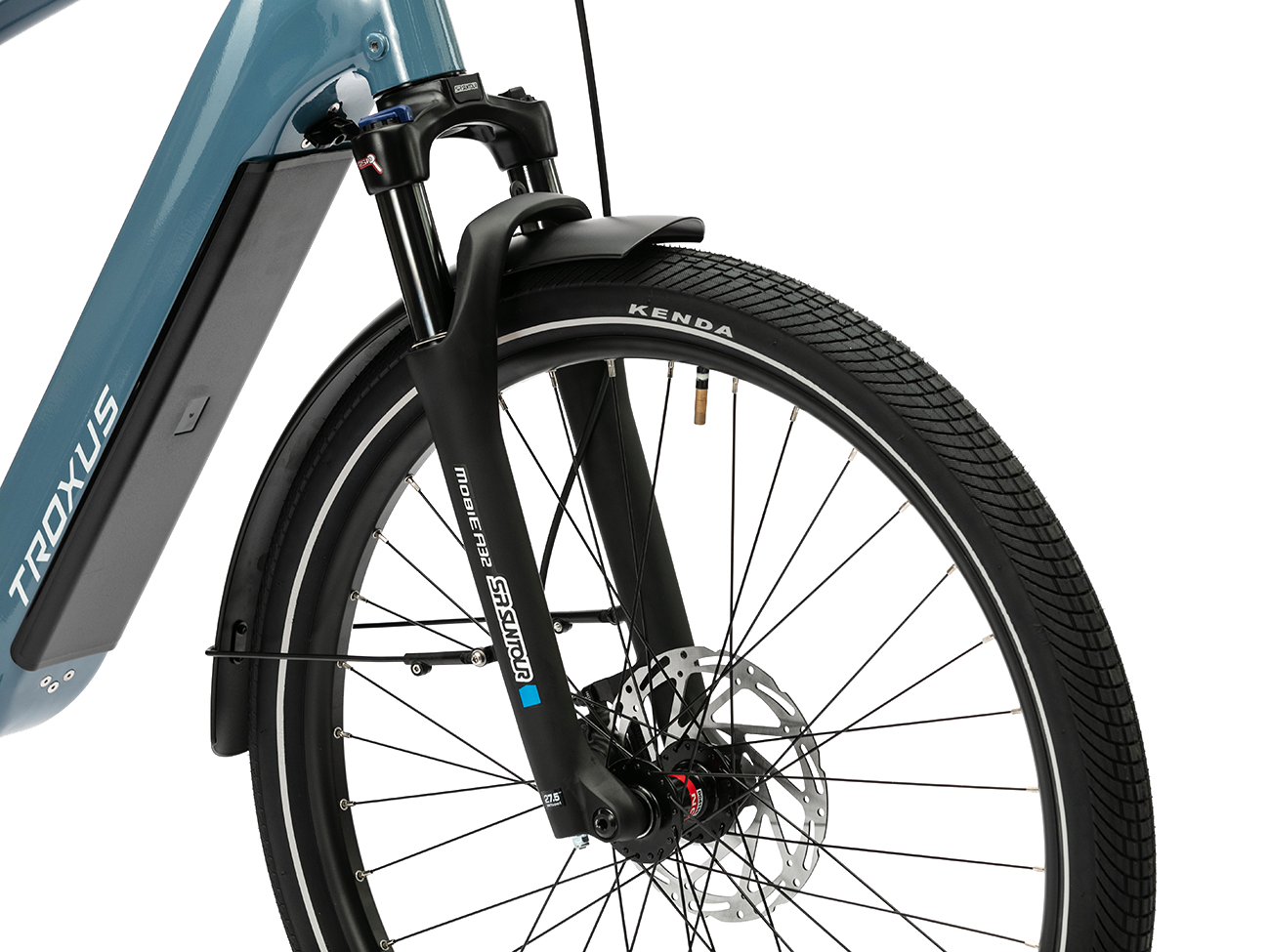

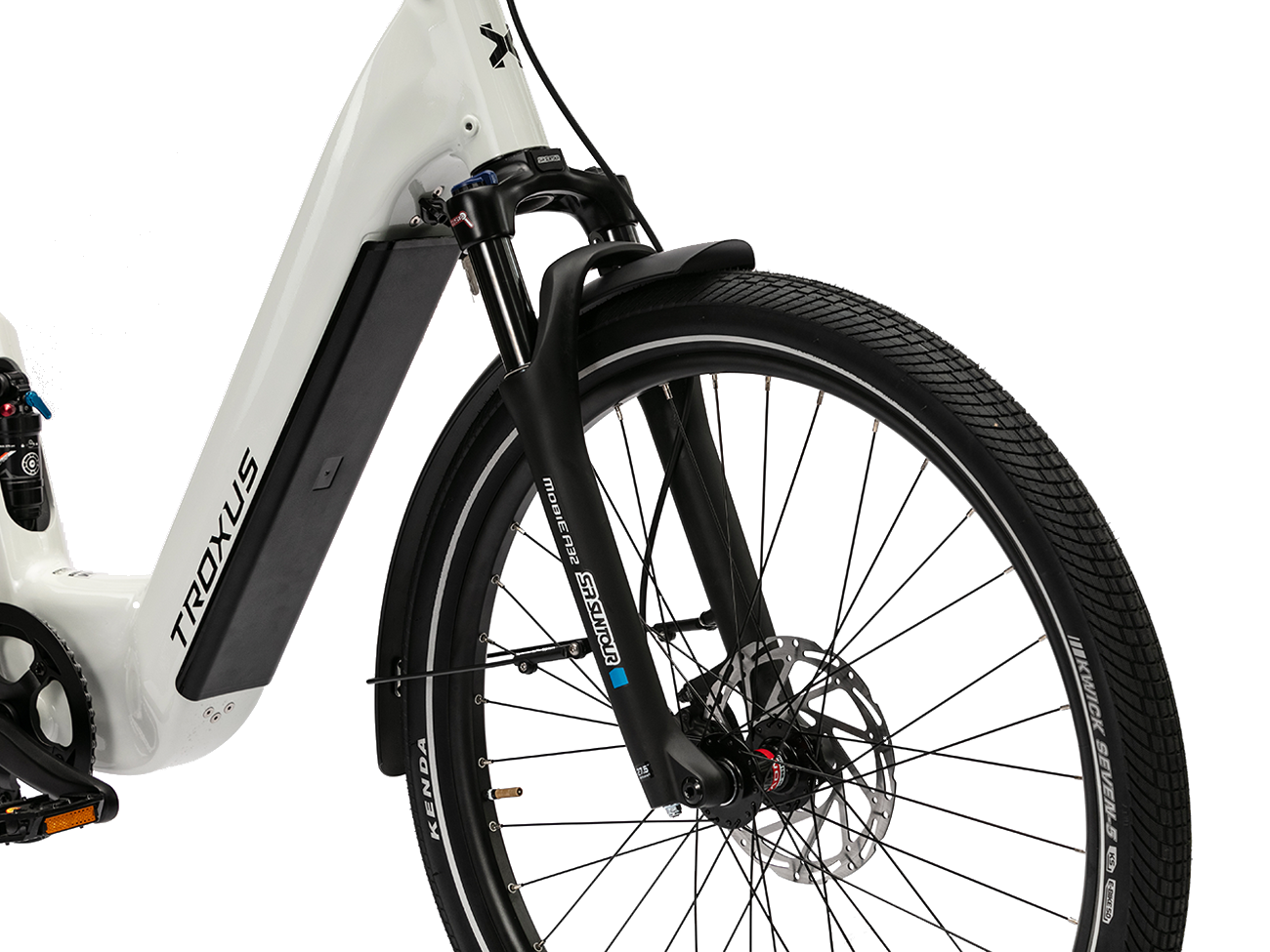

Suntour® Front Suspension Fork, MOBIE-A32, 100mm Travel
KMC® CUES 9-Spd
Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
Shimano® CUES, 9-Speed

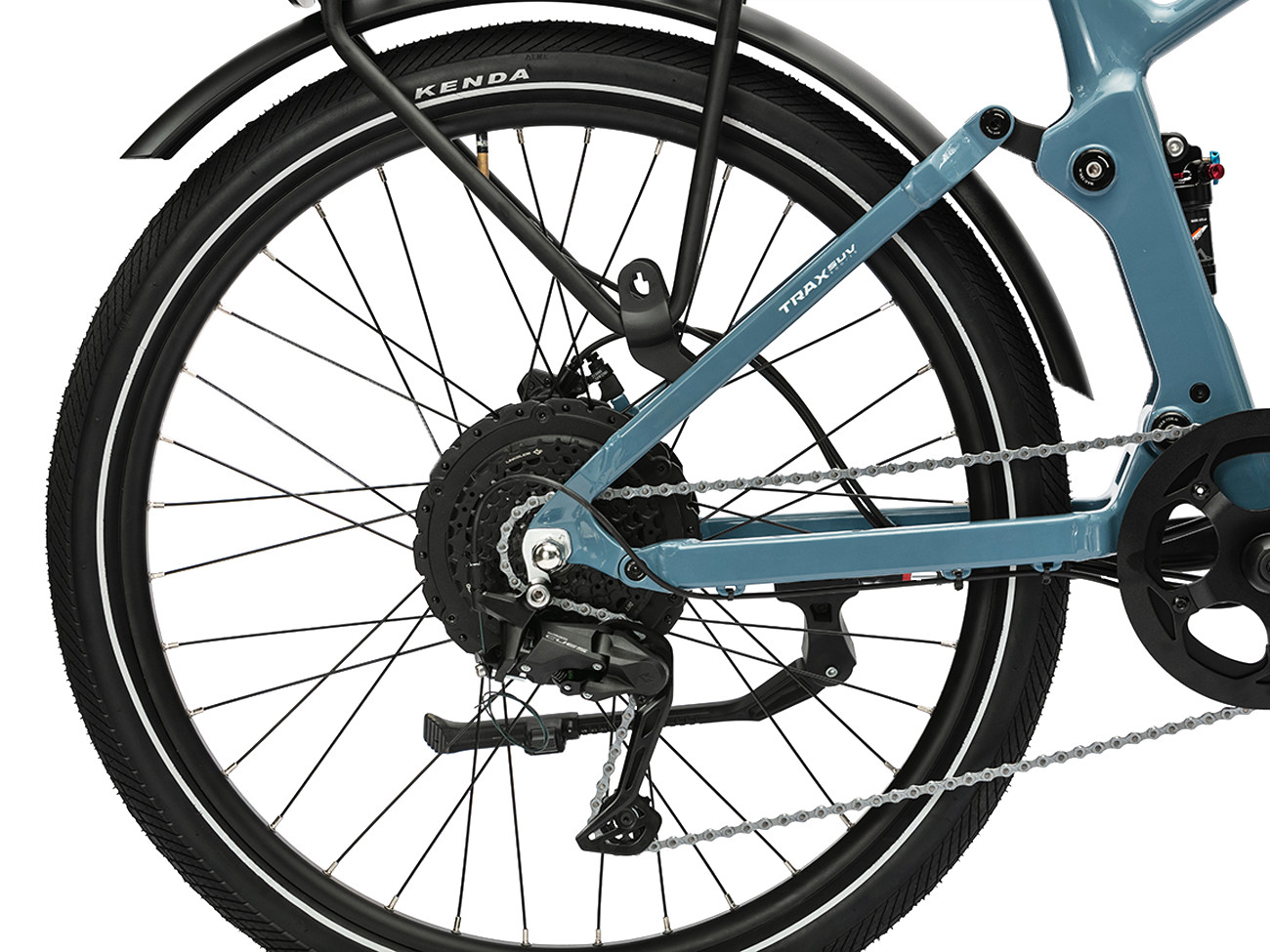

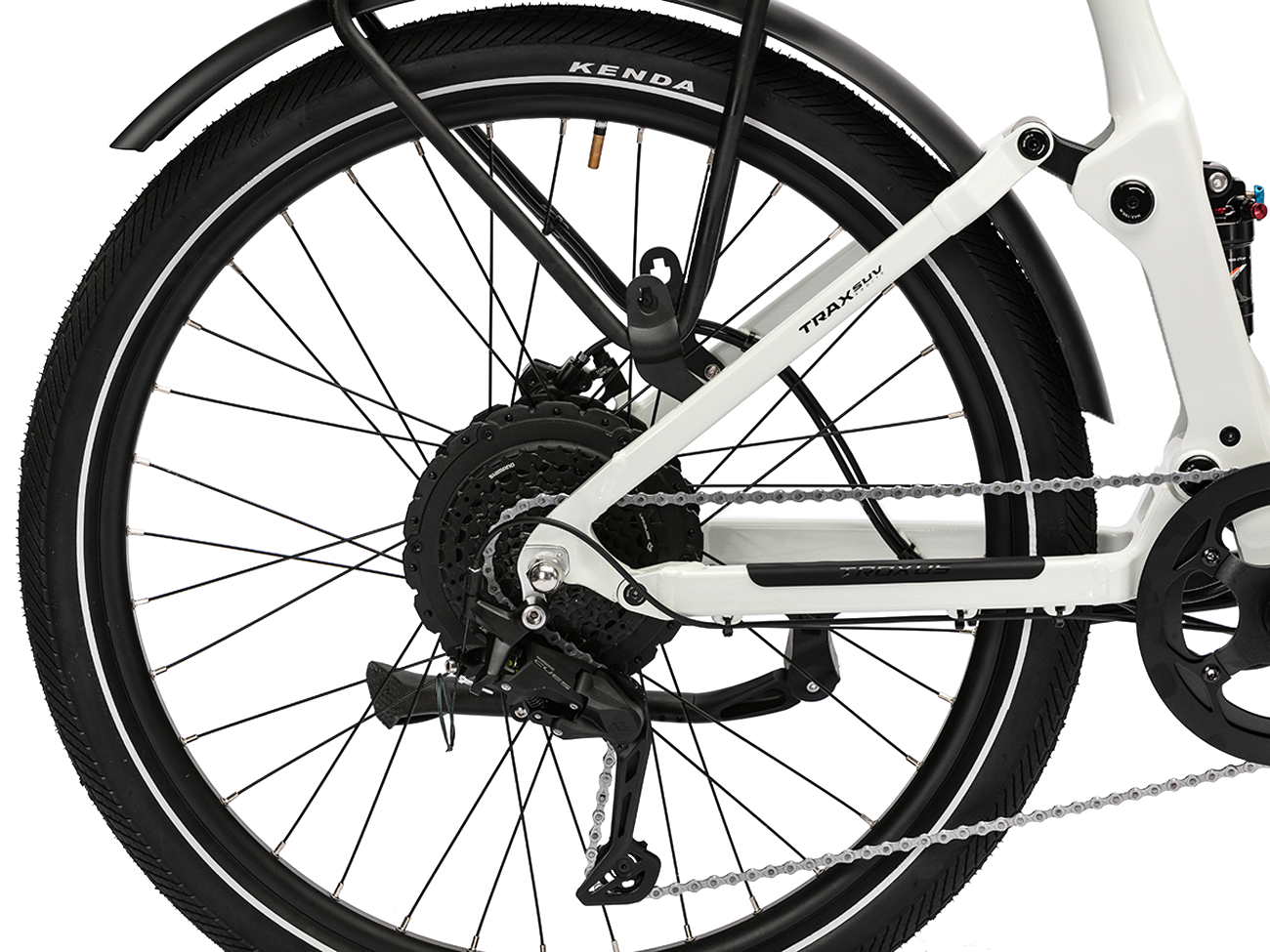

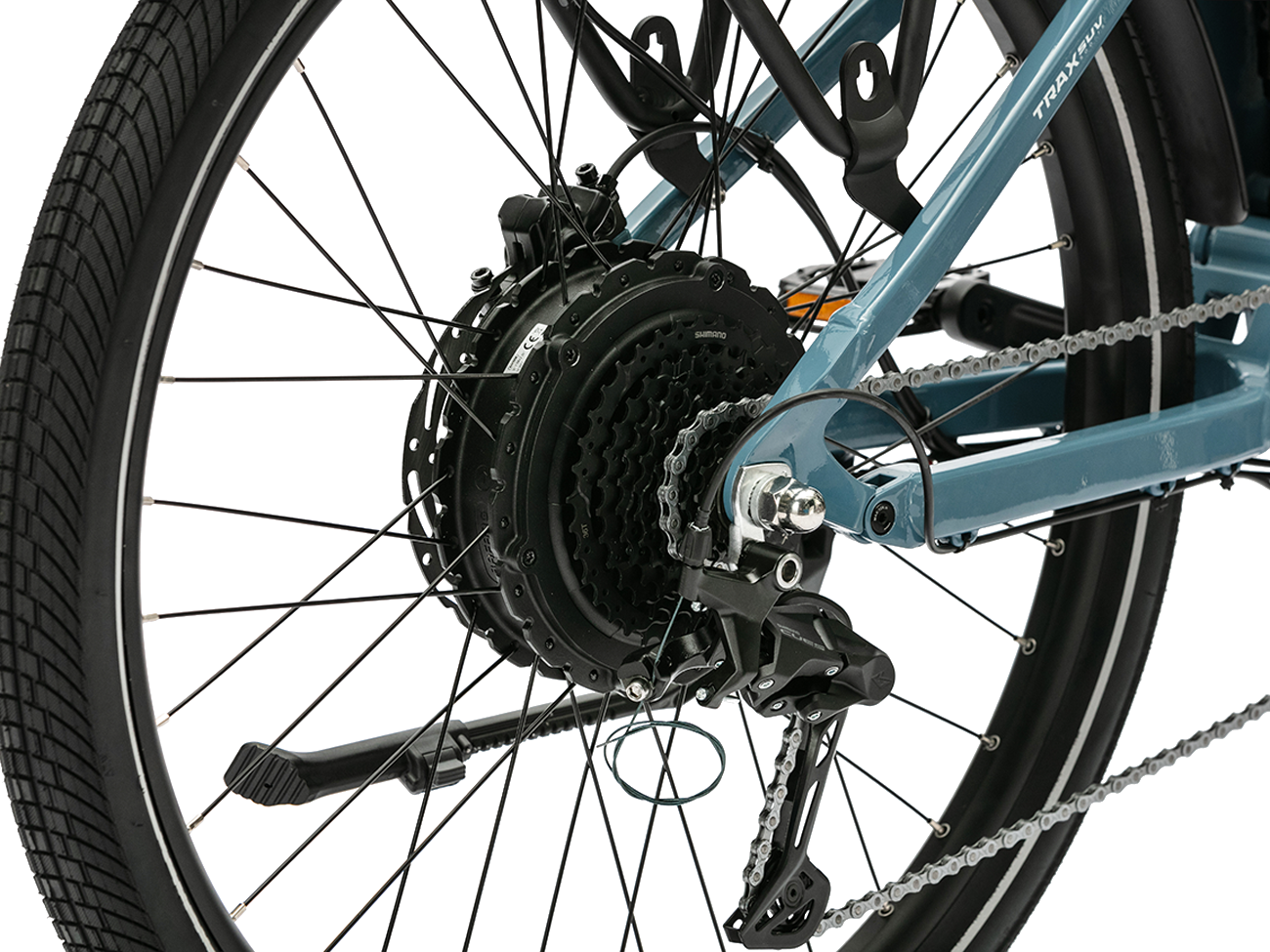

Shimano® 9-Speed, 11-36T
Shimano® CUES 9-Speed
Square Taper Sealed Bearings, Torque & Cadence Sensors Included
KENDA® 27.5x2.4", w/ Reflective Stripes
Sealed Bearing, O.L.D. 100mm, 15mm Thru-Axle

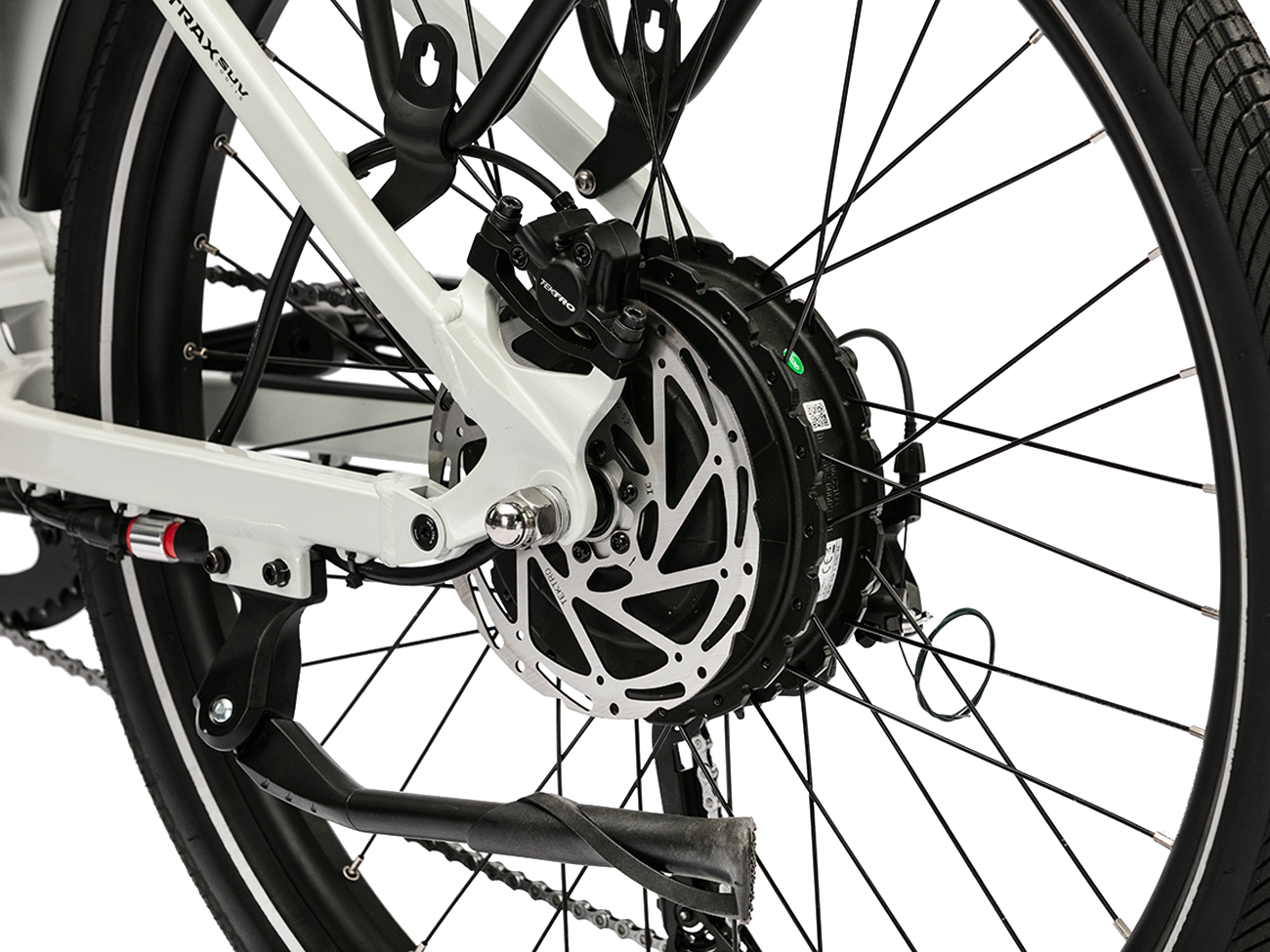

Bafang® 48V 750W/ 28 MPH. 85Nm
Alloy, Double Wall Front & Rear, 36H, w/ Eyelets
Stainless 14G. Front / 13G. Rear
Tektro® Hydraulic, w/ Brake Sensors
180mm / 180mm

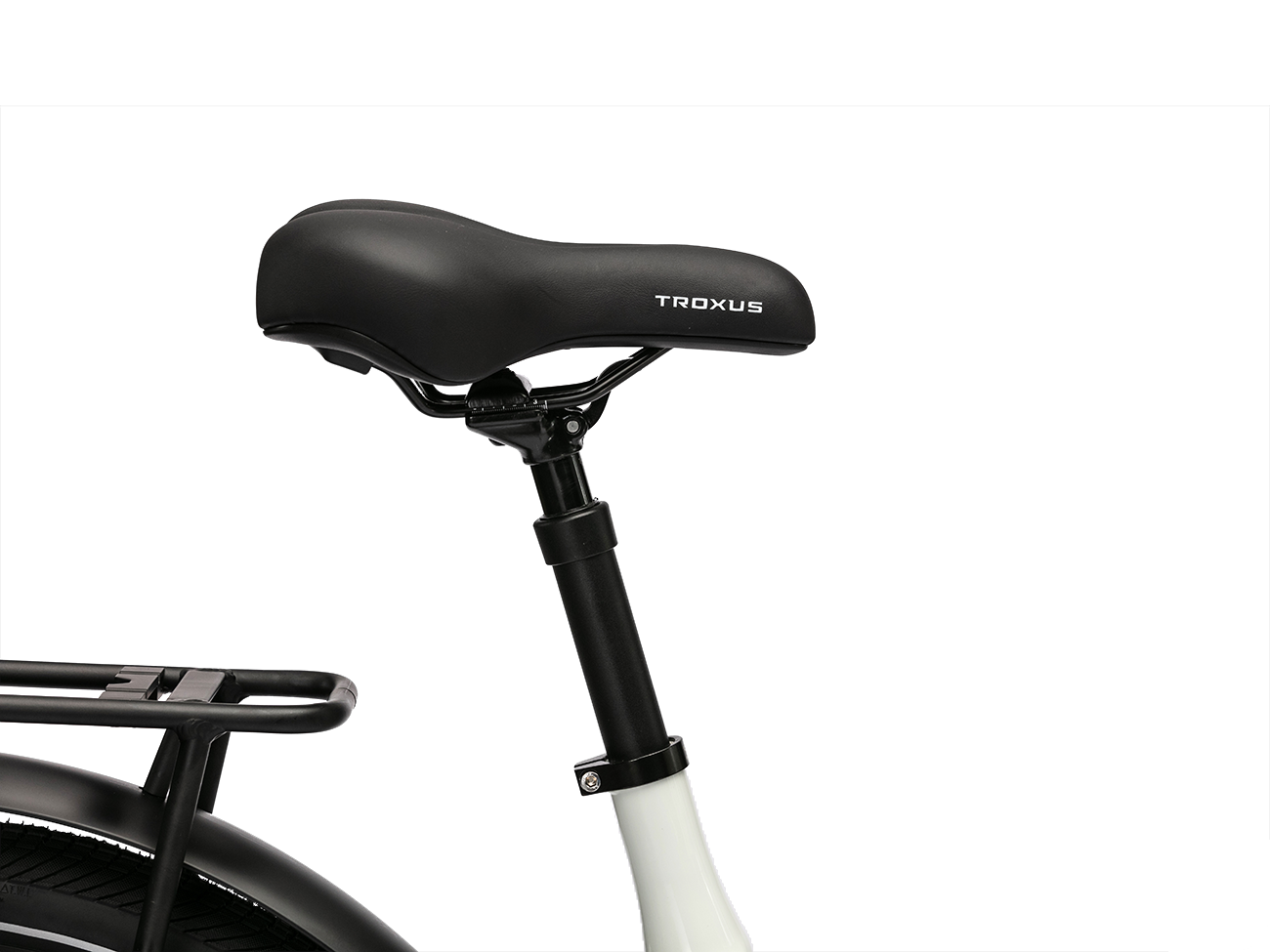

Troxus Comfort / 200mm Wide
Alloy, 30.9x200 / 250mm
Alloy, 35mm w/ Quick Release

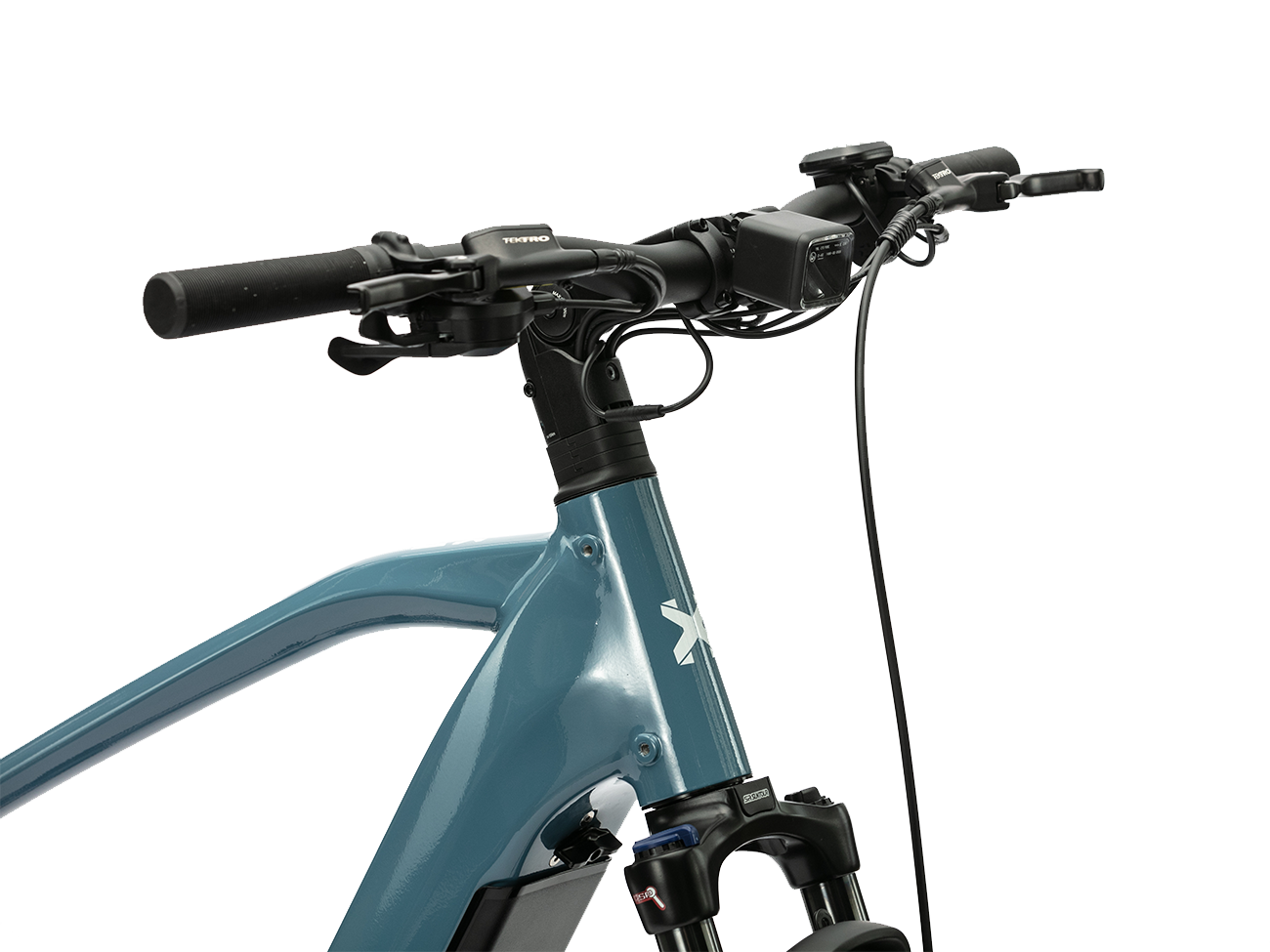

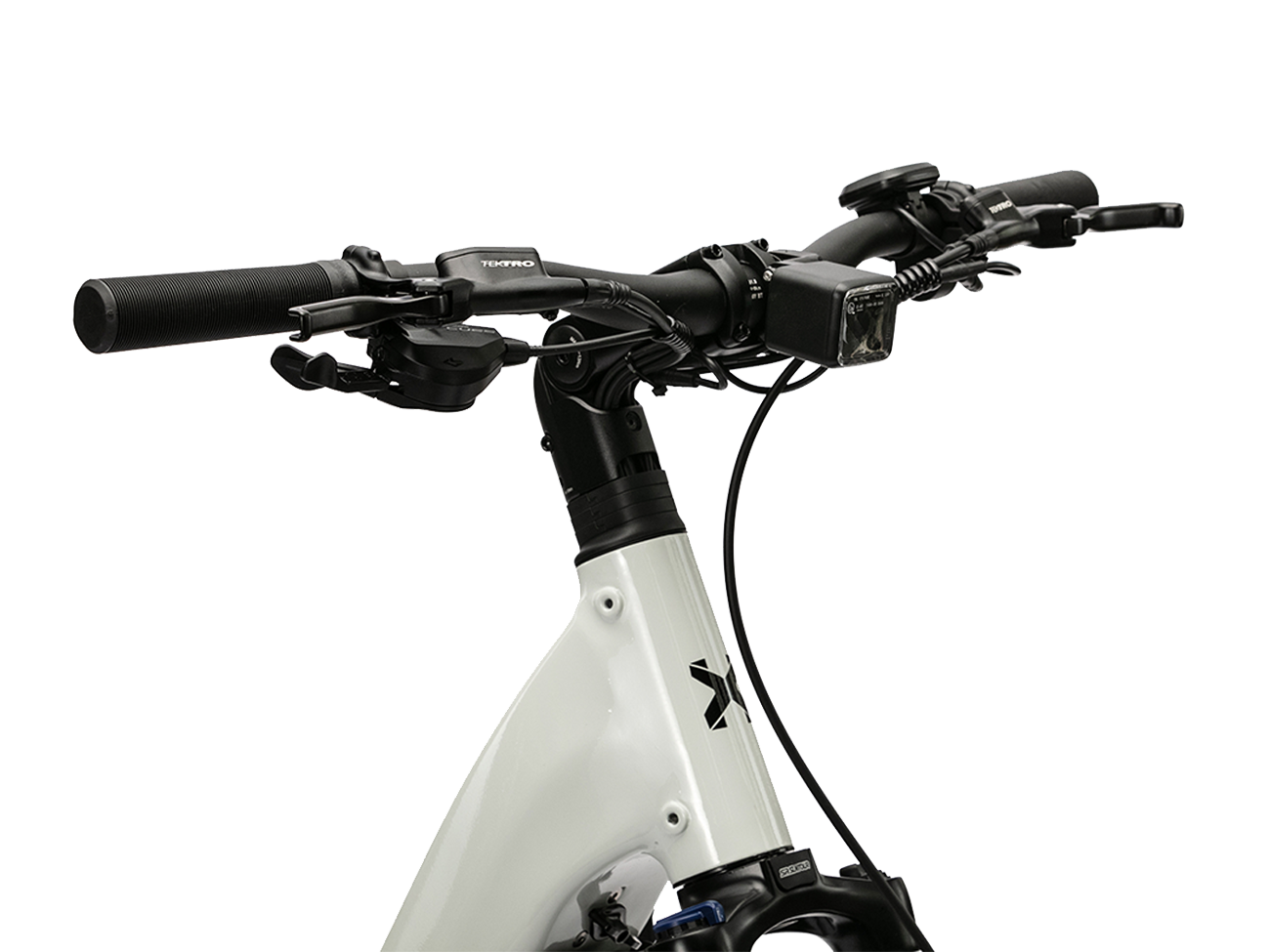

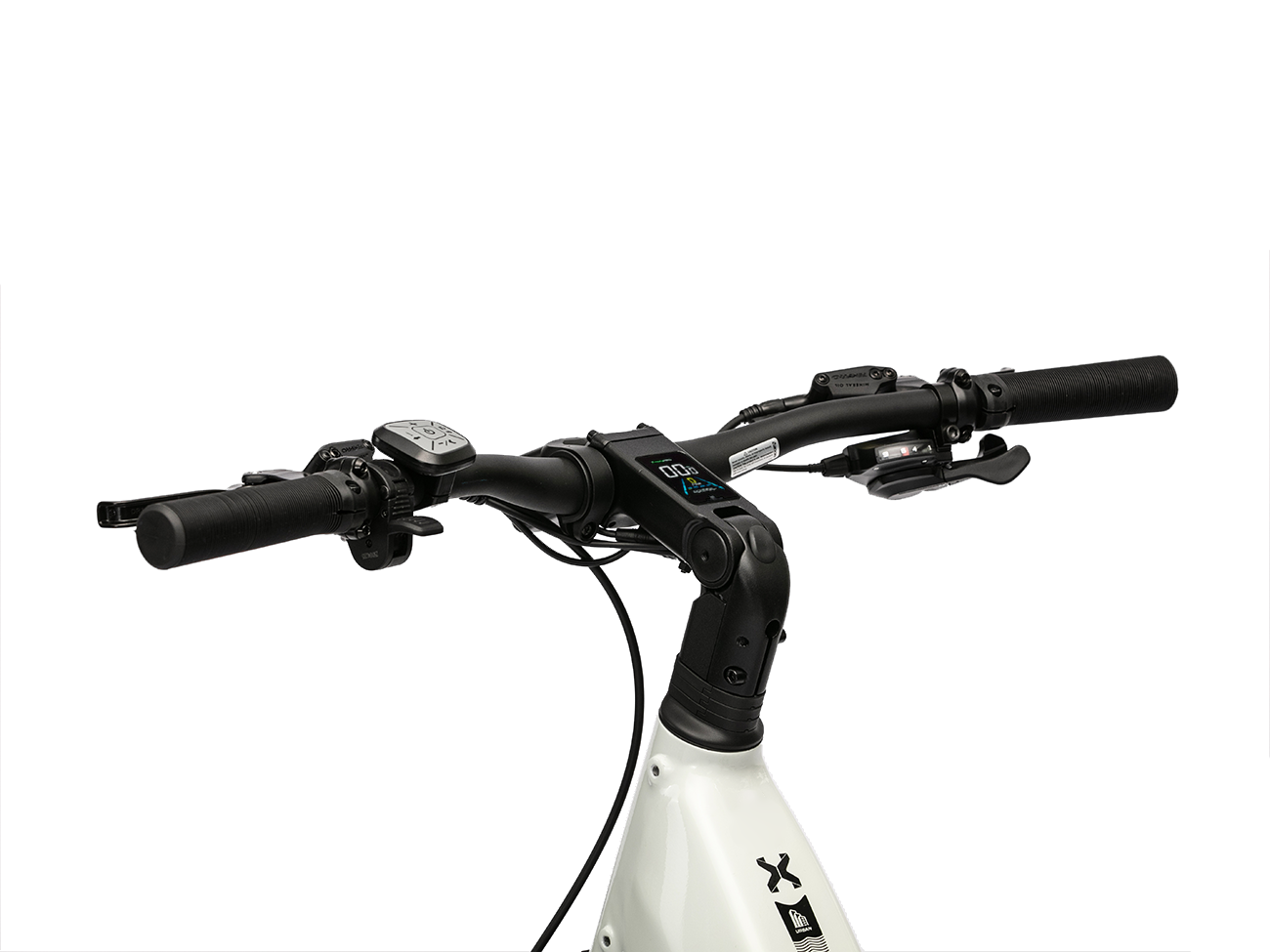

Alloy, Forged, Adjustable, w/ Integrated Display / Ext. 110mm, w/ Internal Cable Routing
Alloy, 31.8mmx680mm Wide, 25mm Rise, 9 Deg. Backsweep
Ergonomic Comfort
9/16″ Alloy Platform with Reflectors
ICR Type, Threadless, Internal 57/62mm, w/ Internal Cable Routing

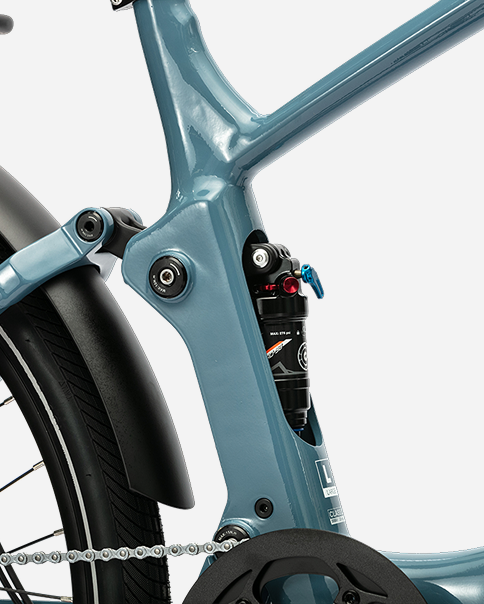

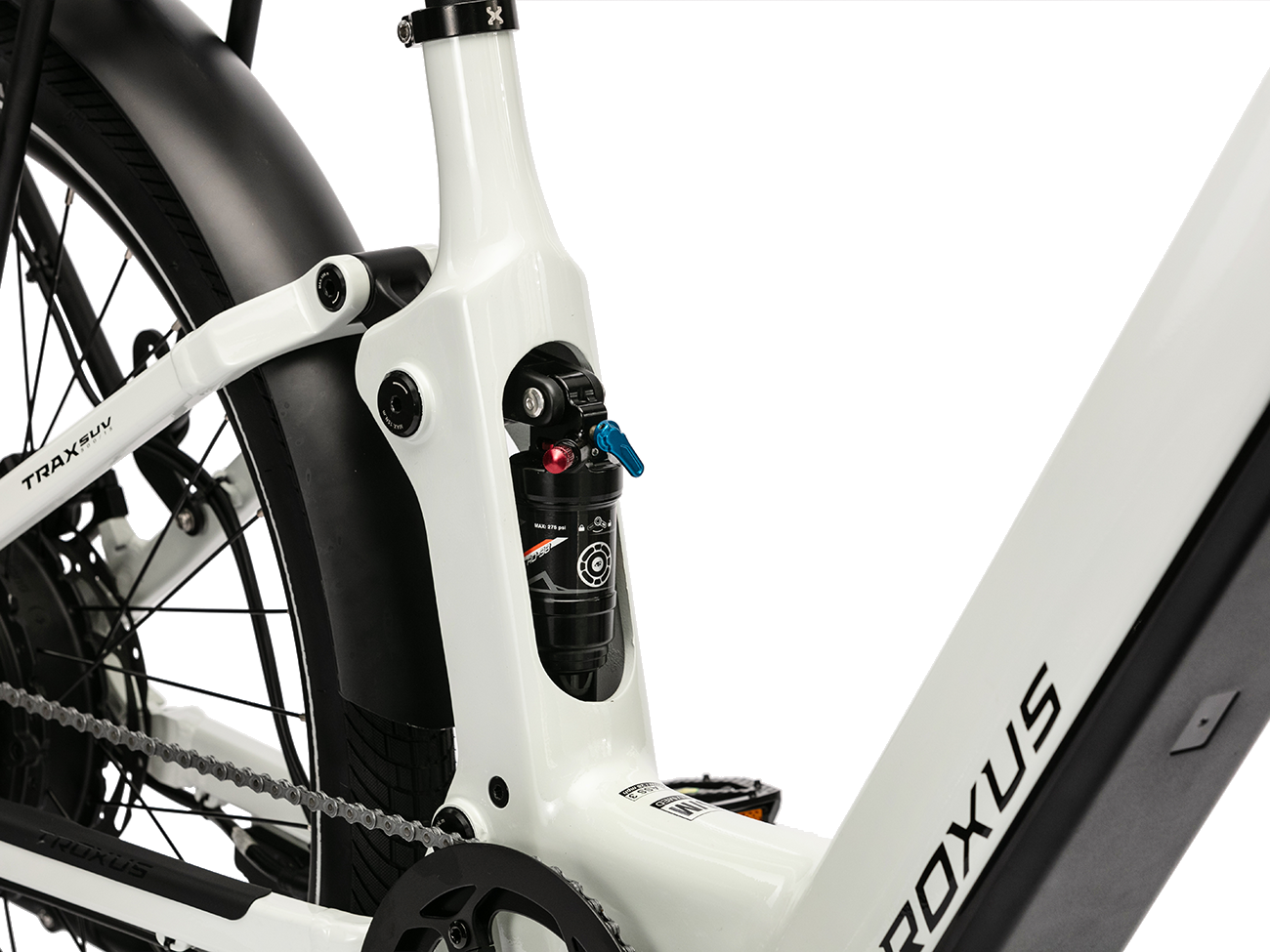

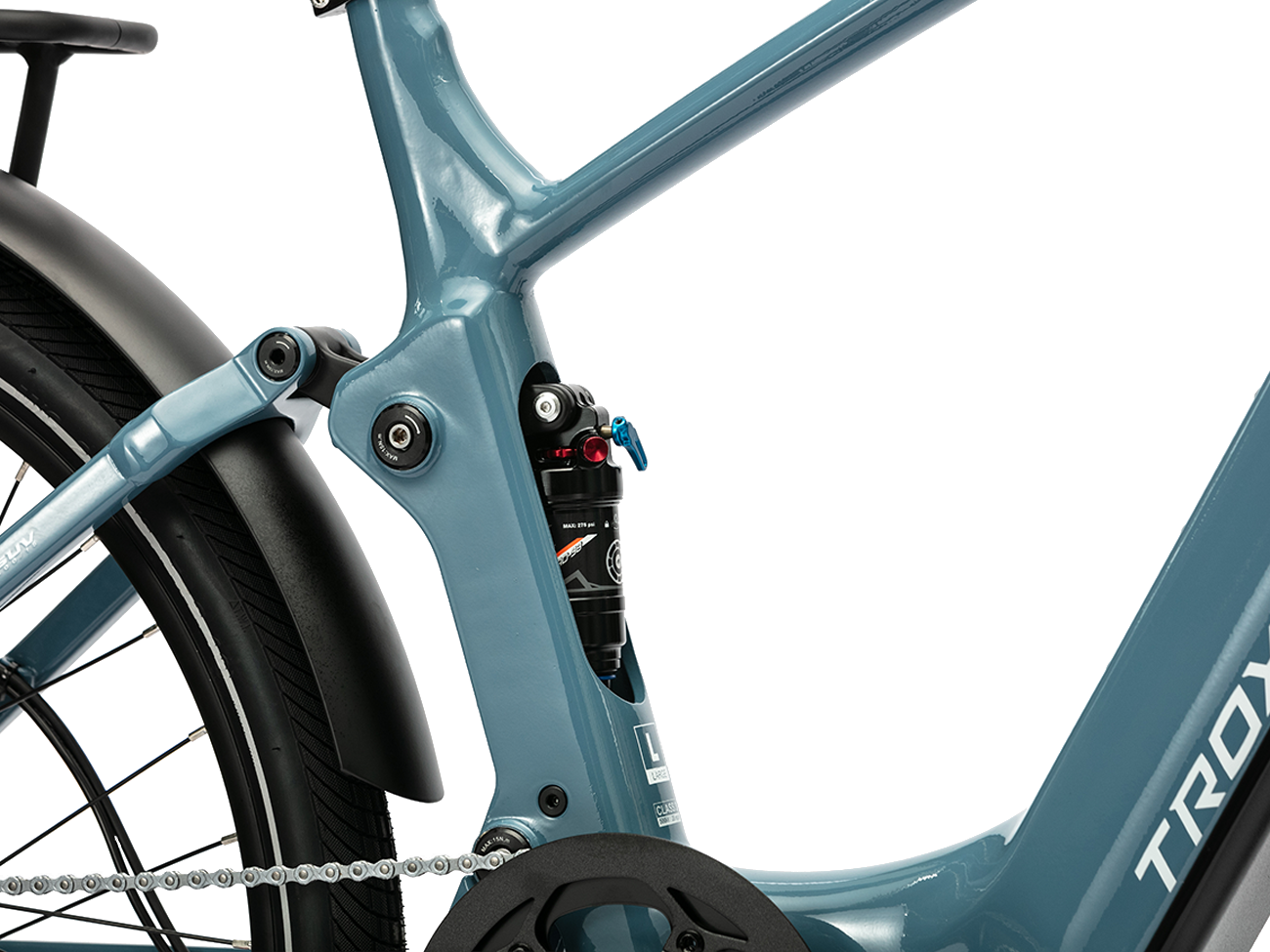

DNM AO-38RC Air Shock, 165x35mm Travel
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Up To 70 Miles Per Charge
Maximum Load: 300 lbs. / Rider: 245 Lbs. / Rear Rack: 55 lbs.
75 lbs.

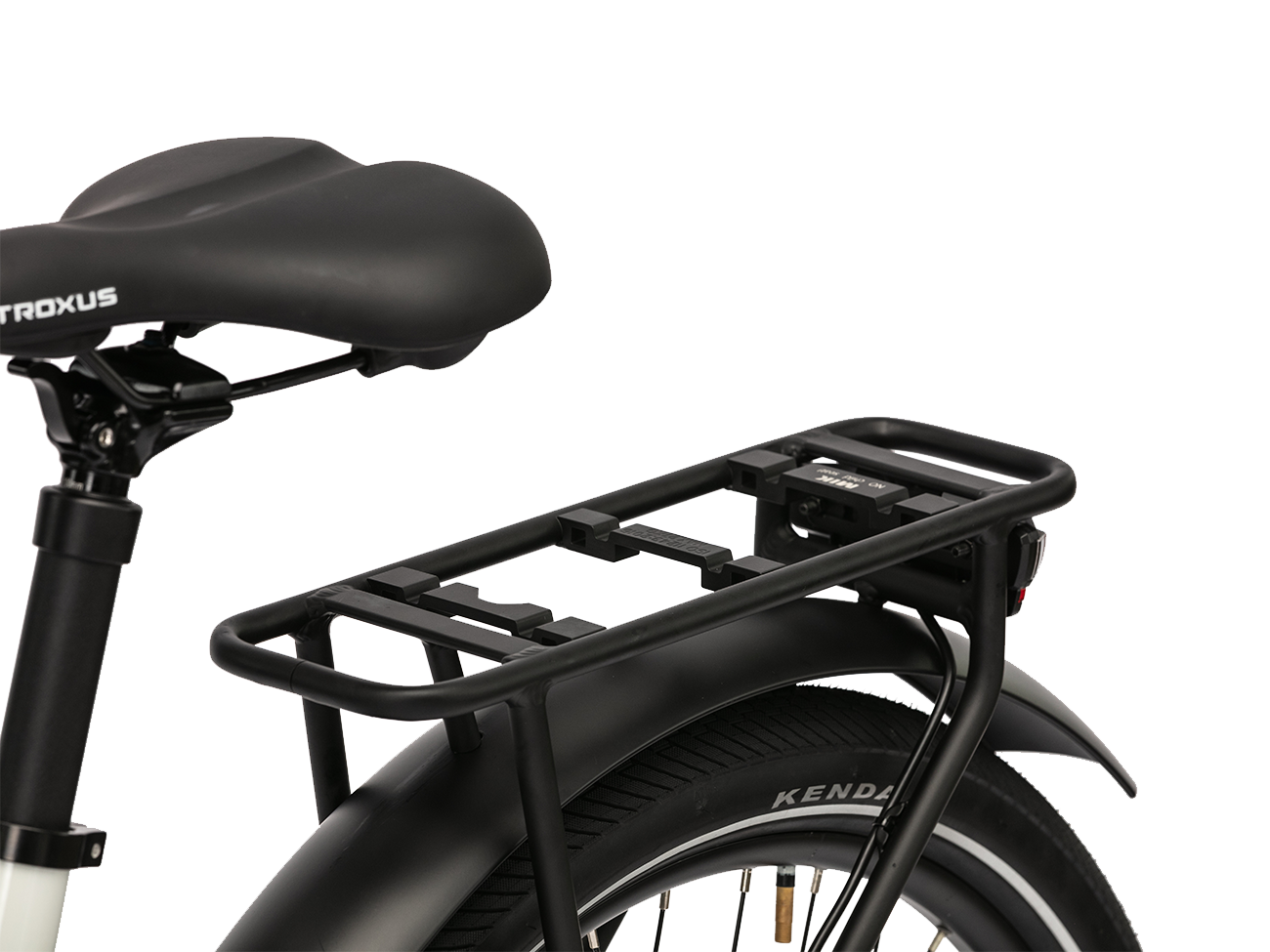

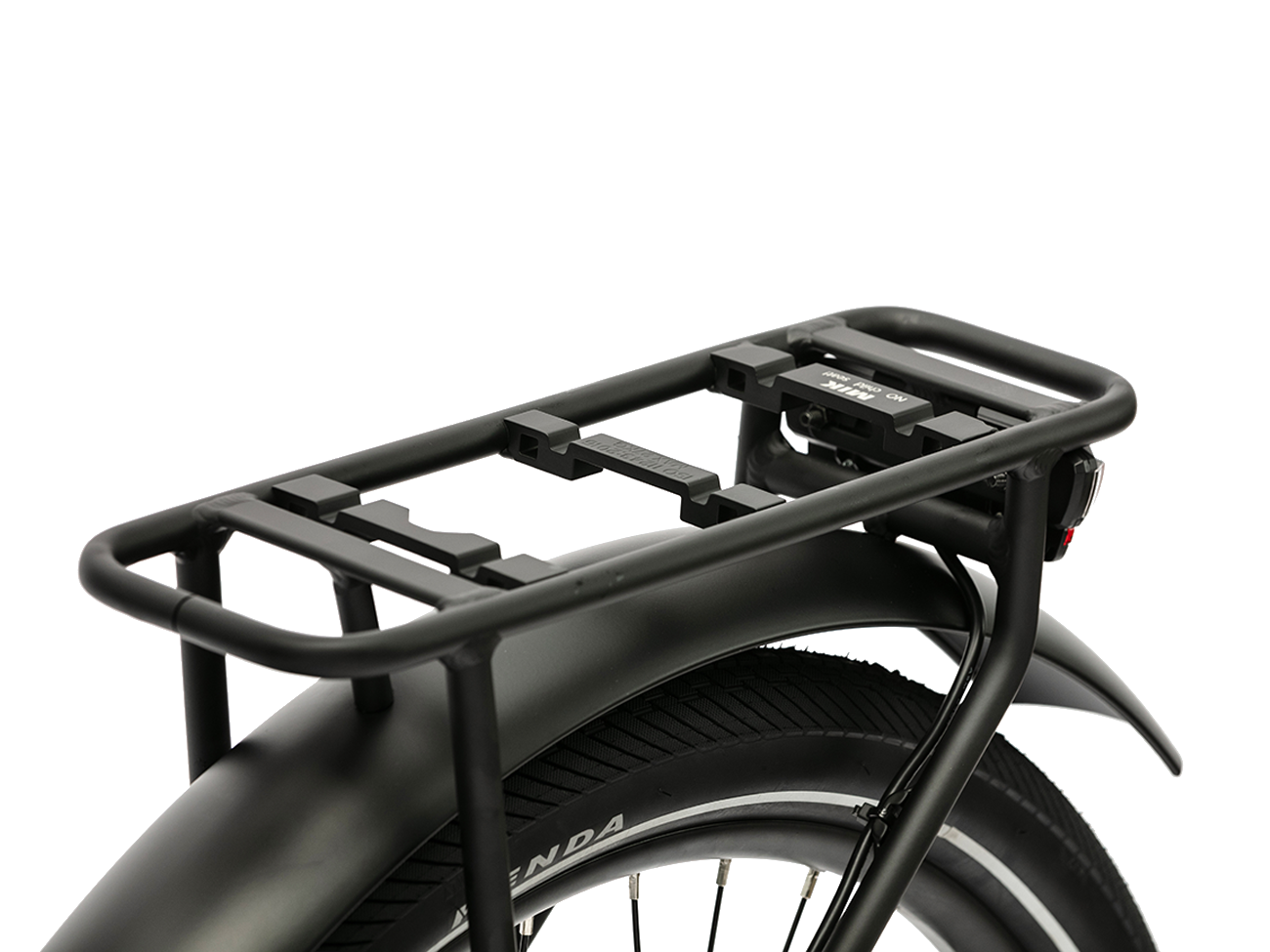

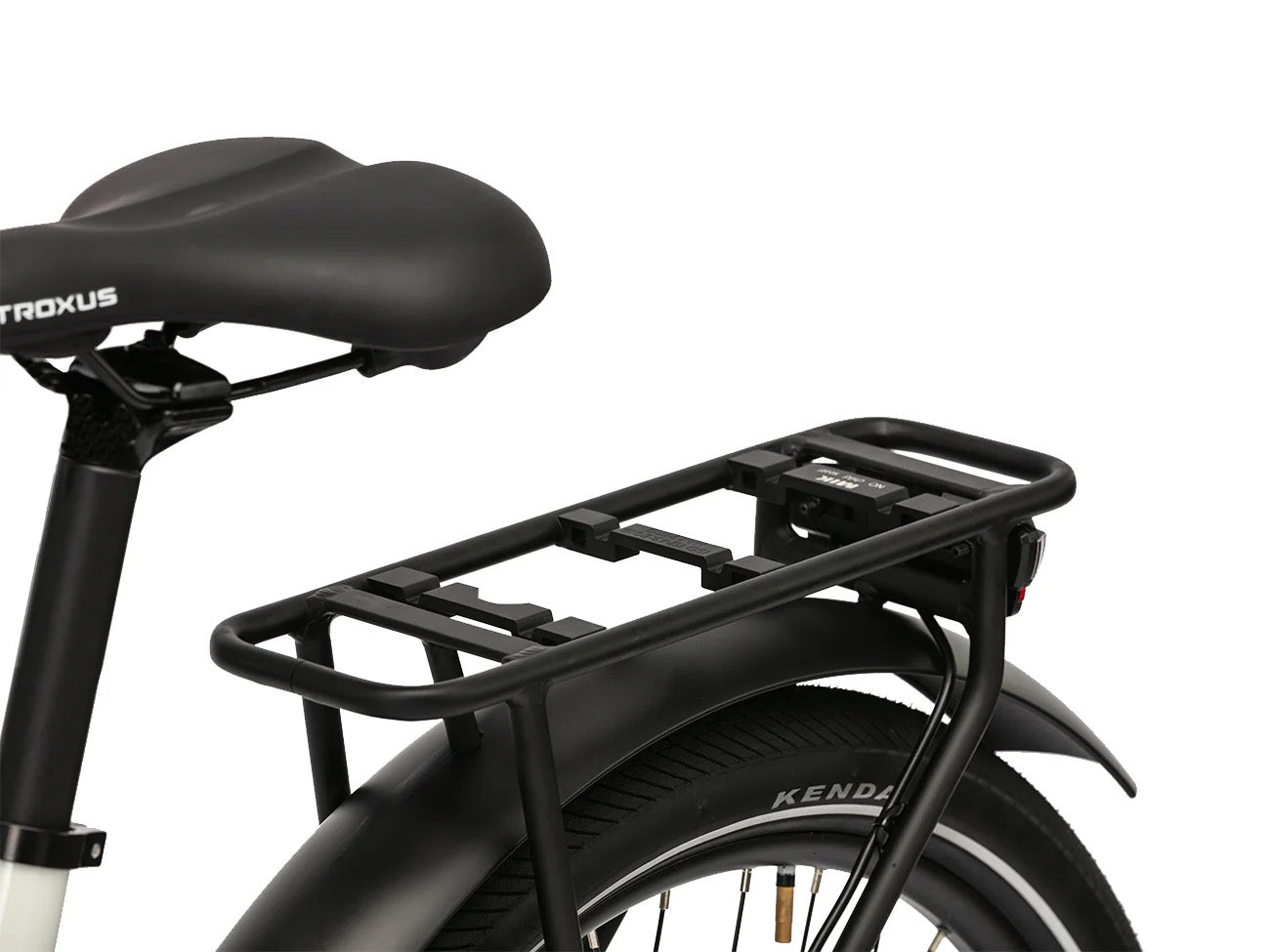

Lightweight Semi-Integrated Alloy Rear Model / MIK-Compatible Rear Rack
Alloy, 27.5"x2.4", Full Coverage
Adjustable Side Kickstand
Above All Accessories Are Included.
5'5" - 5'10" (166 - 178cms)
5'10" - 6'4" (176 - 193 cms)

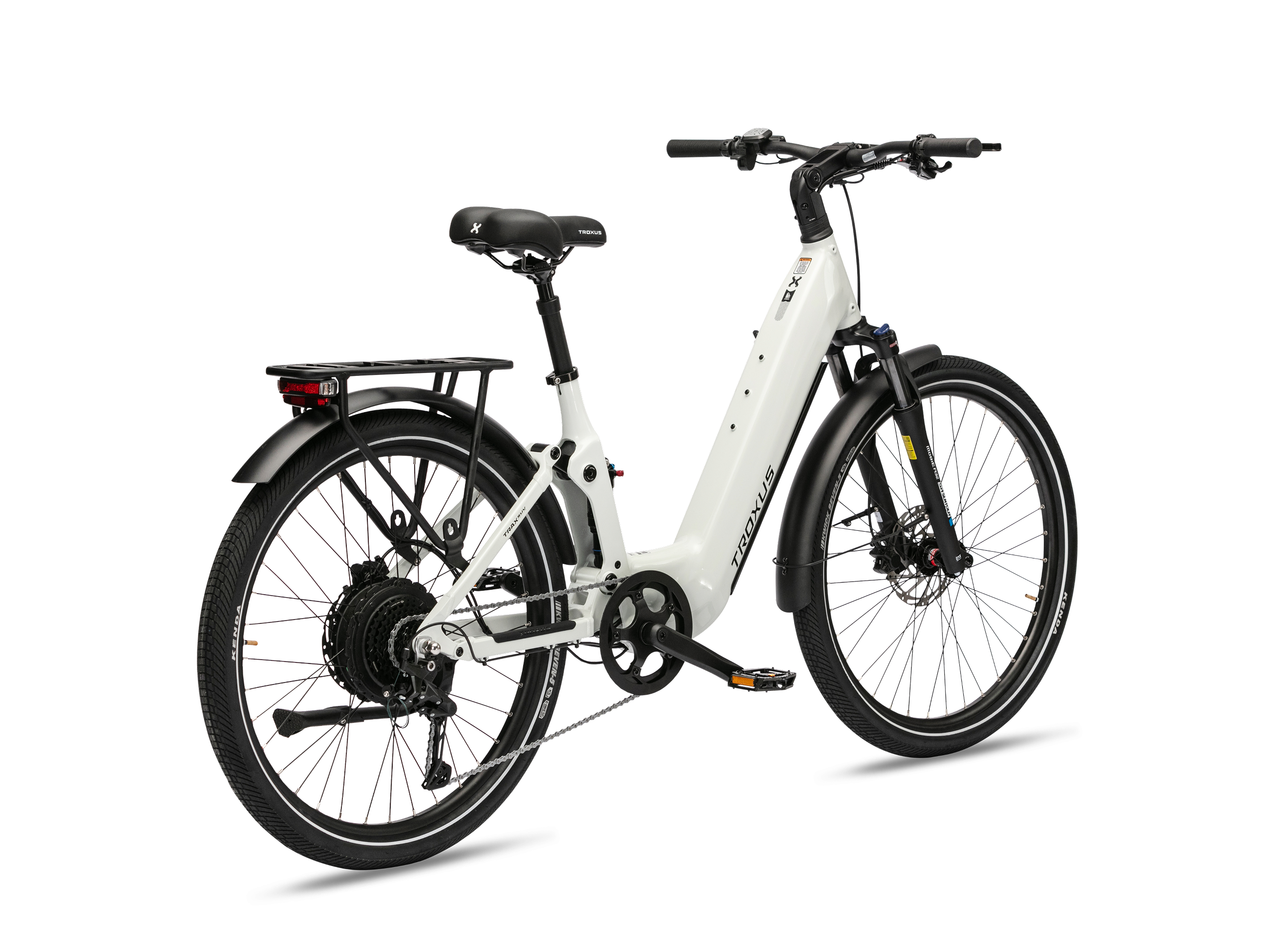

Step-Thru
Step-Over
Medium
Large
27.5"x2.4"
27.5"x2.4"
445
483
74.4˚
74.4˚
160
165
68˚
68˚
626
647
321
321
35
35
480
480
44
44
1214
1236
455
475
611
616
75
75
476
476
