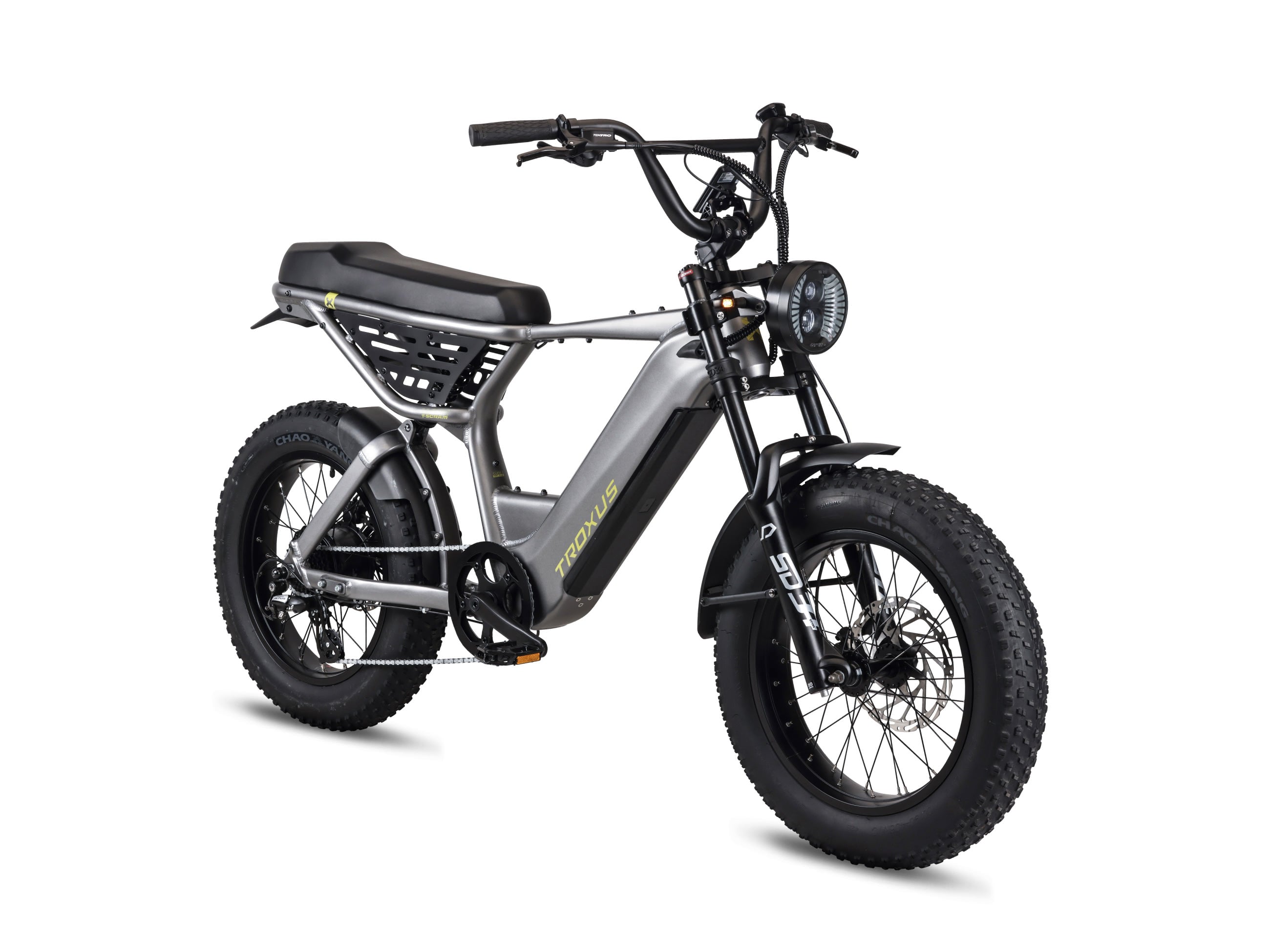

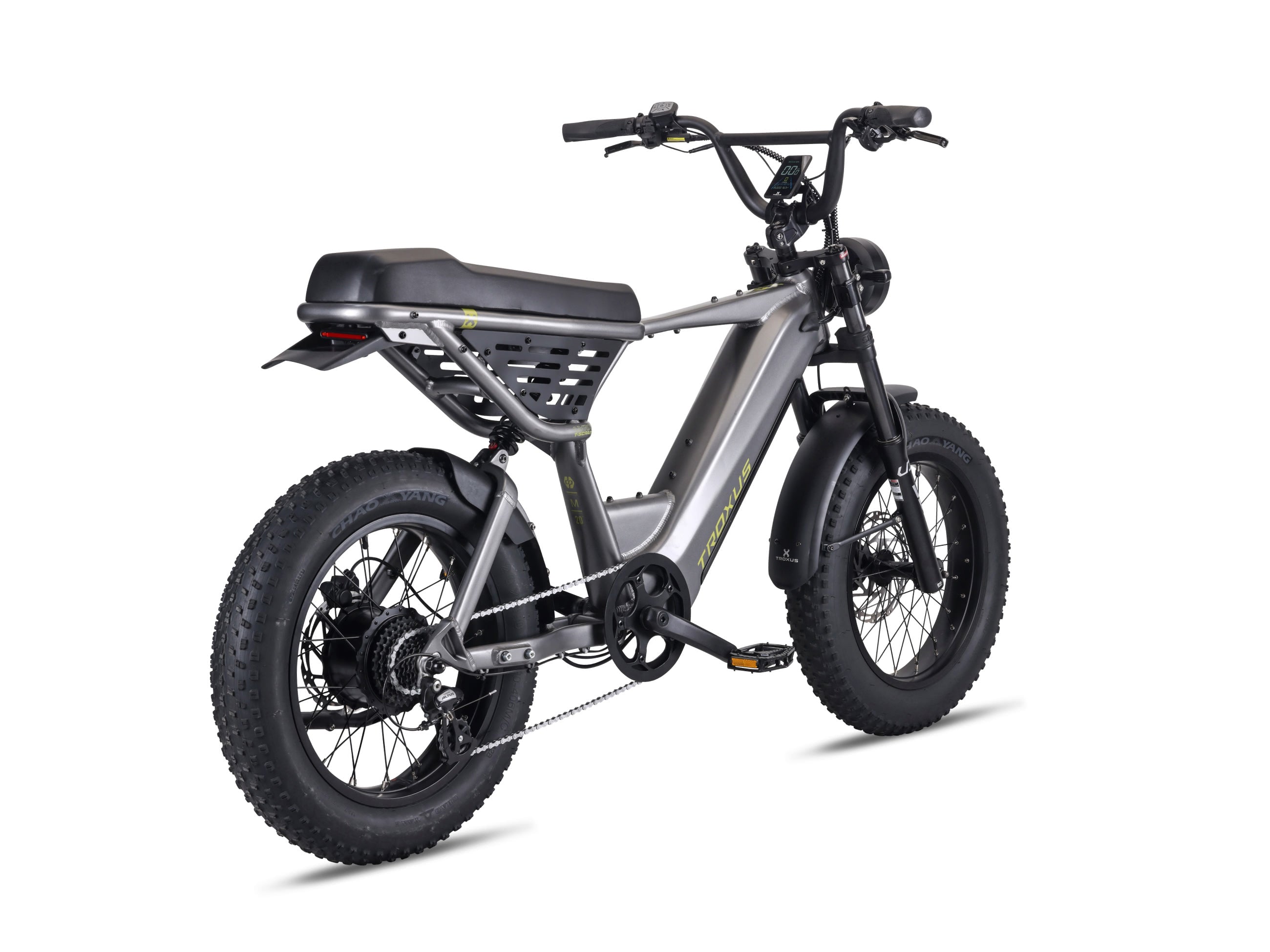

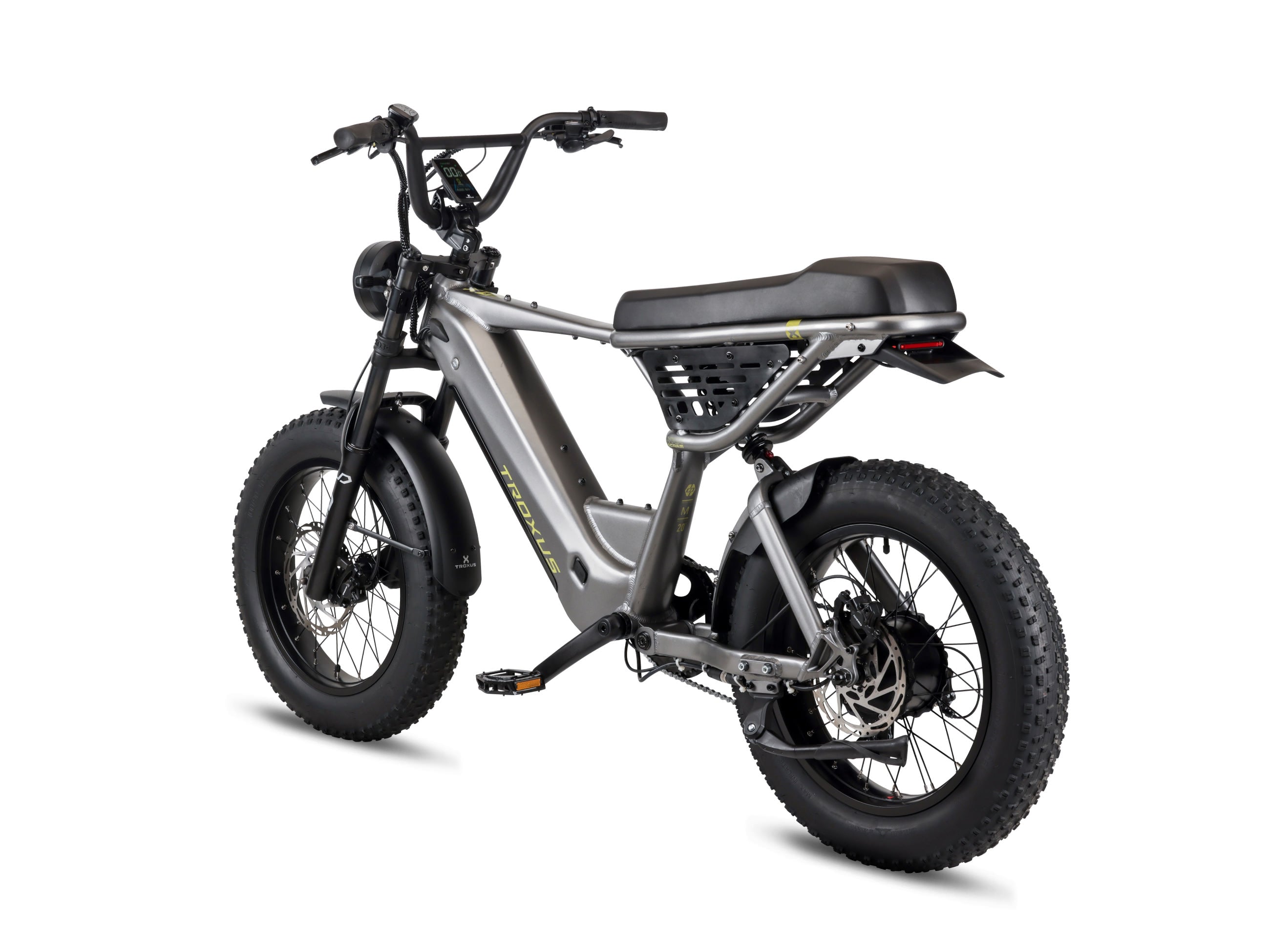

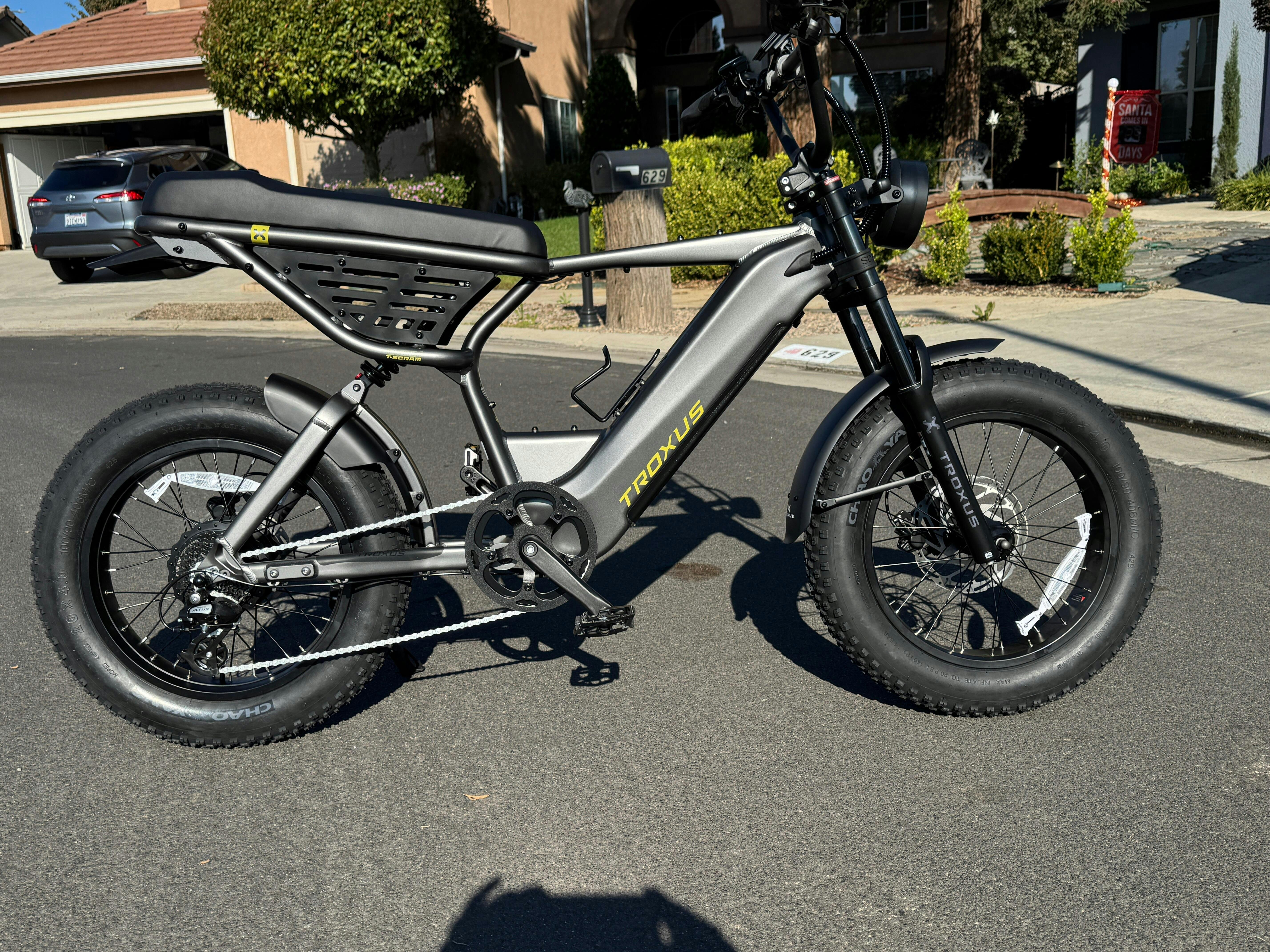

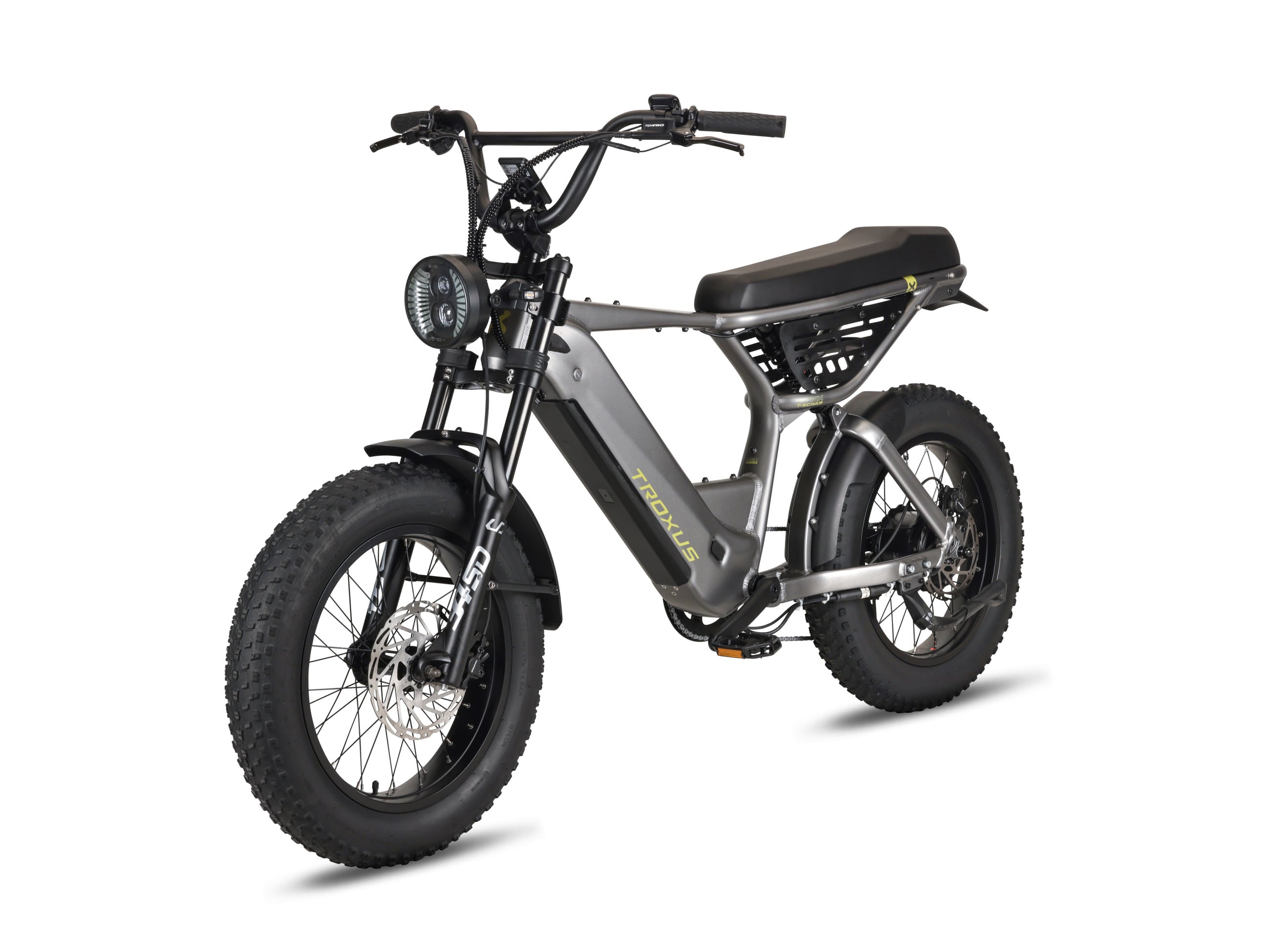

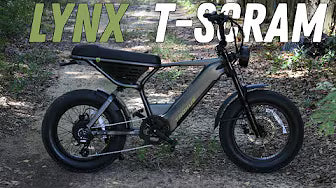

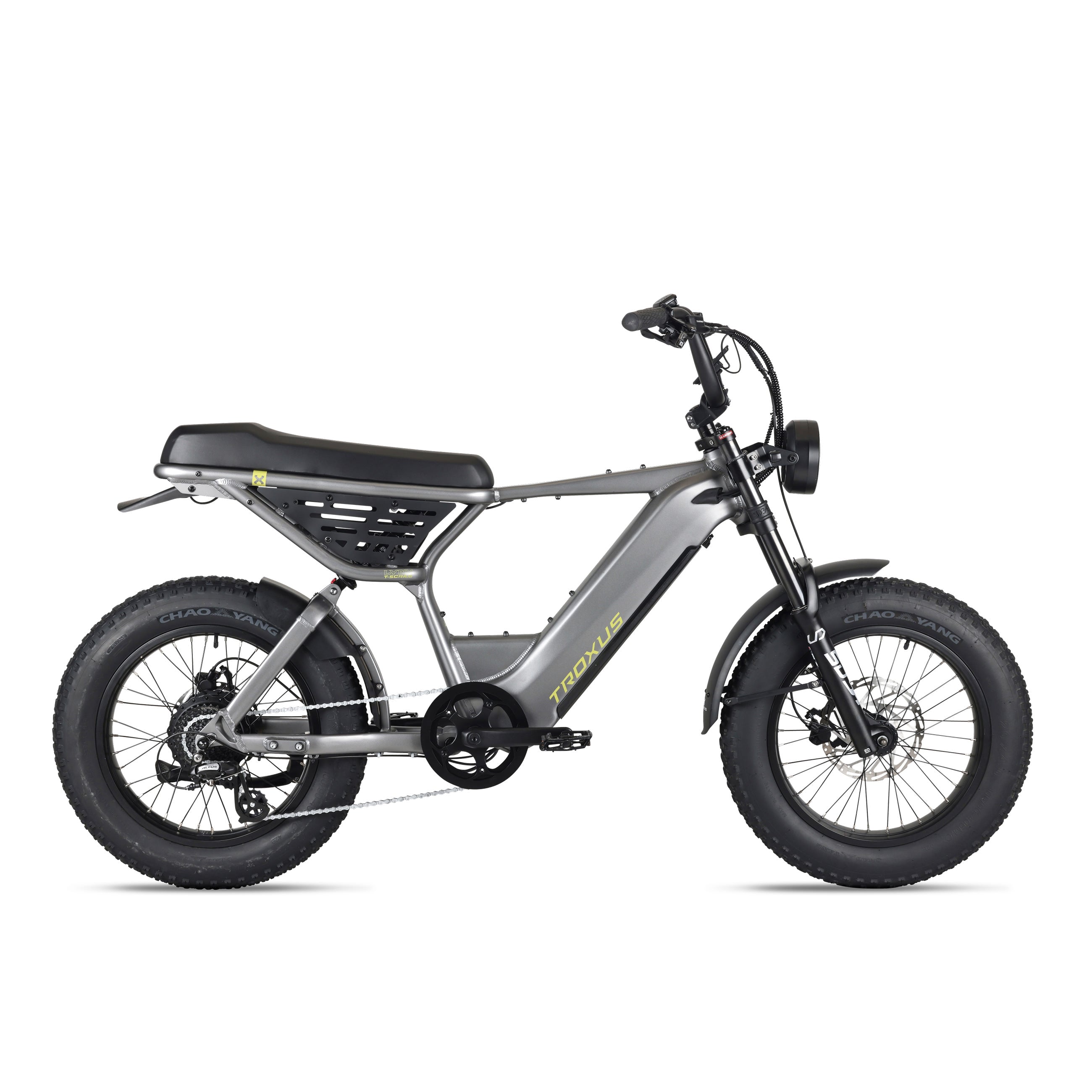

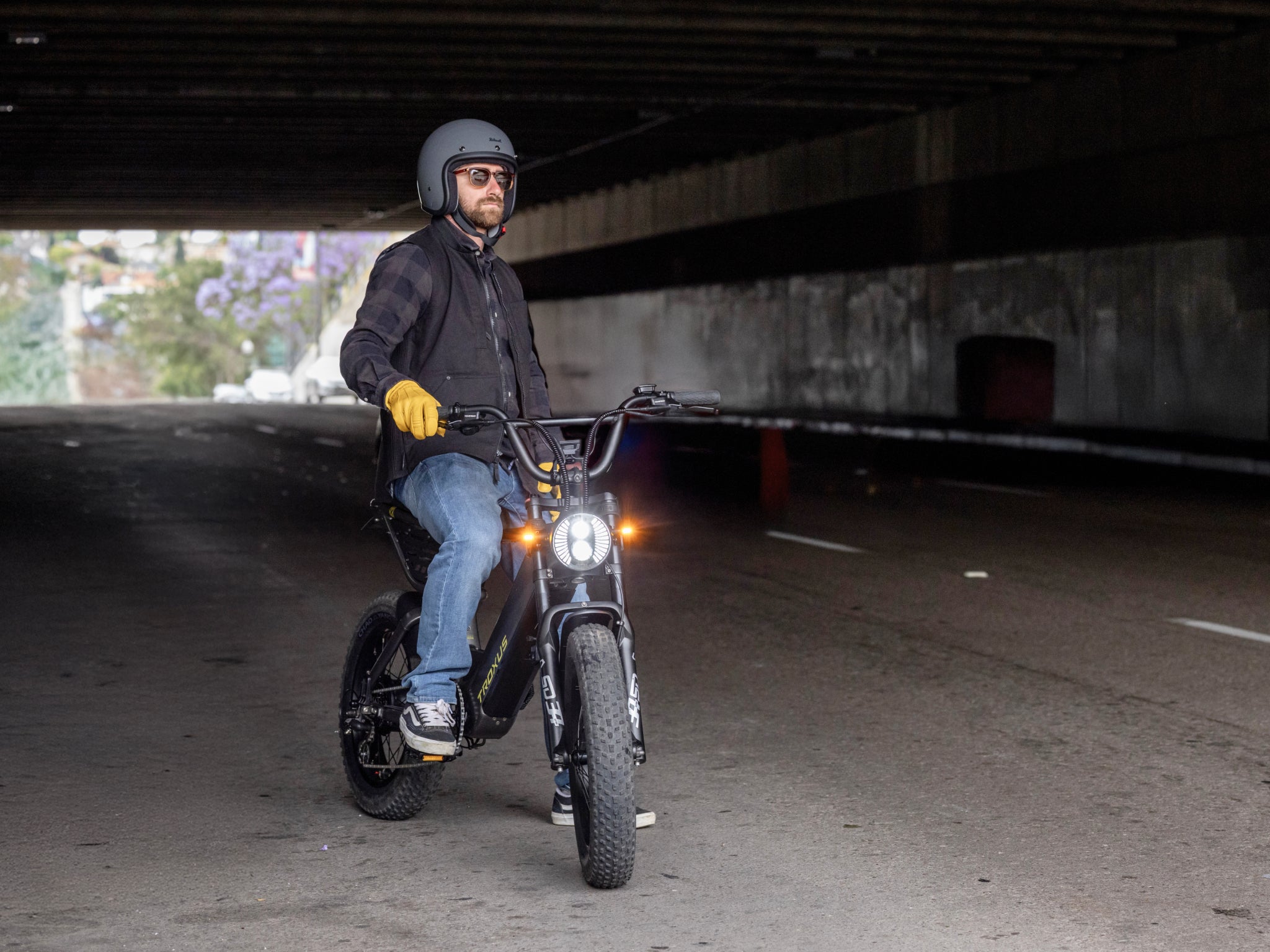

Lynx T-Scram E-Bike


5-YearWarranty
Where other brands stop at 2 years, Troxus goes the distance with you for 5 years, with an unbeatable 5yr / 5,000 Mile Fender to Fender Warranty*. Better yet, the first two years of the warranty are transferrable if you sell your Troxus e-bike or transfer ownership in any way within those first two years. Nobody covers you better, or for as long, as Troxus.
Learn More
5-Year Total Care+ Program
Our 5yr/ 5,000 Mile Fender to Fender Warranty is backed up by our exclusive Troxus Total Care + (TTC+) supplemental warranty. Nobody else offers the same level of added protection. If your bike is damaged in an accident, or if the motor, battery, or other system component wears out in the first 5 years, we will work with your retailer to get you back on the road with discounted replacement parts. Best of all, this “bonus” coverage is free of charge with every purchase of a Troxus bike.
Learn More*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
*All specifications are subject to change without notice.
Ananda® 48V/750W Hub-Drive Motor, 85Nm Peak Torque

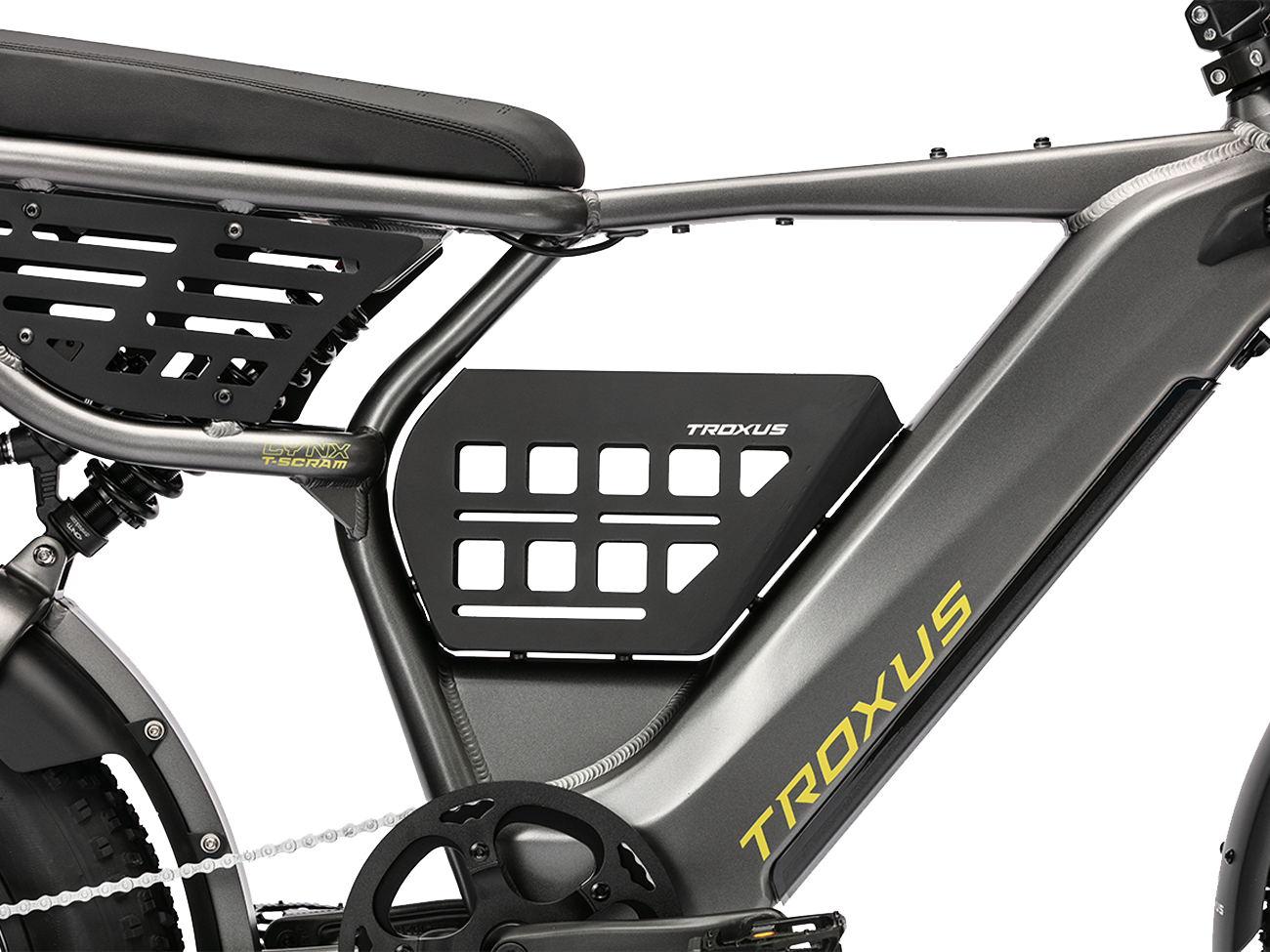

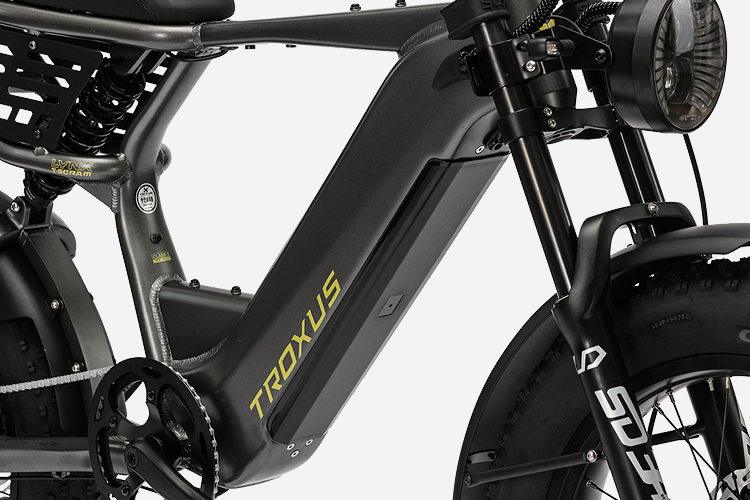

UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells

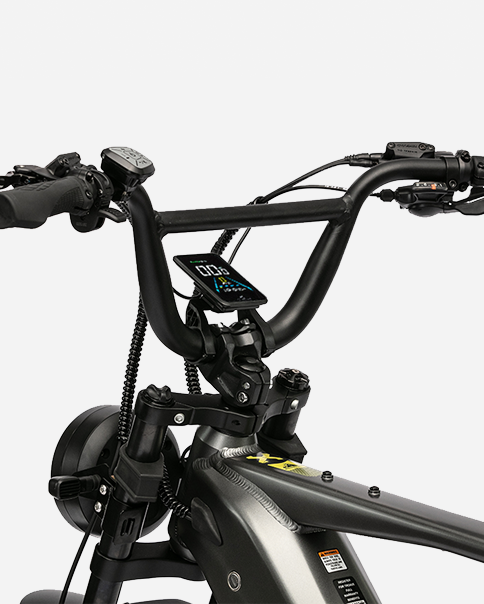

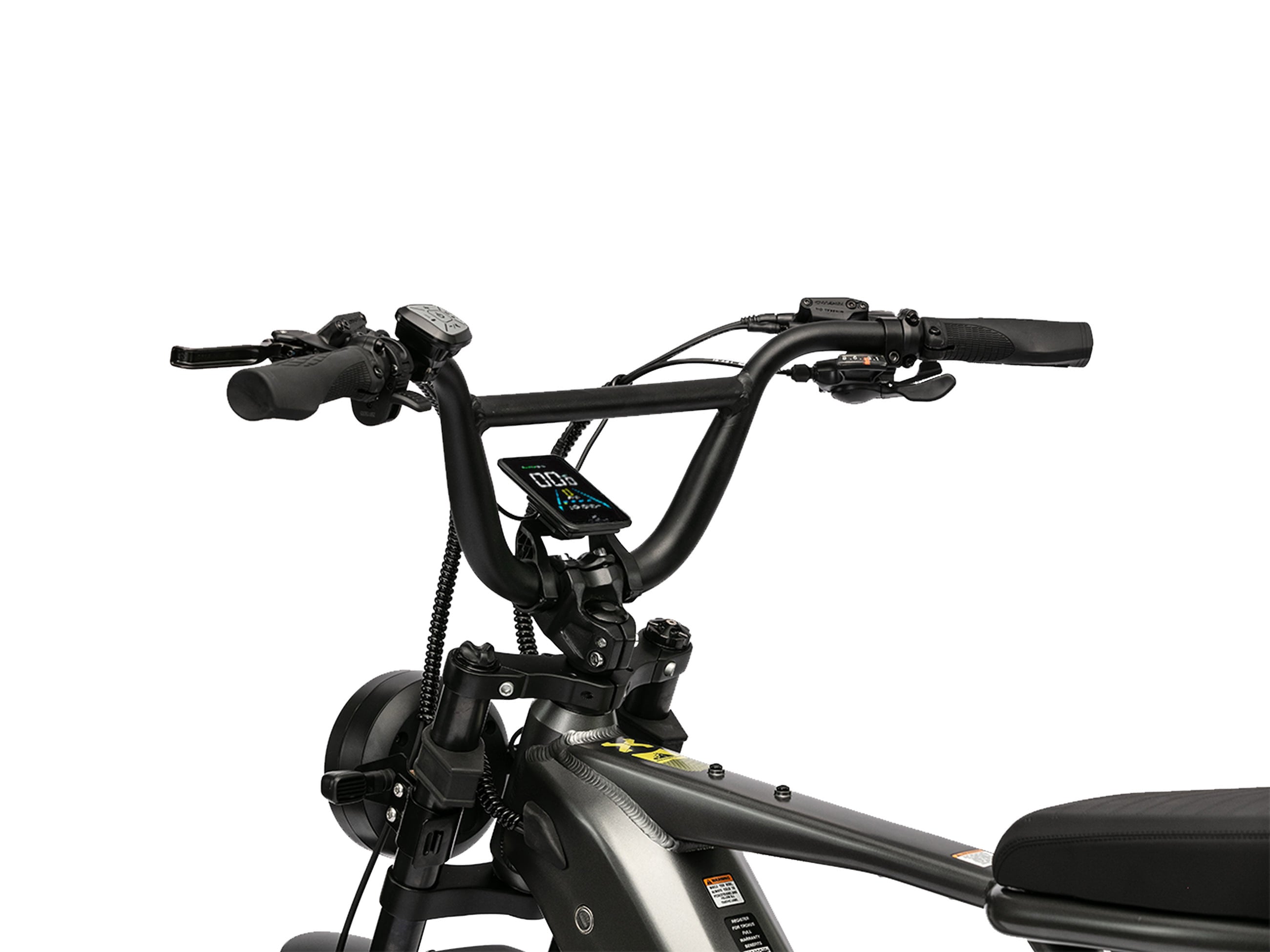

Color Display, Bluetooth, w/ Front & Rear Turn Signals, w/ Multi-Function Remote
Thumb Throttle on Handlebar
Switchable Torque And Cadence Sensor Modes
0~5 Level Pedal Assist
3A / 100-240V Input / 54.6V Output

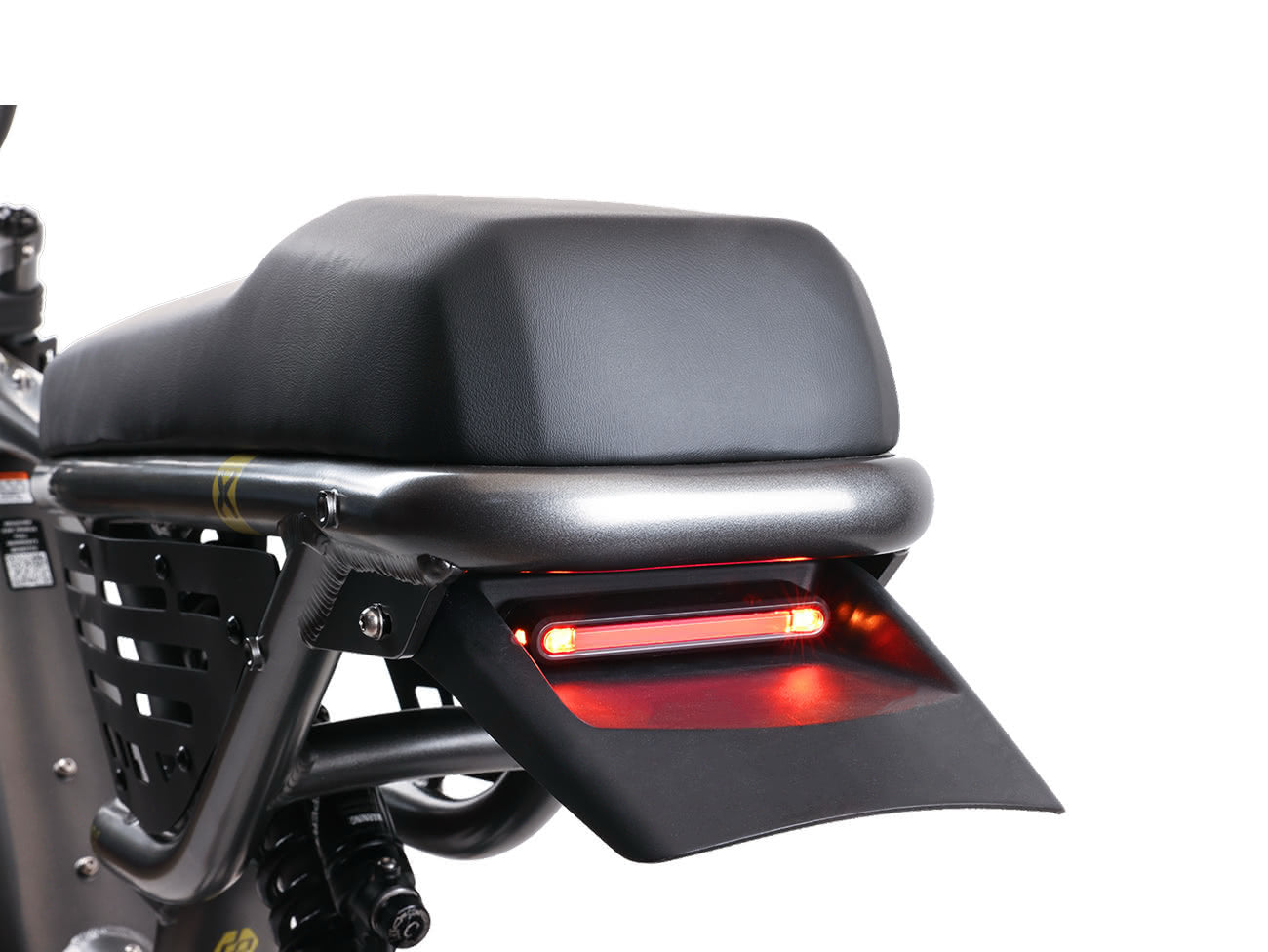

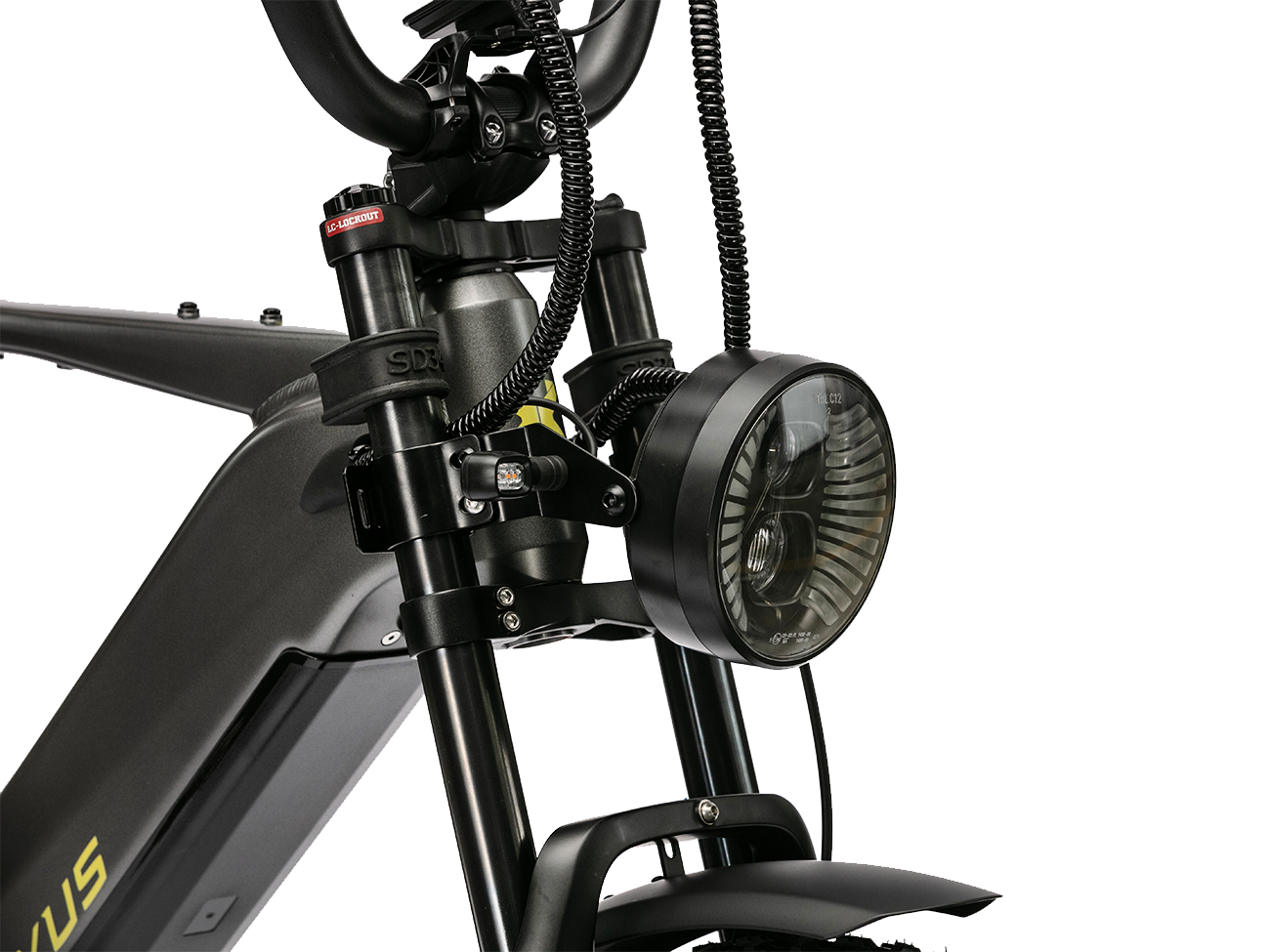

400 Lumen Moto-Style Headlight w/ Turn Signals, Integrated Rear Light
48Vx22A/12V

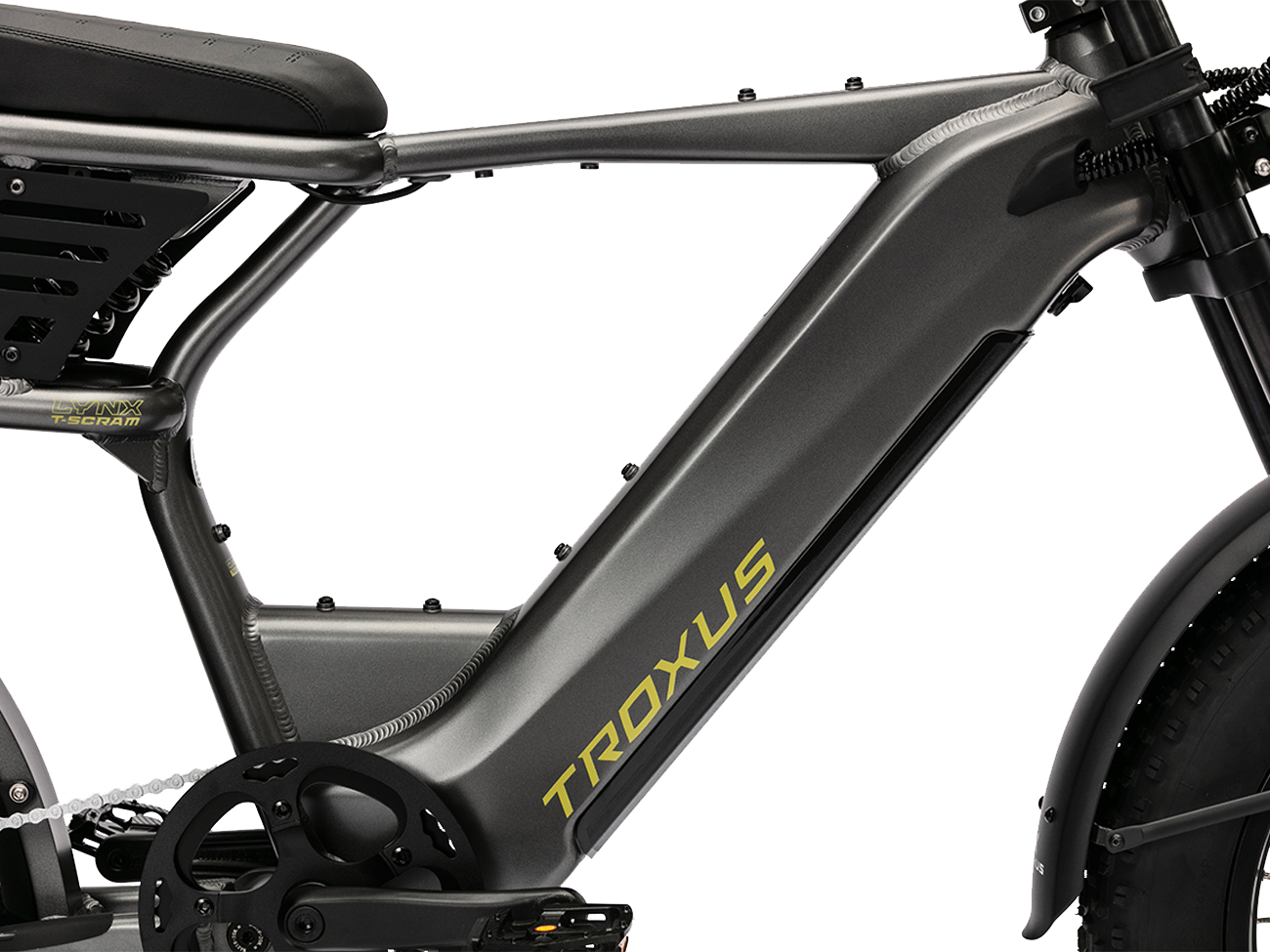

6061-T6 Aluminum Step-Over Frame, Dual Suspension, 85mm Travel
Front Suspension Fork, 100mm Travel
KMC® 1/2"x3/32"
Aluminum, 48T, w/ Alloy Outer Chainguard, Square Taper, 150mm

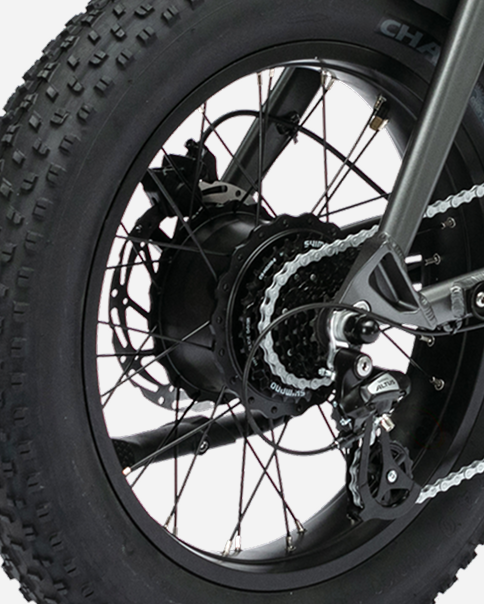

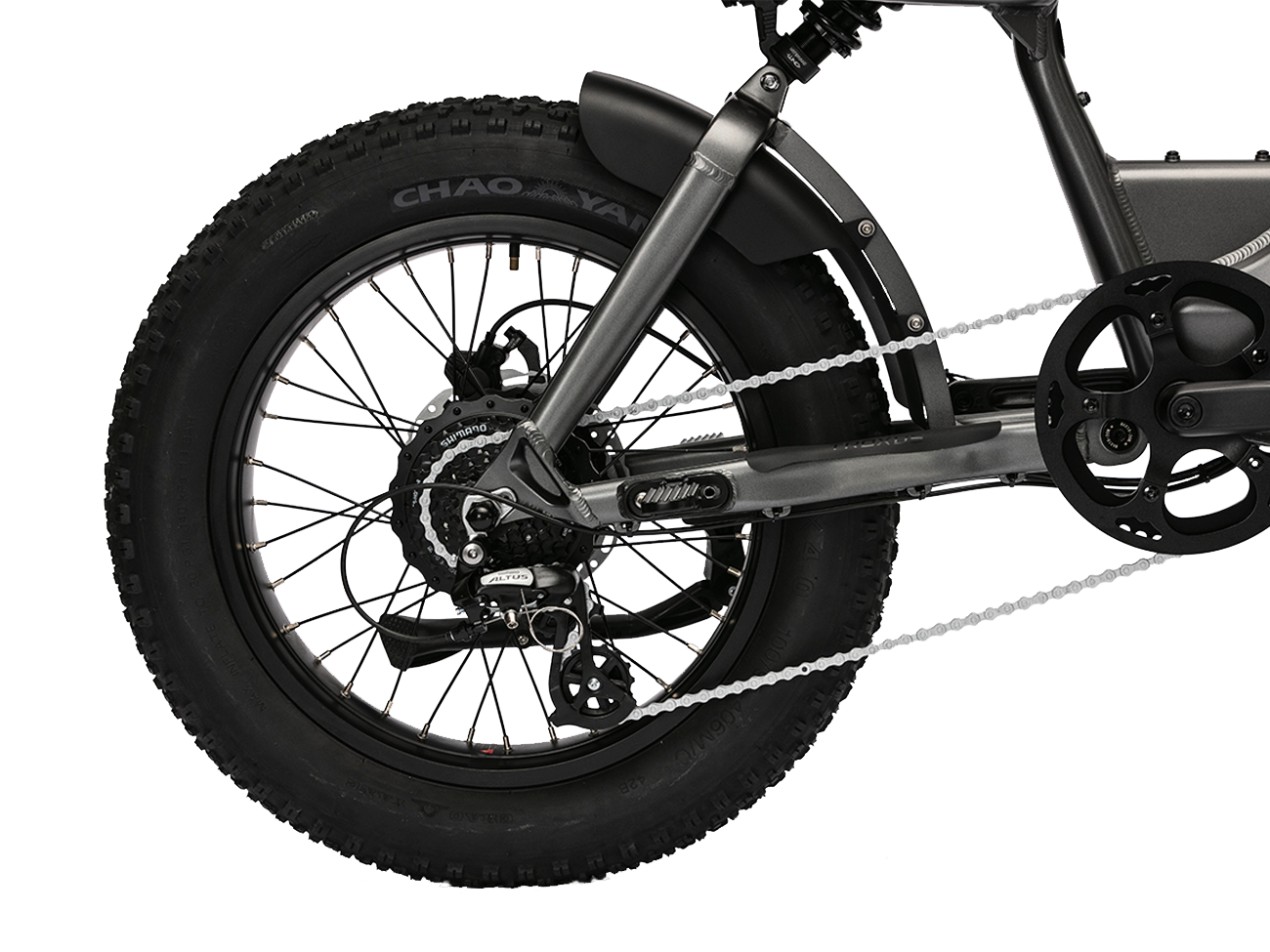

Shimano® RD-M310-L, Altus, 8-Speed
Shimano® 8-Speed, 11-32T
Shimano® 8-Speed
Square Taper Sealed Bearings, Torque & Cadence Sensors Included
BIG-DADDY® 20"×4.0"
Alloy, 13Gx36H, O.L.D. 135mm, 3/8" Axle w/ Nuts, Length: 160mm
Ananda® 48V 750W/ 28 MPH. 85Nm
Alloy Double Wall, 20"x4.0" w/ Eyelets
Stainless 13G. Front / 12G. Rear

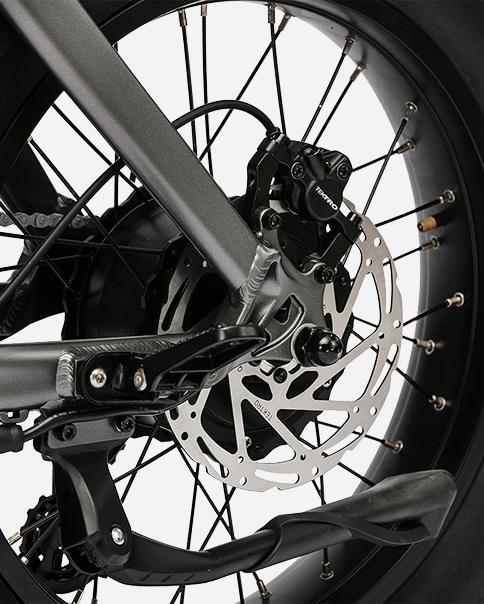

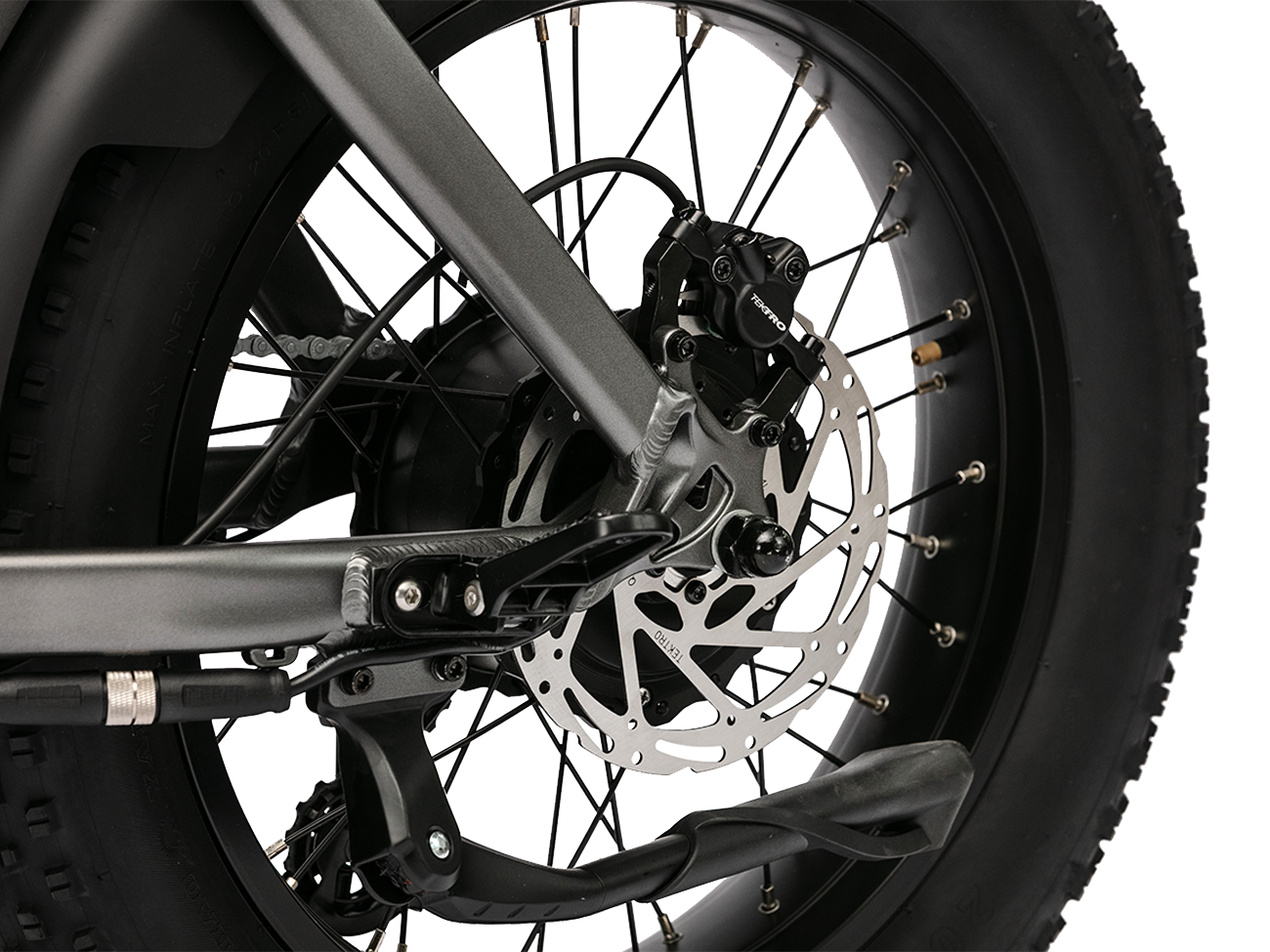

Tektro® Hydraulic, w/ Brake Sensors
203mm / 180mm

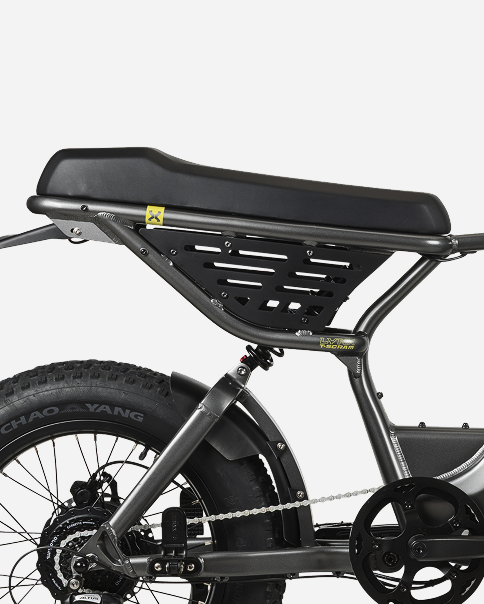

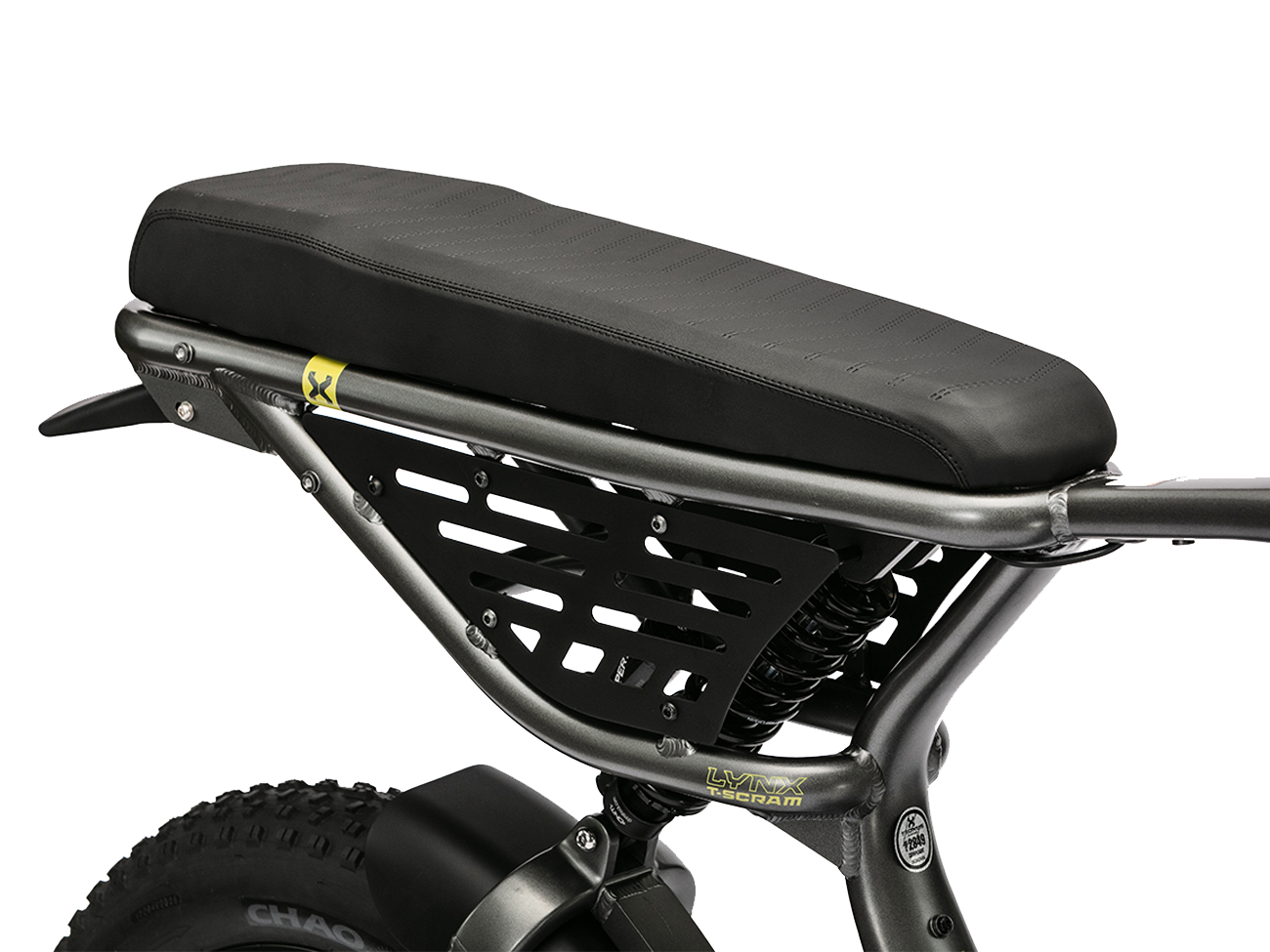

Long / For 2 Passengers
N/A
N/A
Alloy, BMX style, Top-Load, 30º Angle, 50mm Extension
Alloy 6061-T6, 31.8mmx700mm Wide, 178mm Rise
Ergonomic Comfort
9/16″ Alloy Platform with Reflectors
Threadless, Internal 1-1/8"

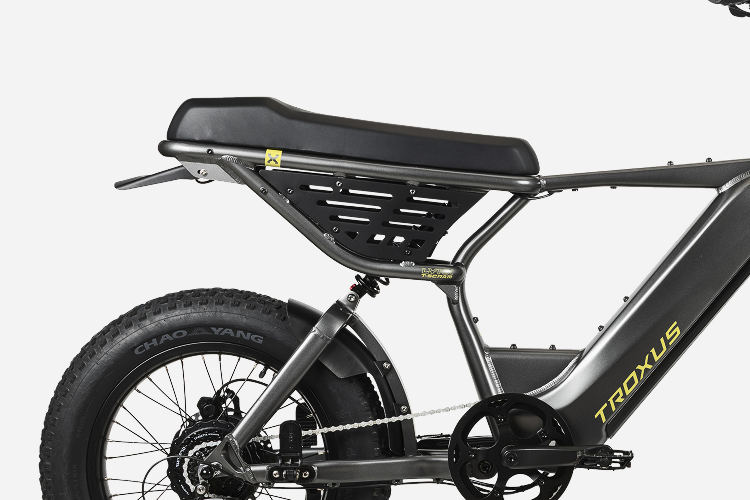

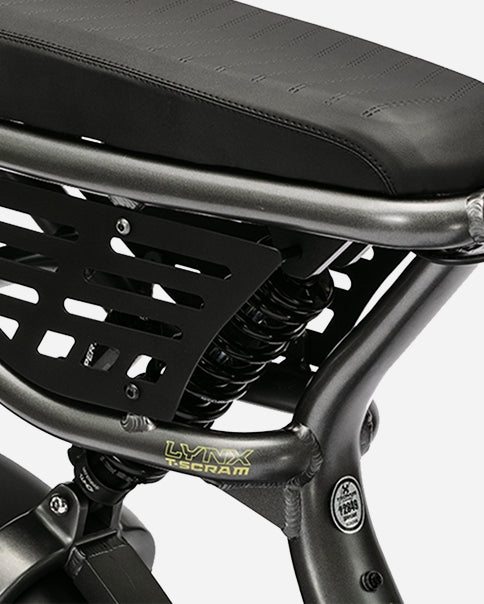

DNM RCP-2R Rear Shock w/ Coil / 240x68mm Travel
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Up To 90 Miles Per Charge
Maximum Load: 400 lbs / Rider: 250 lbs. / Passenger: 150 lbs.
88.5 lbs.
Alloy Front & 2 Plastic Rear, 20"x4.0", w/ Alloy Hardware
Adjustable Side Kickstand
Above All Accessories Are Included. Optional Folding Pegs for Chainstays
One Size Fits Most

Universal
20"x4.0"
N/A
N/A
145
67˚
652
316
0
500
51
1241
457
520
100
460
