Trax LT iQ

$1,799.00 USD

Color

Biscotti Capri Blue Dusk Blue

Size

Small Medium

Bike Version

Find a Local Dealer

20 mph

Max Speed

Up to 55 Miles

Per Charge

Class 1/2/3 eBike

As Sold

The Trax LT iQ lightweight e-bike is designed for riders who want easy handling, smooth commuting, and practical daily use. With a 57 lbs lightweight frame, smooth pedal assist, flexible range options, and Ride iQ smart protection, this e-bike simplifies city riding, carrying, and storage without sacrificing comfort or reliability.

What is Ride iQ?

Bringing together Troxus ride quality and next-generation smart technology.

Connectivity: Remote access with proximity unlock
Security: Real-time tracking & geofencing alerts
Ride Intelligence: Smoother, customizable power delivery
Energy Management: Smarter trip planning & reduced range anxiety

Learn More

Shop Local

Shop online, ride today! Order your e-bike online and enjoy the convenience of picking it up the same day at the nearest store to you.

Find A Local Dealer

5-Year Warranty

All 2024 and newer e-bikes are backed by an exclusive 5-year limited warranty, while 2023 and older models are covered by our reliable 2-year standard warranty.

Read More

Total Care Program

If your bike is damaged or involved in an accident, we’re here to help you work with your retailer to get back on the road, trail, or bike path quickly.

Read More

View details

Trax LT iQ

Biscotti / Small – Change

Lightweight E-Bike for Easy Carry & Commuting

See how the Trax LT iQ lightweight e-bike makes daily commuting easier and more secure. With Ride iQ smart protection, smooth assist, and a 57 lbs lightweight design, this e-bike delivers effortless handling, easy carrying, and confidence for city riders.

Lightweight Design for Everyday Use

Many city riders struggle with heavy bikes when carrying, storing, or navigating tight spaces. At around 57 lbs, the Trax LT iQ lightweight e-bike significantly reduces physical effort in everyday handling, making it easier to lift, move, and store.

Smooth Urban Riding Control

Stop-and-go traffic and short commutes can be tiring. This lightweight e-bike uses a 500W motor with smooth pedal assist to reduce effort during acceleration, helping riders move through city streets with less strain and more control.

Smart Protection and Ride iQ System

One of the biggest concerns for city riders is not just riding—but what happens after parking. The Trax LT iQ lightweight e-bike integrates Ride IQ smart protection, offering GPS tracking, anti-theft alerts, and phone-based monitoring. Whether parked outside, in shared spaces, or at work, this commuter e-bike helps protect your bike and gives you peace of mind about your investment.

Flexible Range System

With up to 55 miles of range (expandable with an optional battery), this lightweight e-bike supports daily commuting without frequent charging. Ride iQ provides real-time battery monitoring and range estimation for better ride planning and confidence.

Adaptive Ride Control

City riding requires flexibility rather than fixed performance. With Ride iQ’s class selection and 5-level pedal assist system, this commuter e-bike adapts to different traffic situations—whether you need lighter effort in slow-moving streets or more support during steady commutes. The result is a more controlled and responsive riding experience that fits naturally into urban mobility patterns.

Model	Step-Thru	Step-Thru
Frame Size	Small / 15.5"	Medium / 17.5"
Wheel Size	27.5"x2.2"	27.5"x2.2"
A - Seat Tube Length	394	445
B - Seat Tube Angle	72.5˚	72.5˚
C - Head Tube Length	150	150
D - Head Tube Angle	68˚	68˚
E - Effective Top Tube Length	611	626
F - Bottom Bracket Height	291	291
G - Bottom Bracket Drop	60	60
H - Chainstay Length	455	455
I - Fork Offset	44	44
J - Wheelbase	1143	1158
K - Frame Reach	410	425
L - Frame Stack	640	640
Fork Travel	65	65
Fork Height	490	490

Max Speed	Up To 20 MPH
Range	Up To 55 Miles Per Charge/ Up to 80+ Miles w/Extra Battery
Weight Limit	Maximum Load: 285 lbs
Net Weight	57 lbs

Motor	Jiabo® 48V 500w+ Peak Power Hub-Drive Motor, 50Nm. Peak Torque
Battery	UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/10Ah (480Wh) with Samsung® Cells, w/ Option for Additional 240Wh Piggy-Back Battery
Display	Troxus Ride iQ 1.0 Anroid / Apple. Color Display, Bluetooth, w/ Multi-Function Remote
Sensor	Switchable Torque And Cadence Sensor Modes
Pedal Assist	0~5 Level Pedal Assist
Charger	2A / 100-240V Input / 54.6V Output
Lights	30 Lux Front Light, Rear Light
Controller	48Vx15A/12V

Frame	Hydroformed Aluminum Step-Thru Lightweight Frame
Fork	Zoom® Front Suspension Fork, 65mm Travel
Chain	KMC® 1/2"x3/32"
Crankset	Aluminum, 44T, w/ Alloy Chainring & Single Chainguard, Square Taper, 170mm
Rear Derailleur	Shimano® RD-M310-L, Altus, 8-Speed
Cassette	Shimano® 8-Speed, 12-32T
Shifter	Shimano® 8-Speed
Bottom Bracket	Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires	KENDA® KWICK SEVEN-5 27.5"x2.2"
Front Hub	Alloy, 36H,100mm, 3/8"Axle

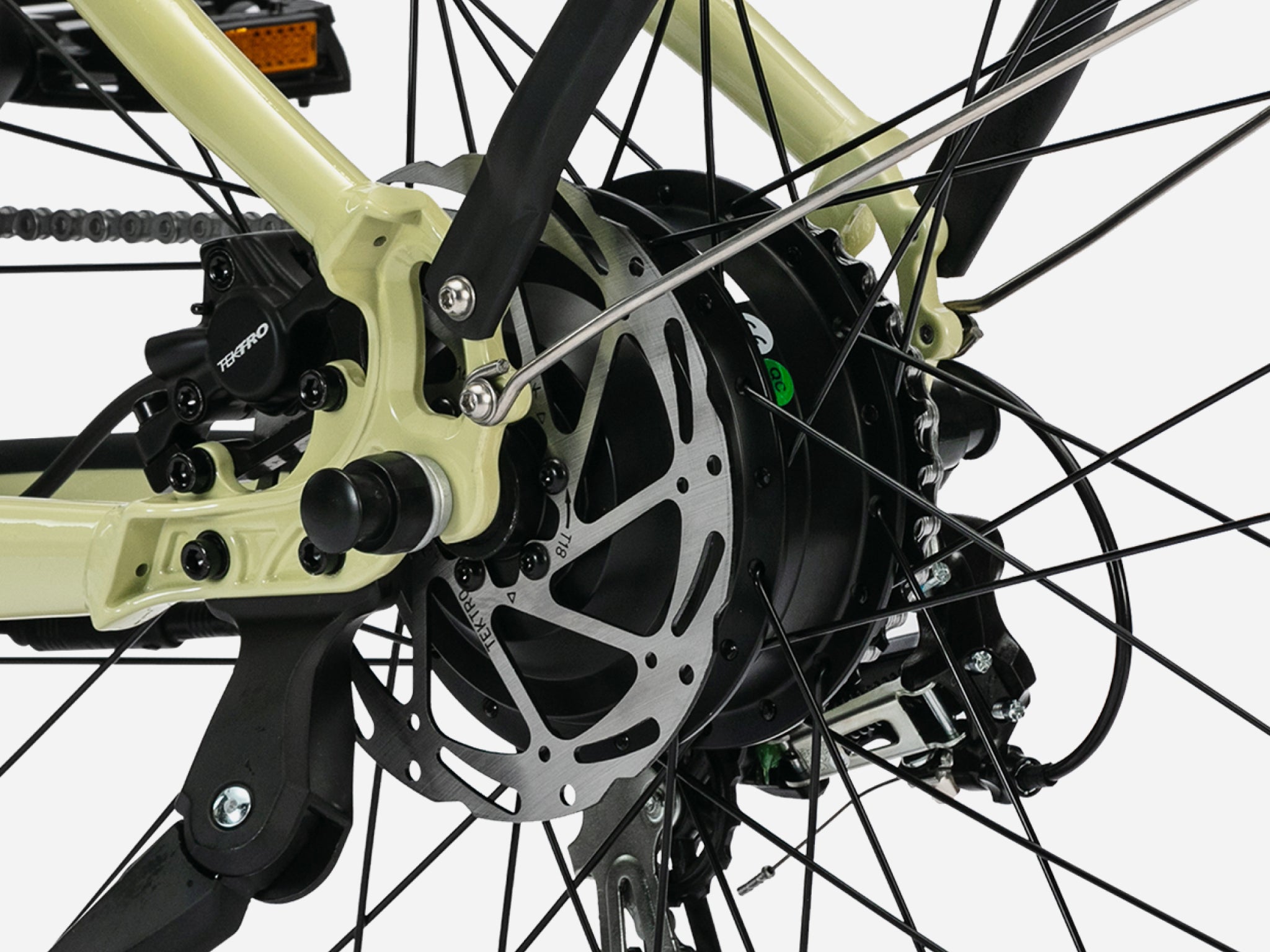

Rear Hub	Jiabo® 48V 500W/ 20 MPH, 50Nm. Peak Torque
Rims	Alloy Double Wall, 27.5"x2.0" w/ Eyelets
Spokes	Stainless 14G. Front / 13G. Rear
Brakes	Tektro® Hydraulic, w/ Brake Sensors
Rotors	DDK DE-430 Comfort / 200mm Wide
Saddle	DDK DE-430 Comfort / 200mm Wide
Seat Post	Alloy, 30.9x400mm, Adjustable
Seat Post Clamp	Alloy, 35mm w/ Quick Release
Stem	Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing
Handlebar	Zoom® Alloy, 31.8mmx650mm Wide, 35º Backsweep
Grips	Ergonomic Comfort
Pedals	9/16″ Alloy Platform with Reflectors
Headset	Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing
Rear Shocks	N/A
Rack	Lightweight Alloy Rear Model / MIK-Compatible Rear Rack
Fender	Plastic, 27.5"
Kickstand	Adjustable Side Kickstand
