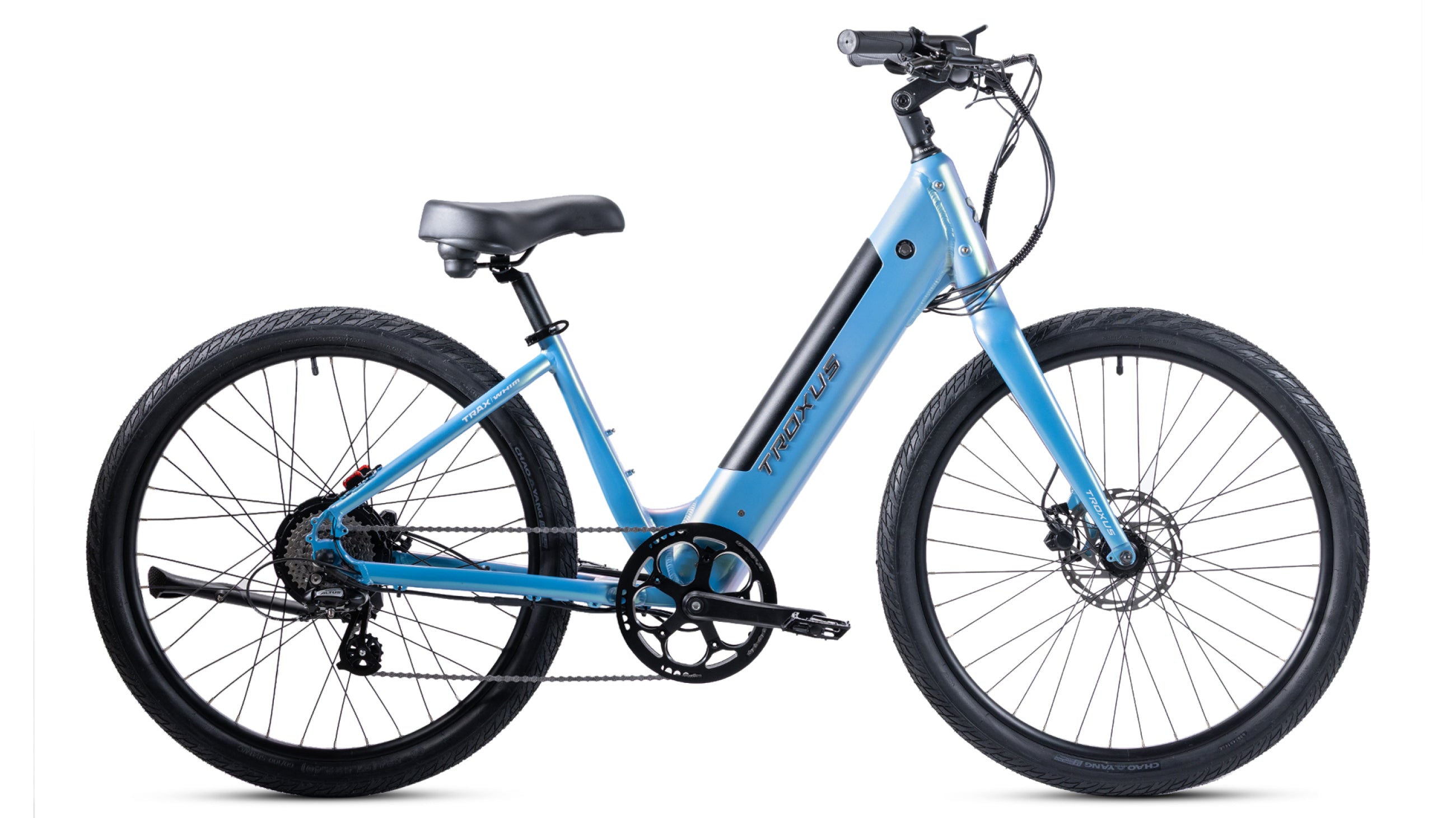

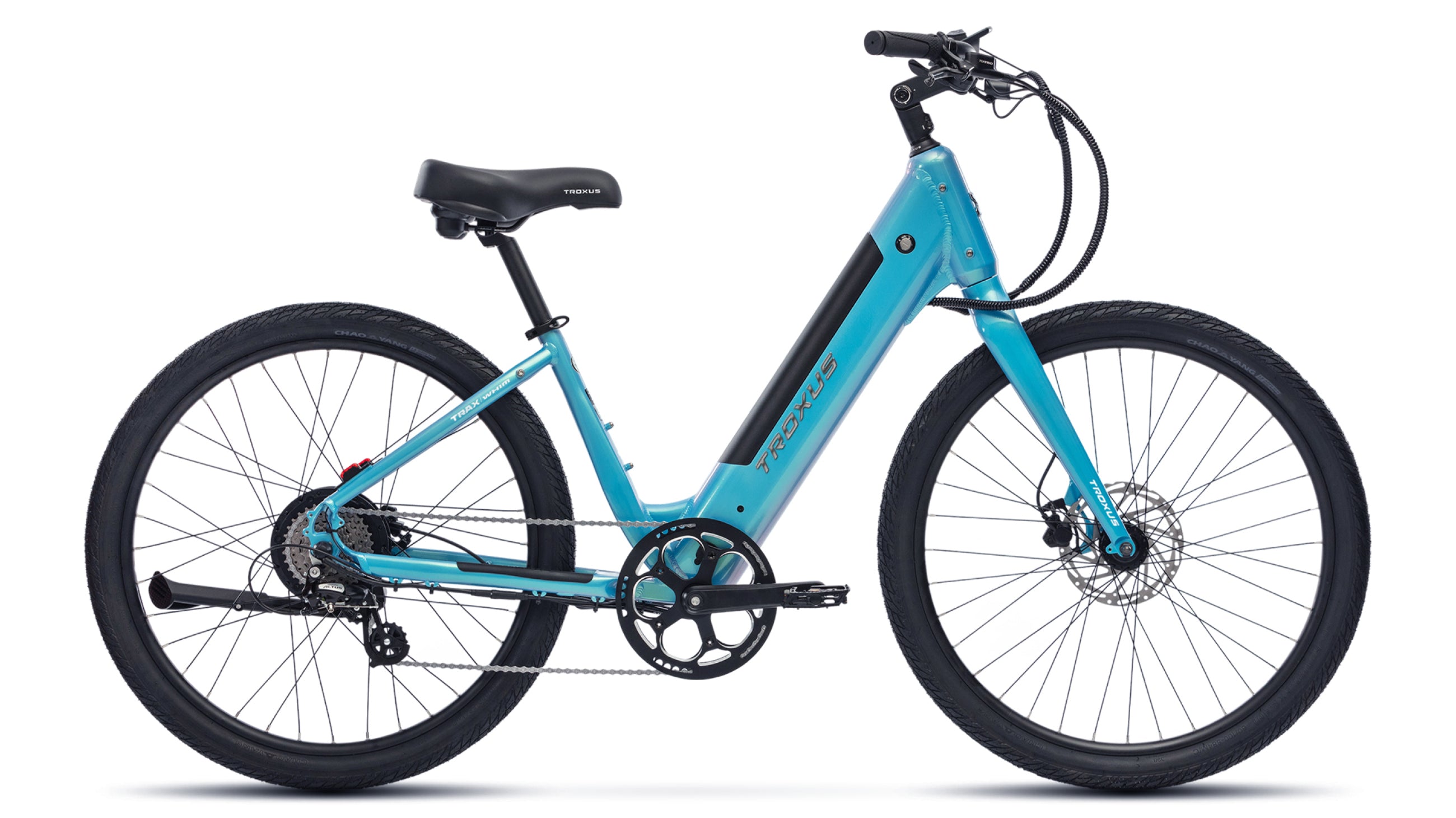

Electric Cruiser Bike for Comfortable City Riding

Comfort-First Riding Experience

Reliable Battery Performance

Smart Safety & Ride iQ Control

Smooth Power for Everyday Riding
Specs
Specs

| Model | Step-Thru | Step-Thru |
| Frame Size | Small | Medium |
| Wheel Size | 27.5"x2.4" | 27.5"x2.4" |
| A - Seat Tube Length | 394 | 445 |
| B - Seat Tube Angle | 70˚ | 70˚ |
| C - Head Tube Length | 185 | 190 |
| D - Head Tube Angle | 68˚ | 68˚ |
| E - Effective Top Tube Length | 620 | 630 |
| F - Bottom Bracket Height | 307 | 307 |
| G - Bottom Bracket Drop | 70 | 70 |
| H - Chainstay Length | 510 | 510 |
| I - Fork Offset | 42 | 42 |
| J - Wheelbase |
1128
|
1138
|
| K - Frame Reach | 357 | 365 |
| L - Frame Stack | 616 | 621 |
| Fork Travel | 0 | 0 |
| Fork Height | 420 | 420 |
| Max Speed | Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist |
| Range | Up To 70 Miles Per Charge |
| Weight Limit | Maximum Load: 300 lbs. / Rider: 265Lbs. |
| Net Weight |
E-Systems
| Motor | ShengYi 48V/500W Hub-Drive Motor, 50Nm Max. Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/14Ah (672Wh) with Samsung® Cells |
| Display | Troxus Ride iQ 1.0 Anroid / Apple. Color Display, Bluetooth, w/ Turn Signals, w/ Multi-Function Remote |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 2A / 100-240V Input / 54.6V Output |
| Lights | Rear Light w/ Turn & Hazard Signals |
| Controller | 48Vx15A/12V |
Components

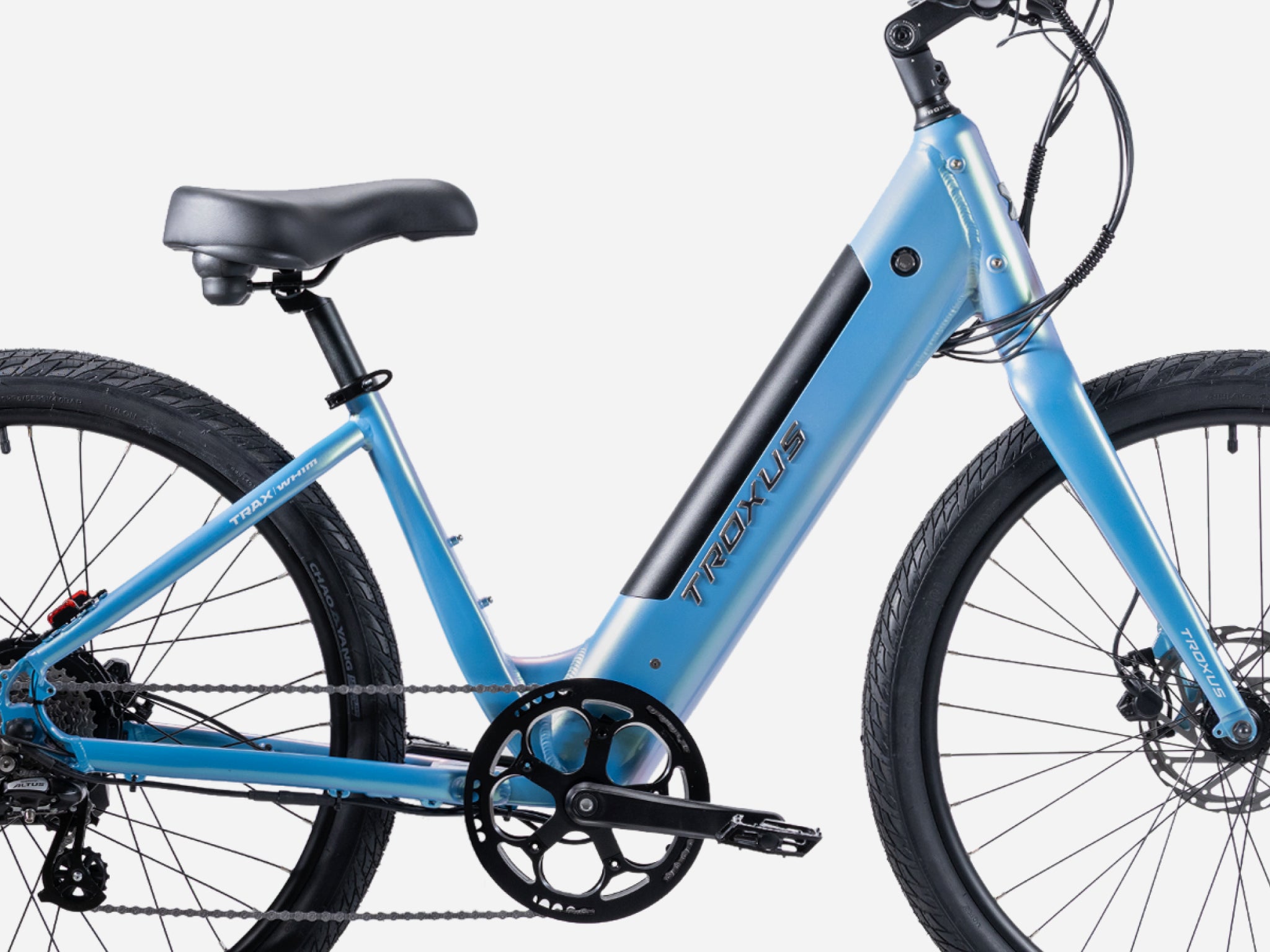

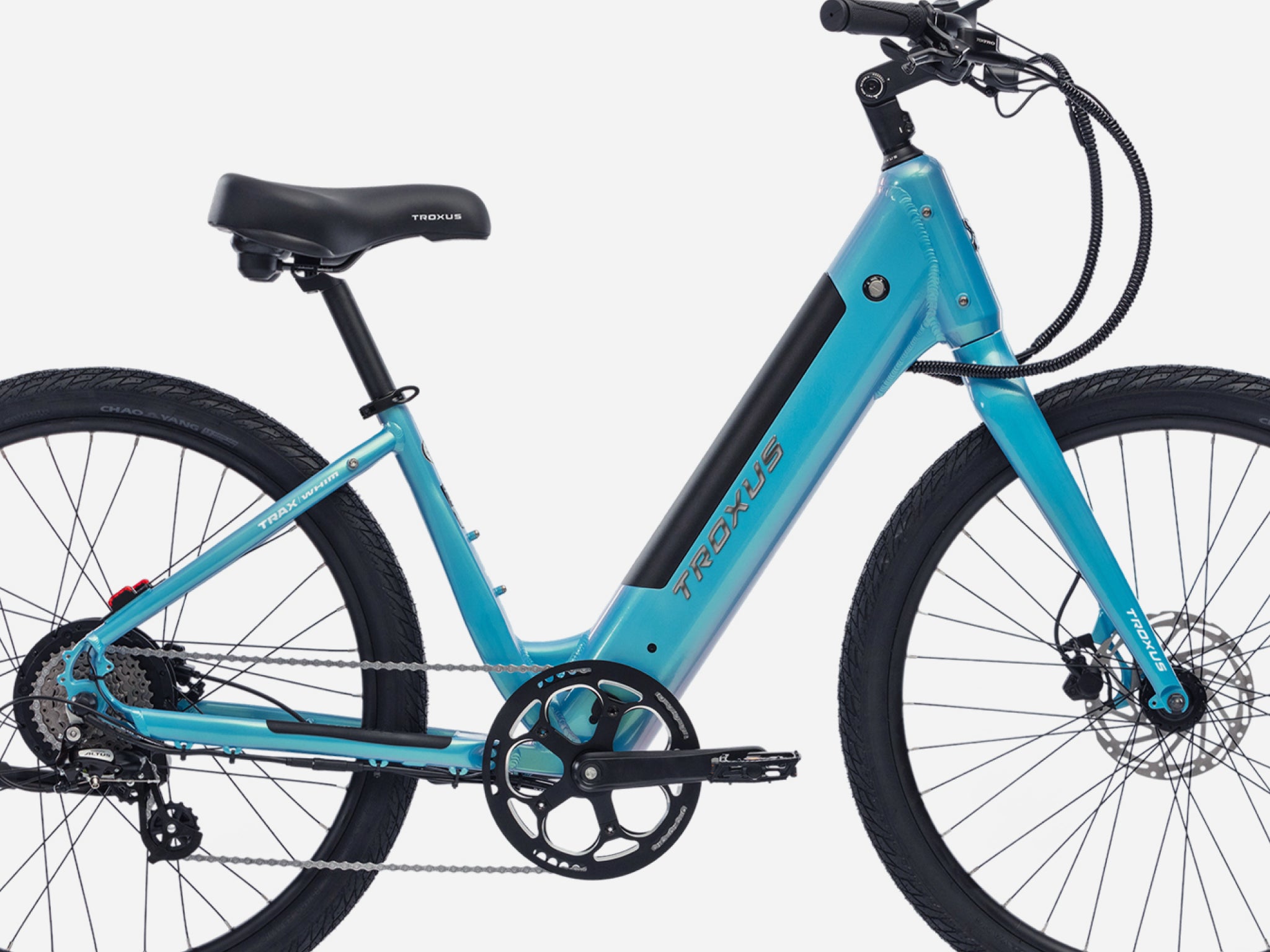

| Frame | 6061-T6 Aluminum Step-Thru, Pedal Forward Frame |
| Fork | Aluminum, Rigid Fork, Threadless Steerer |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | ARISUN® BEETLE 27.5x2.4" |
| Front Hub | Alloy, 36H, 100mm, 3/8"Axle w/ Nuts |

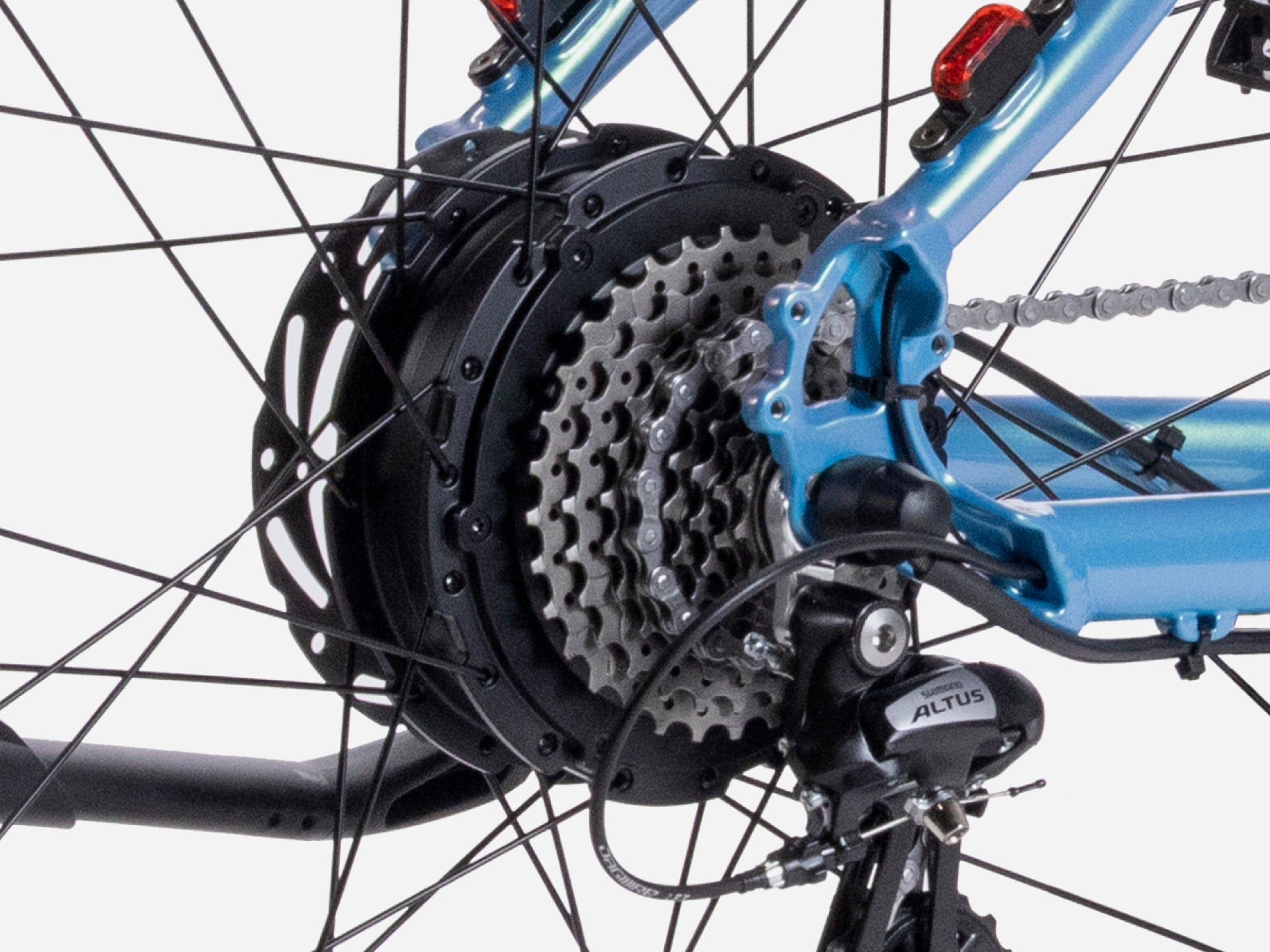

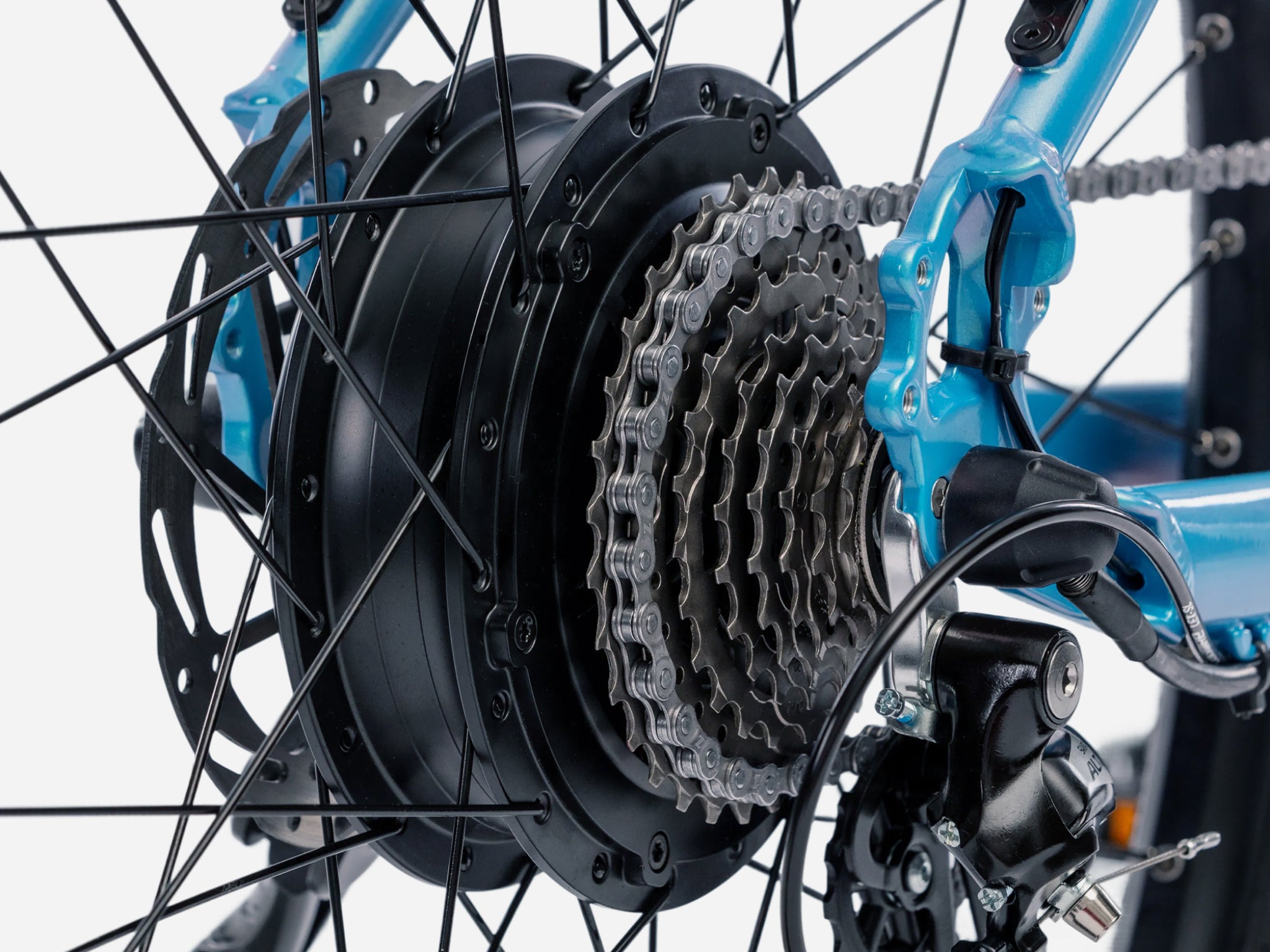

| Rear Hub | ShengYi 48V/500W/ 28MPH. 50Nm |
| Rims | Alloy, Double Wall Front & Rear, 36H, w/ Eyelets |
| Spokes | Stainless 14G. Front / 13G. Rear |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | Troxus Comfort |
| Saddle | Troxus Comfort |
| Seat Post | Alloy, 30.9x350mm, Adjustable |
| Seat Post Clamp | Alloy, 35mm w/ Quick Release |
| Stem | Zoom® Alloy, Forged, Adjustable, Ext. 90mm |
| Handlebar | Zoom® Alloy, 31.8mmx680mm Wide, 37º Backsweep |
| Grips | Ergonomic Comfort |
| Pedals | 9/16″ Alloy Platform with Reflectors |
| Headset | Threadless, Internal 1-1/8" |
| Rear Shocks | N/A |
| Rack | N/A |
| Fender | N/A |
| Kickstand | Adjustable Side Kickstand |
