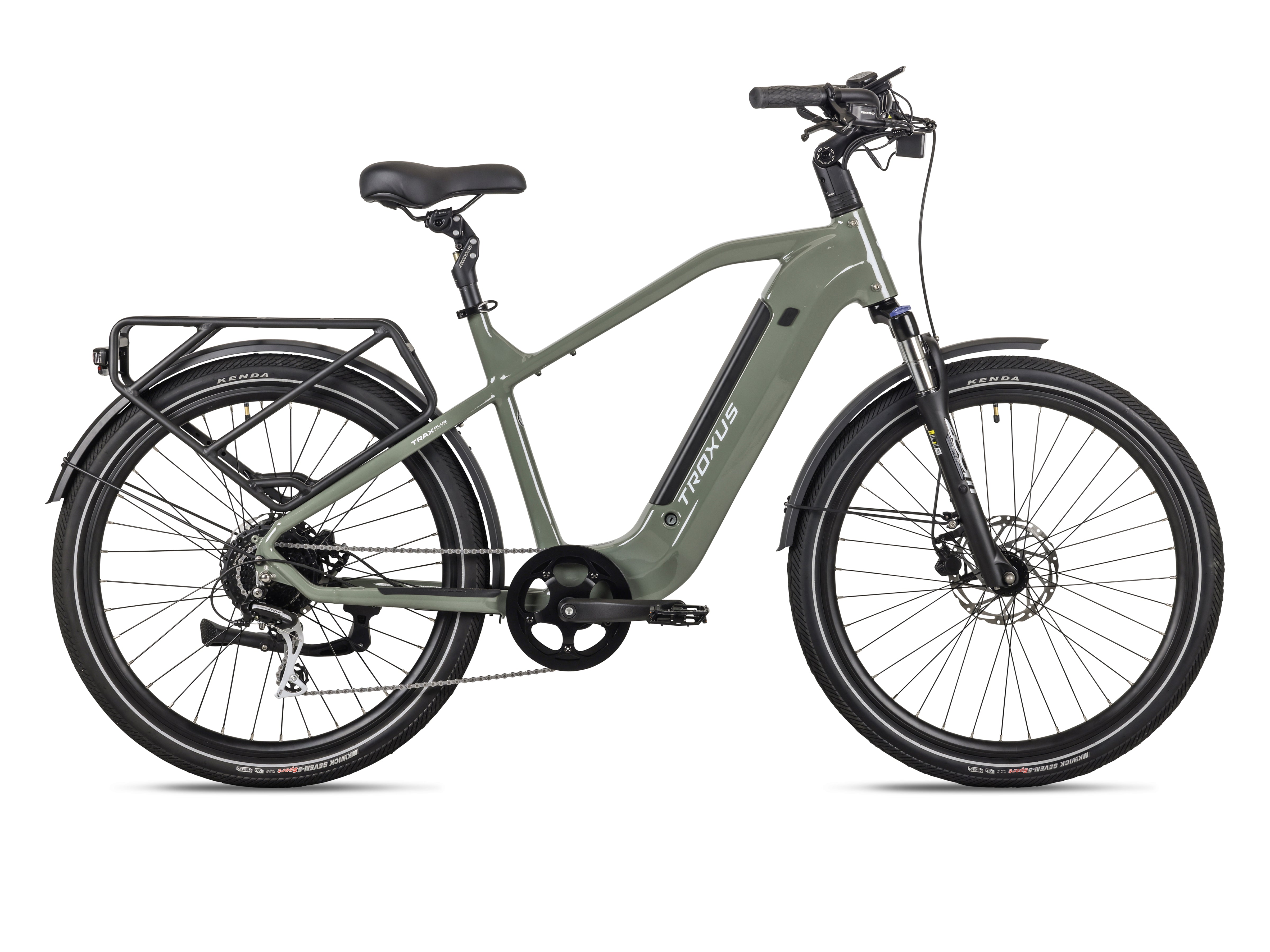

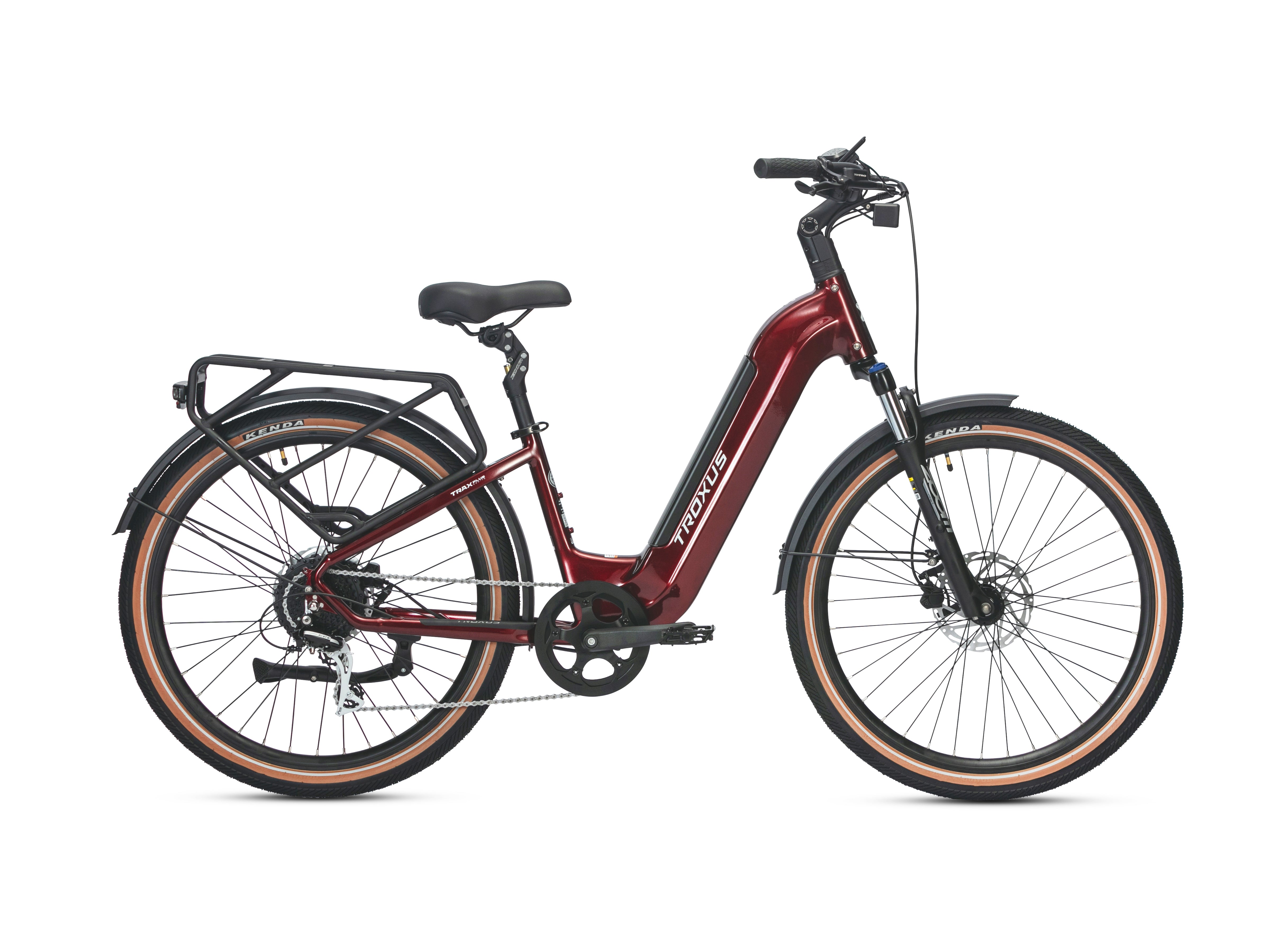

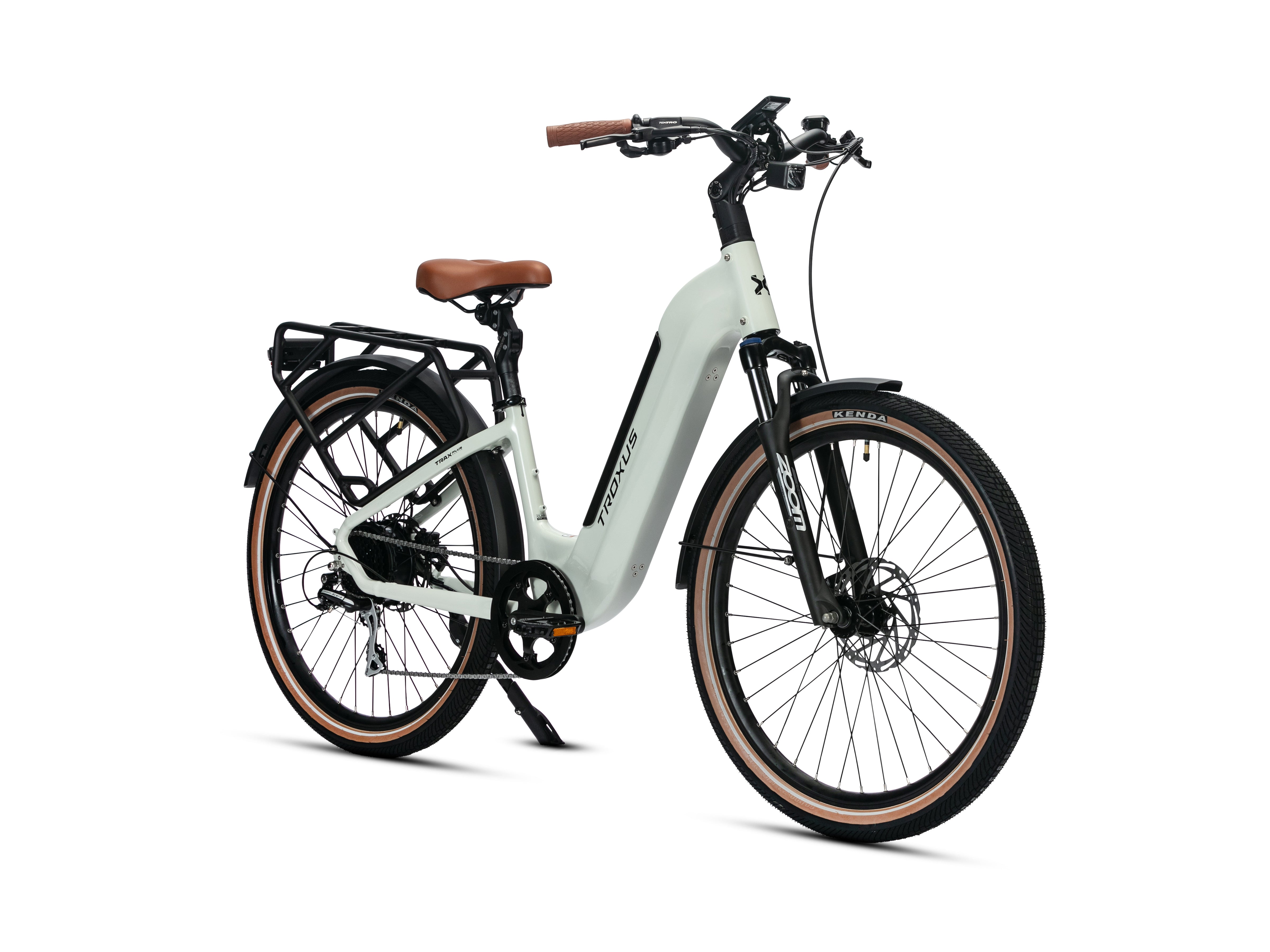

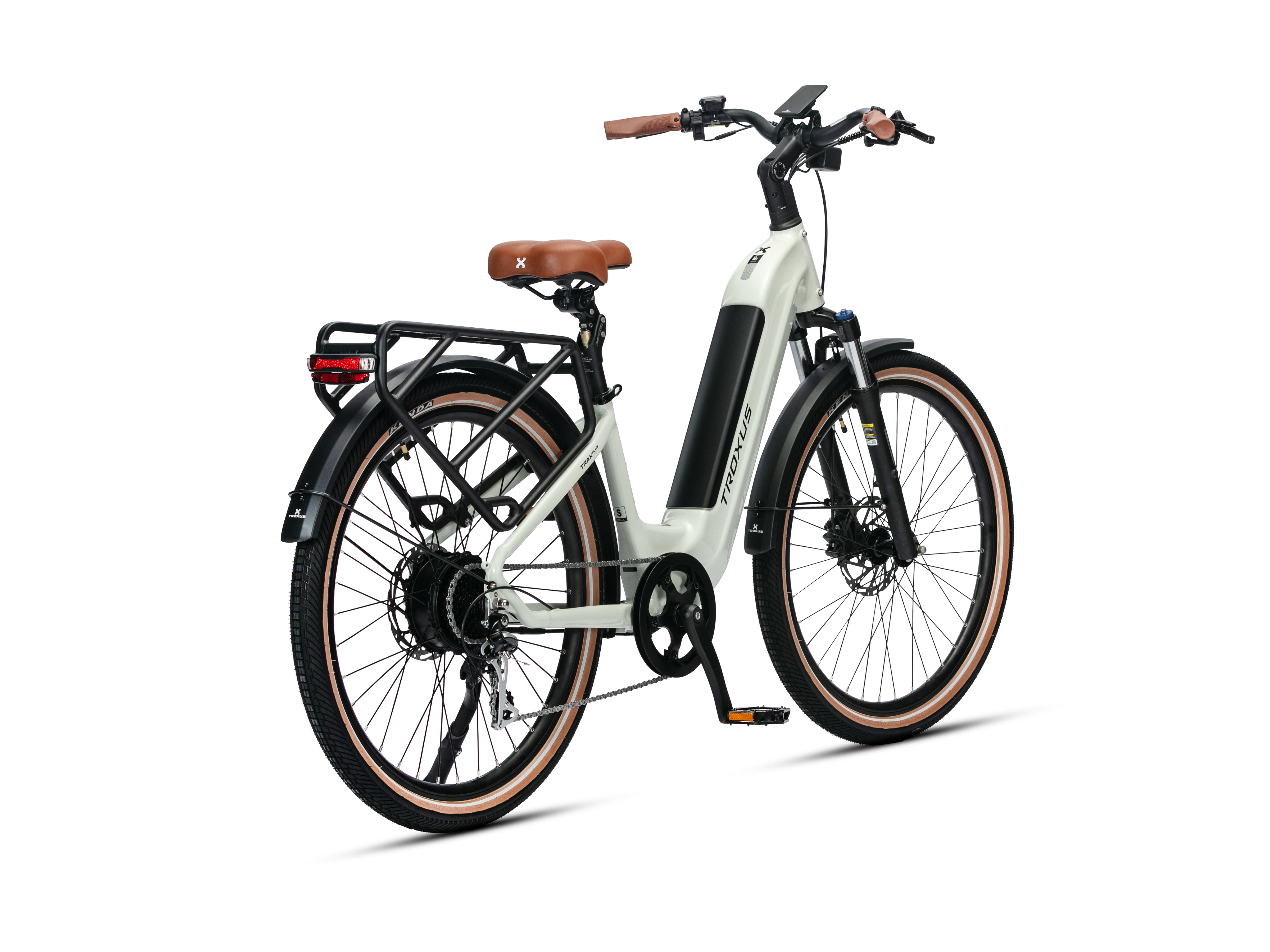

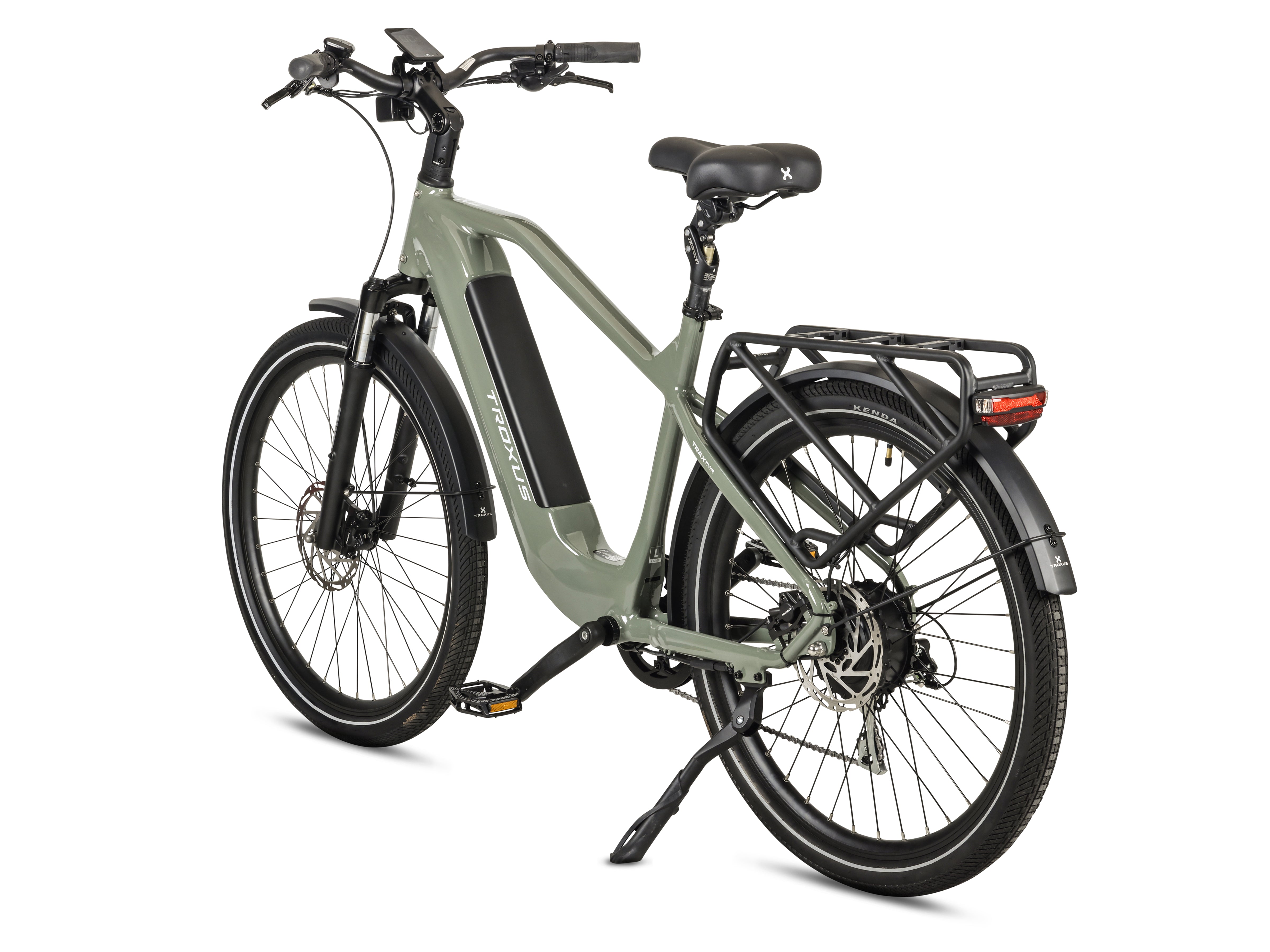

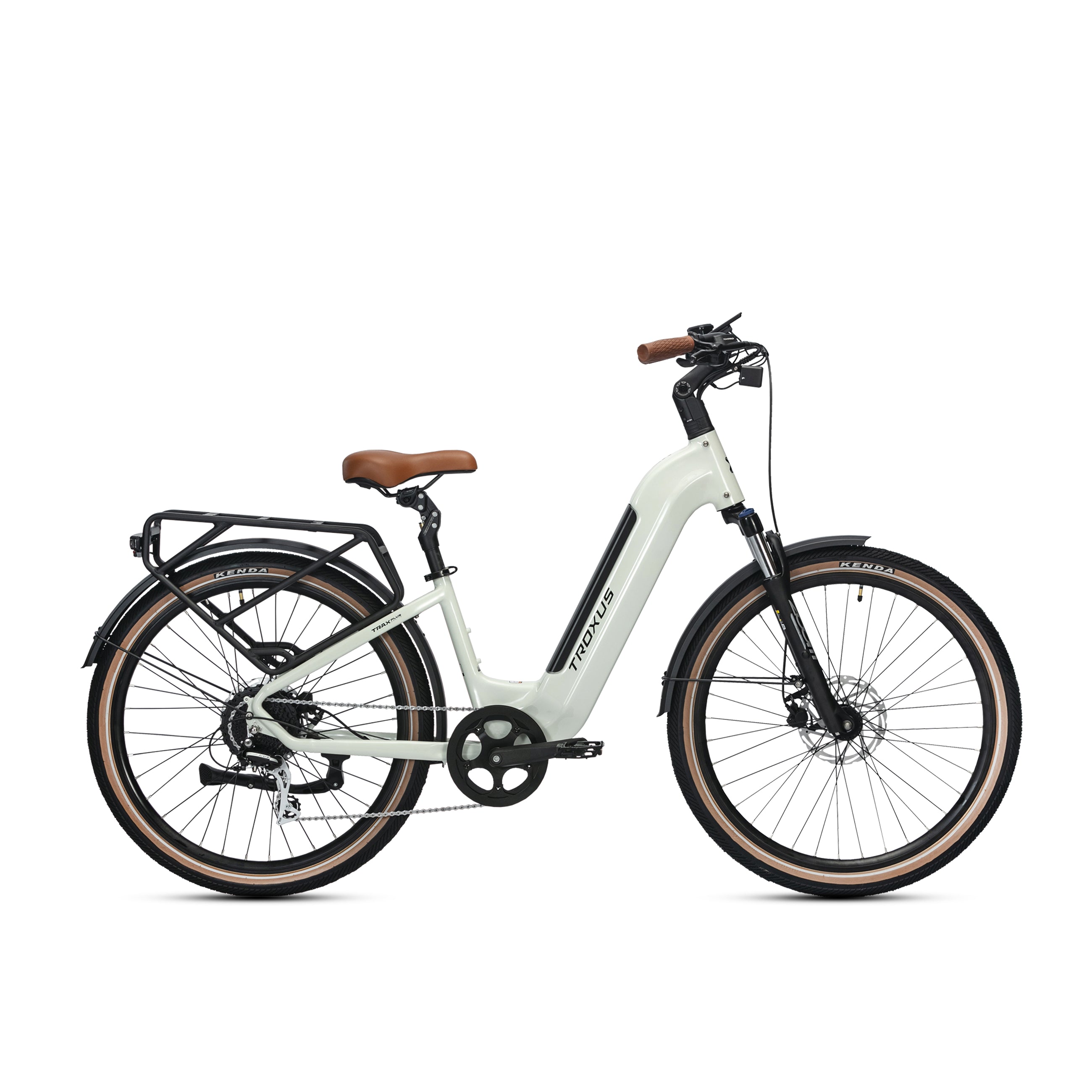

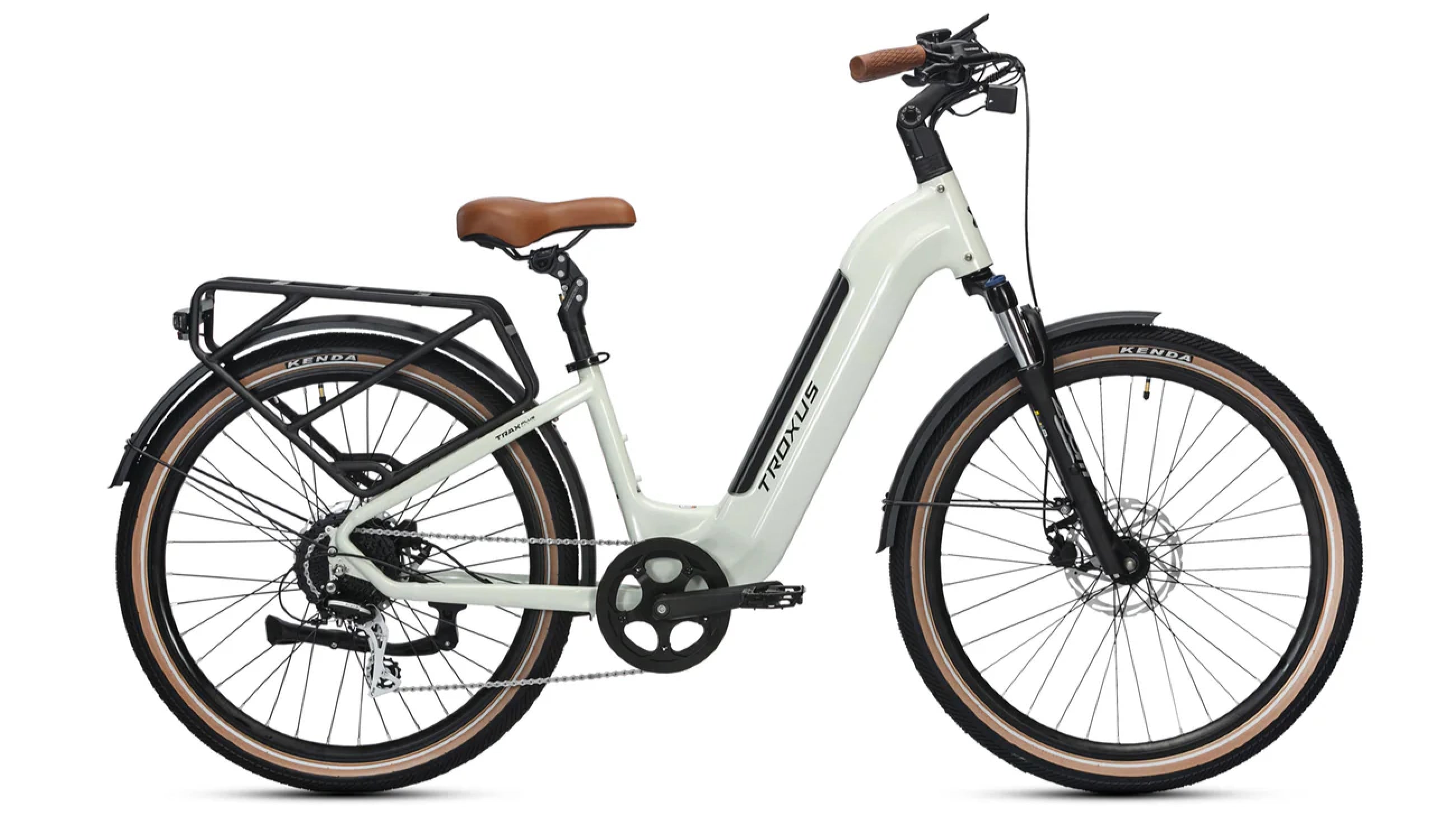

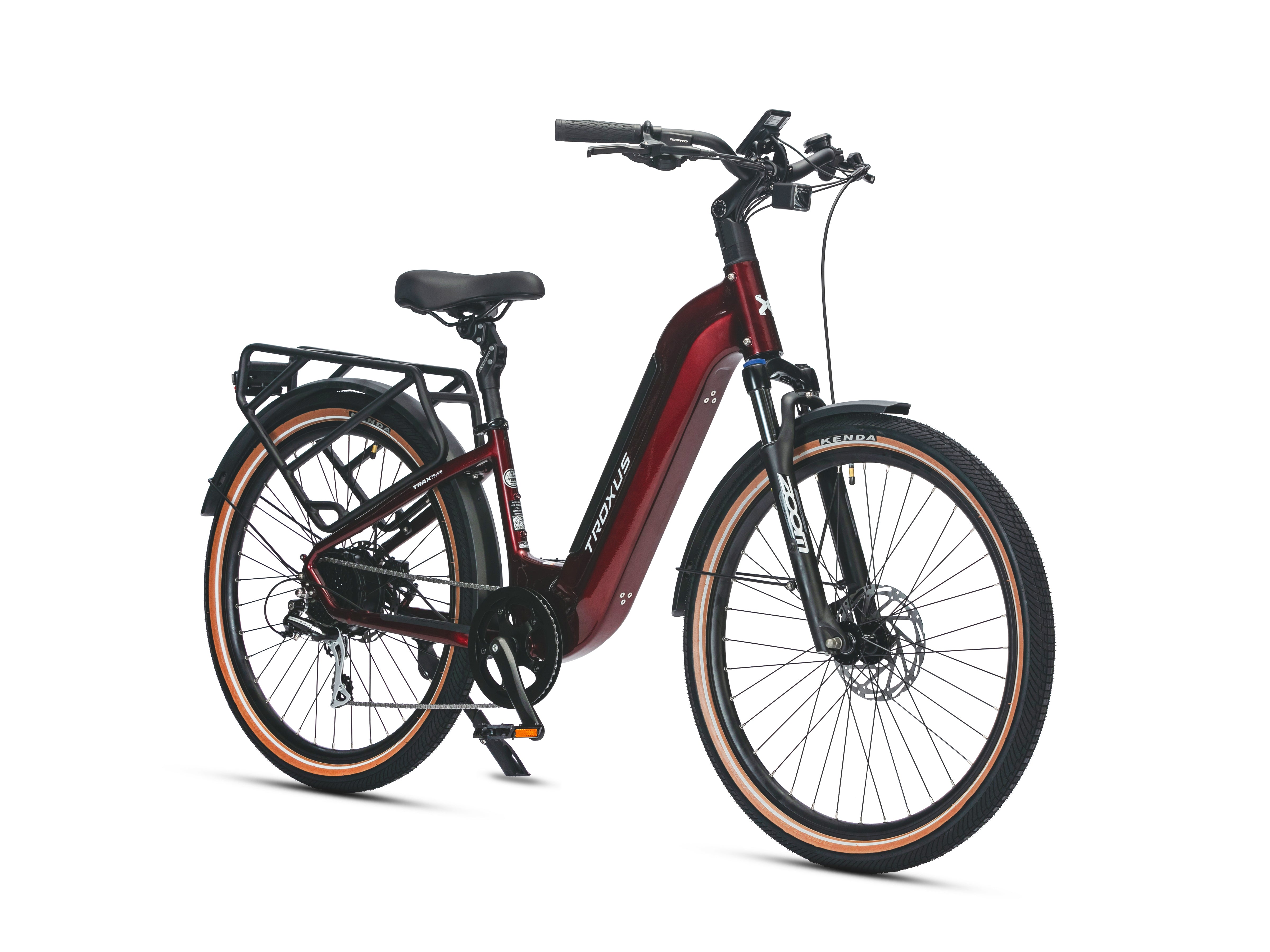

Trax Plus 500/15
Shop Local
Shop online, ride today! Order your e-bike online and enjoy the convenience of picking it up the same day at the nearest store to you.
Find A Local Dealer
5-Year Warranty
All 2024 and newer e-bikes are backed by an exclusive 5-year limited warranty, while 2023 and older models are covered by our reliable 2-year standard warranty.
Read More
Total Care Program
If your bike is damaged or involved in an accident, we’re here to help you work with your retailer to get back on the road, trail, or bike path quickly.
Read More

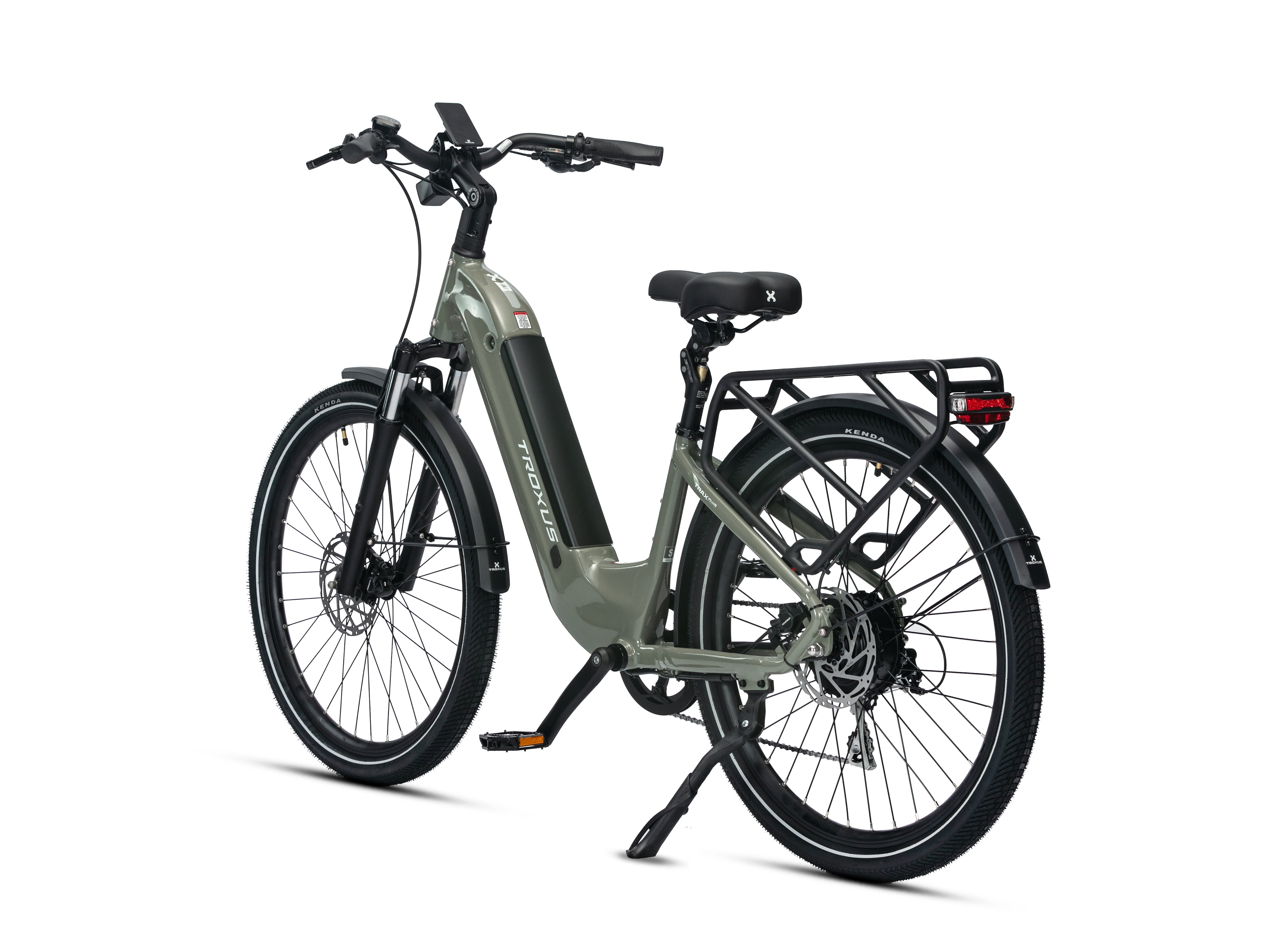

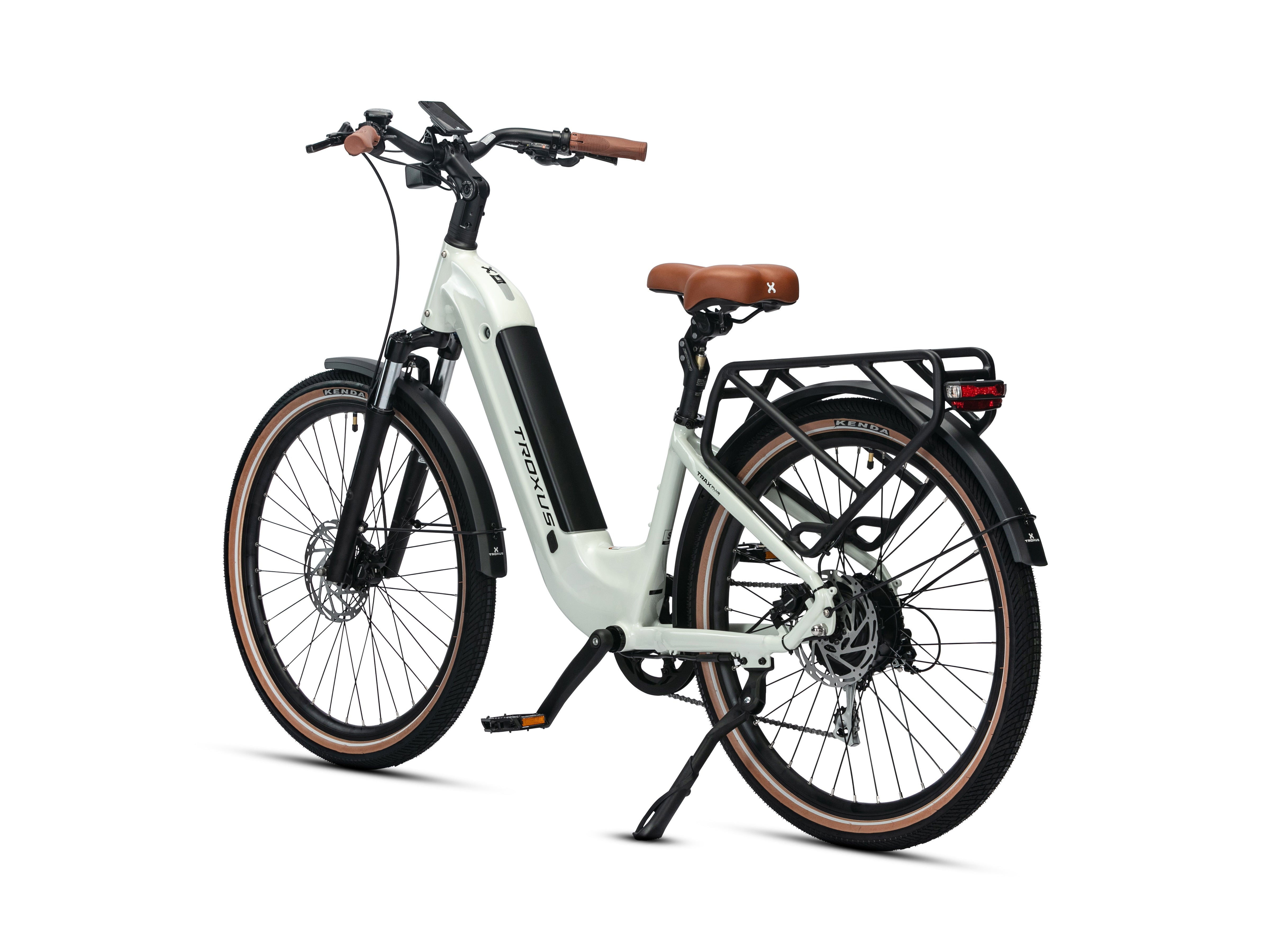

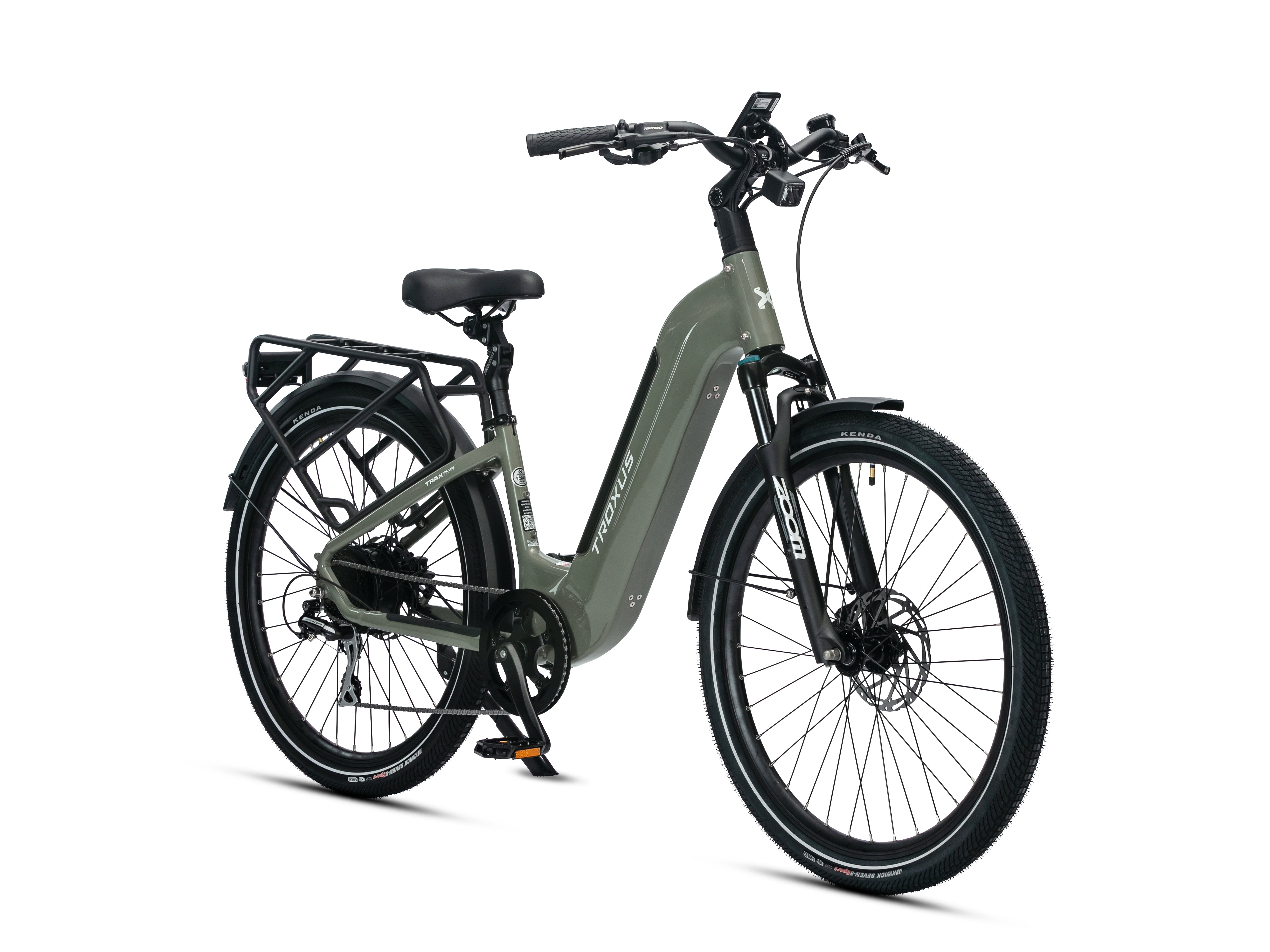

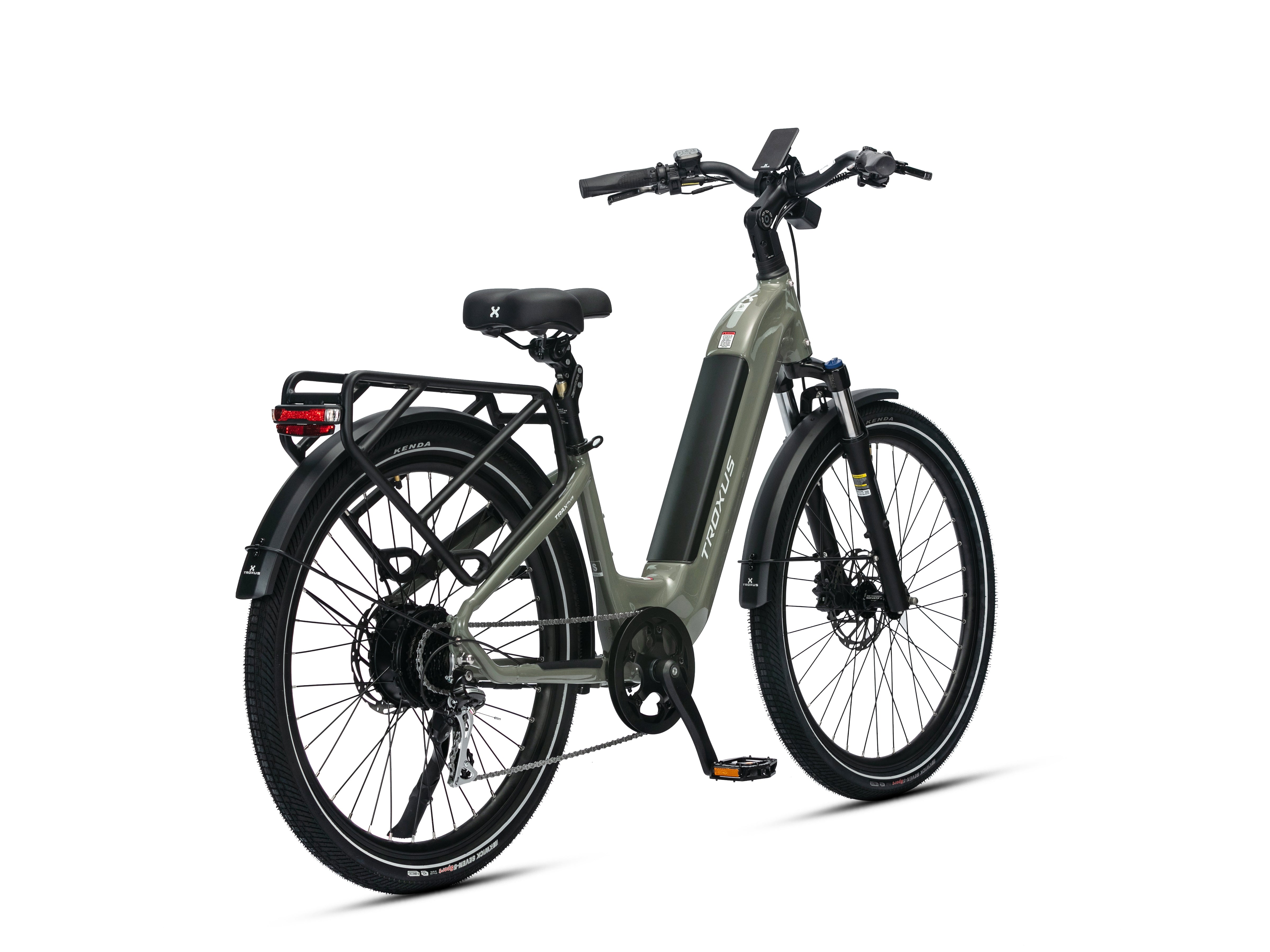

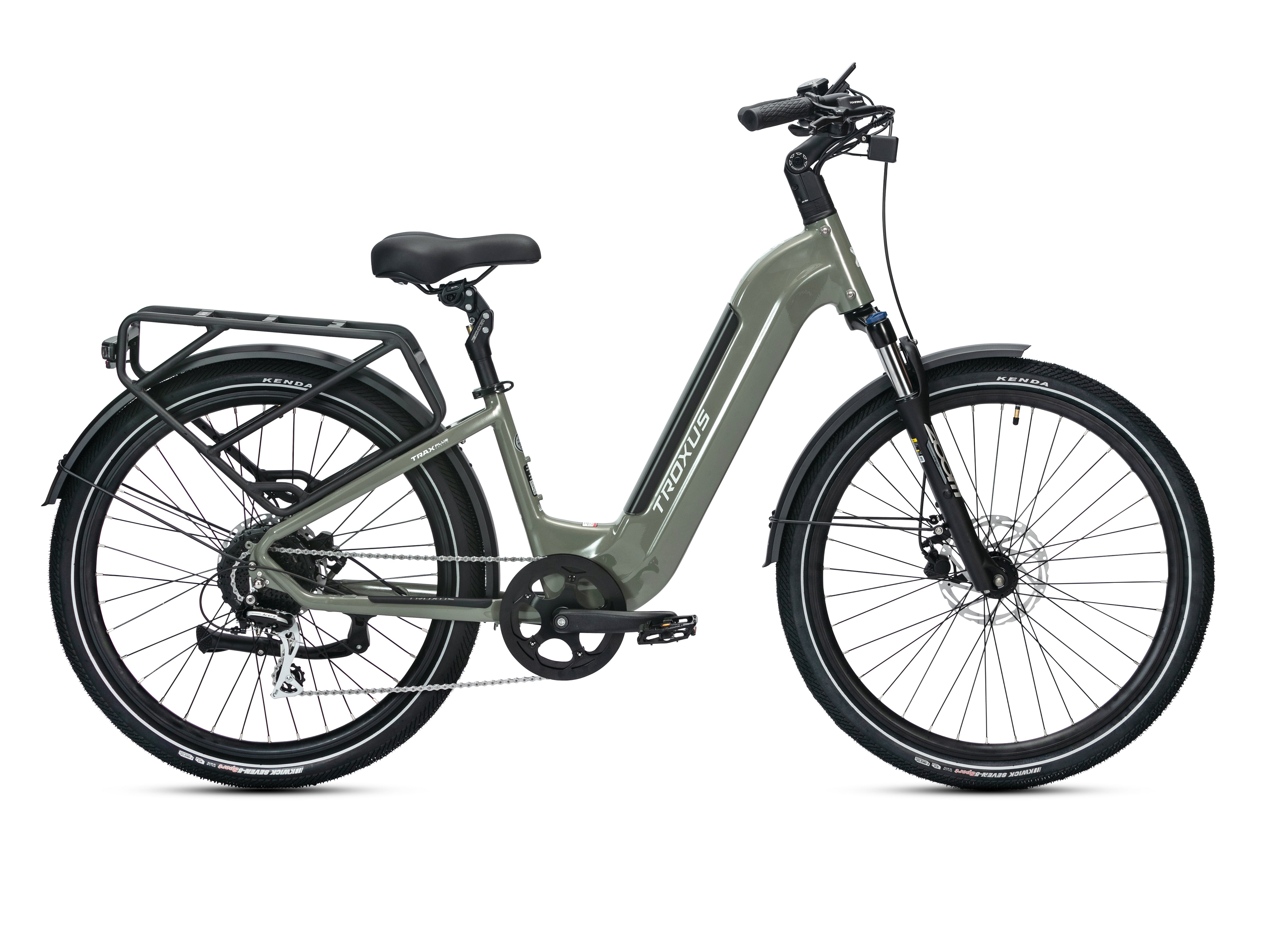

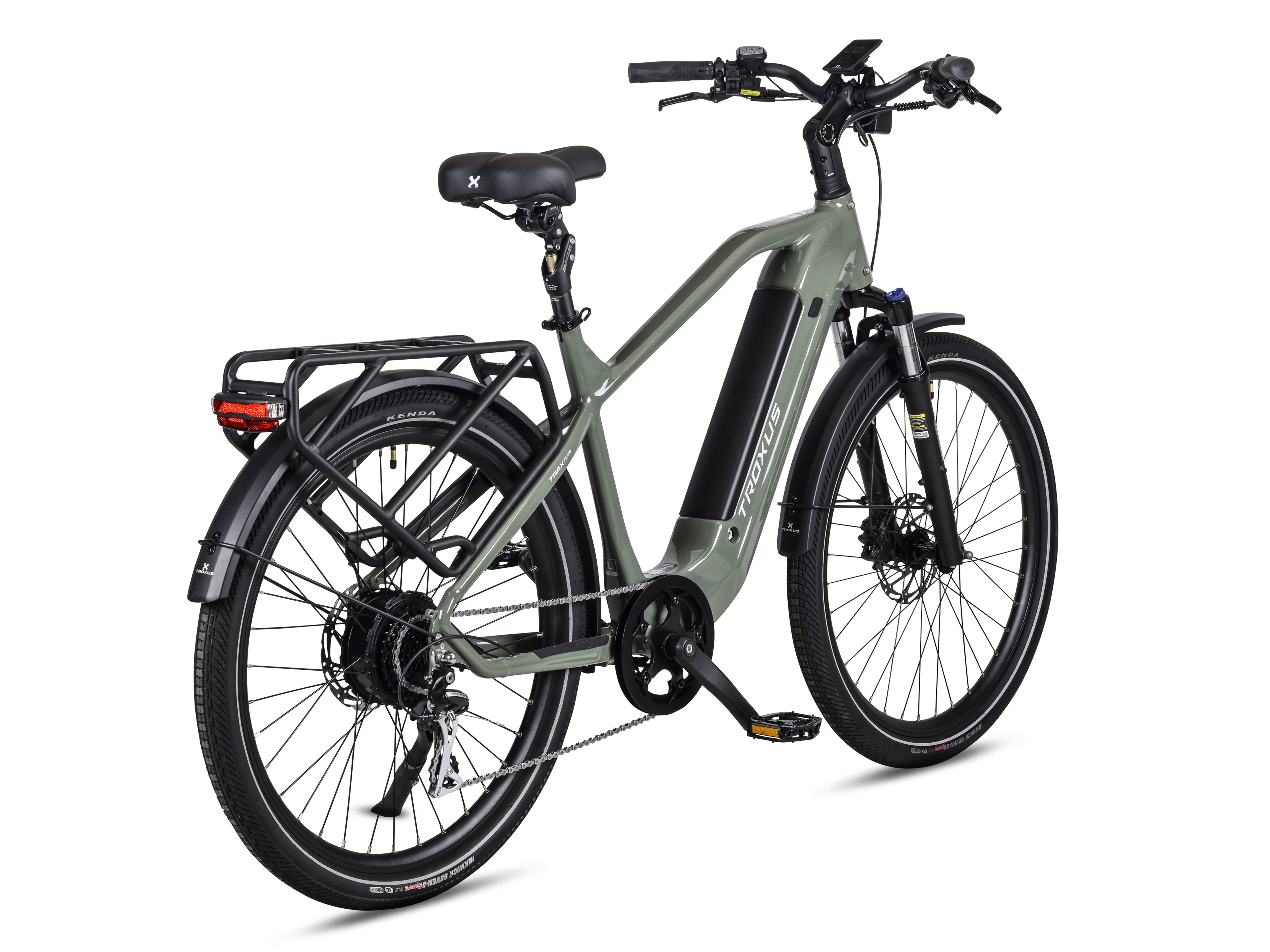

Electric Cruiser Commuter Bike

Powerful & Efficient Performance

Go the Distance with a 720Wh Battery

Ride in Total Comfort

Smart, Secure, and Adaptable
Watch Independent Online Video Reviews
Specs
Specs

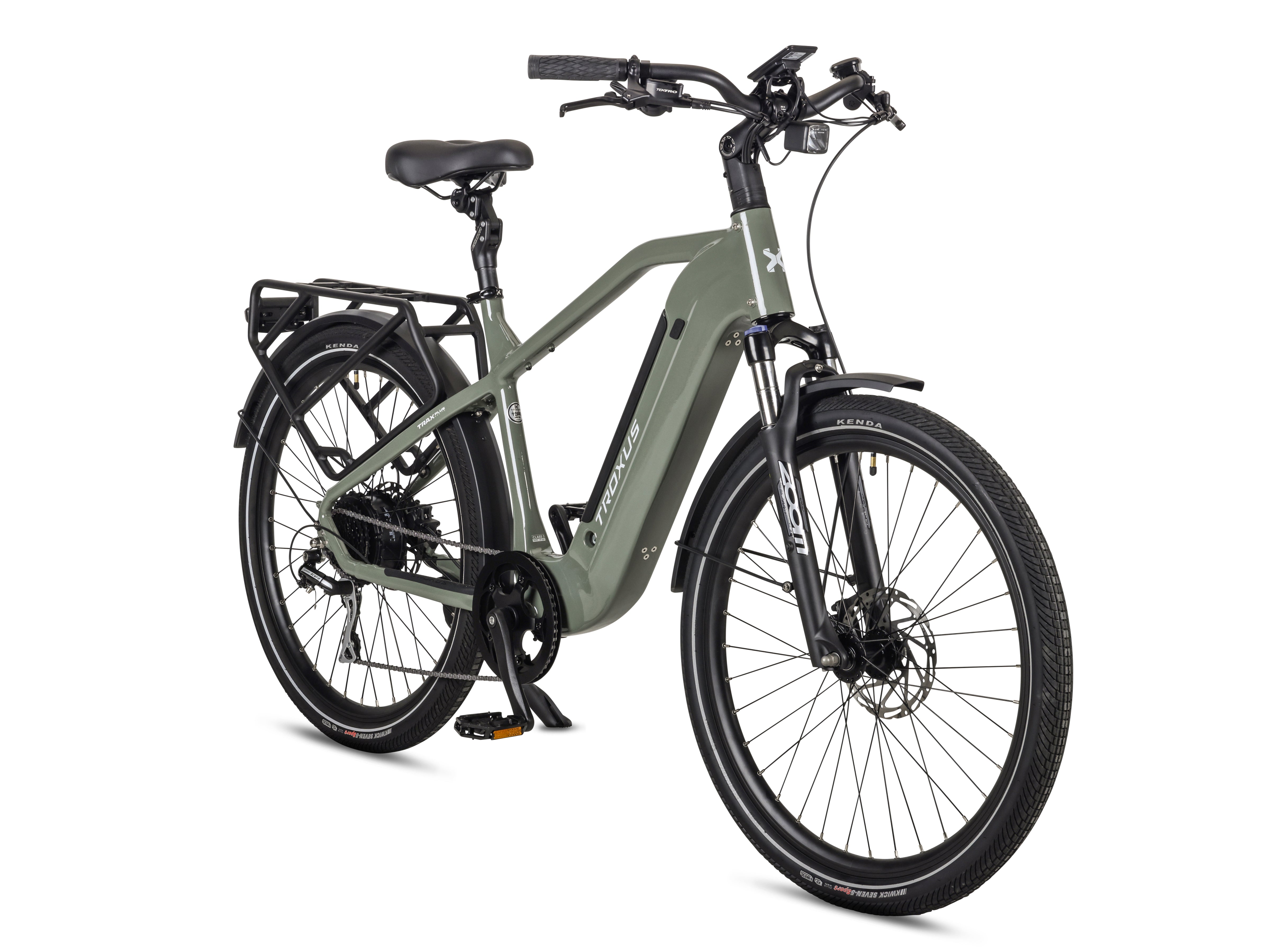

| Model | Step Thru | Step Thru | Step Over |
| Frame Size | Small / 15" | Medium / 17" | Large / 20" |
| Wheel Size | 27.5"x2.2" | 27.5"x2.2" | 27.5"x2.2" |
| A - Seat Tube Length | 381 | 432 | 500 |
| B - Seat Tube Angle | 72˚ | 72˚ | 72˚ |
| C - Head Tube Length | 150 | 150 | 150 |
| D - Head Tube Angle | 68˚ | 69˚ | 69˚ |
| E - Effective Top Tube Length | 613.5 | 639 | 645 |
| F - Bottom Bracket Height | 296 | 296 | 296 |
| G - Bottom Bracket Drop | 55 | 55 | 55 |
| H - Chainstay Length | 480 | 480 | 480 |
| I - Fork Offset | 42 | 42 | 42 |
| J - Wheelbase | 1163 | 1168 | 1183 |
| K - Frame Reach | 410 | 425 | 440 |
| L - Frame Stack | 626 | 631 | 631 |
| Fork Travel | 65 | 65 | 65 |
| Fork Height | 480 | 480 | 480 |
| Max Speed | Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist |
| Range | Up To 70 Miles Per Charge |
| Weight Limit | Maximum Load: 383 lbs |
| Net Weight | 68.5 lbs |
E-Systems

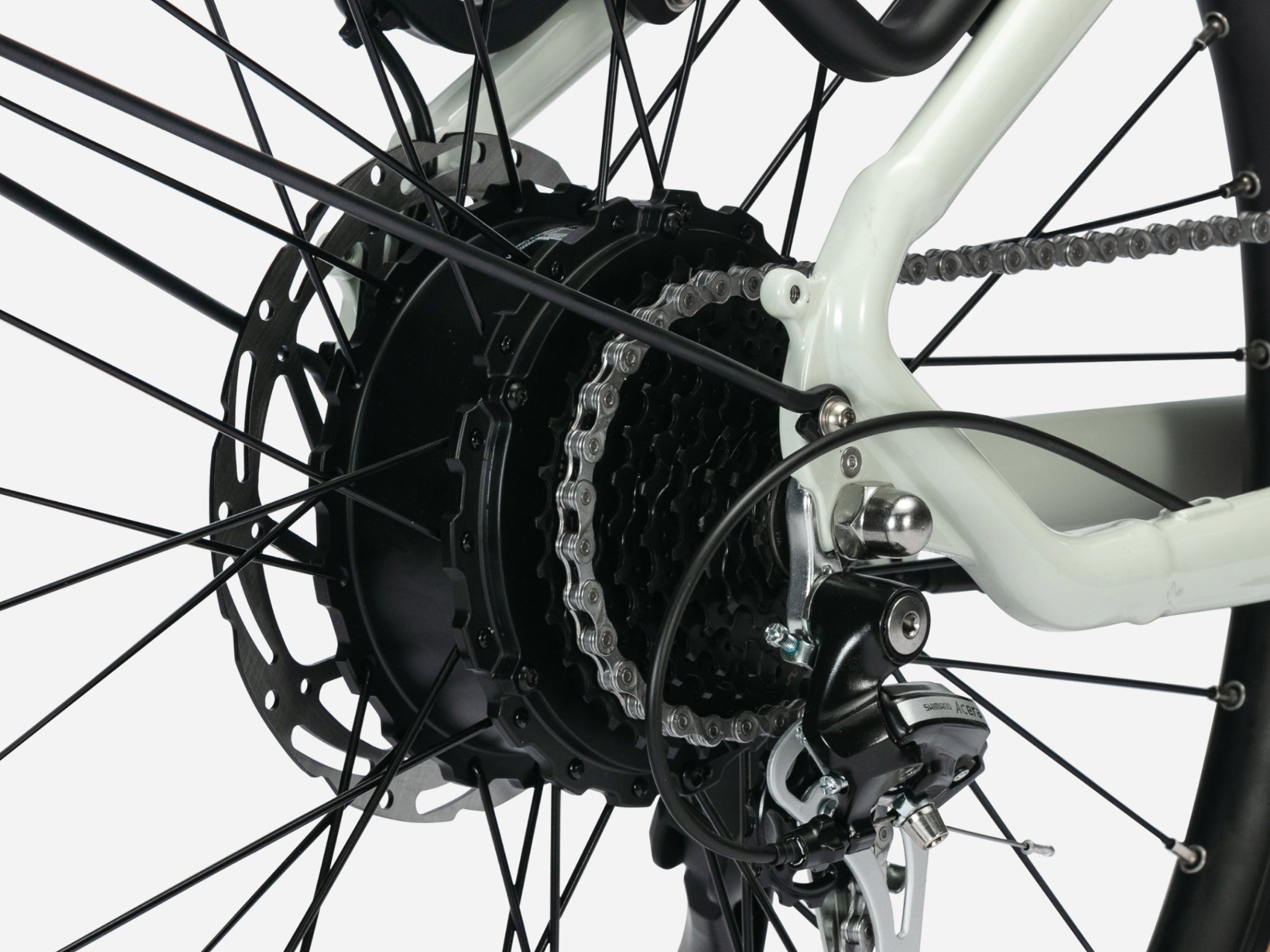

| Motor | Ananda® 48V/500W Hub-Drive Motor, 65Nm Max. Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells |

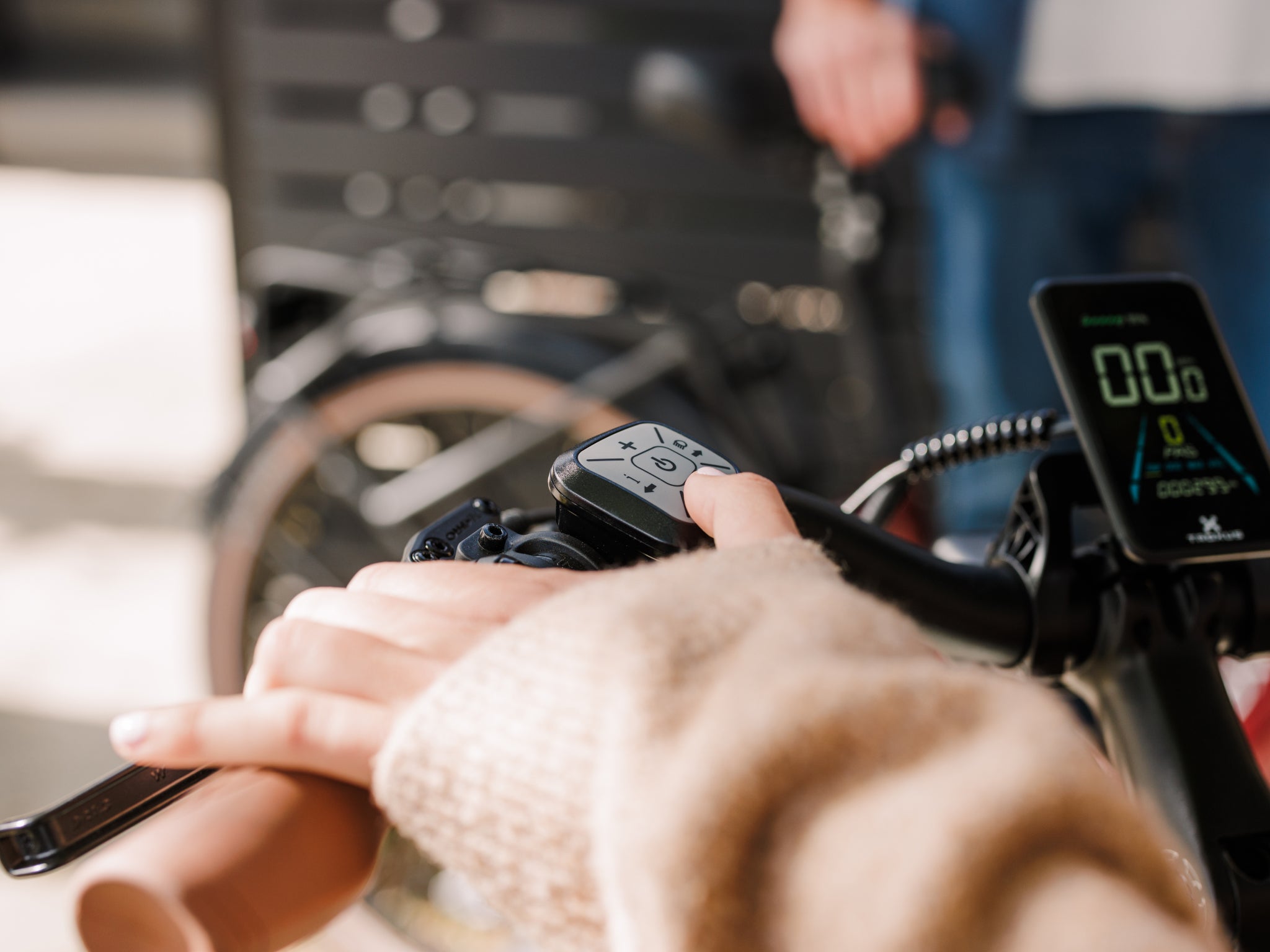

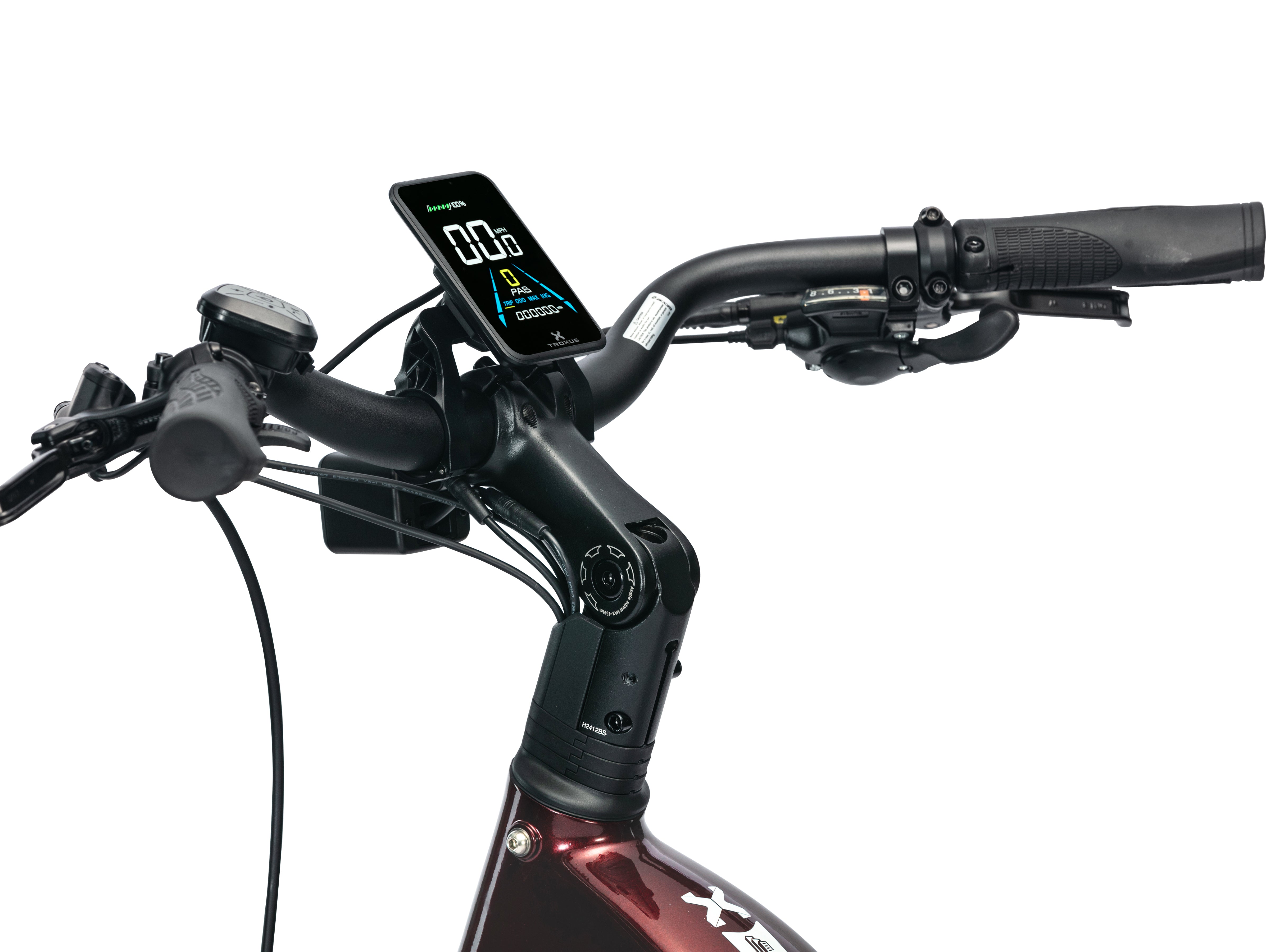

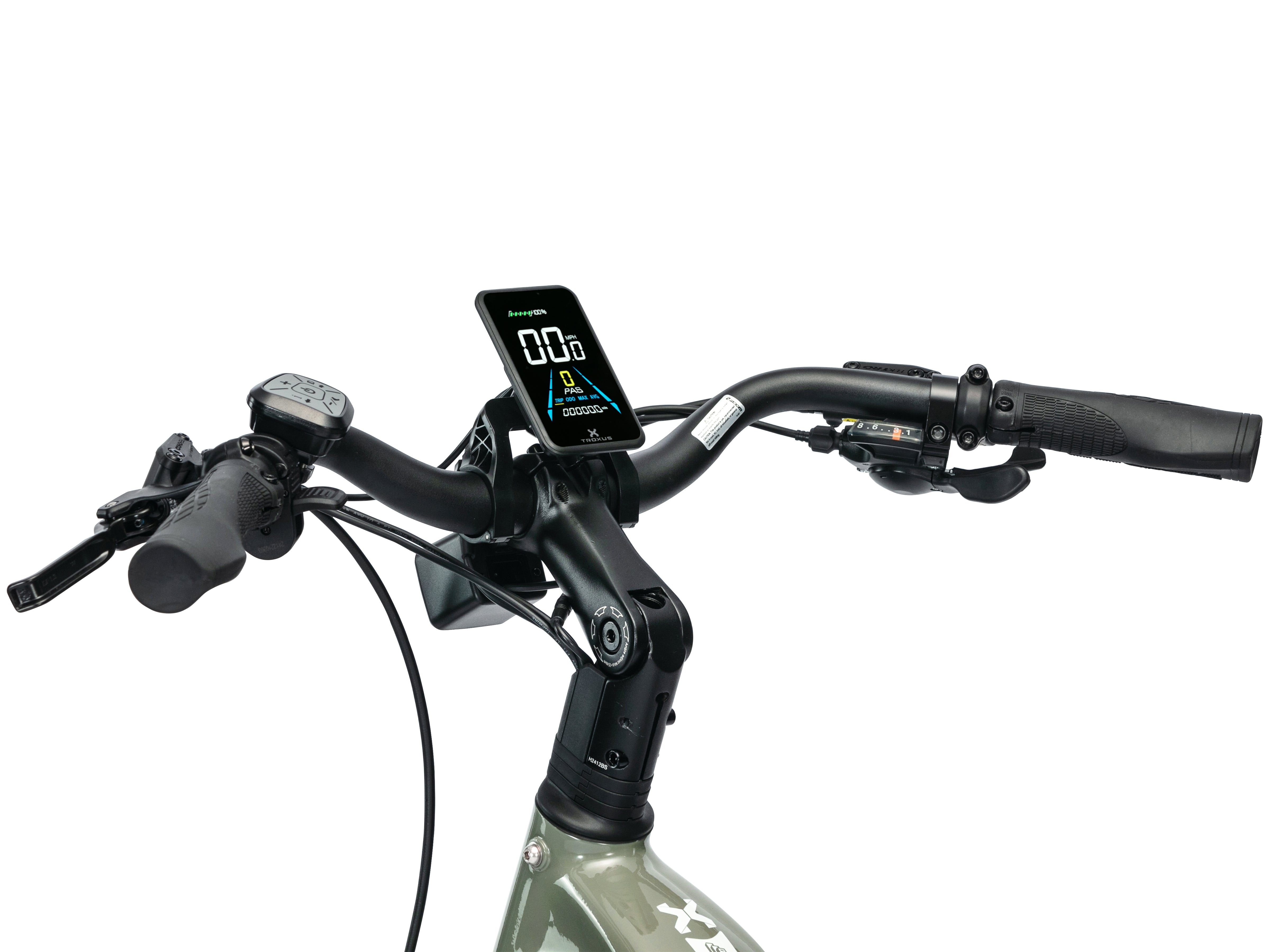

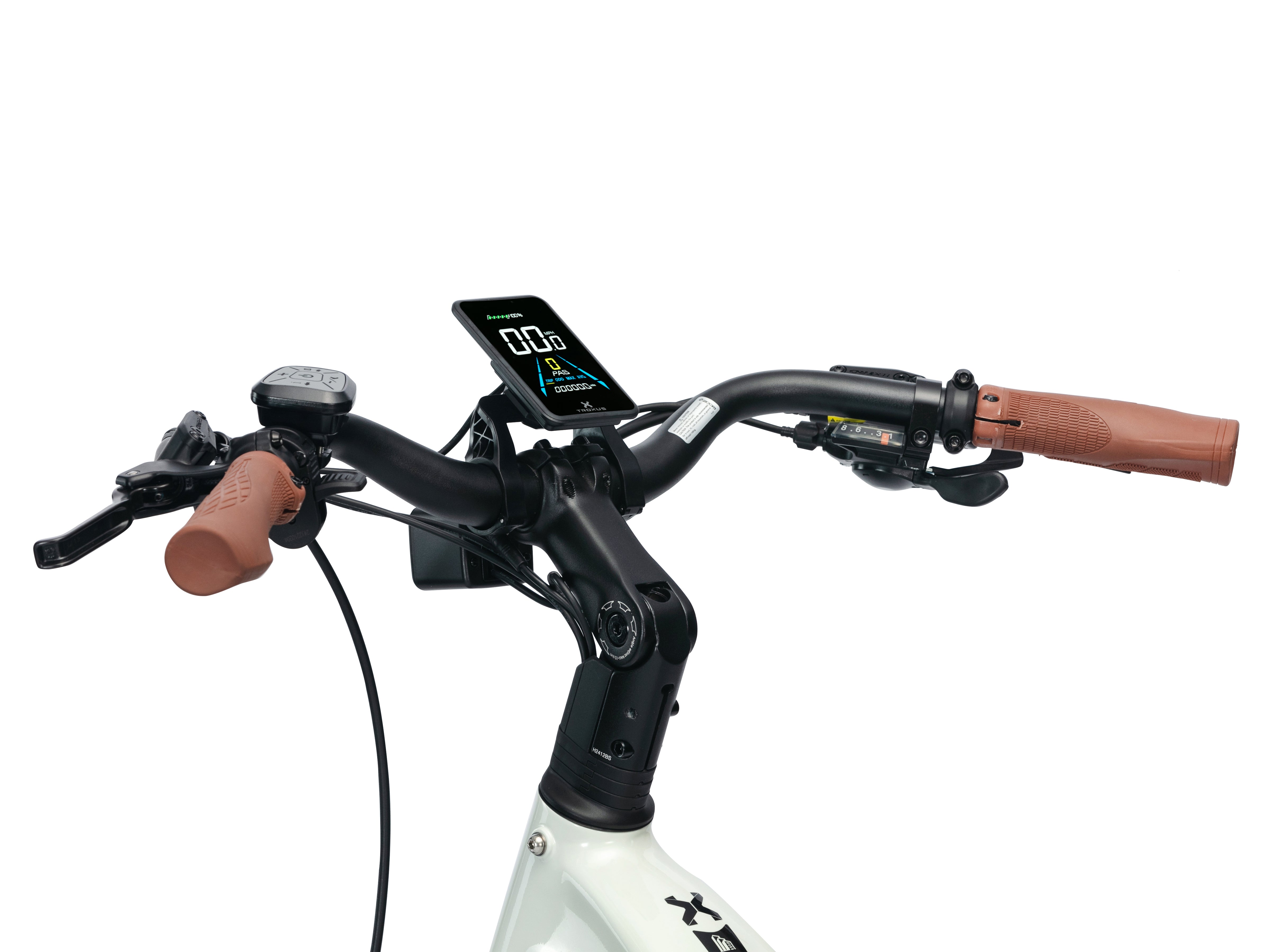

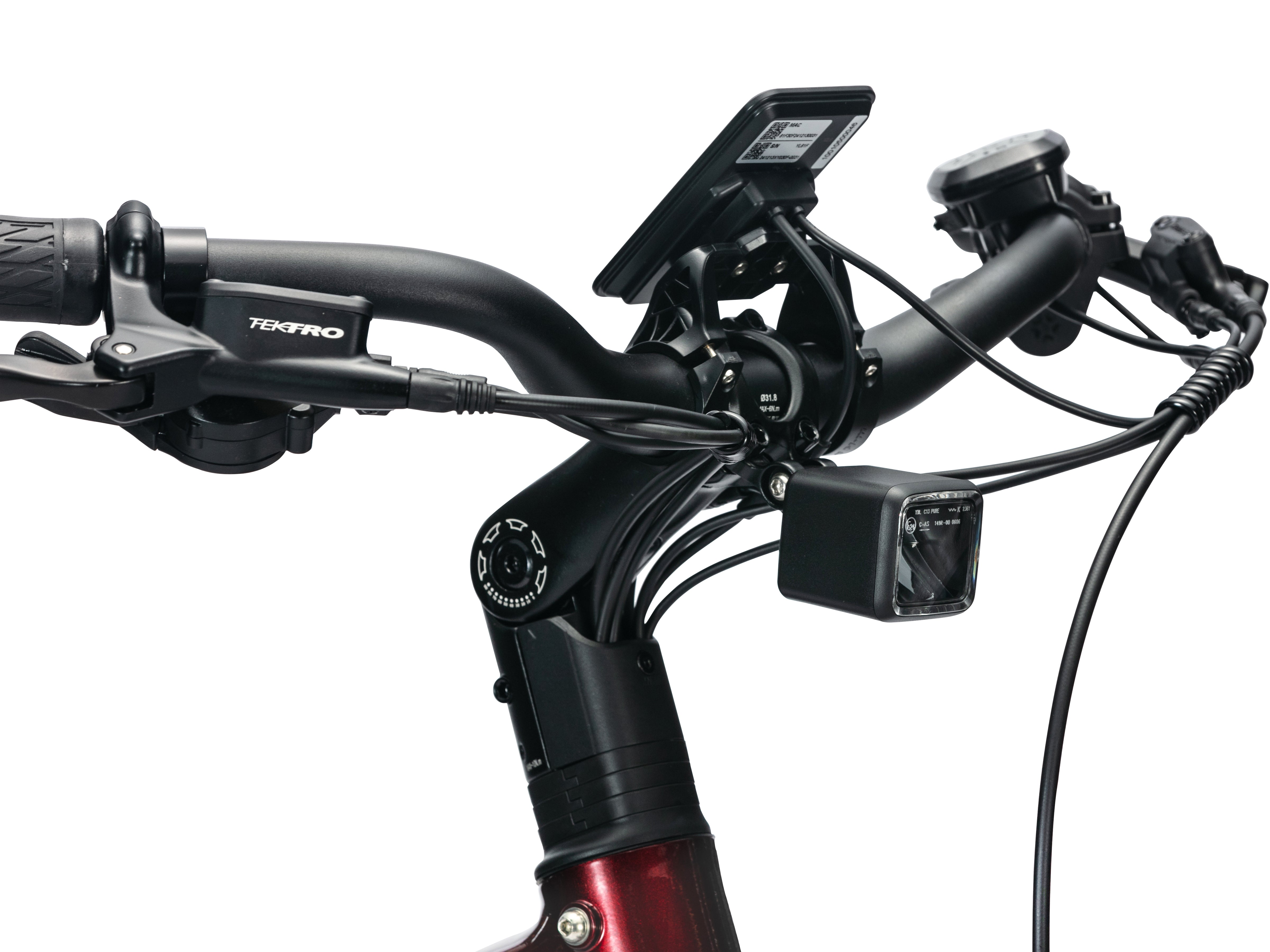

| Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 2A / 100-240V Input / 54.6V Output |

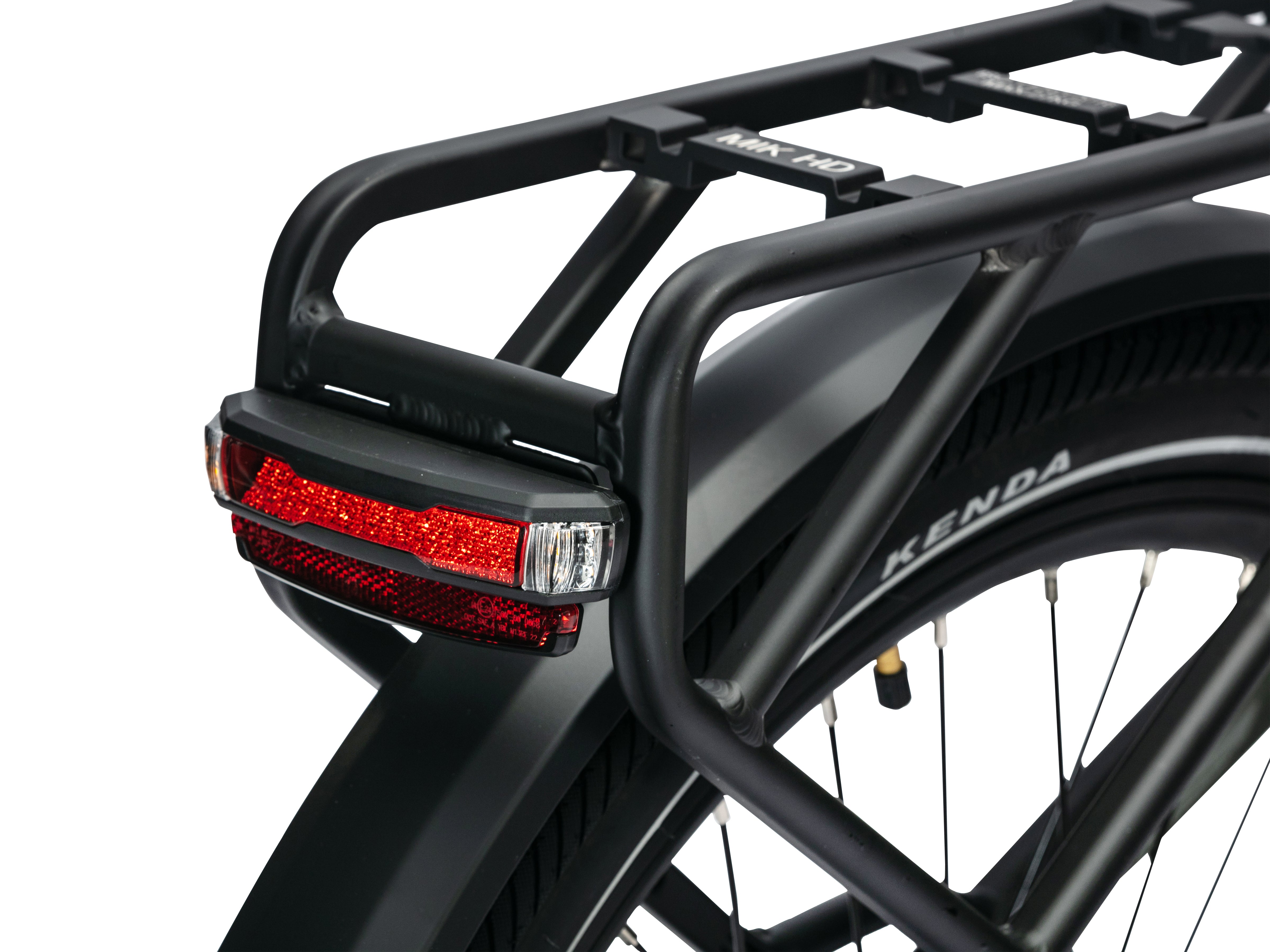

| Lights | 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals |
| Controller | 48Vx18A/12V |
Components

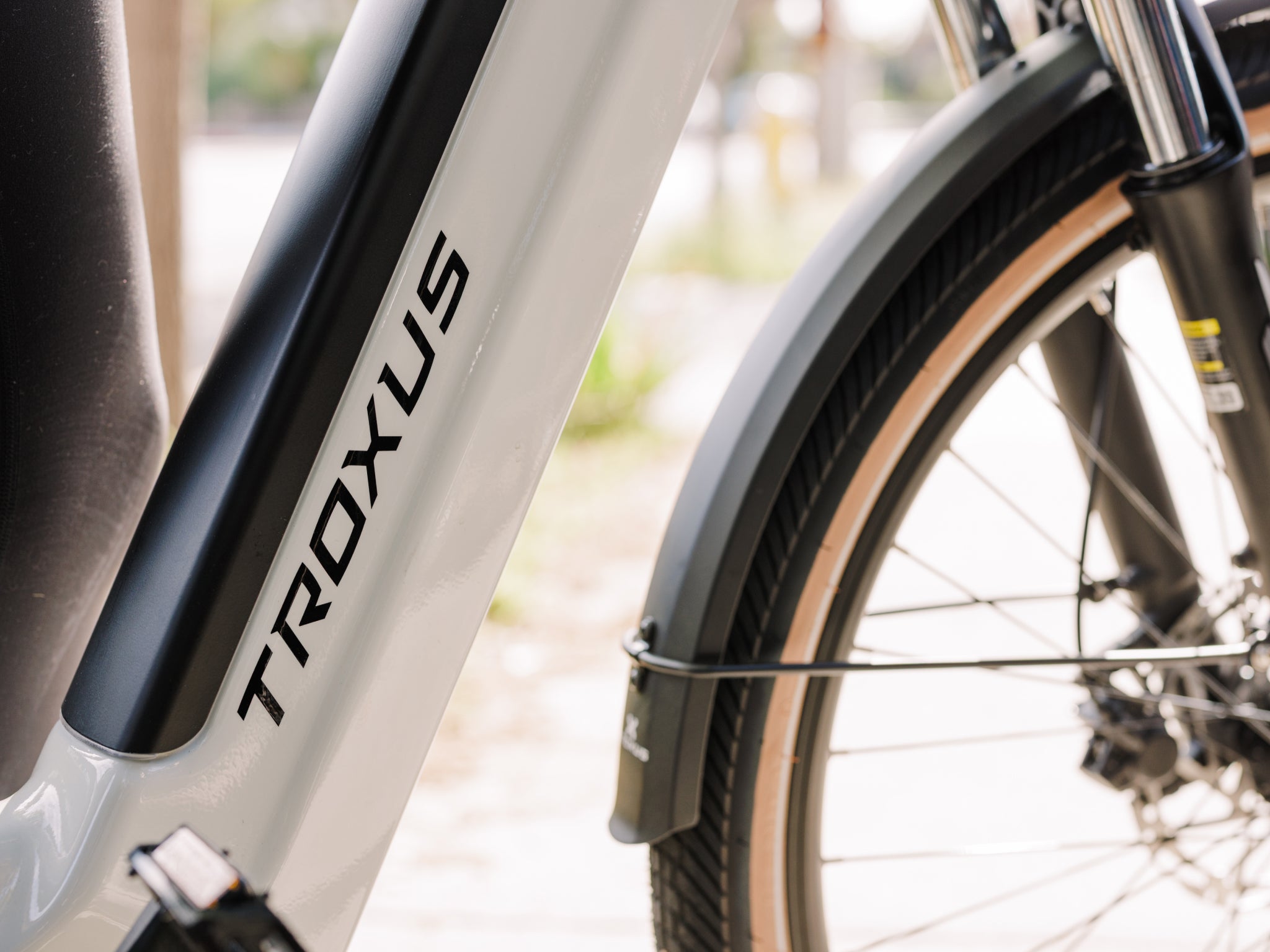

| Frame | Hydroformed Aluminum Frame |
| Fork | Zoom® Front Suspension Fork, 65mm Travel |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm |

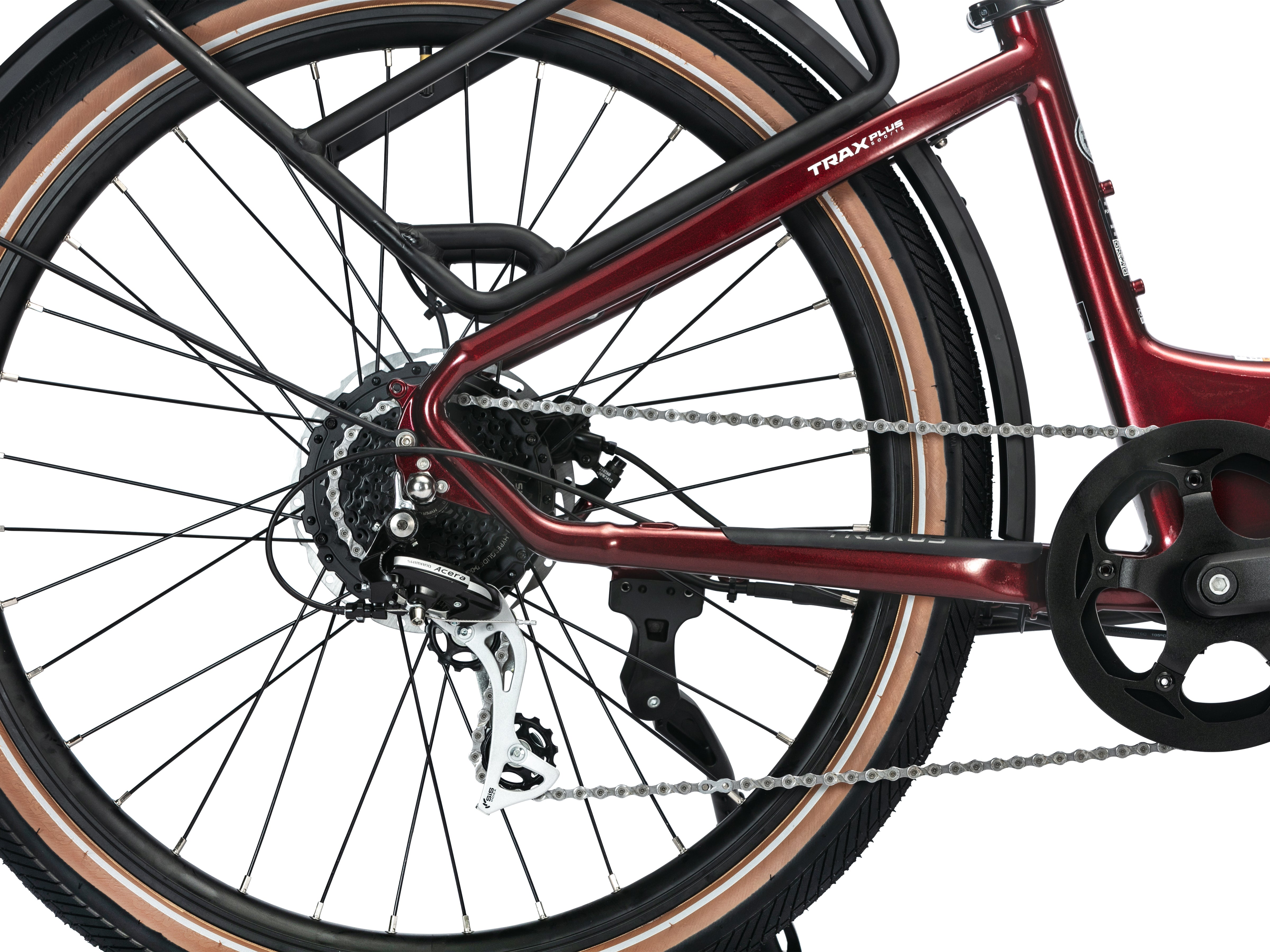

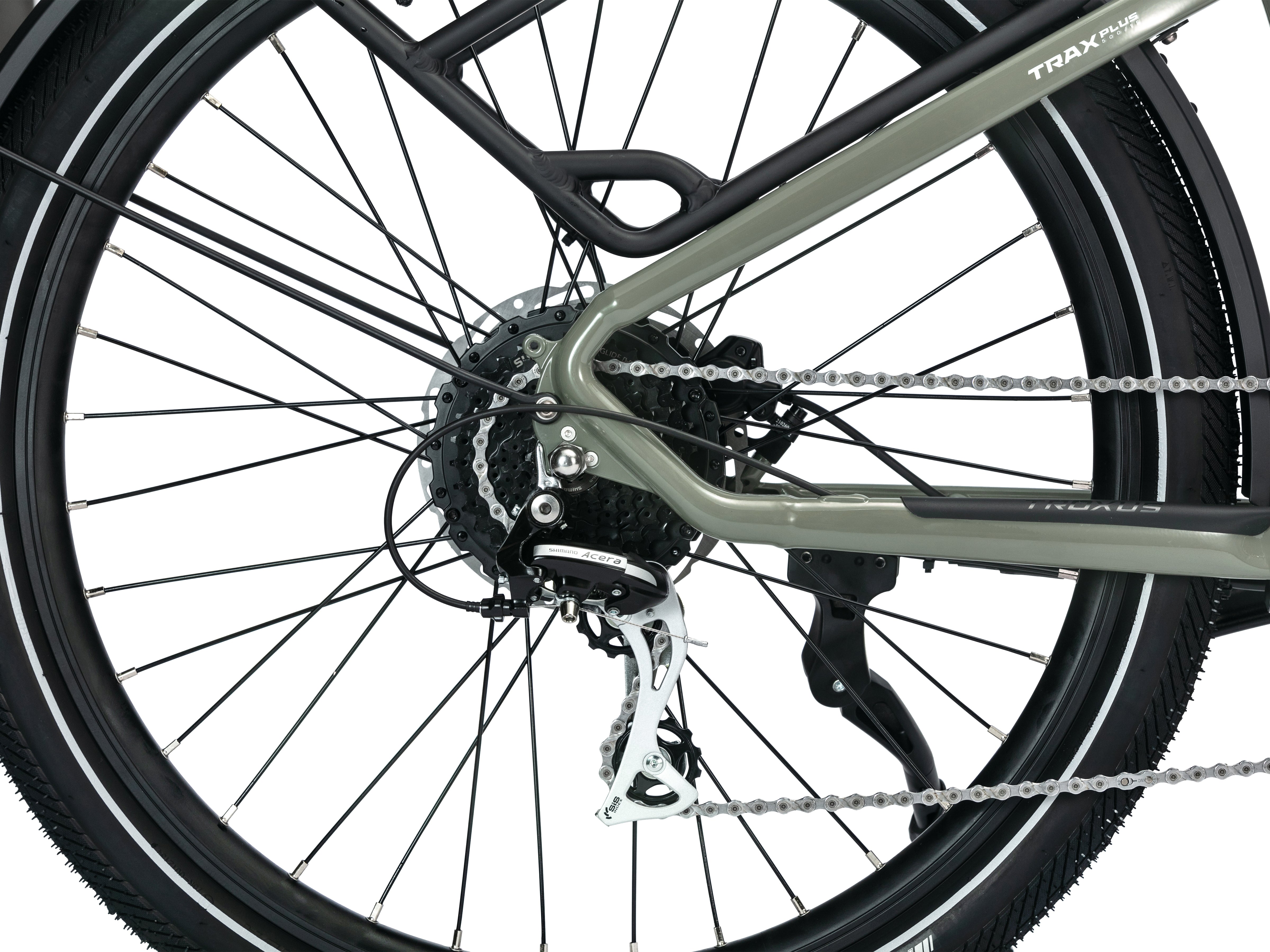

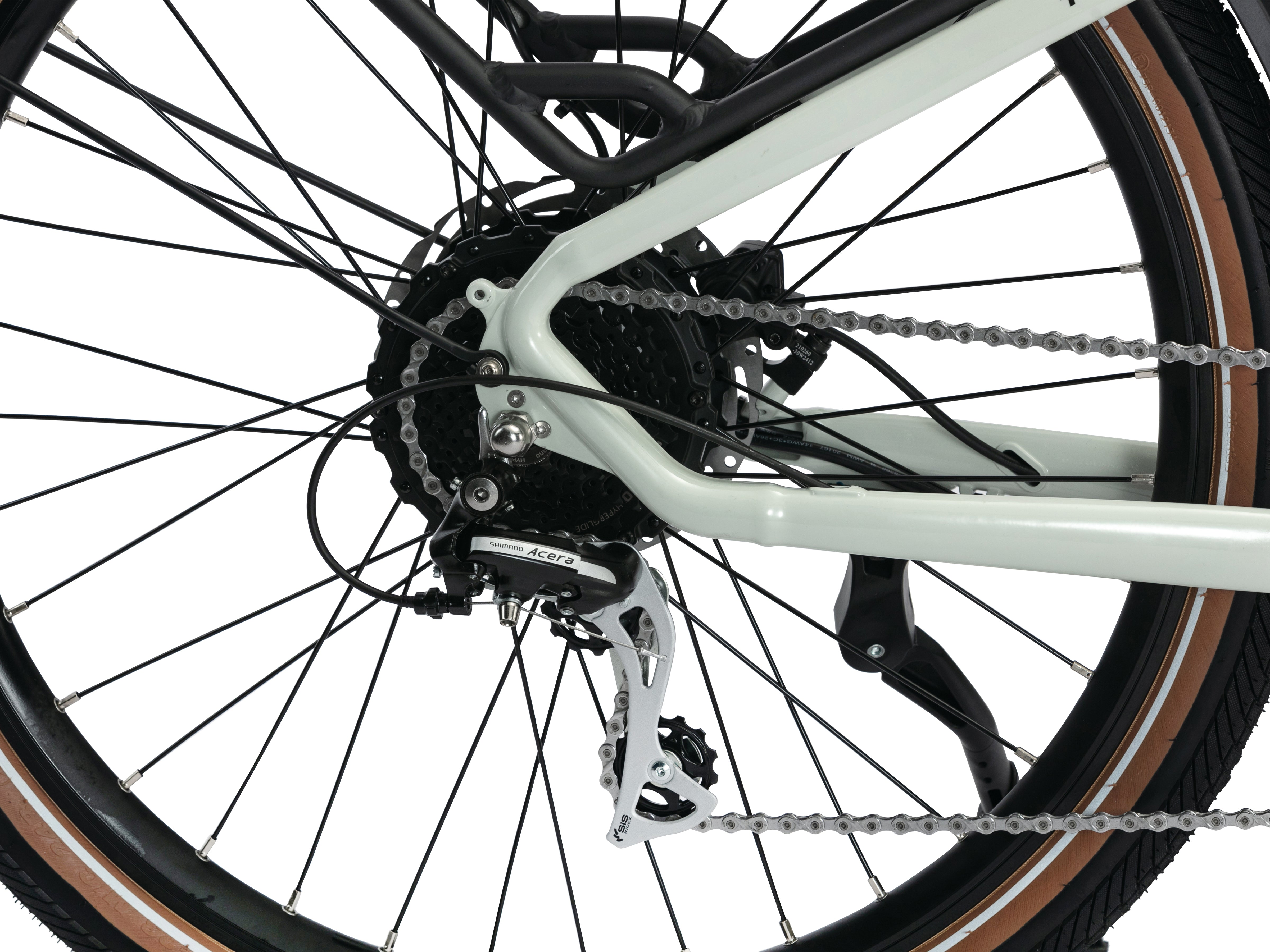

| Rear Derailleur | Shimano® RD-M3020-8, Acera, 8-Speed |
| Cassette | Shimano 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | KENDA® 27.5"x2.2", w/ Reflective Stripes, Puncture-Resistant, E-50 Rated |
| Front Hub | Alloy, 36H, 100mm, 3/8"Axle w/ Nuts |

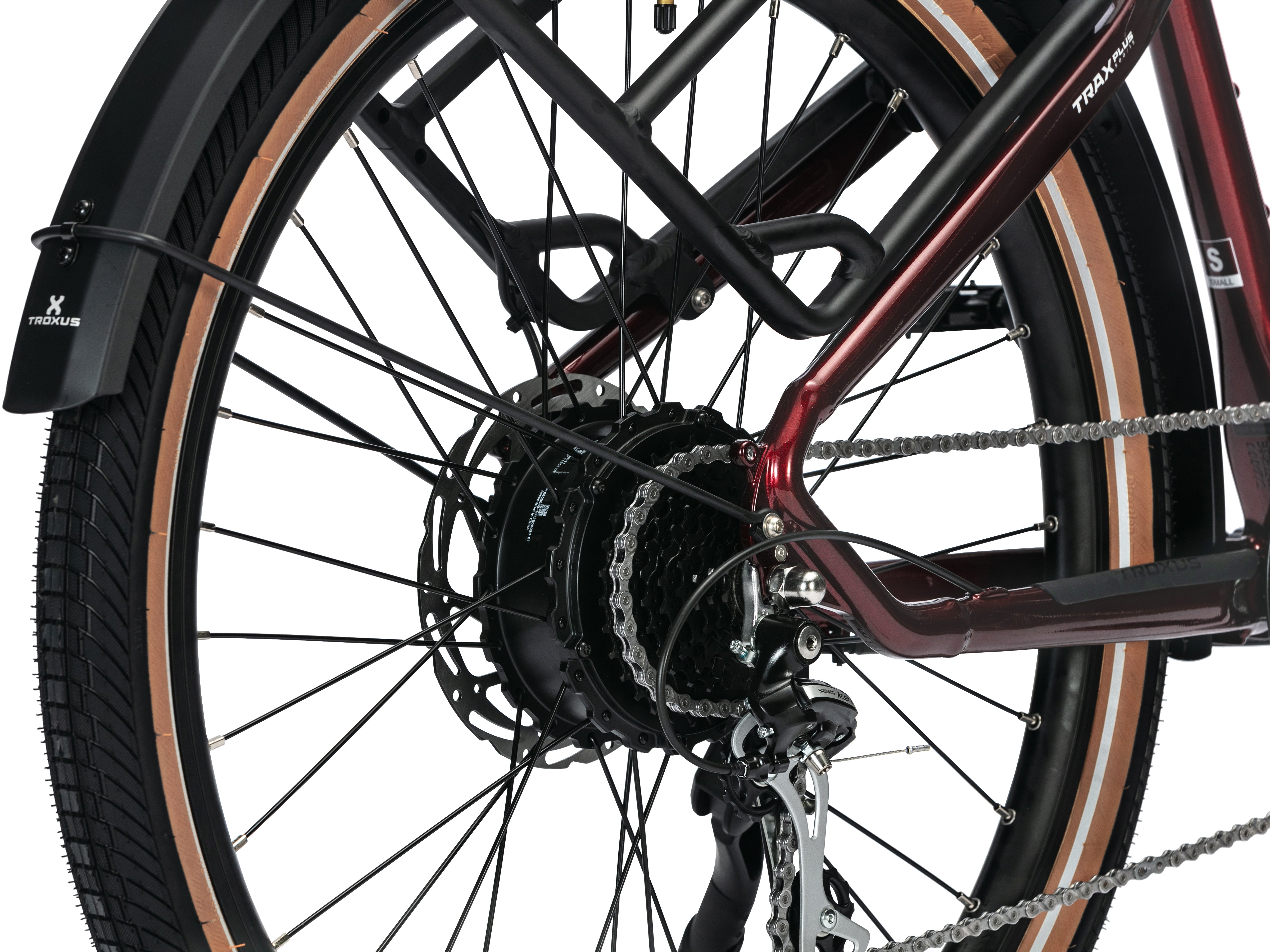

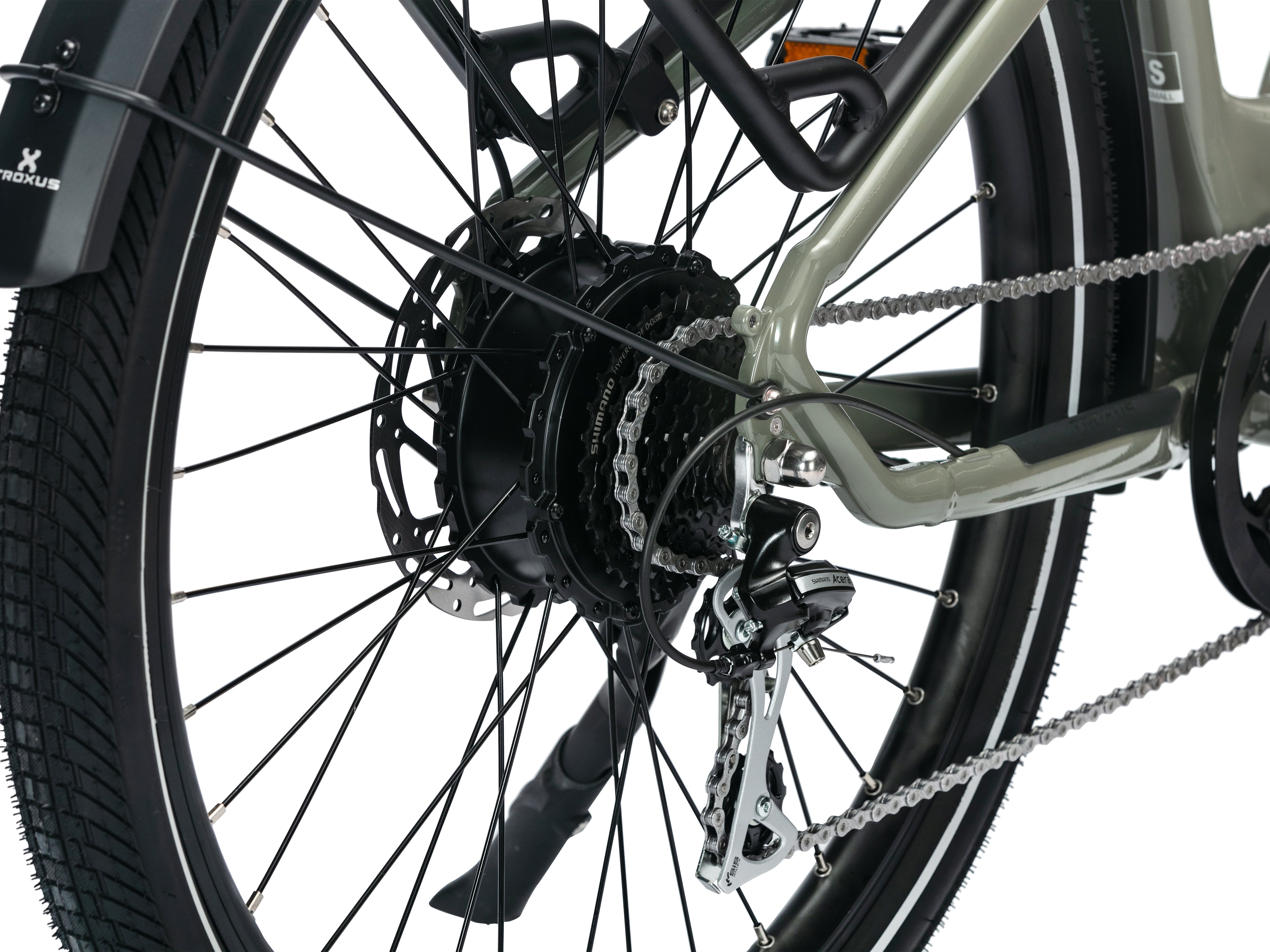

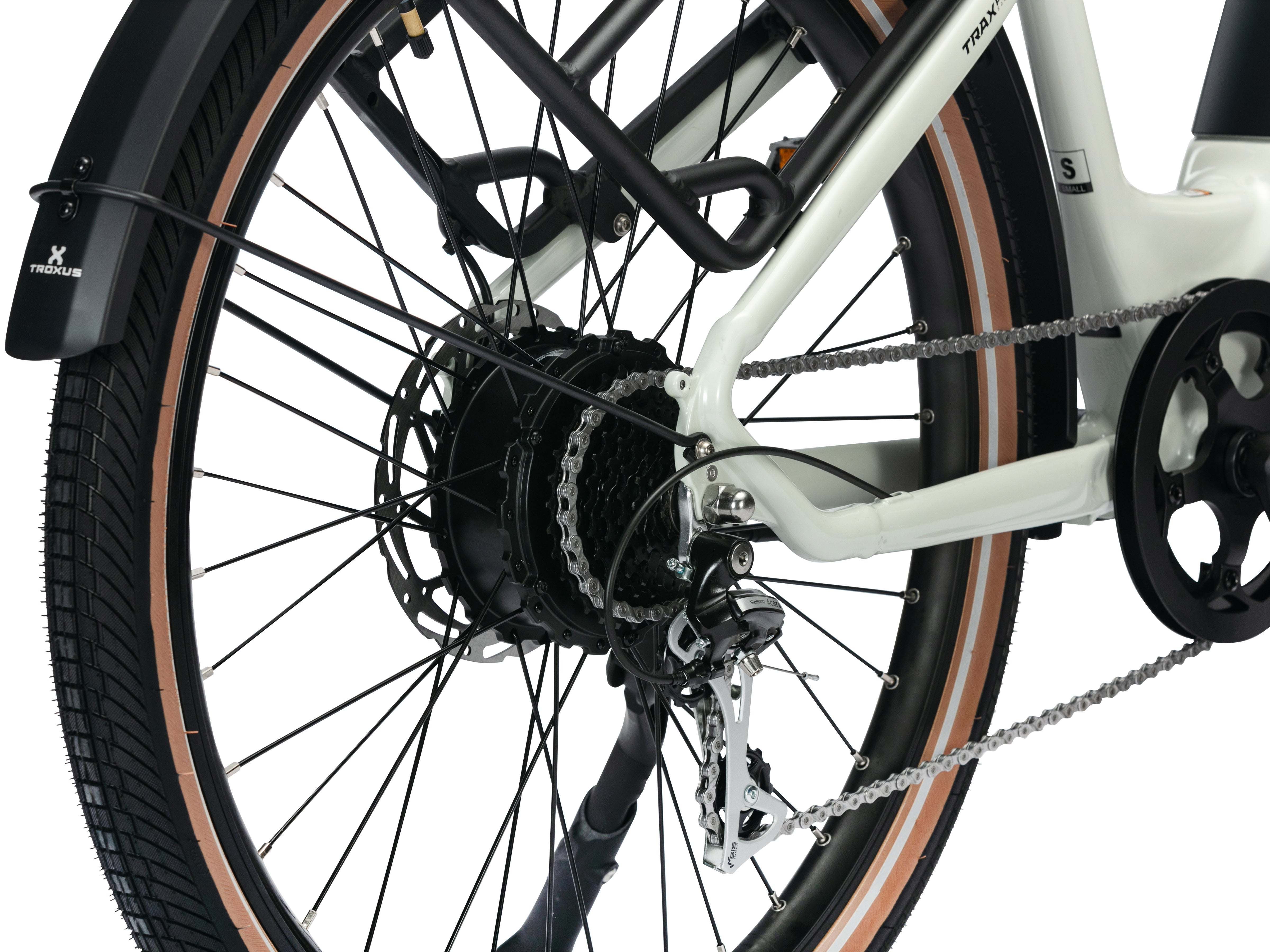

| Rear Hub | 48V 500W/ 28 MPH. 65Nm |
| Rims | Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", w/ Eyelets |
| Spokes | Stainless 13G. Front / 12G. Rear |

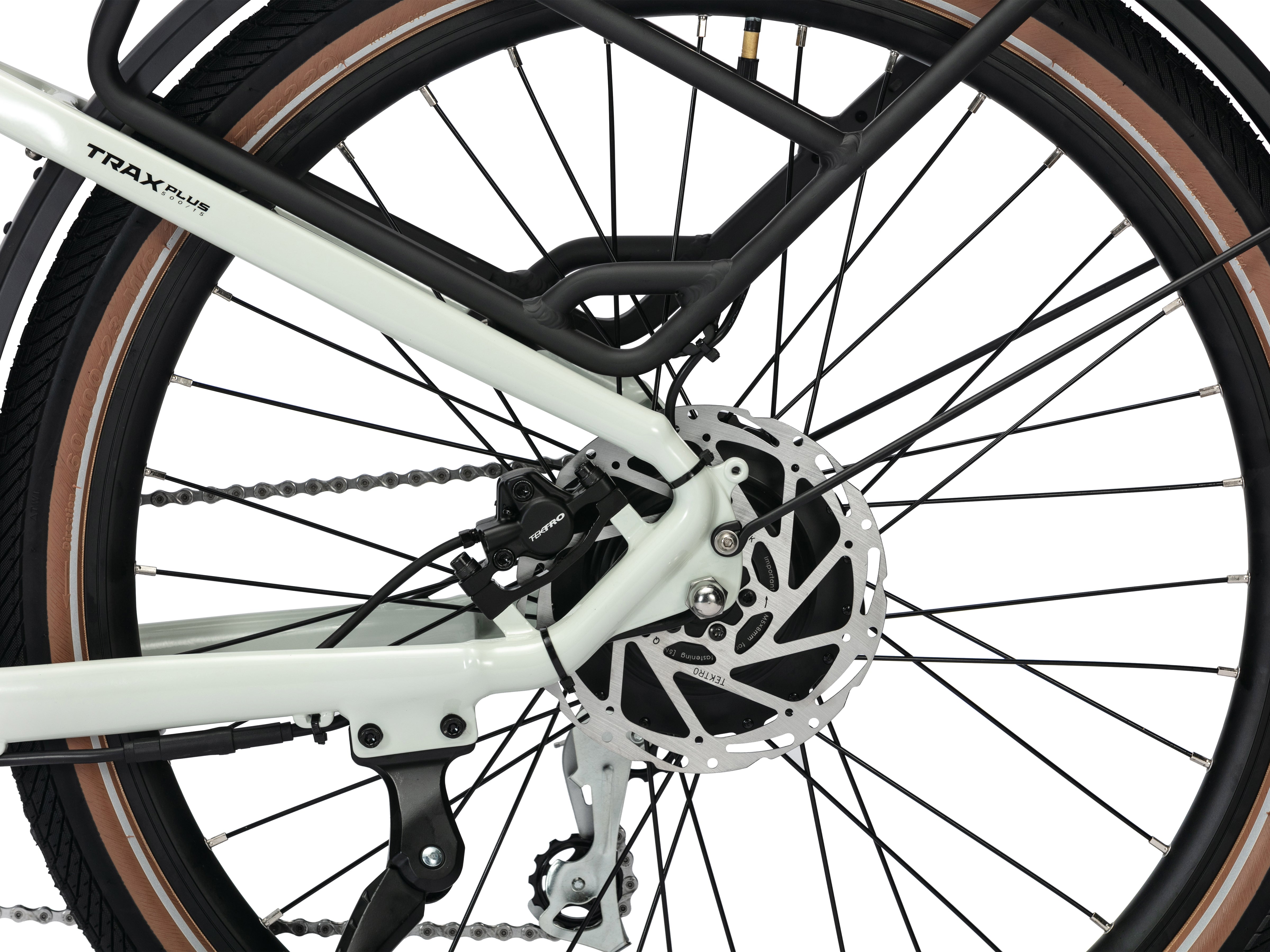

| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | DDK DE-430 Comfort / 200mm Wide |

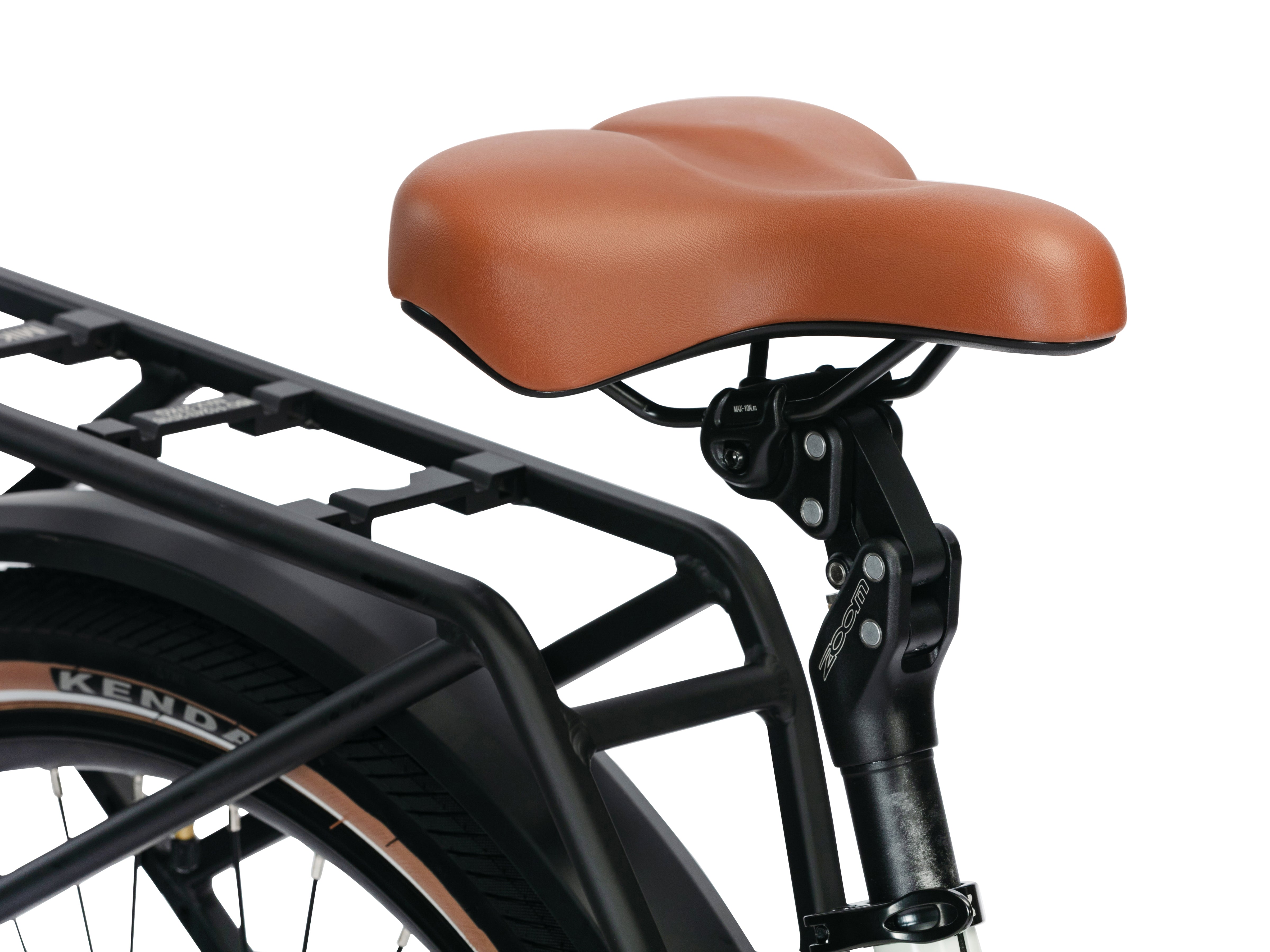

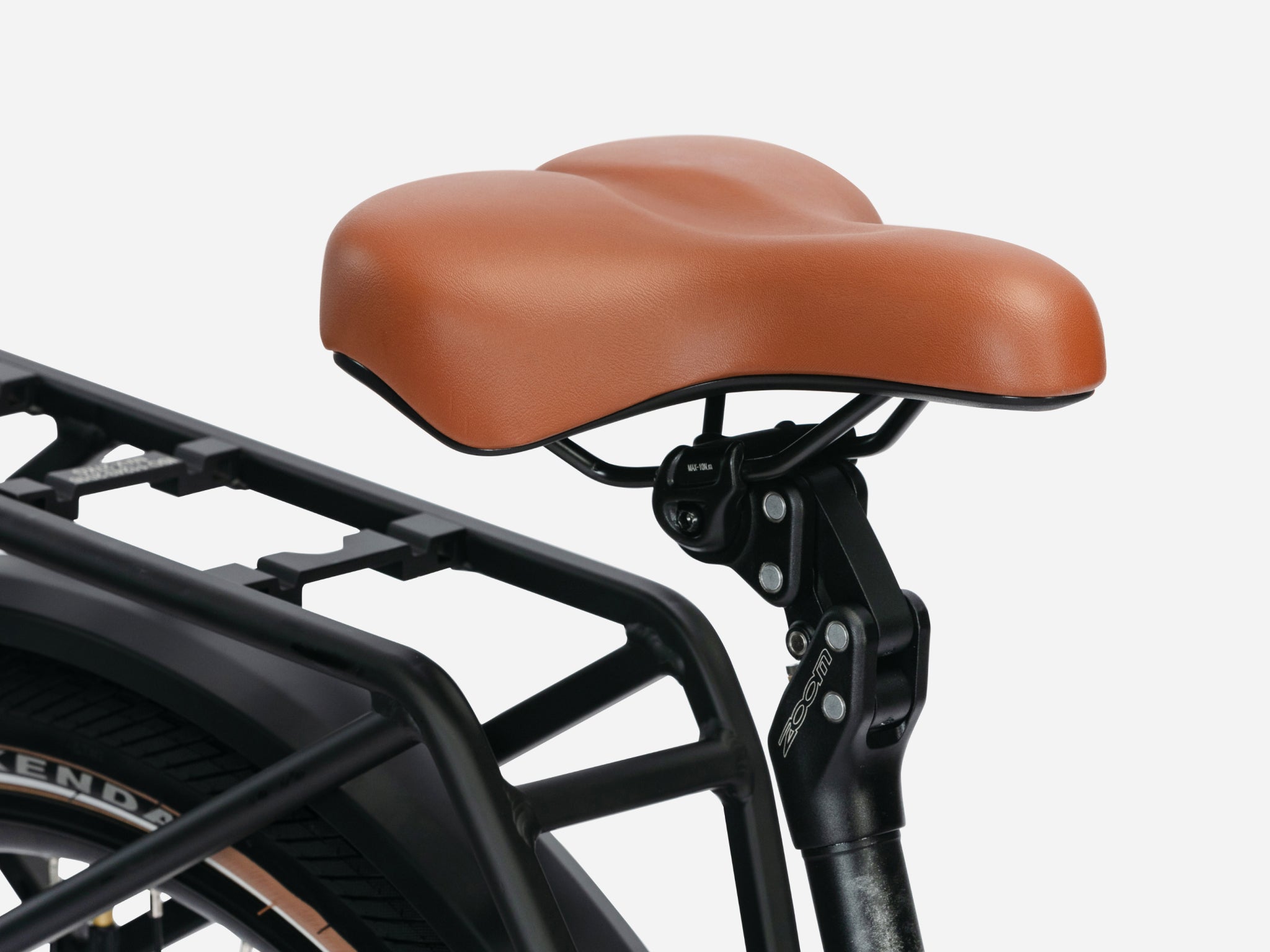

| Saddle | DDK DE-430 Comfort / 200mm Wide |

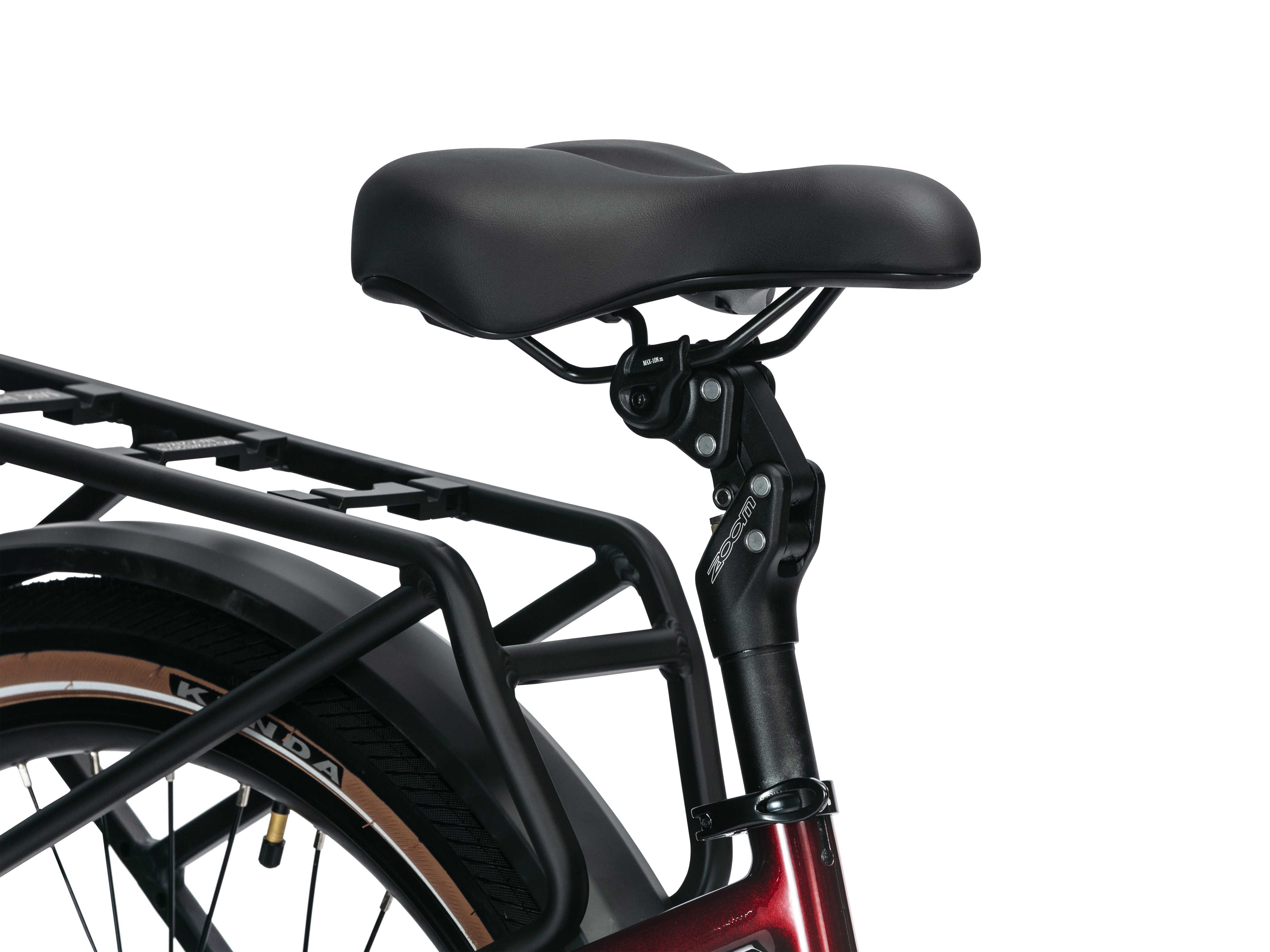

| Seat Post | Troxus w/ Suspension, Alloy 30.9x400mm, Adjustable |
| Seat Post Clamp | Alloy, 35mm w/ Quick Release |
| Stem | Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing |

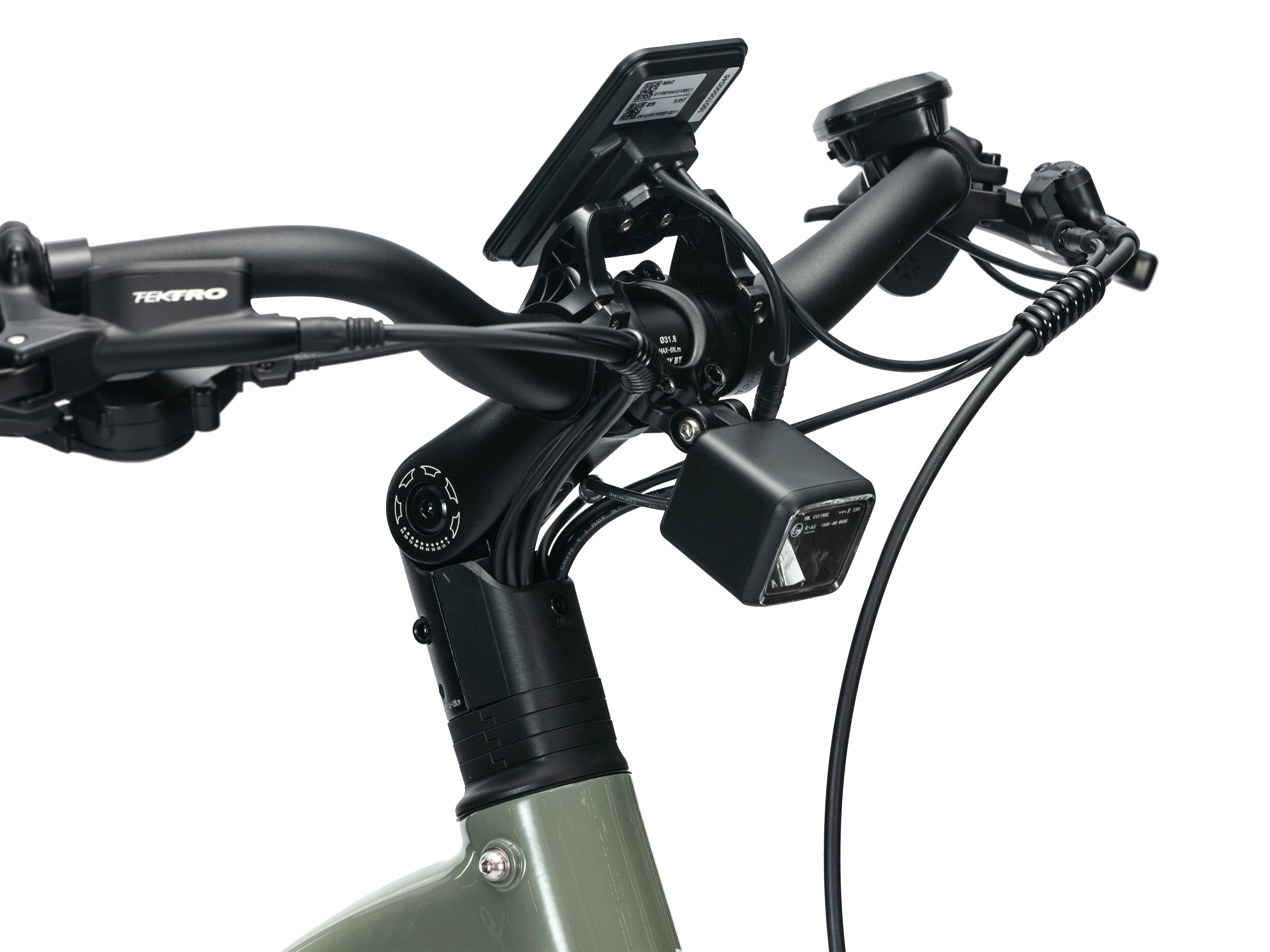

| Handlebar | Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep |
| Grips | Ergonomic Comfort |
| Pedals | Alloy, 9/16"axles, w/ BS reflectors |
| Headset | Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing |
| Rear Shocks | N/A |

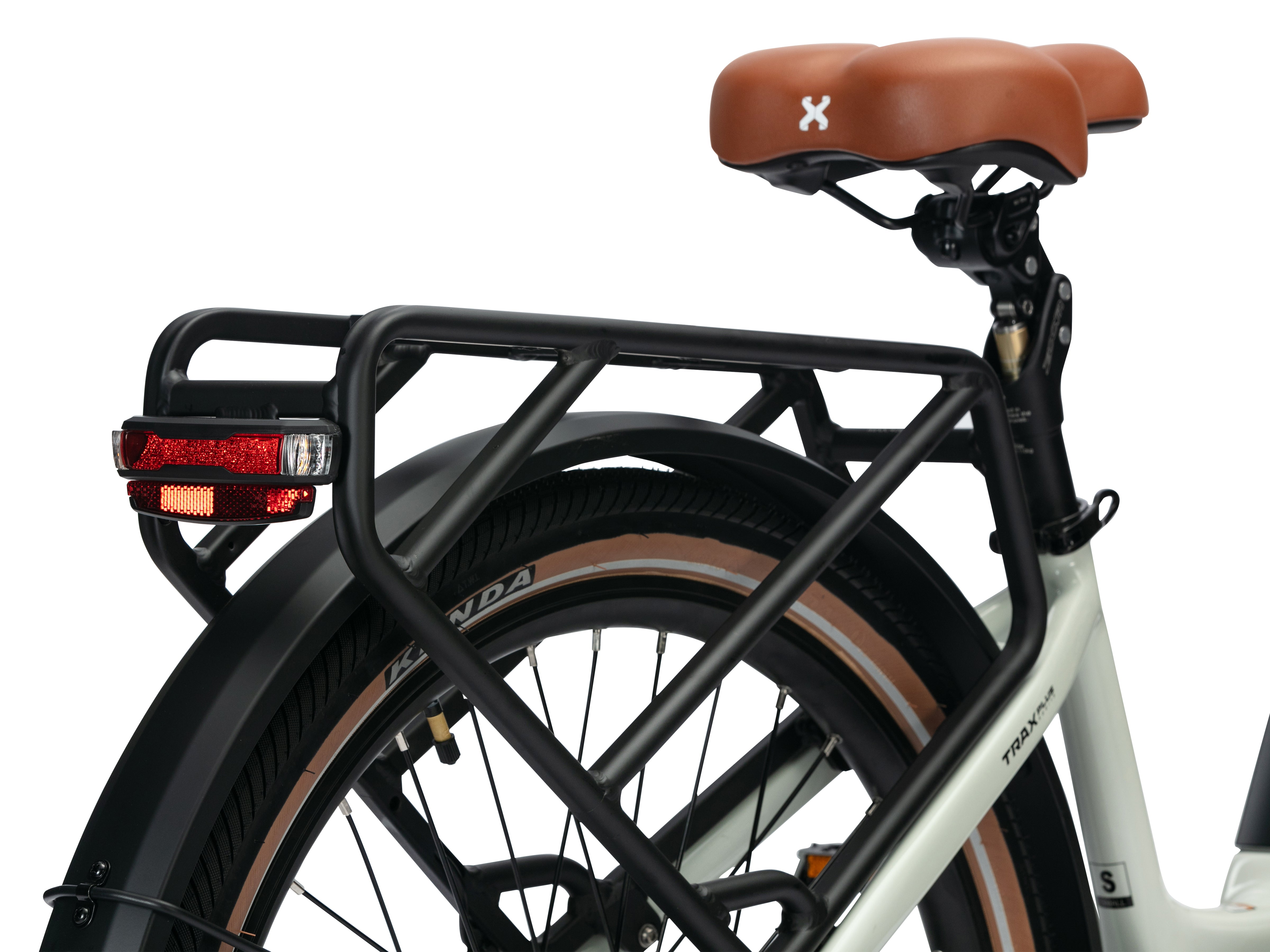

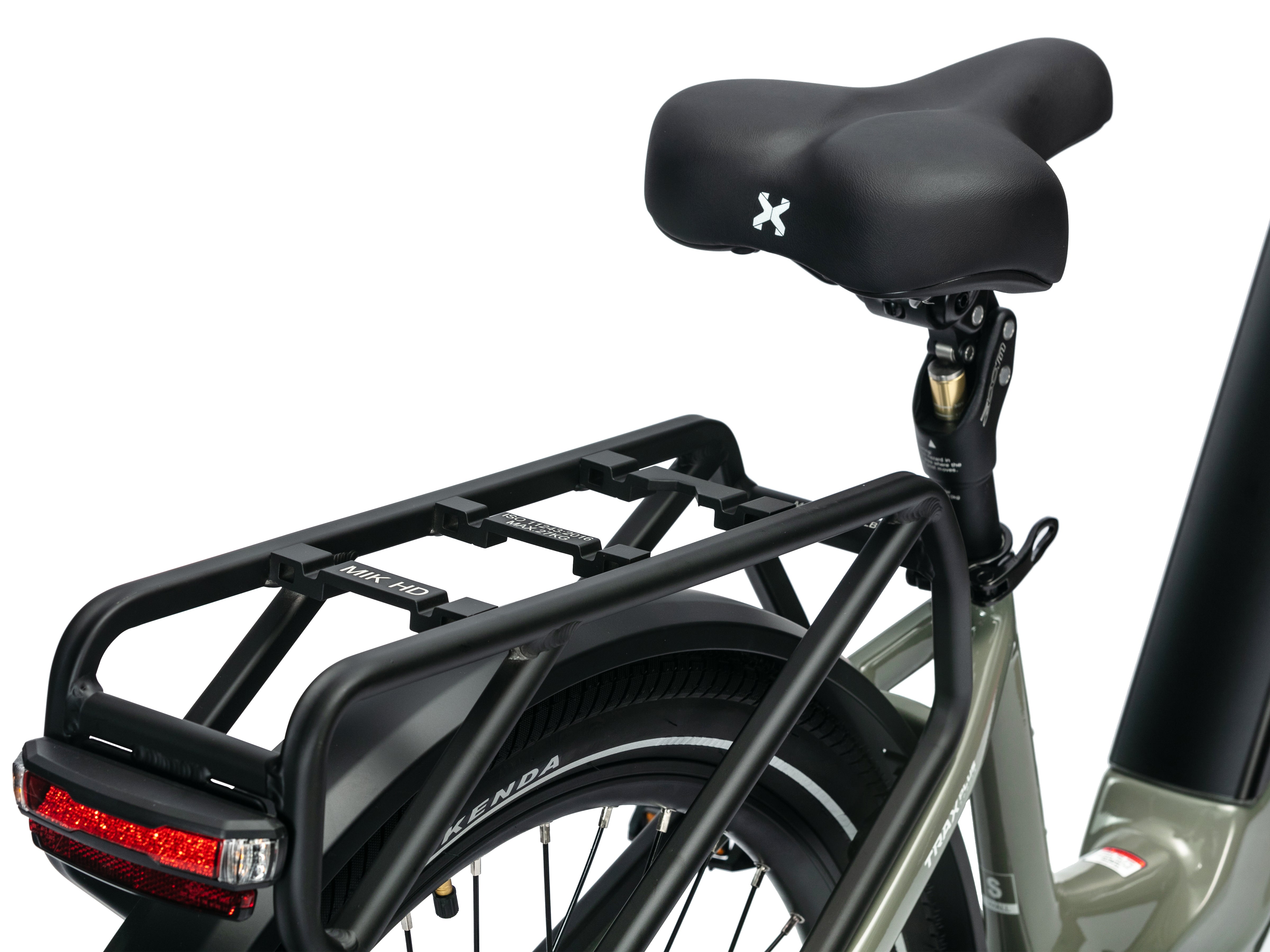

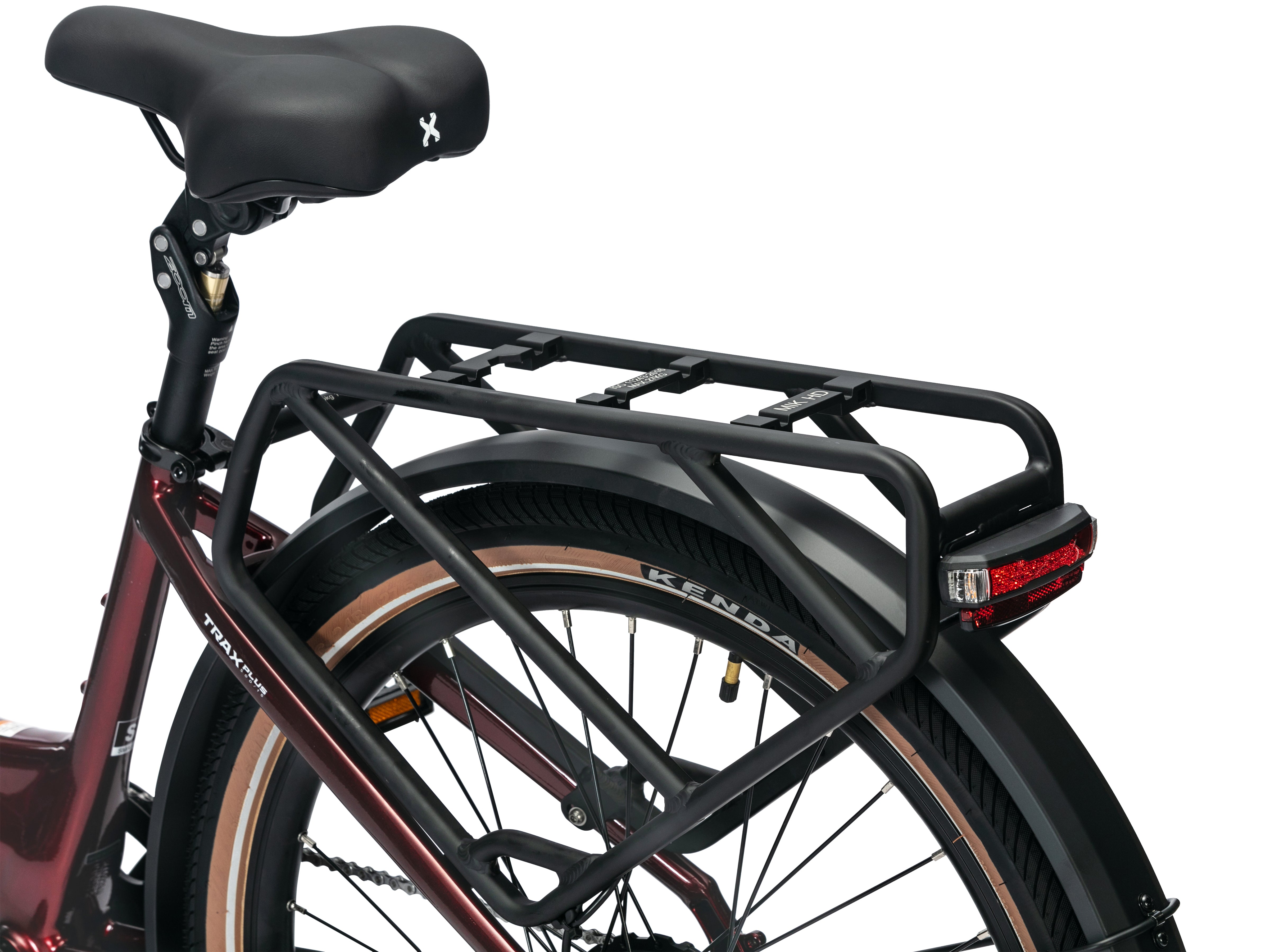

| Rack | Alloy Rear Model/ MIK-Compatible Rear Rack |
| Fender | Alloy, 27.5", Full coverage |
| Kickstand | Adjustable Side Kickstand |
