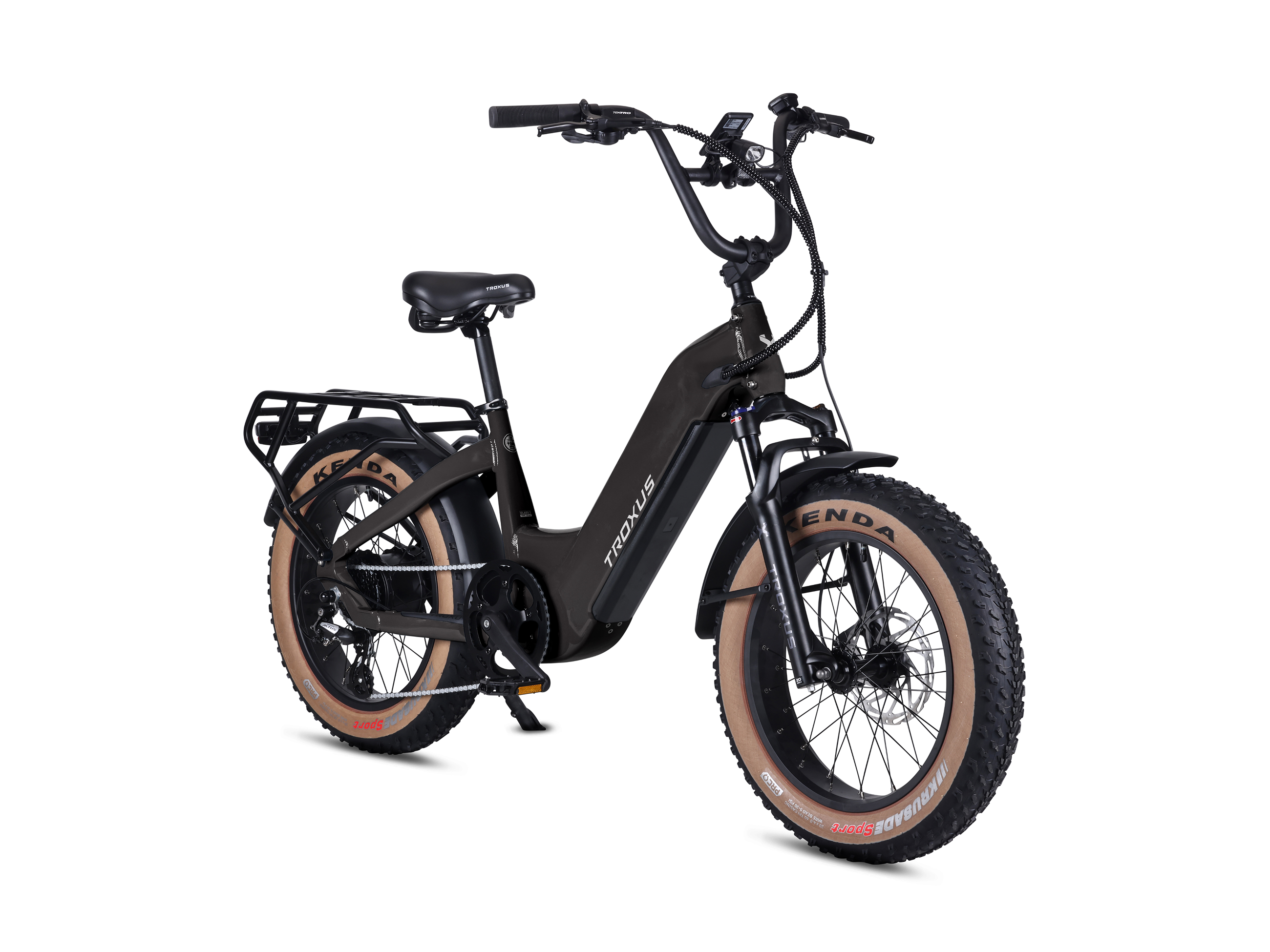

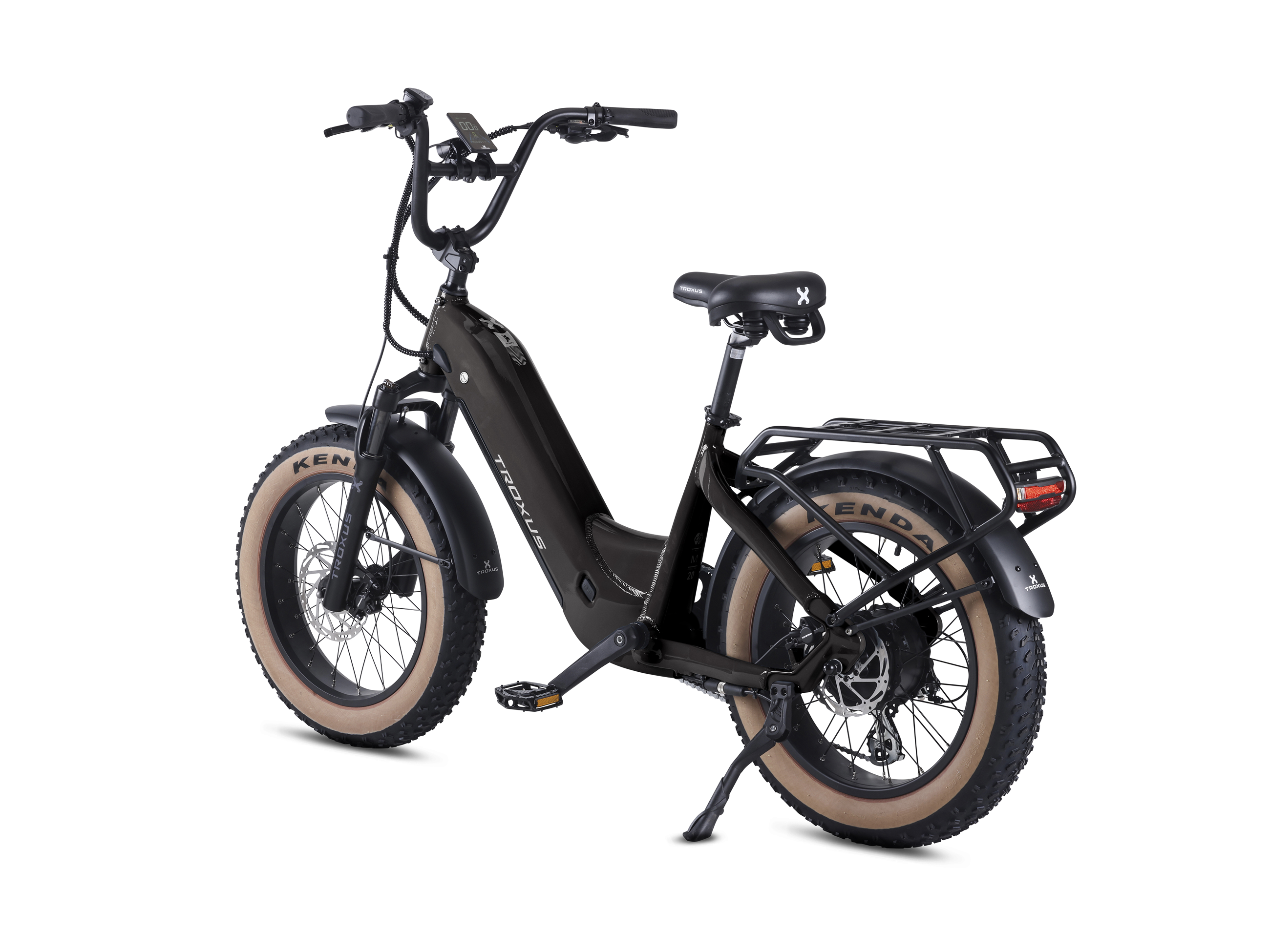

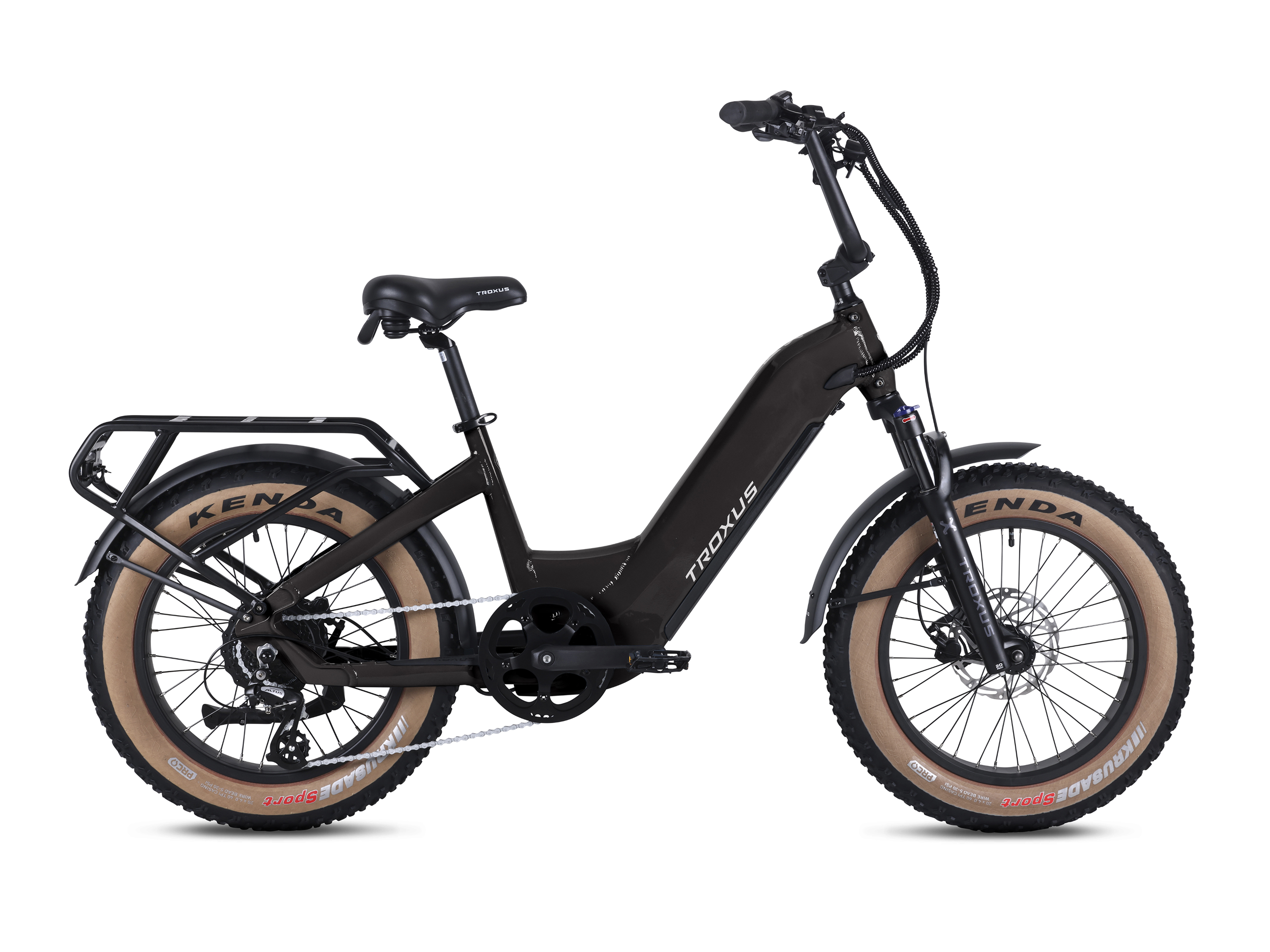

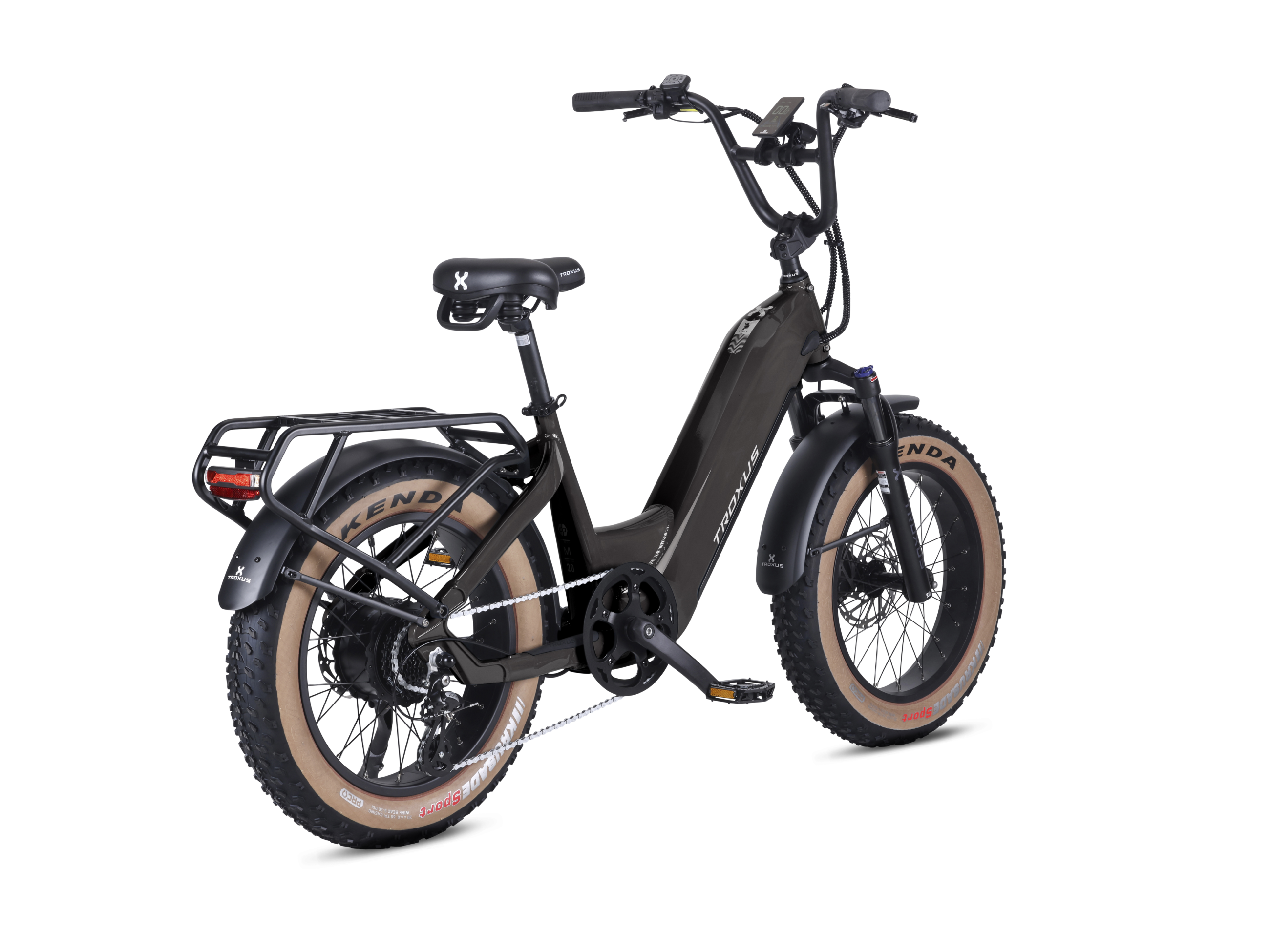

Lynx 20'' Fat Tire E-bike

$2,199.00

Availability : In Stock - Ready to ShipIn StockOut of stock

COLOR: BLACK

  • BLACK
  • RED

Notify me when this product is available:

QUESTIONS
Send us an email and we will get back to you ASAP: support@troxusmobility.com

troxus ebike
troxus ebike
750W Bafang Motor
Powerful Bafang 750W Motor
The powerful Bafang 750W motor is strong enough to handle every section of the trails, gives you the stable, smooth intuitive power for supporting every pedal stroke along the way. Solidly supports speed up to 28 mph with pedal assist mode. The throttle response quickly, which makes the rider enjoy the speed and freedom better.
troxus
Affiliates
SAMSUNG 48V 20A Lithium-ion Battery
960Wh capacity battery gives you up to 50+ miles of riding on a single charge. The BMS battery management system can systematically manage discharge and charge to prolong battery life. Strict battery testing items ensure that the battery can work normally in extreme environments.
Thermal Test
Impact Test
Overcharge Test
Forced Discharge Test
Shock Test
Vibration Test
Affiliates
Affiliates
Kenda All-terrain Fat Tires reach compliant
Troxus Lynx specifically designed E-bike Fat Tires are made of extra-elastic rubber with low pressure and great shock and vibration absorbency which provide great support and good drainage. No matter in the Rocky Mountains or through the soft litter of Yellowstone Park, no matter in which weather, you can ride without hesitation.
troxus
26*4.0 Kenda All-Terrain Fat Tires
Tektro Hydraulic Disc Brake
Shimano 8 Speed shifting operation
Smooth and light action shifting for stress free long riding. Ergonomic mian lever shape for natural finger movement. The 8 gears for the riders to choose the more precise gear that suits them.
Tektro Hydraulic Disc Brake
High-end Quality Components

20" Kenda Fat Tires

The Kenda-tire liners are made from a layer of aramid and ceramic particles built-in under the tread area and along the sidewalls. This material forms a defense line that can provide effective protection against punctures from glass and other small materials. Not only are they durable but they look great too!

Aluminum Alloy Frame

Lightweight and durable 6061 Aluminum frame.

SHIMANO 8 Speed Gear Shift System

The Shimano 8-speed freewheel means you can shift to larger gears for uphill riding and smaller gears for higher speeds. Combined with Pedal Assist, you can adjust the right speed for your ride.

Integrated Equipment

The Troxus Electric Bike is equipped with a rear rack therefore the bike can carry your cargo easily. What’s more, you can install a child seat and enjoy riding with your children.

Smart Display

With Explorer Smart Display You can easily check your stats like Speed, Battery, Assistance level, and Trip Distance. The backlit LCD display lets you check the info at a glance so you can keep your eyes on the road.

Samsung Battery

Powerful Motor needs a Great Battery and the Samsung 48V/20Ah Battery is ready to deliver. It provides an estimated range of up to 60+ miles. This battery is also easily removable and very portable - you can take it with you on brakes and thanks to its USB-Port it can be used to charge your phone and accessories.

Best Fit Height For : 5’11”-6’4”
Best Fit Height For : 5’11”-6’4”
SPECIFICATION
MOTOR
48V 750W Hub motor, Bafang
THROTTLE
Throttle on demand-throttle from a complete stop
DISPLAY
L401 LCD
SPEED
Up to 20mph on Throttle. Can be adjusted to up to 28MPH on Pedal Assist
BATTERY
48V/20Ah, Lithium, Samsung
SENSORS
Speed sensor
PEDAL ASSIST
5 Levels
CHARGER
54.6V 3A
RANGE
30-50 Miles
FRAME
6061 Aluminium alloy
WEIGHT
76.6LB
PEDALS
9/16" Alloy Platform
FORK
Aluminum Alloy, Suspension Fork
WEIGHT LIMIT
275LB
KICKSTAND
Included, Rear Mount
BOTTOM BRACKET
Square Taper,Sealed
CRANKSET
165mm w/46T
REAR DERAILLEUR
Shimano 7 speed
CASSETTE
14-28T, 7 Speed Cassette
SHIFT LEVER
7 Speed
BRAKES
Tektro M280 Mechanical disc brake
CHAIN
KMC Z7
RIM
Front: Single Wall Aluminum 36h
Rear: Double Wall Aluminum 36h
SPOKES
Front wheel: black stainless 13 Gauge
Rear wheel: black stainless 12 Gauge
TUBES
Butyl Rubber
HUBS
36H Disc Thru-axle Fronts, Nutted Rear
TIRES
KENDA 20"*4.0
SADDLE
Troxus
SEATPOST
Forged Alloy, 30.9*350mm, 2 Bolt Clamp
STEM
Threadless, 35mm,30 Degree rise
SEAT CLAMP
Quick release
HANDLEBARS
Aluminum 31.8mm, 620mm
HEADSET
GINEYEA Sealed Bearing Headset
GRIPS
Ergonomic Comfort
GEOMETRY
geometry
Frame Size Standard (mm)
Top Tube Length 645
Reach 450
Head Tube Length 160
Standover Height 590
Wheelbase 1160
Min Saddle Height 700
Max Saddle Height 850
